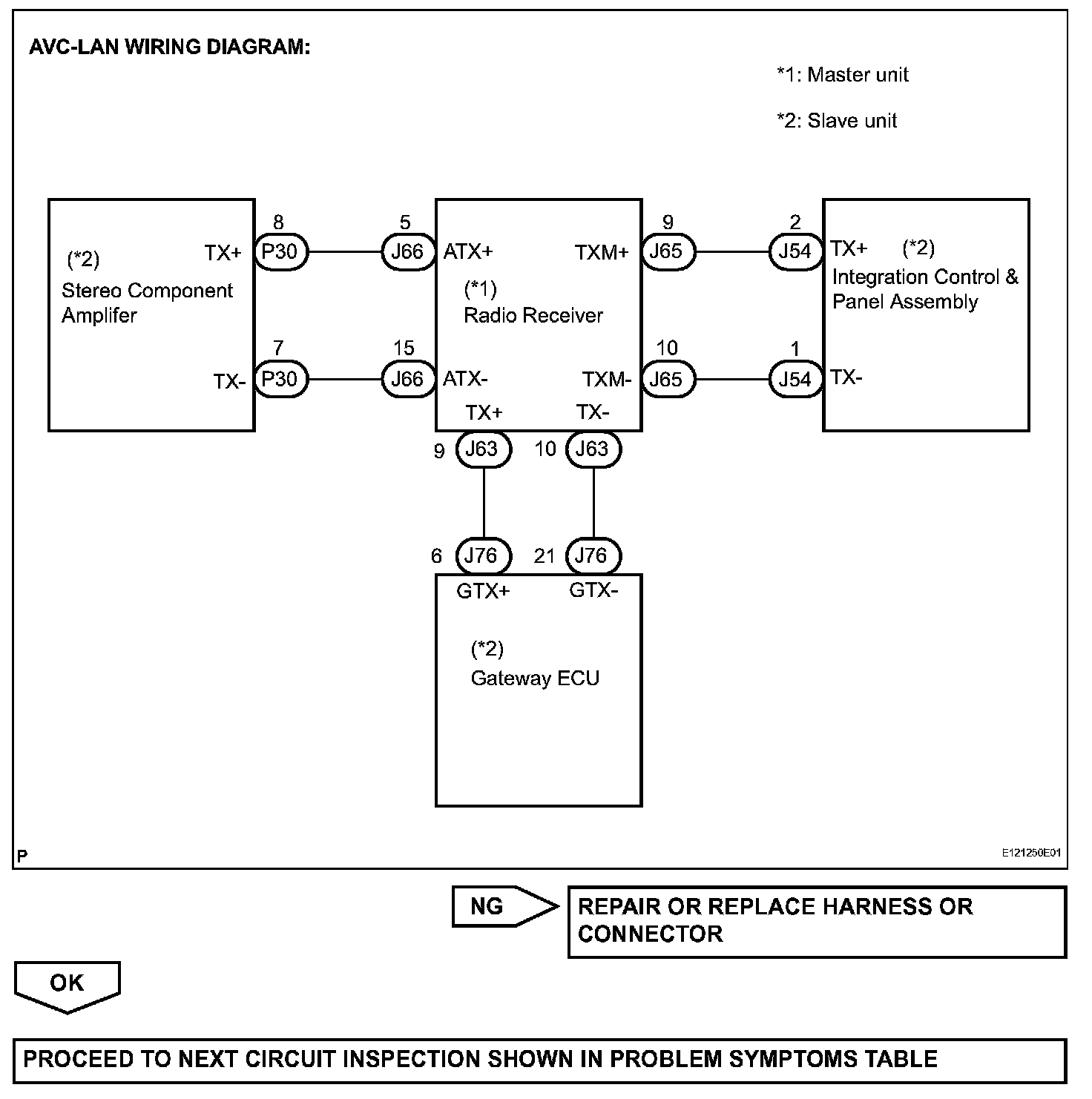

AVC-LAN Circuit

AVC-LAN Circuit

DESCRIPTION

Each unit of the audio system connected to the AVC- LAN (communication bus) transfers the signal of each switch by communication.
When a short to +B or short to ground occurs in this AVC-LAN, the audio system will not function normally as the communication is discontinued.
