Radio/Stereo: Testing and Inspection

Radio Receiver Power Source Circuit

DESCRIPTION

This circuit provides power to the radio receiver.

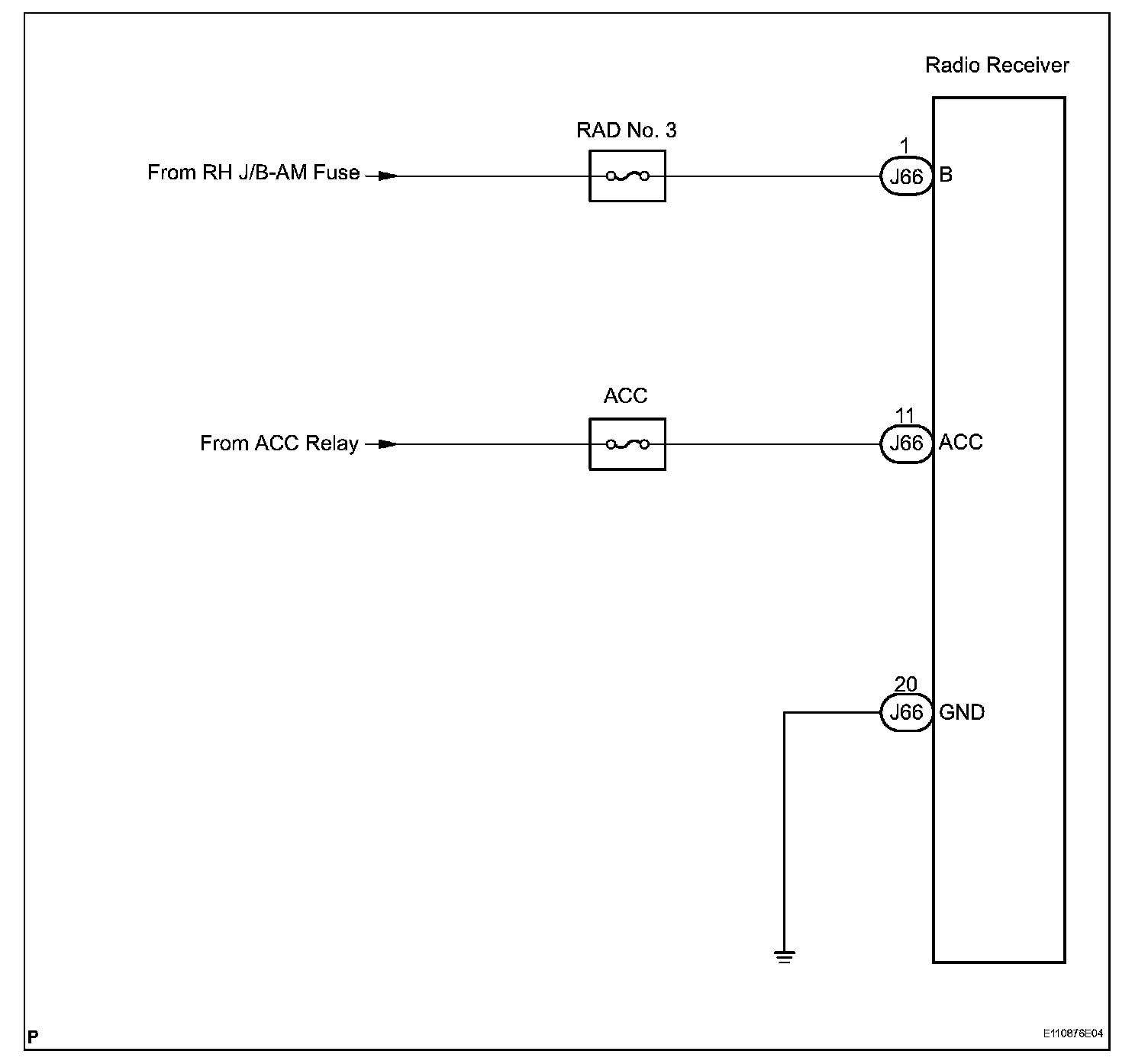

Wiring Diagram:

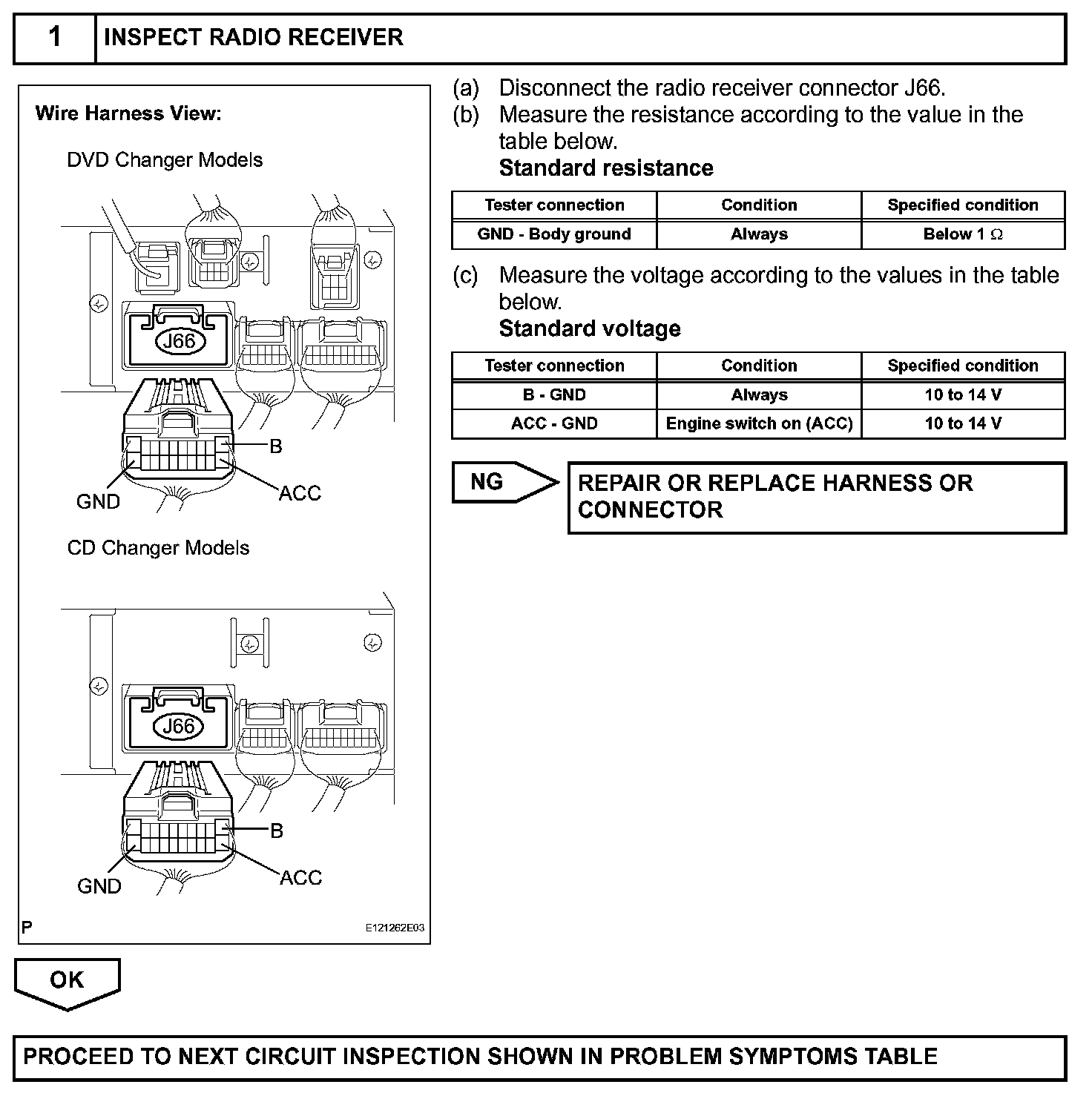

Step 1:




INSPECTION PROCEDURE
