Home >> Lexus >> 2006 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Radio Receiver Communication Error

Radio Receiver Communication Error

Radio Receiver Communication Error

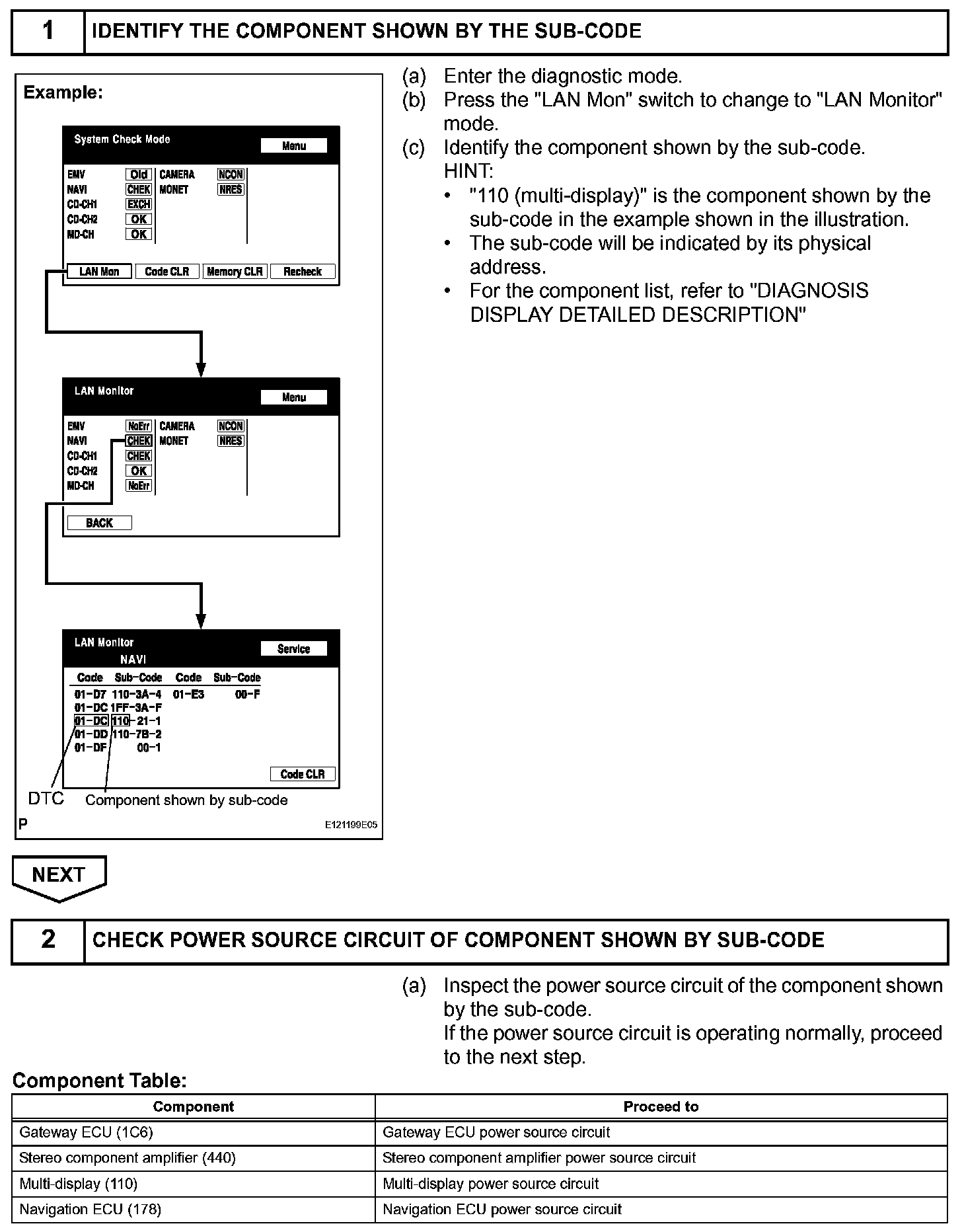

Step 1-2:

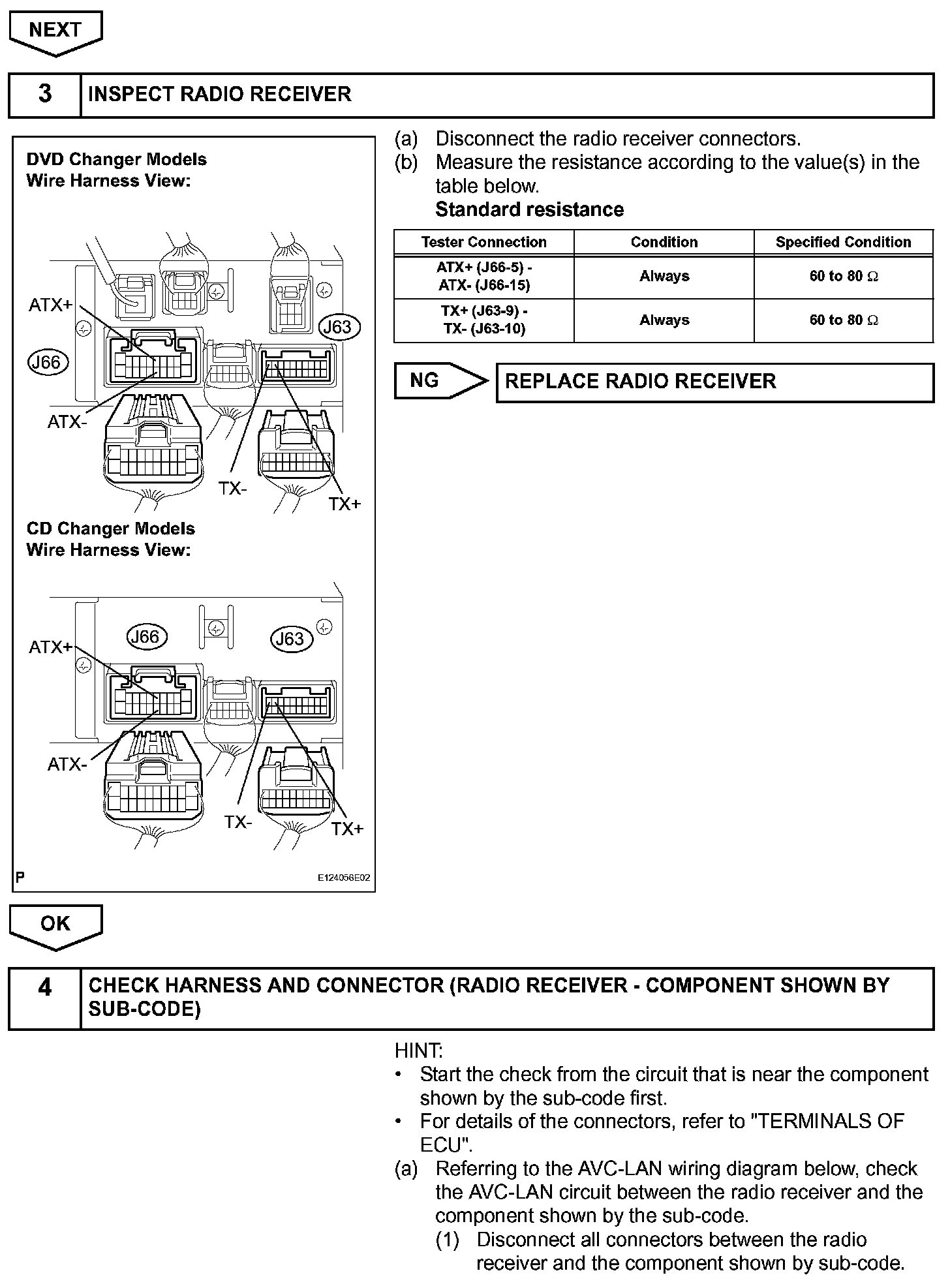

Step 2(continued)-4:




Step 4(continued)-5:

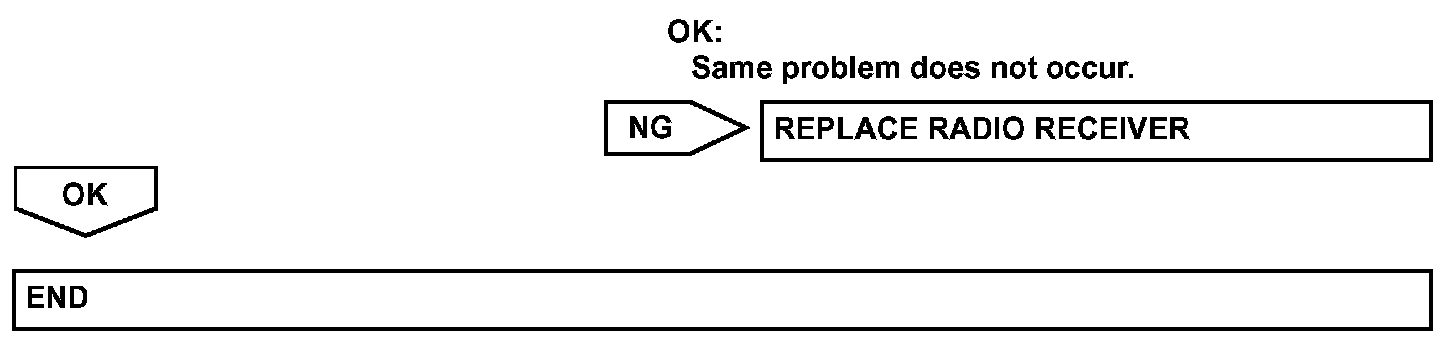

Step 5(continued):




INSPECTION PROCEDURE
