Pinout Values and Diagnostic Parameters

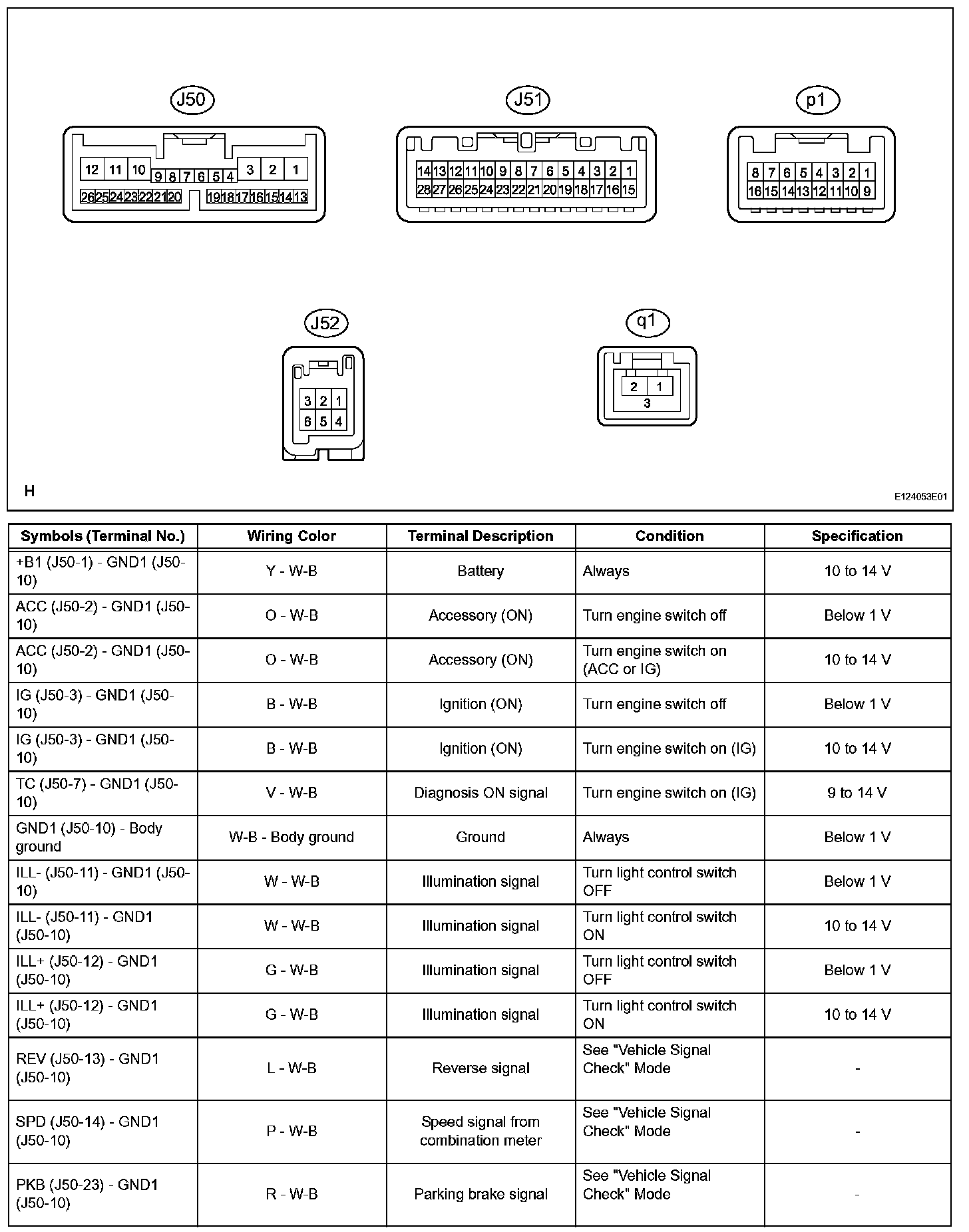

TERMINALS OF ECUTerminals Of Control Module/Pinouts-Multi-Display (Part 1):
Terminals Of Control Module/Pinouts-Multi-Display (Part 2):
Terminals Of Control Module/Pinouts-Multi-Display (Part 3):
1. MULTI-DISPLAY
Oscilloscope Waveform:

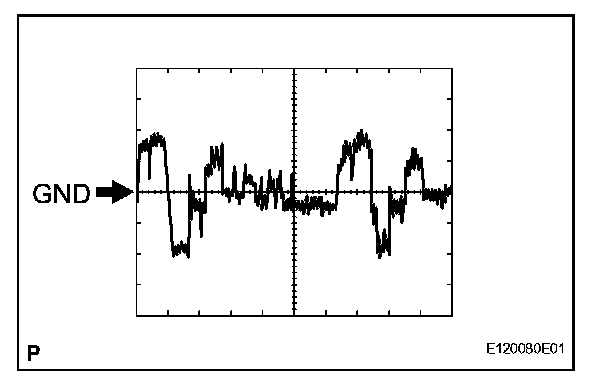

a. Reference: waveform 1
HINT:
- Terminal:V+ - CGND.
- Gauge set: 0.2 V/DIV., 0.2�s/DIV.
- Condition: Engine switch: IG, shift lever: R position
Oscilloscope Waveform:

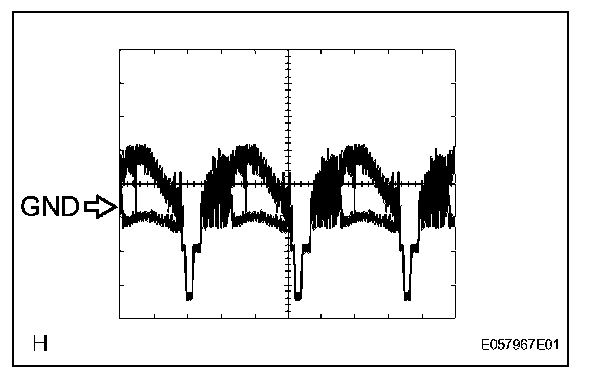

b. Reference: waveform 2
HINT:
- Terminal: NTSC - Body ground.
- Gauge set: 200 mV/DIV., 10 �s/DIV.
- Condition: DVD is played on multi-display
Terminals Of Control Module/Pinouts-Navigation ECU (Part 1):

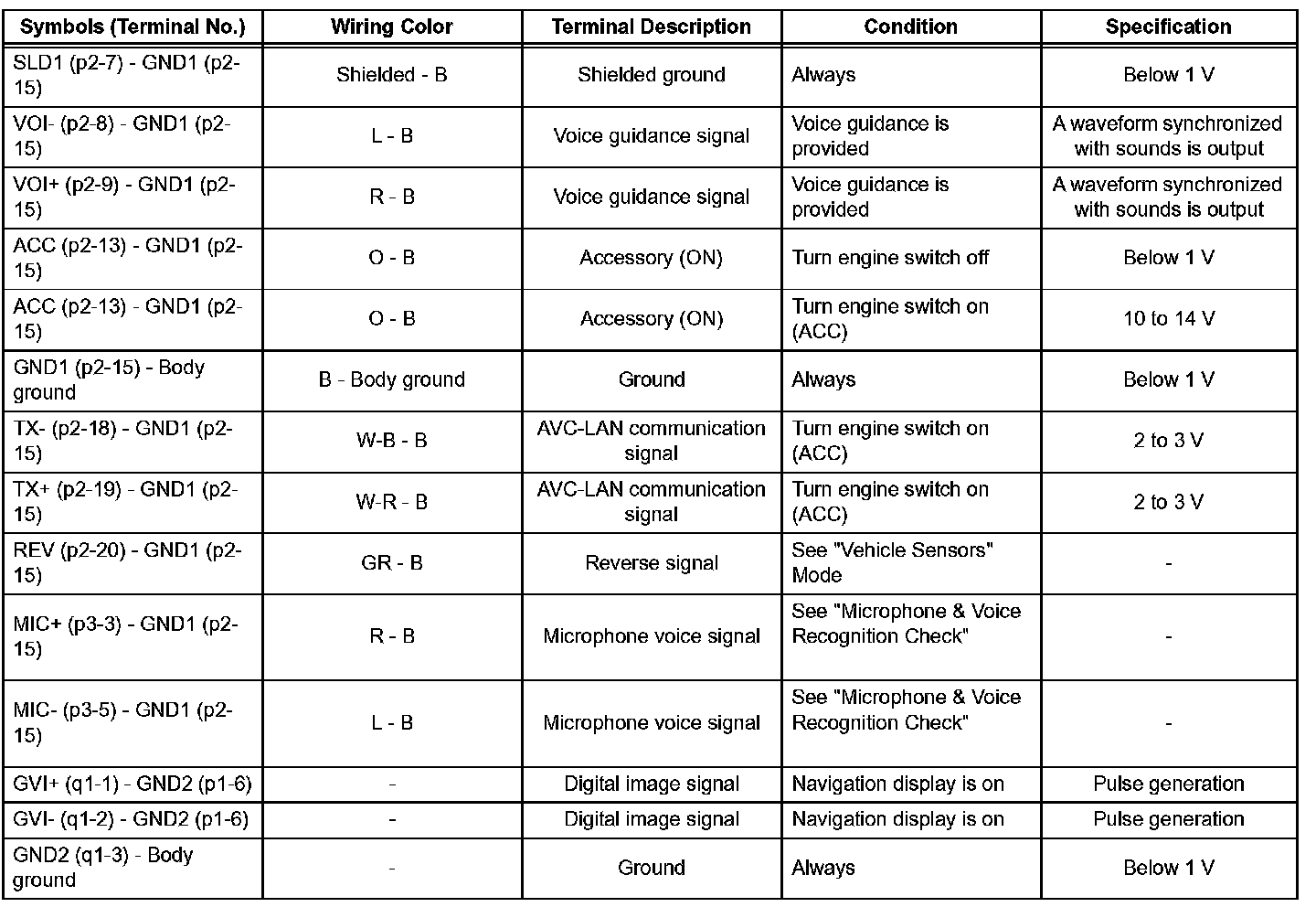

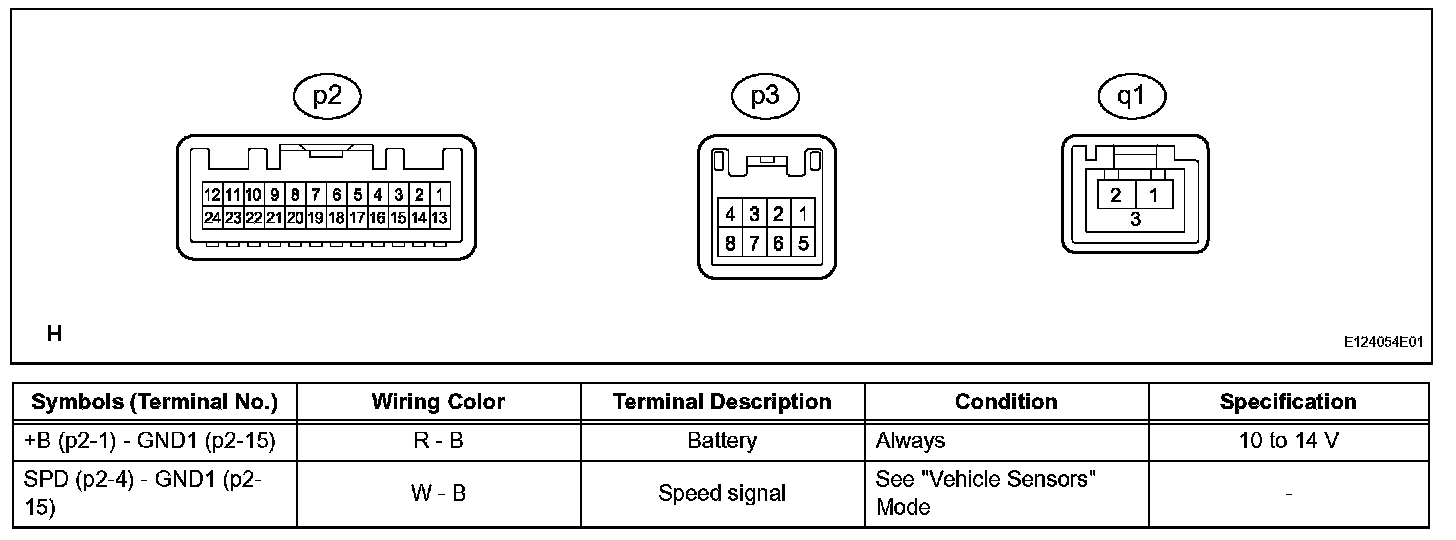

Terminals Of Control Module/Pinouts-Navigation ECU (Part 2):

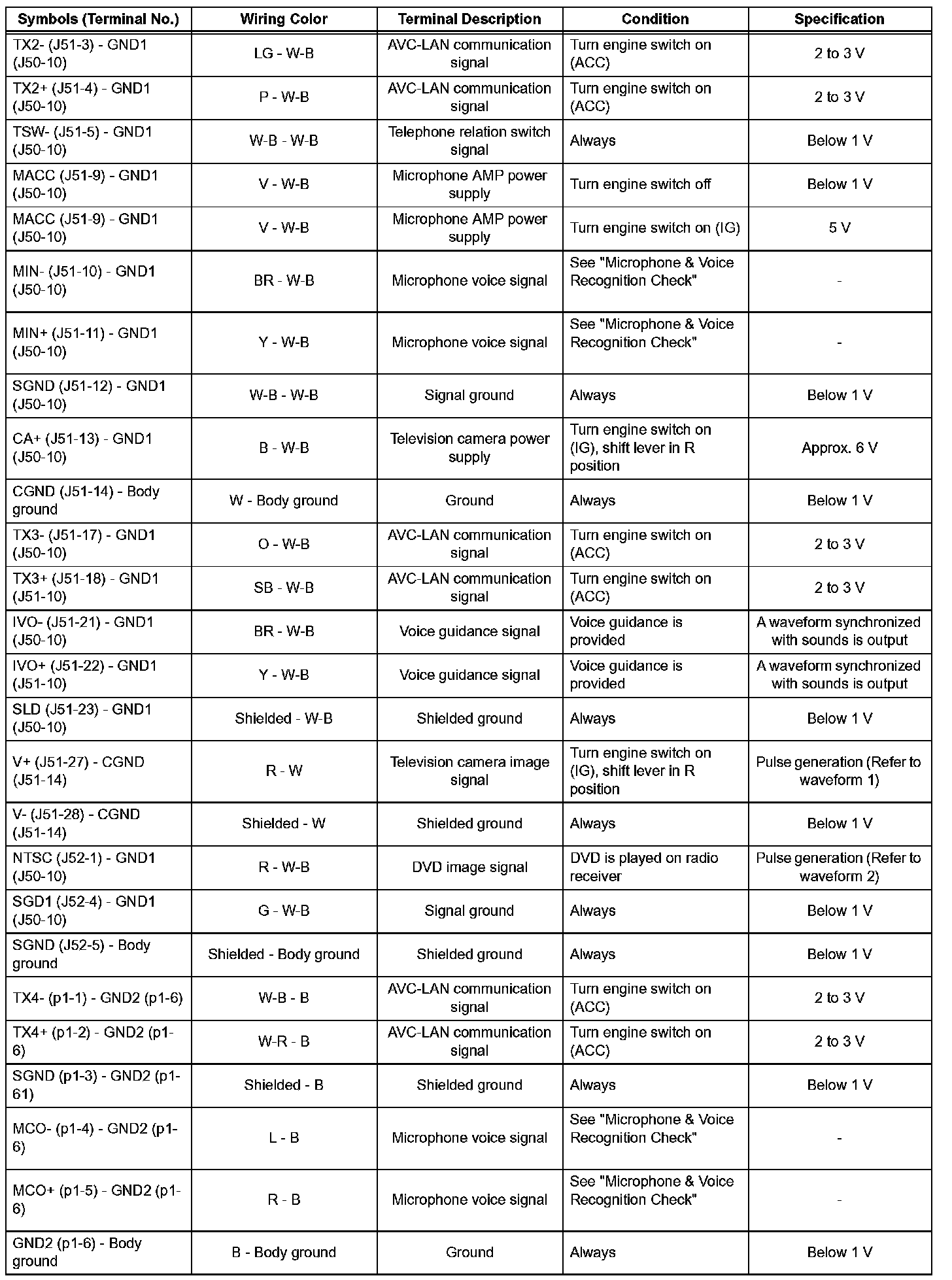

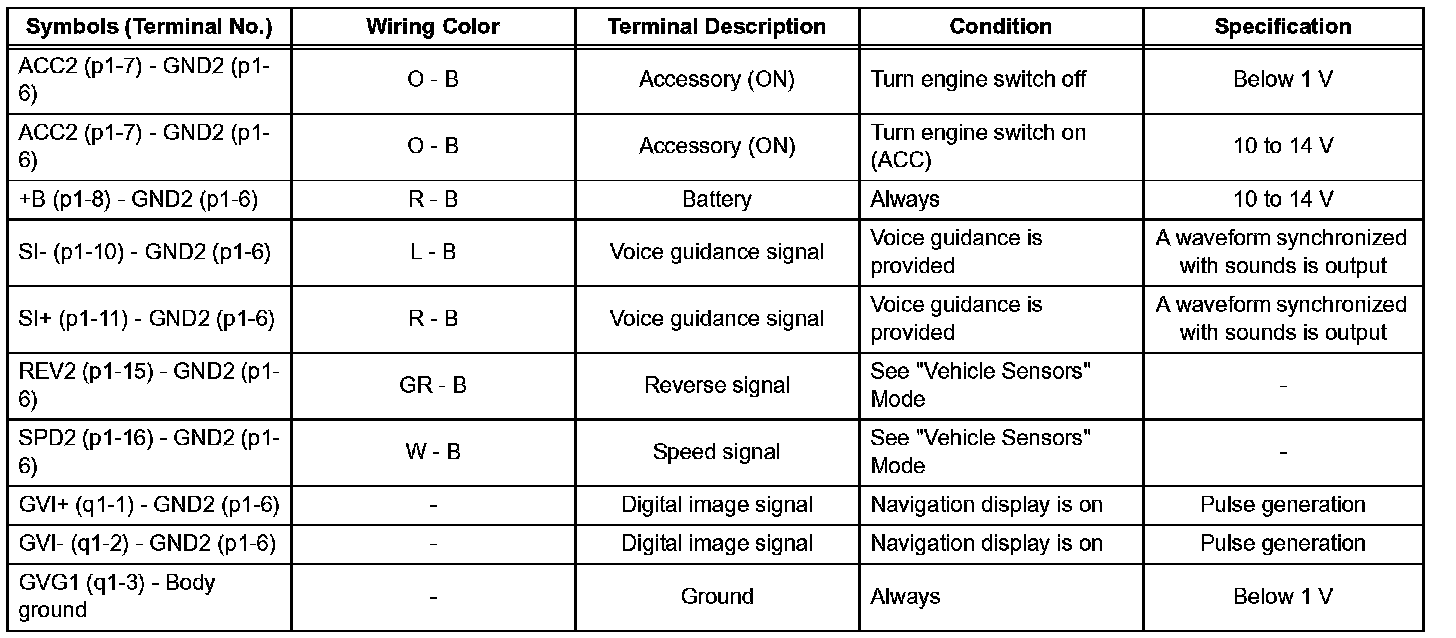

2. NAVIGATION ECU

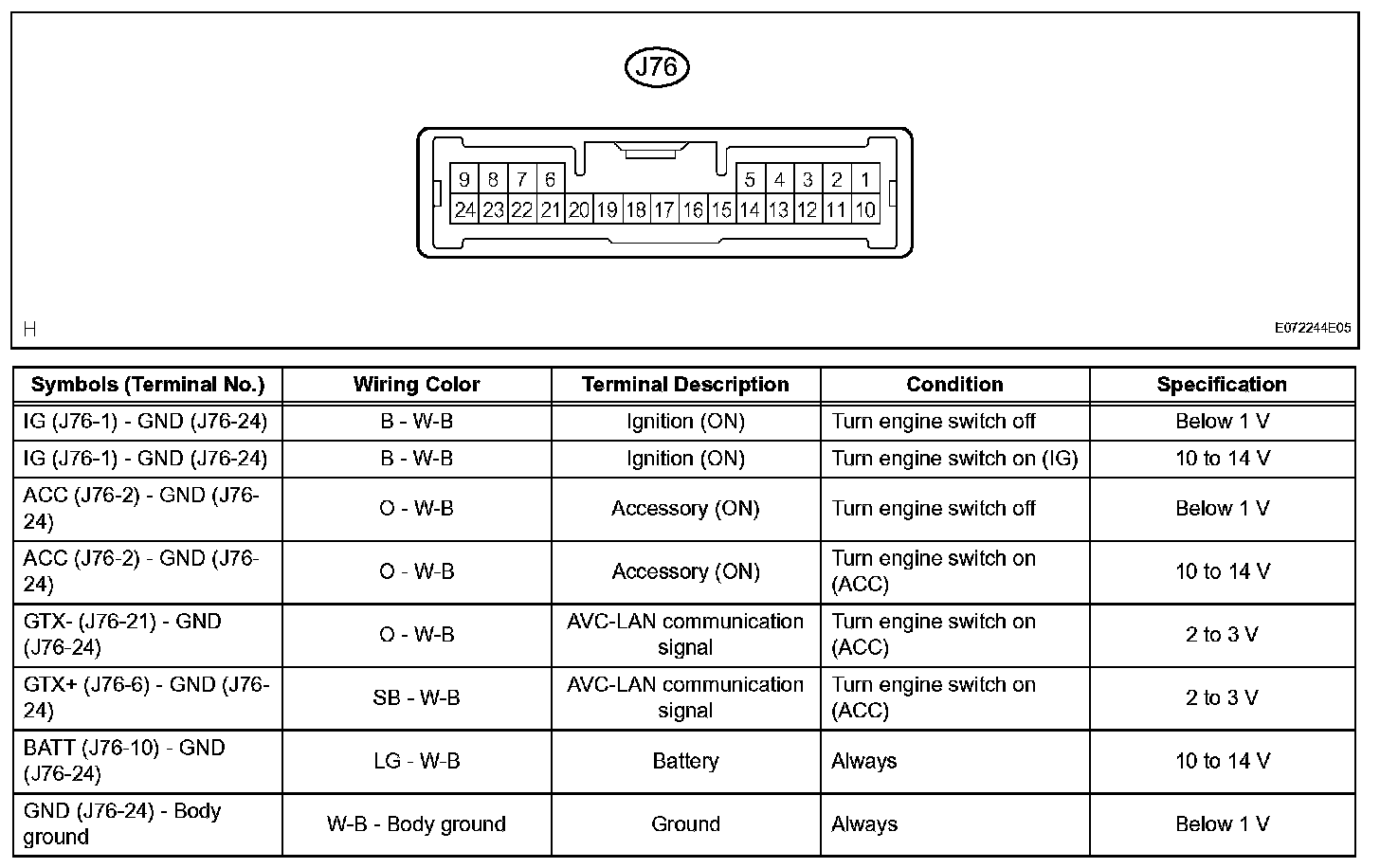

Terminals Of Control Module/Pinouts-Gateway ECU:
3. GATEWAY ECU
4. RADIO RECEIVER.
5. STEREO COMPONENT AMPLIFIER.
