Stereo Component Amplifier Communication Error

Stereo Component Amplifier Communication Error

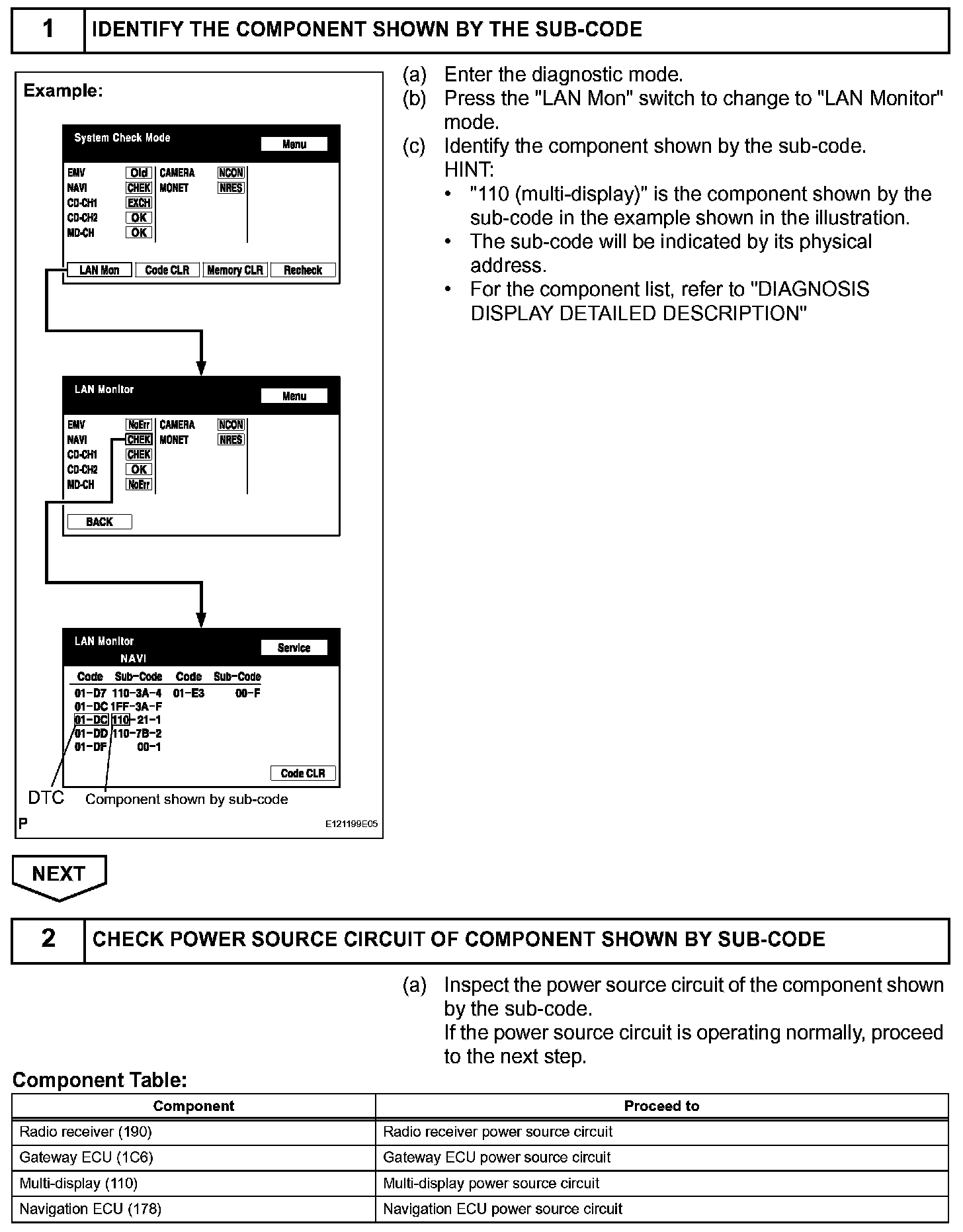

Step 1-2:

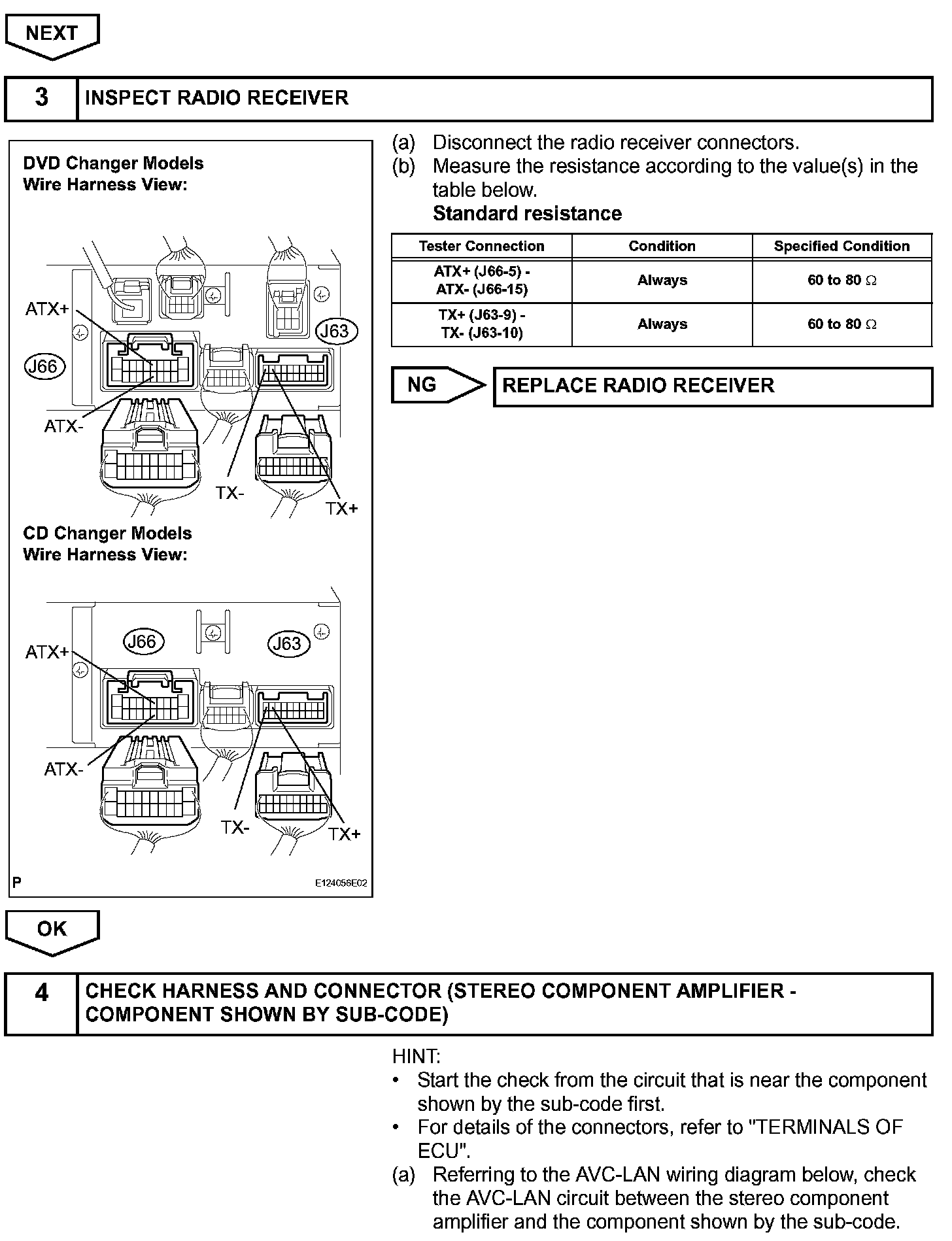

Step 2(continued)-4:

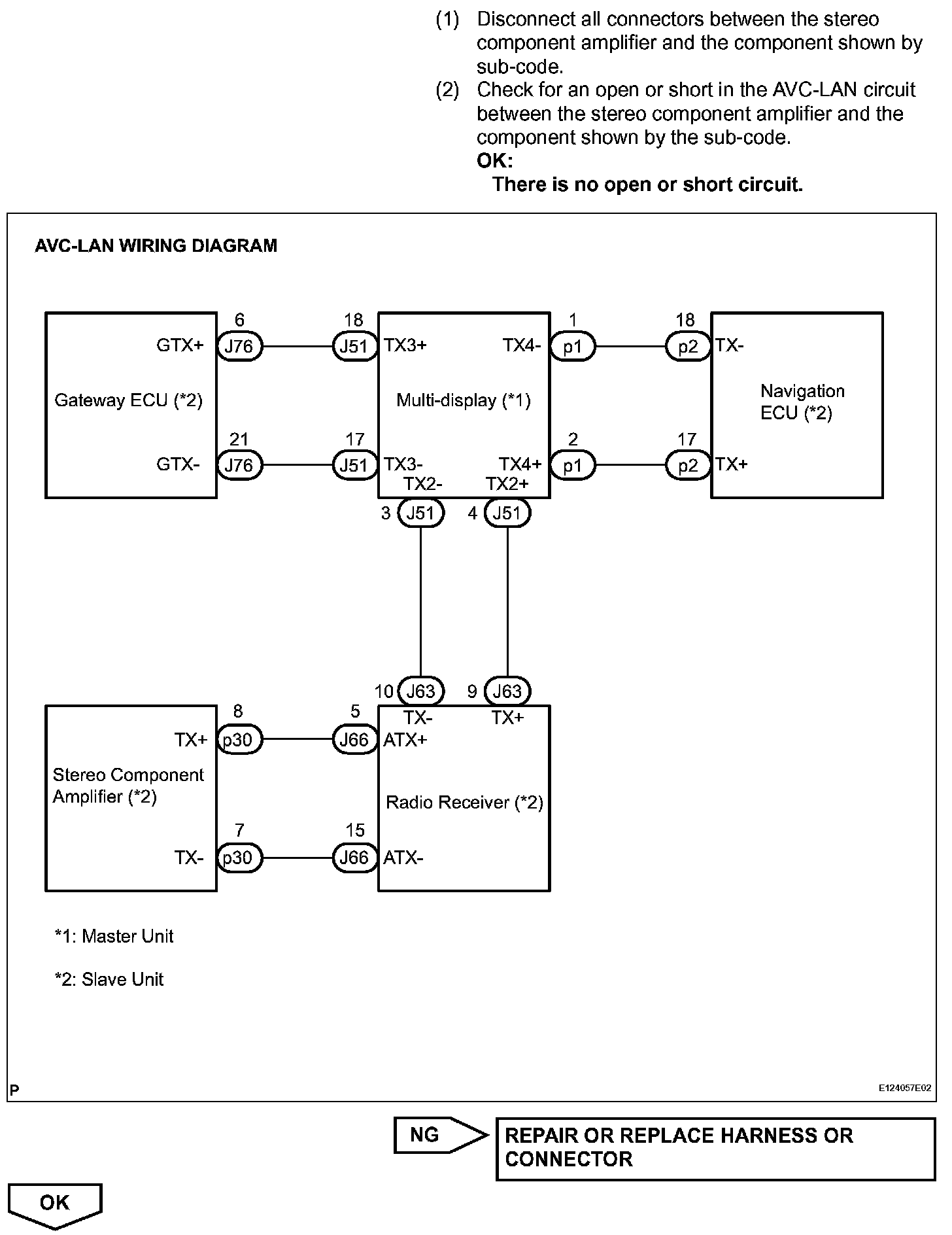

Step 4(continued):

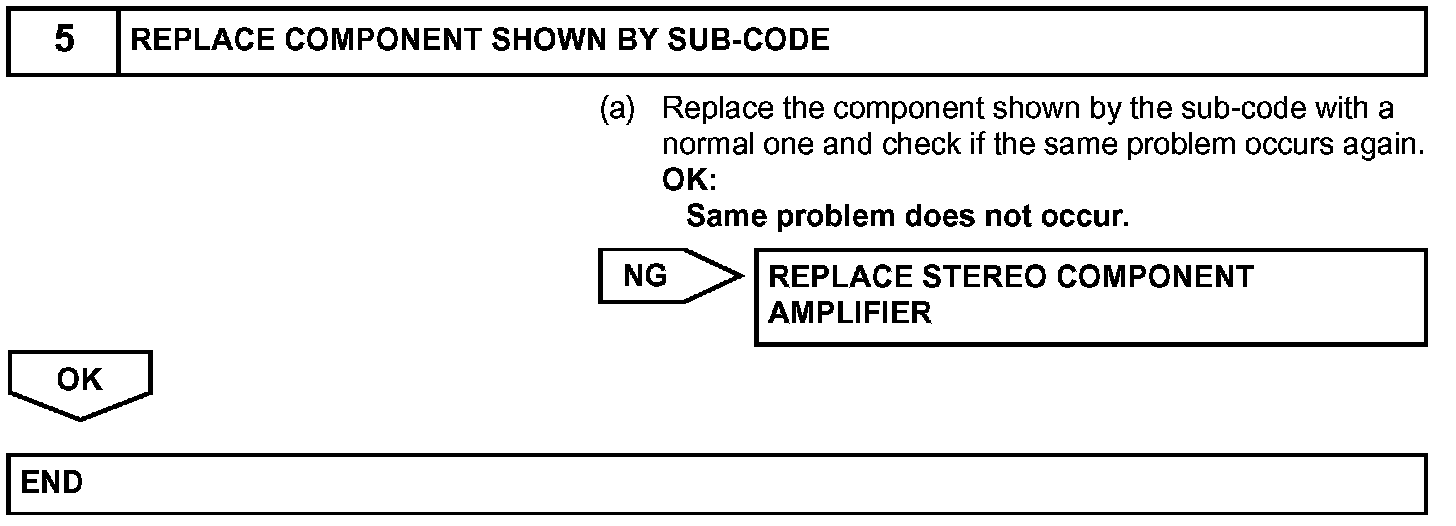

Step 5:




INSPECTION PROCEDURE
