Navigation System: Service and Repair

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
9. REMOVE CONSOLE BOX REGISTER ASSEMBLY
10. REMOVE CONSOLE BOX
11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
13. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
14. REMOVE NO. 1 RADIO BRACKET
15. REMOVE NO. 2 RADIO BRACKET




16. REMOVE MULTI-DISPLAY ASSEMBLY

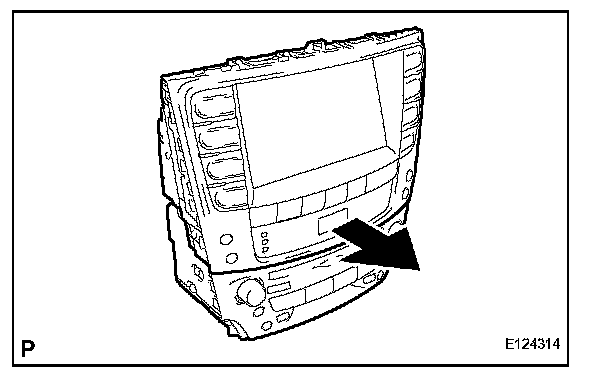

a. Slide the multi-display assembly in the direction shown by the arrow to remove the multi-display assembly.

17. REMOVE NAVIGATION ECU




18. REMOVE CLOCK ASSEMBLY
a. Remove the clock assembly.

19. REMOVE MULTI-DISPLAY

INSTALLATION

1. INSTALL MULTI-DISPLAY
2. INSTALL CLOCK ASSEMBLY
3. INSTALL NAVIGATION ECU




4. INSTALL MULTI-DISPLAY ASSEMBLY

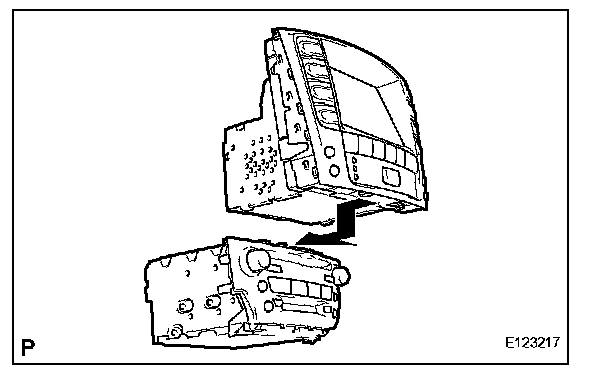

a. Install the multi-display assembly as shown in the illustration.
5. INSTALL NO.2 RADIO BRACKET
6. INSTALL NO.1 RADIO BRACKET
7. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
8. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
9. INSTALL NO.3 INSTRUMENT PANEL REGISTER ASSEMBLY
10. INSTALL CONSOLE BOX
11. INSTALL CONSOLE BOX REGISTER ASSEMBLY
12. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
13. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
14. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
15. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
16. INSTALL UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
17. INSTALL UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
20. ADJUST CLOCK
