Cellular Phone Microphone: Service and Repair

REMOVAL

1. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)
2. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)
3. REMOVE AMPLIFIER MICROPHONE

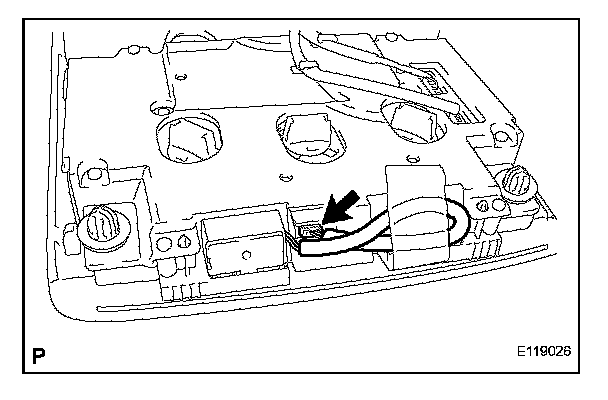

a. Disconnect the connector.

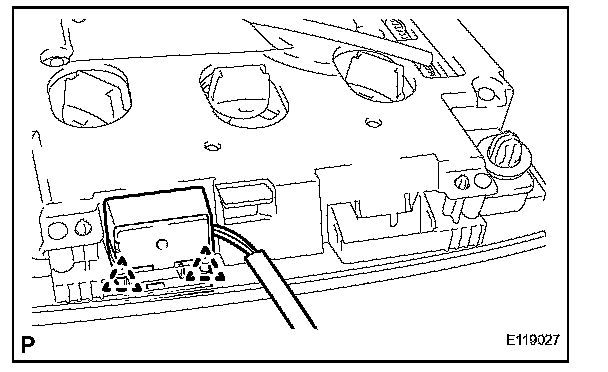

b. Disengage the 2 claws and remove the amplifier microphone.

INSTALLATION

1. INSTALL AMPLIFIER MICROPHONE

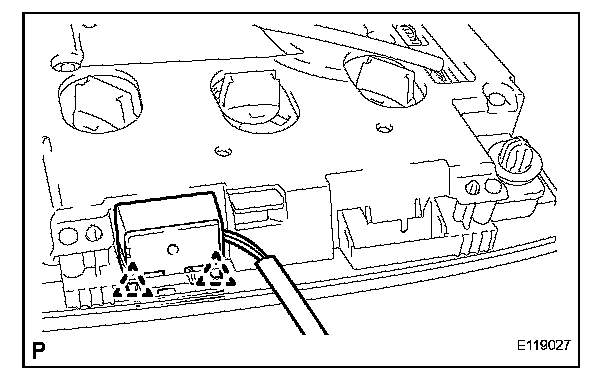

a. Engage the 2 claws and install the amplifier microphone.

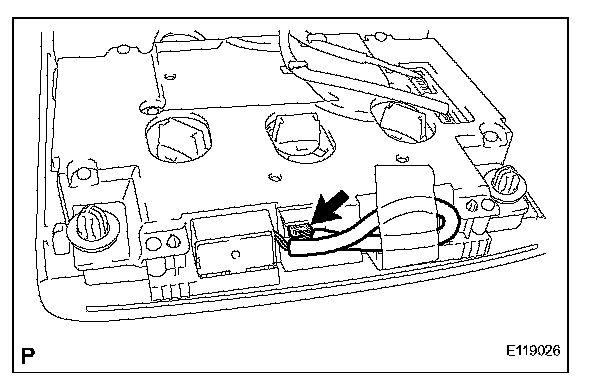

b. Connect the connector.

2. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
3. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
