Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

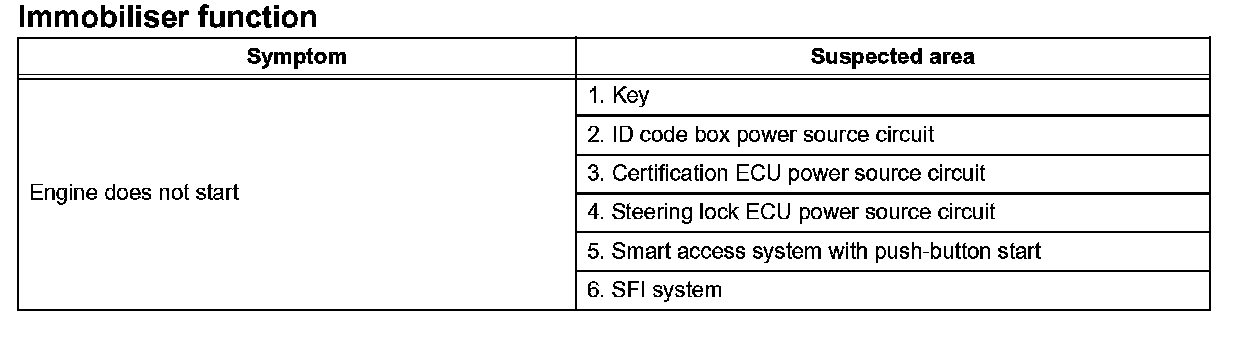

Problem Symptoms Table-Immobiliser Function:

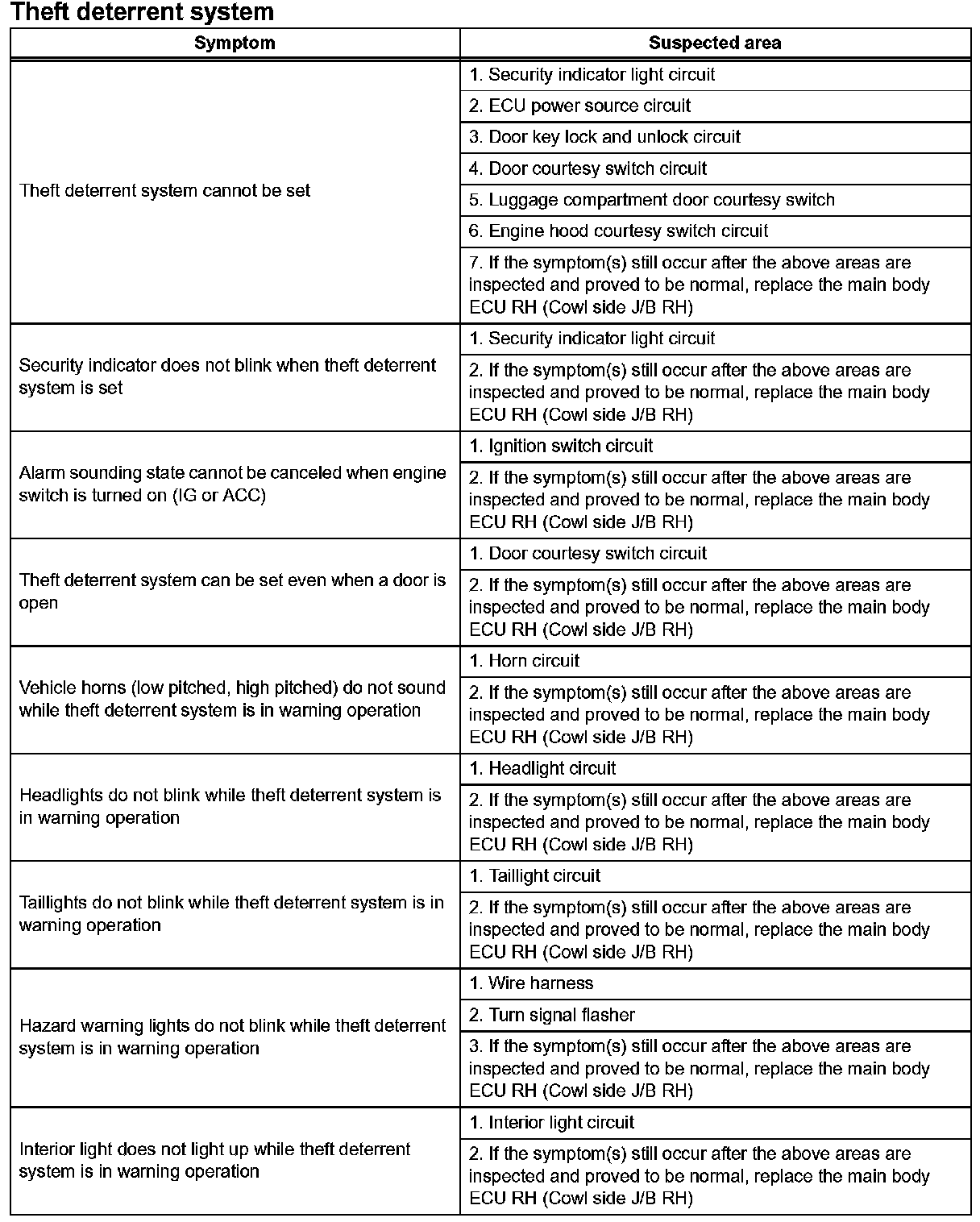

Problem Symptoms Table-Theft Deterrent System (Part 1):

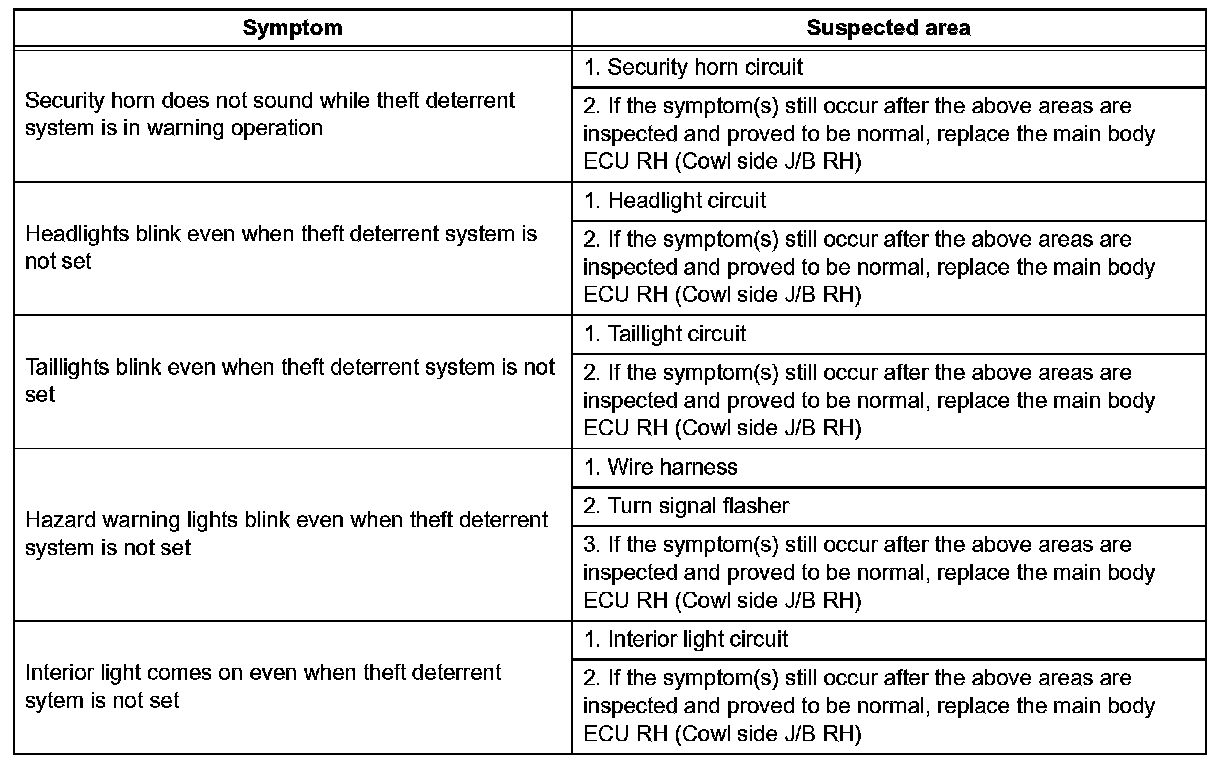

Problem Symptoms Table-Theft Deterrent System (Part 2):

Proceed to the given reference shown in the table for each malfunction symptom and troubleshoot each circuit.

HINT: Troubleshooting of the theft deterrent system is based on the premise that the door lock control system and the wireless door lock control system are operating normally. Accordingly, before troubleshooting the theft deterrent system, first make certain that the door lock control system and the wireless door lock control system are operating normally.
