Registration
REGISTRATION1. DESCRIPTION OF CODE REGISTRATION
HINT:
- ID codes are the same as recognition codes for the wireless transmitter and the engine immobilizer function. Registering an ID code enables the smart access system with push-button start, the wireless door lock control function and the engine immobilizer function to be operated.
- Code registration is needed when the certification ECU, ID code box, steering lock ECU or key is replaced with a new one.
a. PROCEDURE "1"

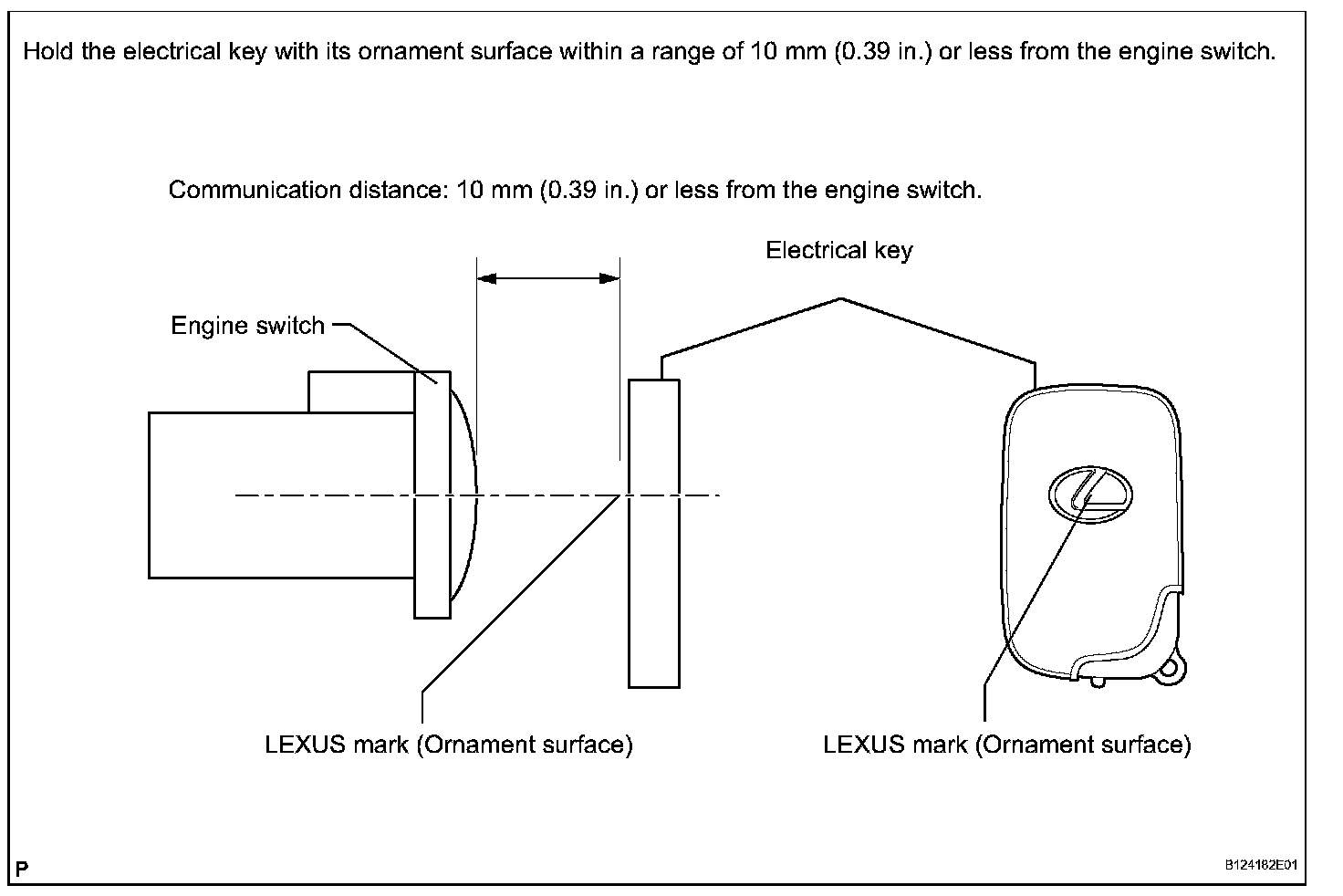

The vehicle with the smart access system with push-button start system does not have a key slot. Therefore, hold the key close to the engine switch to register the key, as shown in the image.

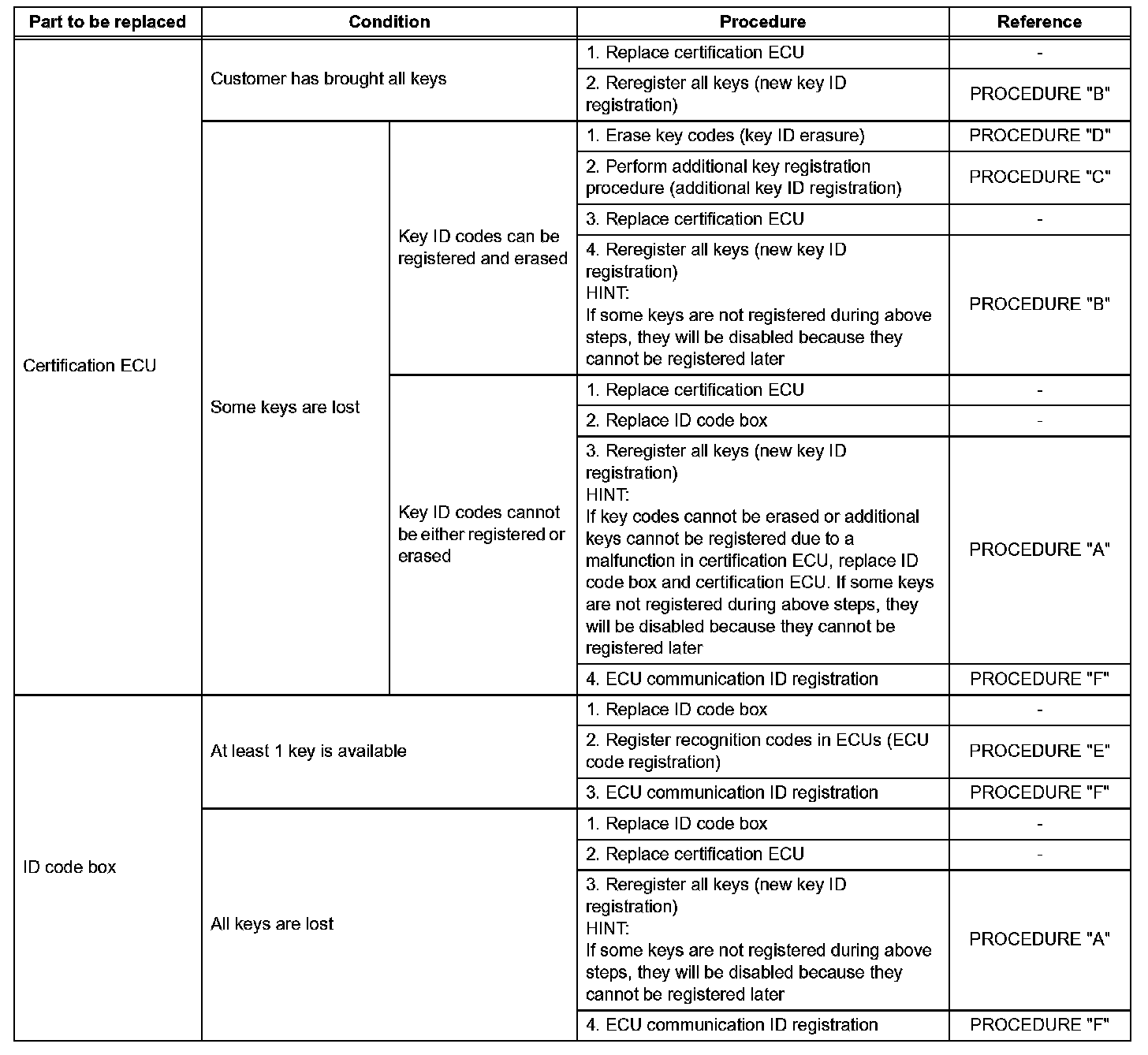

2. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES
Part 1:
Part 2:

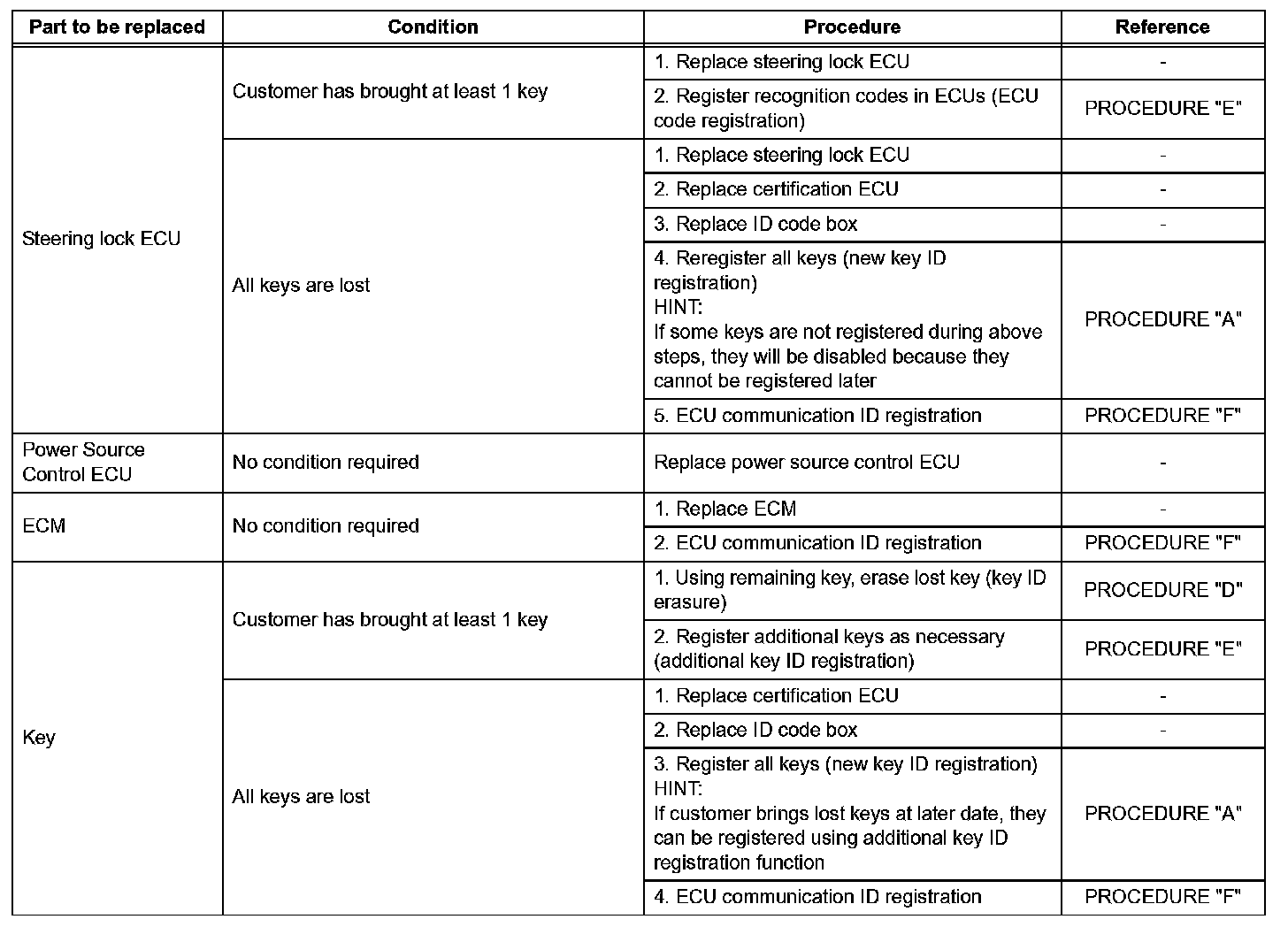

a. The table shows ECU replacement and key registration procedures in case the malfunctioning ECU has been specified after troubleshooting the smart access system with push-button start.
HINT:
- The procedures indicated in the table require the use of the intelligent tester: New key ID registration Additional key ID registration Key ID erasure ECU code registration
- If all of the registered keys are not available, replacement of the ID code box is also required.
- A maximum of 7 keys can be registered.
3. KEY REGISTRATION PROCEDURES

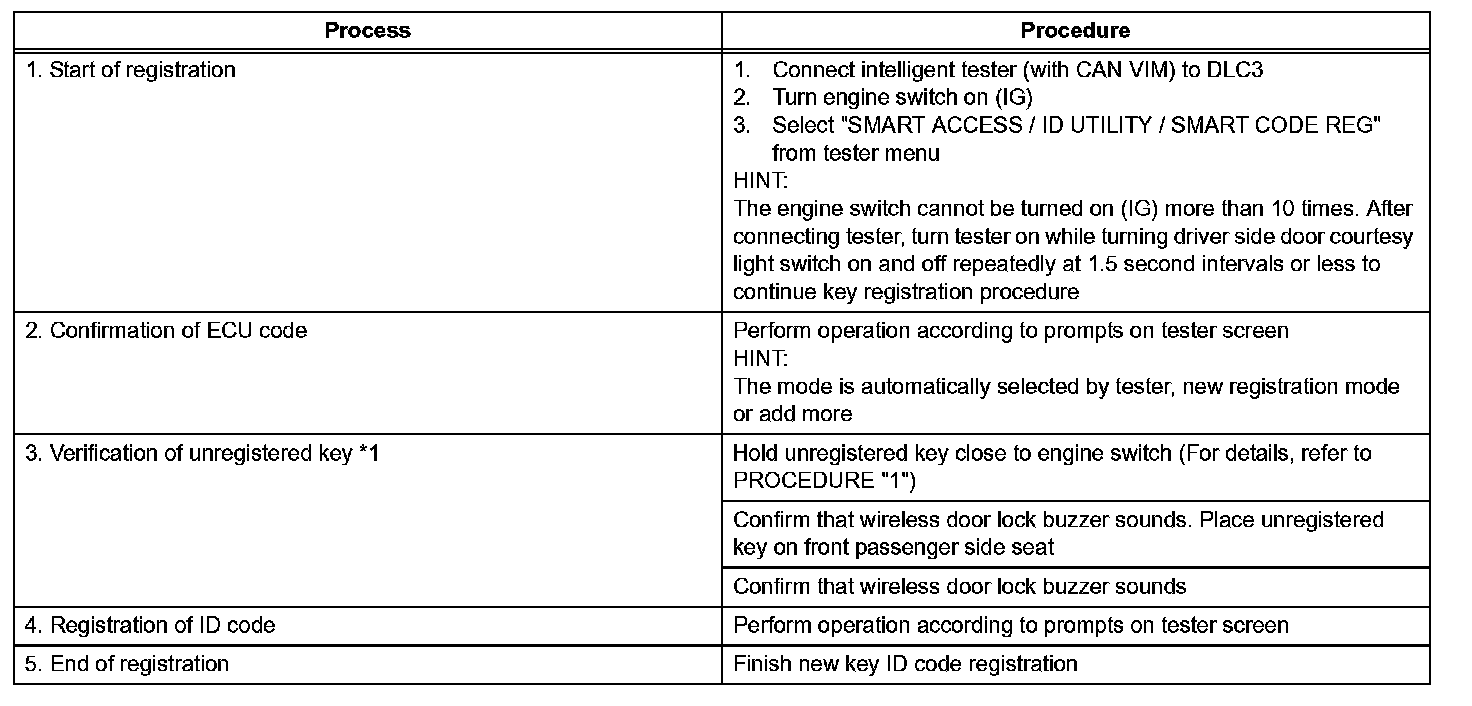

a. PROCEDURE "A"
New key ID registration (when replacing certification ECU and ID code box, or certification ECU, ID code box and steering lock ECU)
*1:Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

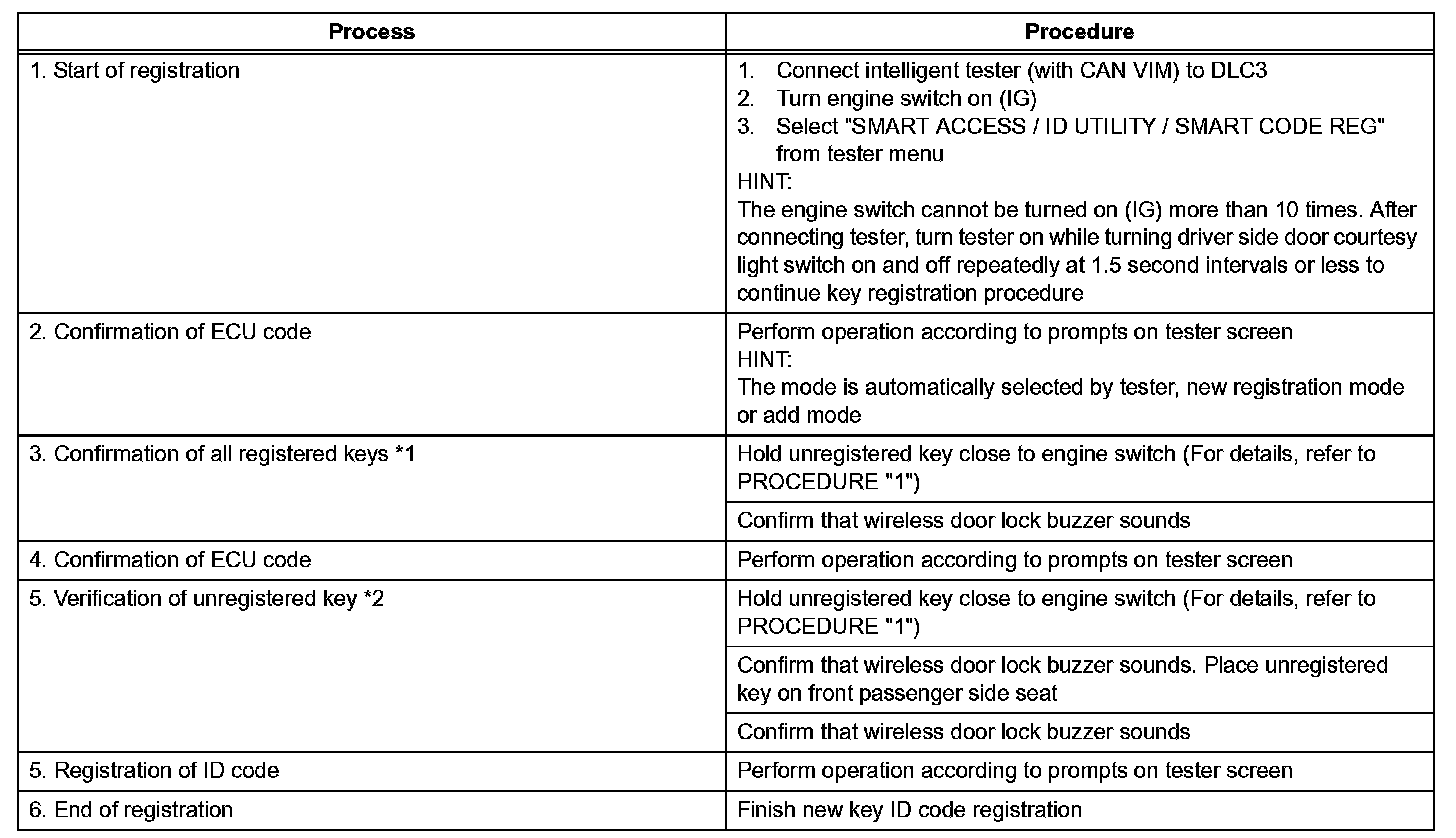

b. PROCEDURE "B"
New key ID registration (when replacing certification ECU)
*1: Repeat this process for each key registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. If performing the key confirmation procedure for a key, the security indicator comes on and remains on until all the keys are confirmed.
*2:Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

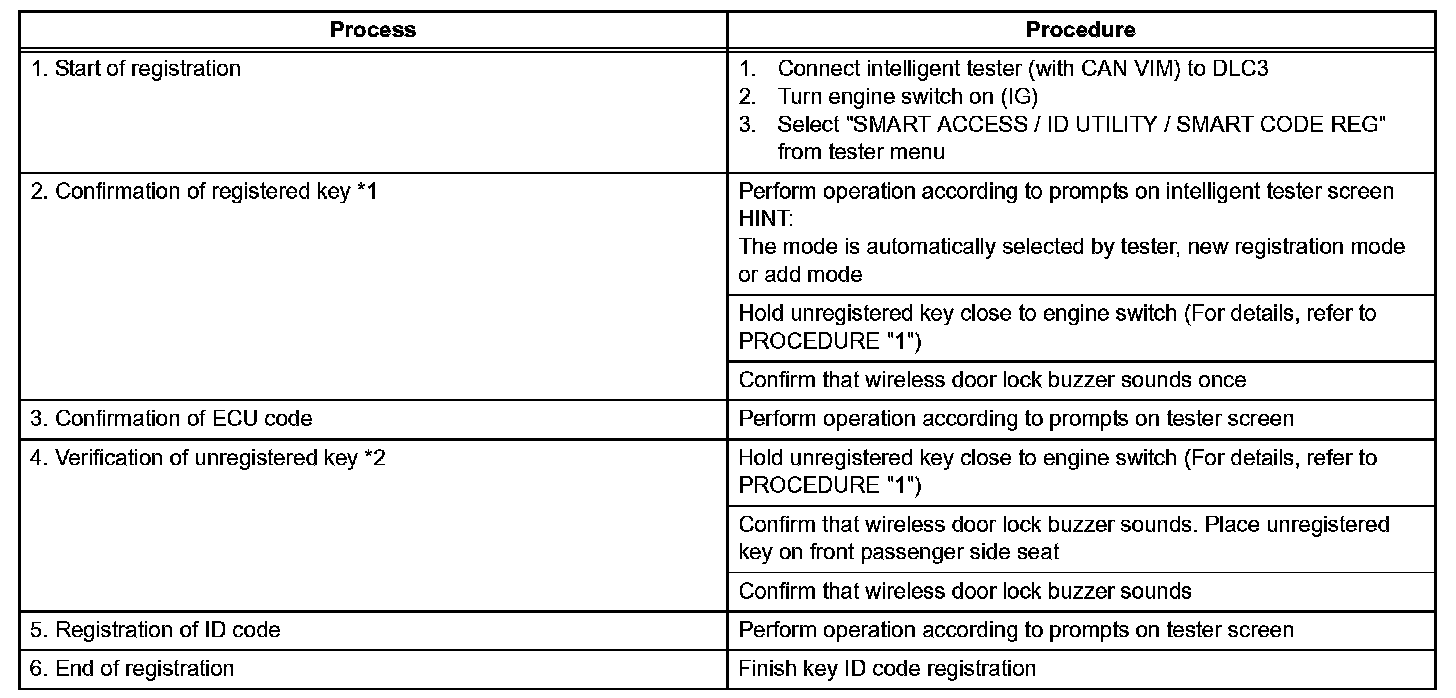

c. PROCEDURE "C"
Additional key ID registration
*1:Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform registration procedures from process 1 again.
*2:Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

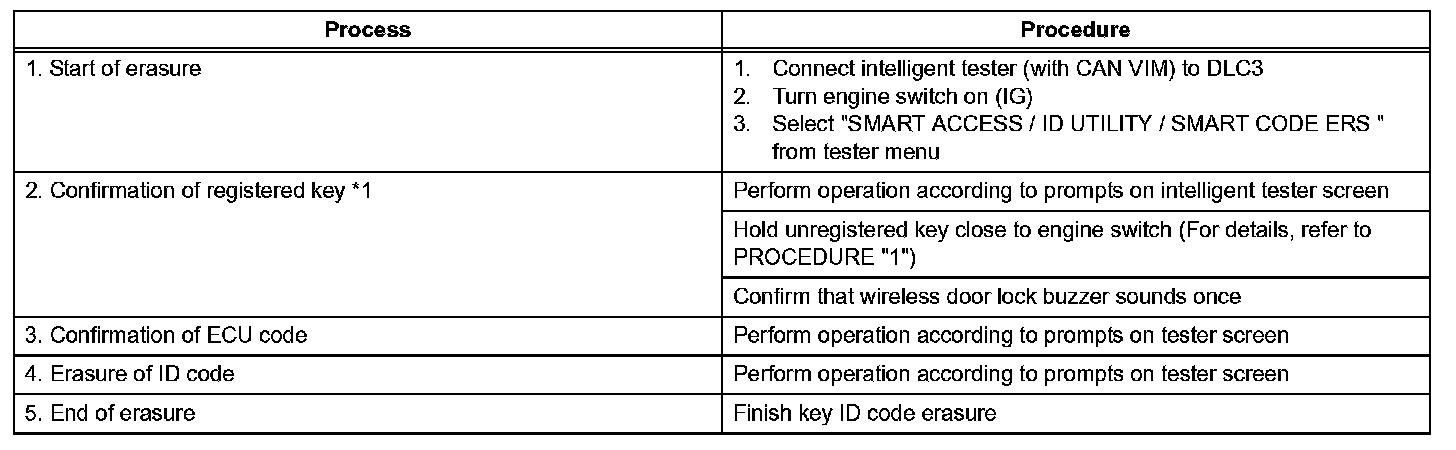

d. PROCEDURE "D" Key ID erasure
HINT: Erase all registered key codes except one.
*1:Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform erasure procedures from process 1 again.

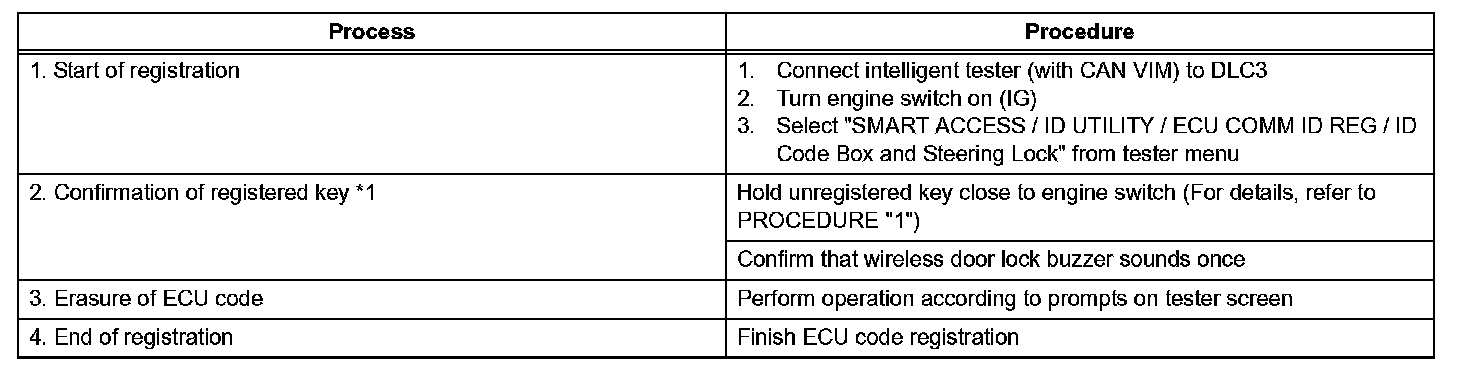

e. PROCEDURE "E" ECU code registration
*1:Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform erasure procedures from process 1 again.
f. PROCEDURE "F" ECU communication ID registration
NOTE:
- The ECU COMMUNICATION ID should be registered when the ID code box and/or the ECM is replaced in order to match these ECM COMMUNICATION ID.
- The engine cannot be started unless the ECM COMMUNICATION ID matches. Register the ECU communication ID.

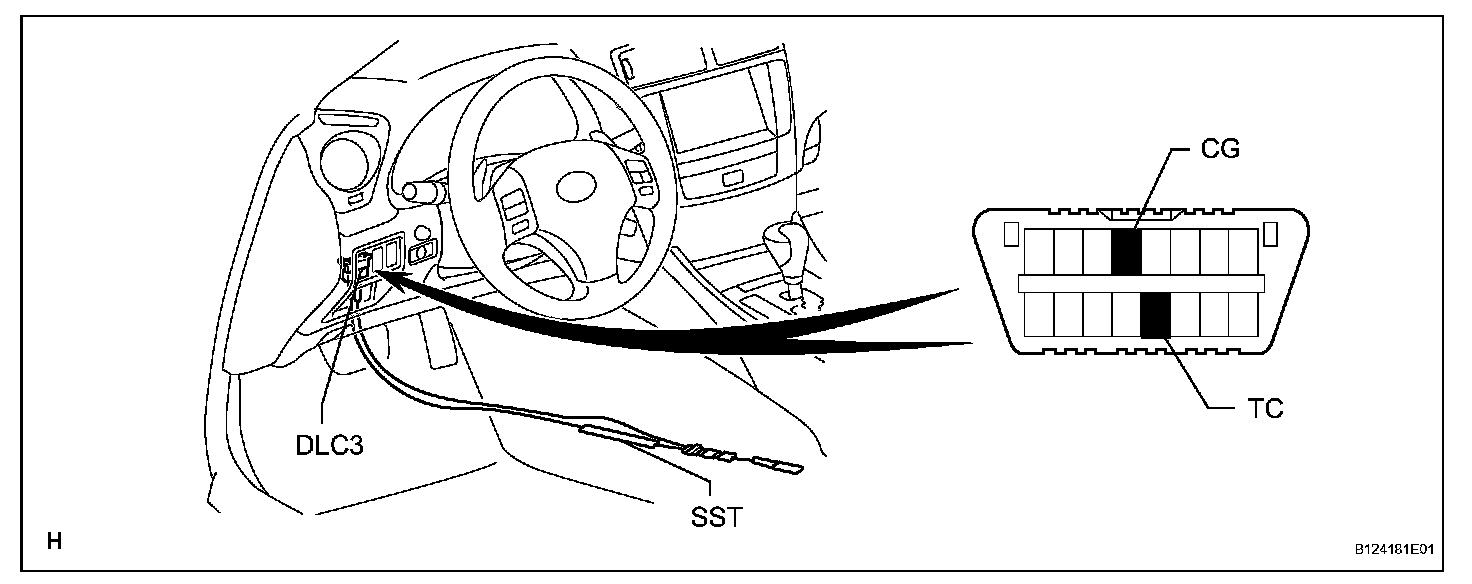

1. Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
2. Turn the engine switch on (IG) and leave it for 30 minutes.
HINT: Do not start the engine.
3. Turn the engine switch off and disconnect terminals TC and CG.
4. Check that the engine starts.
