IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Keyless Entry
>>
Diagrams
>>
Exploded Views
Exploded Views
Door Control Switch:

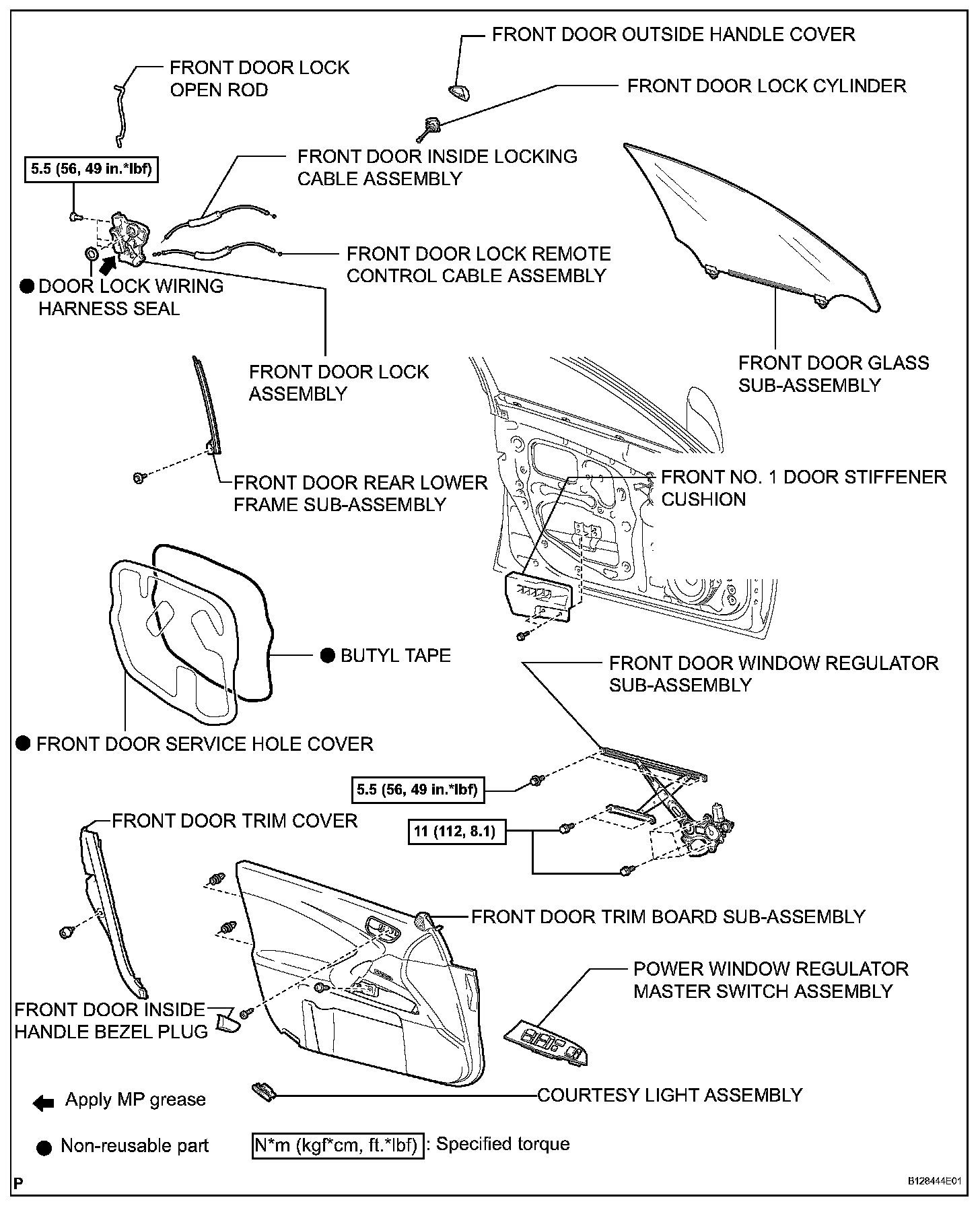

Front Door Lock:

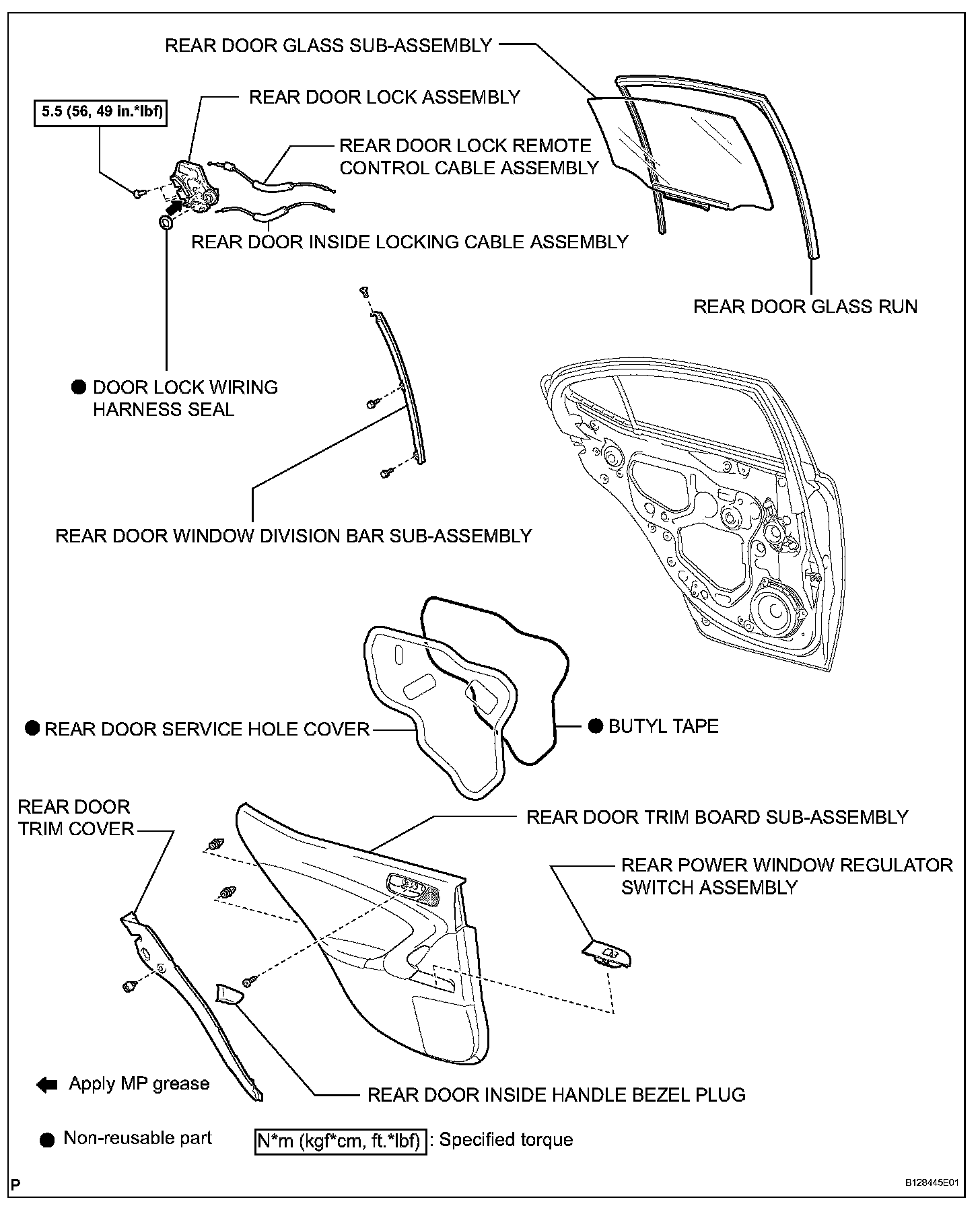

Rear Door Lock:
