Wireless Door Lock Control System
SYSTEM DESCRIPTION1. WIRELESS DOOR LOCK CONTROL SYSTEM
The wireless door lock control system functions to lock and unlock all the doors from a distance. The system is controlled by a hand-held transmitter which sends radio waves to the door control receiver. The main body ECU RH performs an ID code identification process and engages the door lock control.

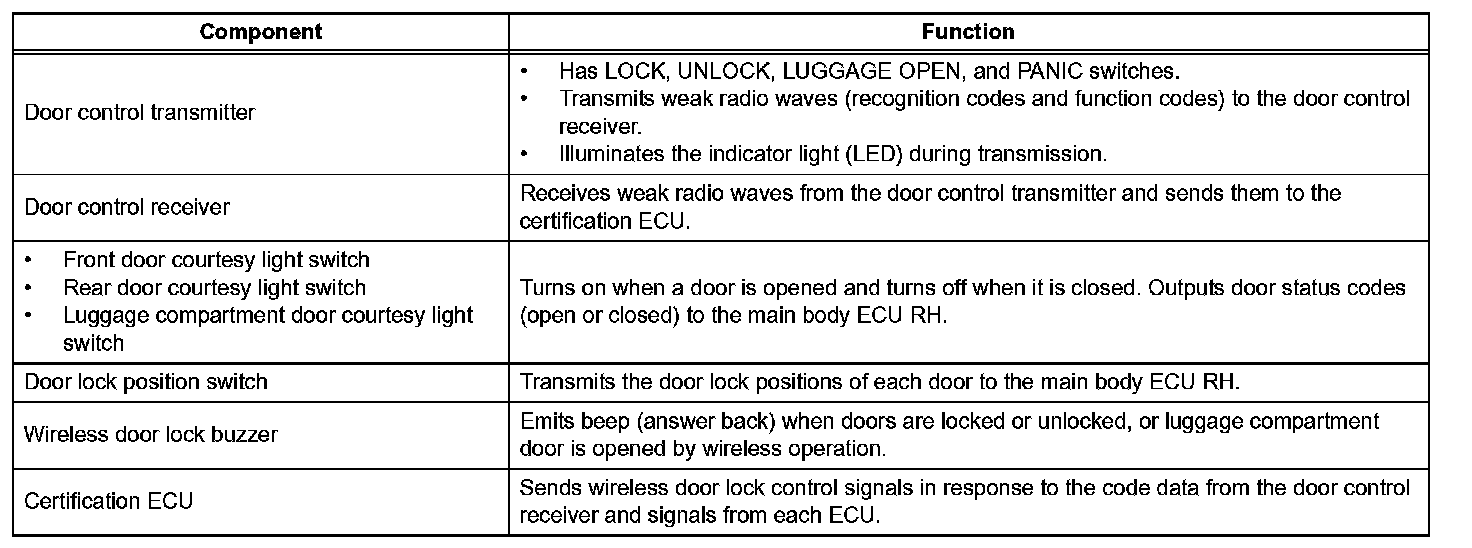

2. FUNCTION OF MAIN COMPONENTS
Part 1:
Part 2:
3. SYSTEM FUNCTION
The door control transmitter has LOCK, UNLOCK, LUGGAGE OPEN, and PANIC switches. Operating these switches activates each function.

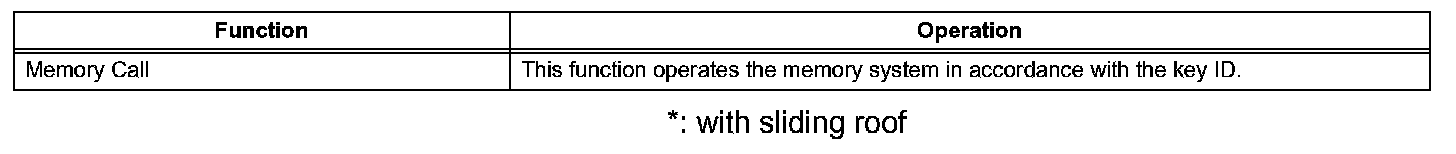

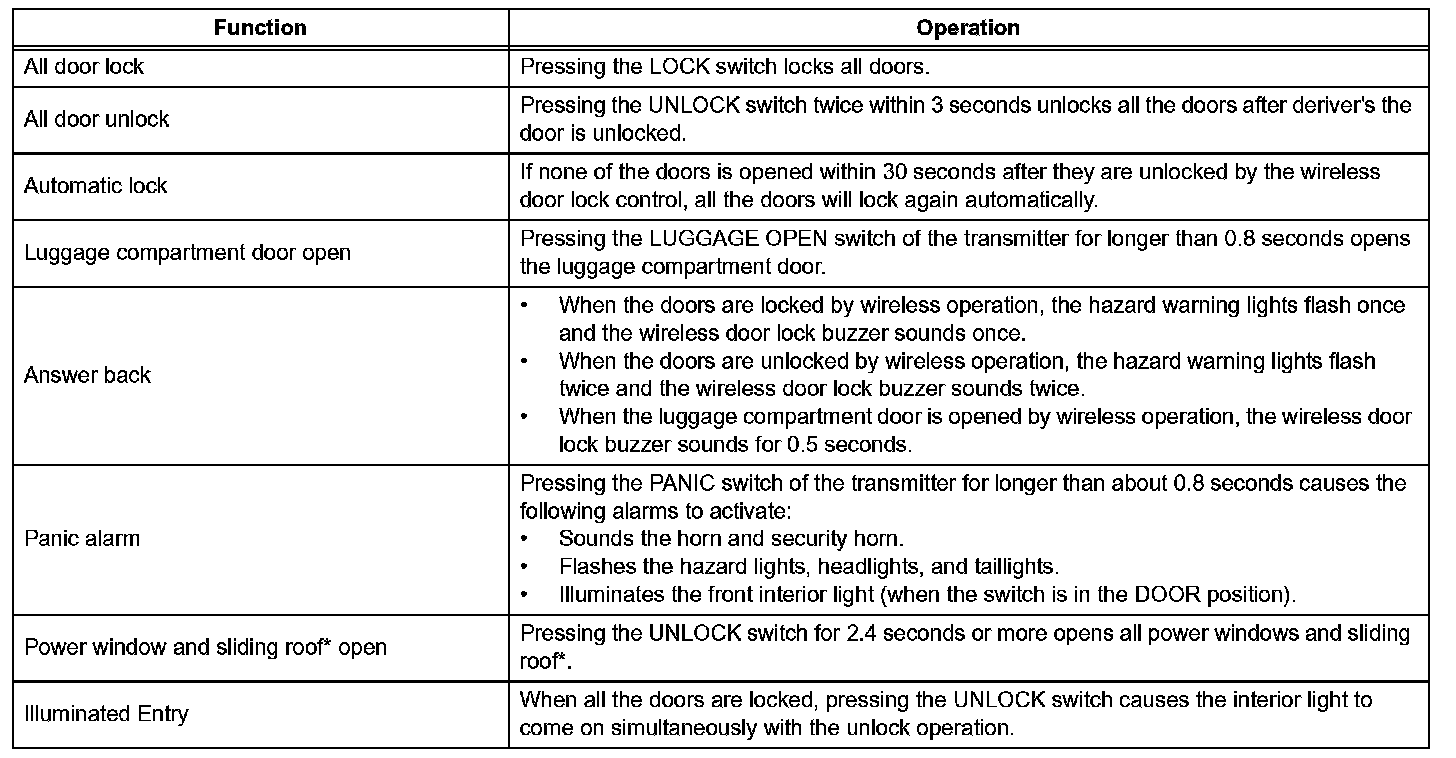

The wireless door lock control system has the given functions.
HINT: The functions' default settings are ON. Part of these functions can be customized.
