P2759

DTC P2759 Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

DESCRIPTION

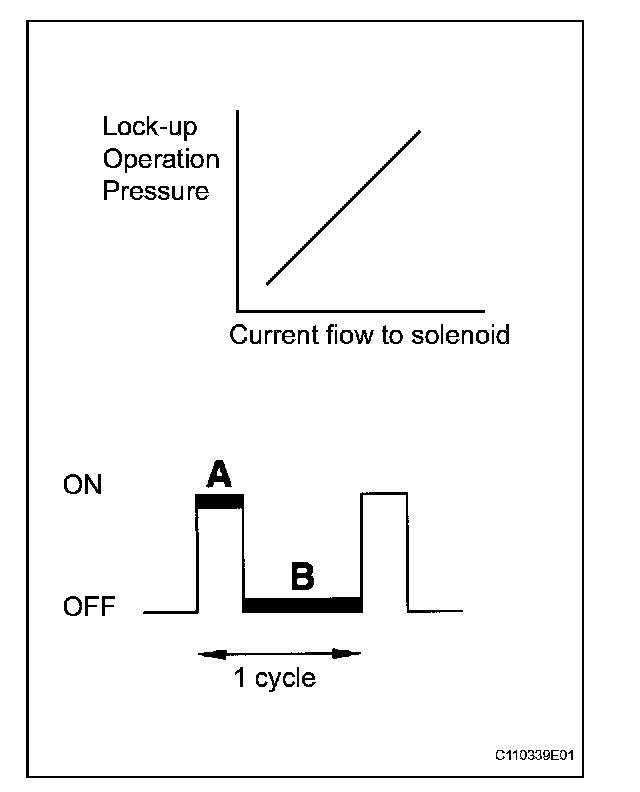

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.





(*) Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then Duty Ratio = A/(A+B) x 100(%).

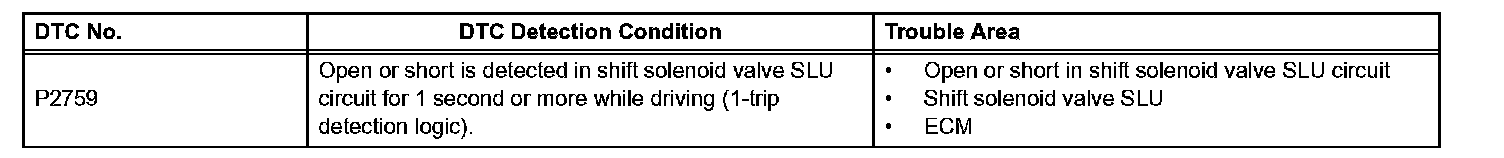

DTC Detection Condition:

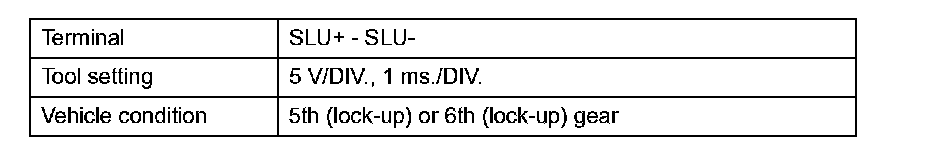

Reference (Using an oscilloscope):

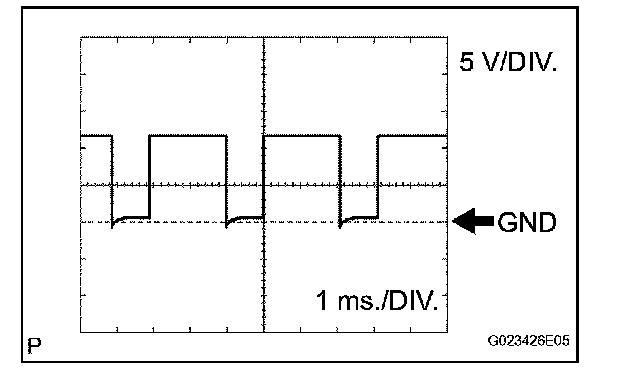

Check the waveform between the terminals SLU+ and SLU- of the ECM connector





Standard: Refer to the illustration.





MONITOR DESCRIPTION
When an open or short in a shift solenoid valve (SLU) circuit is detected, the ECM determines there is a malfunction. The ECM will turn on the MIL and store this DTC.

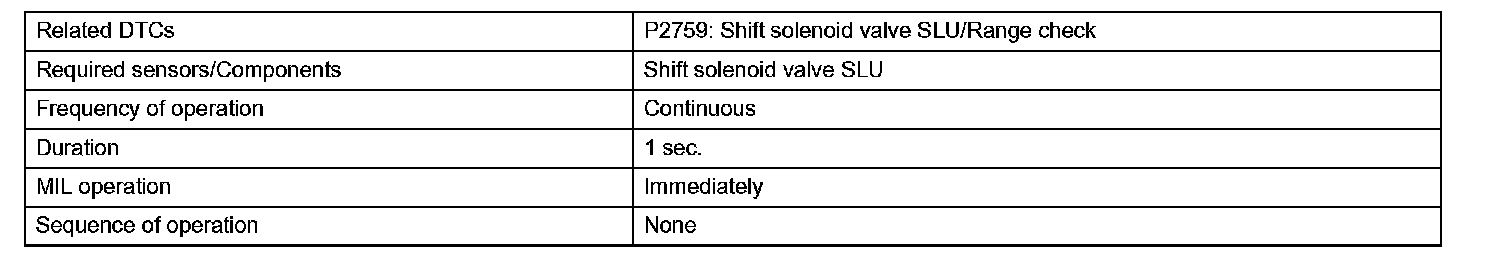

Monitor Strategy:

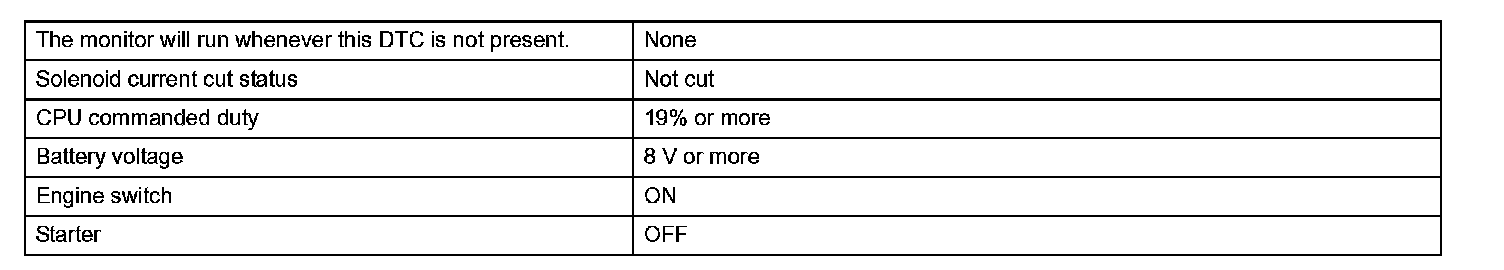

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

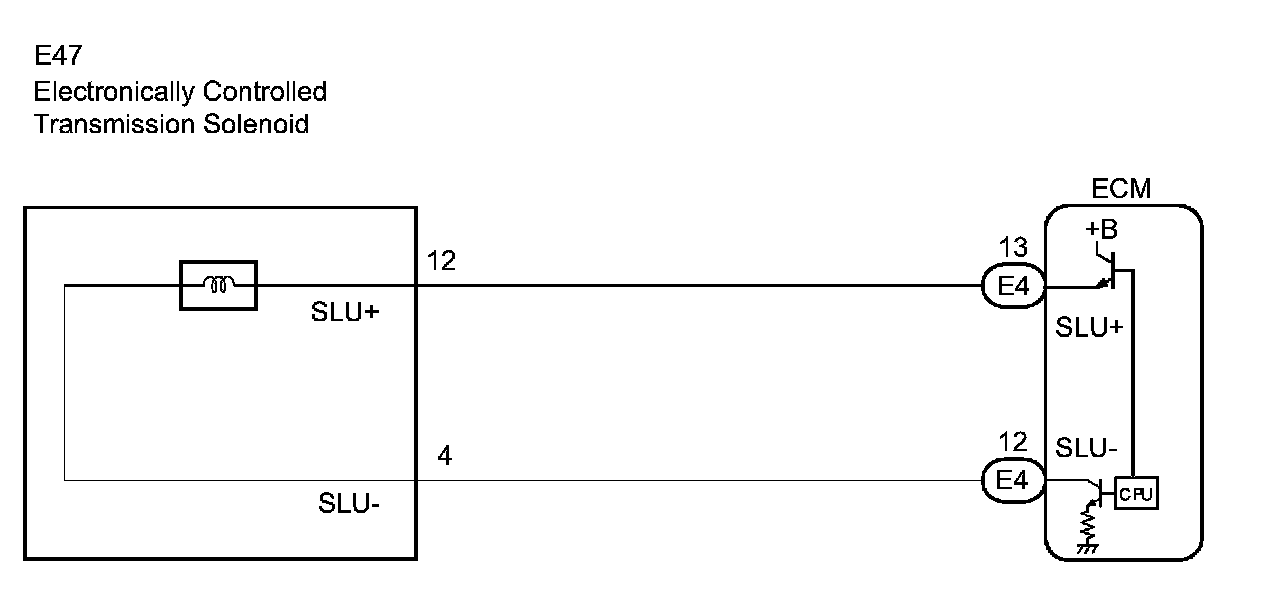

Wiring Diagram:

INSPECTION PROCEDURE

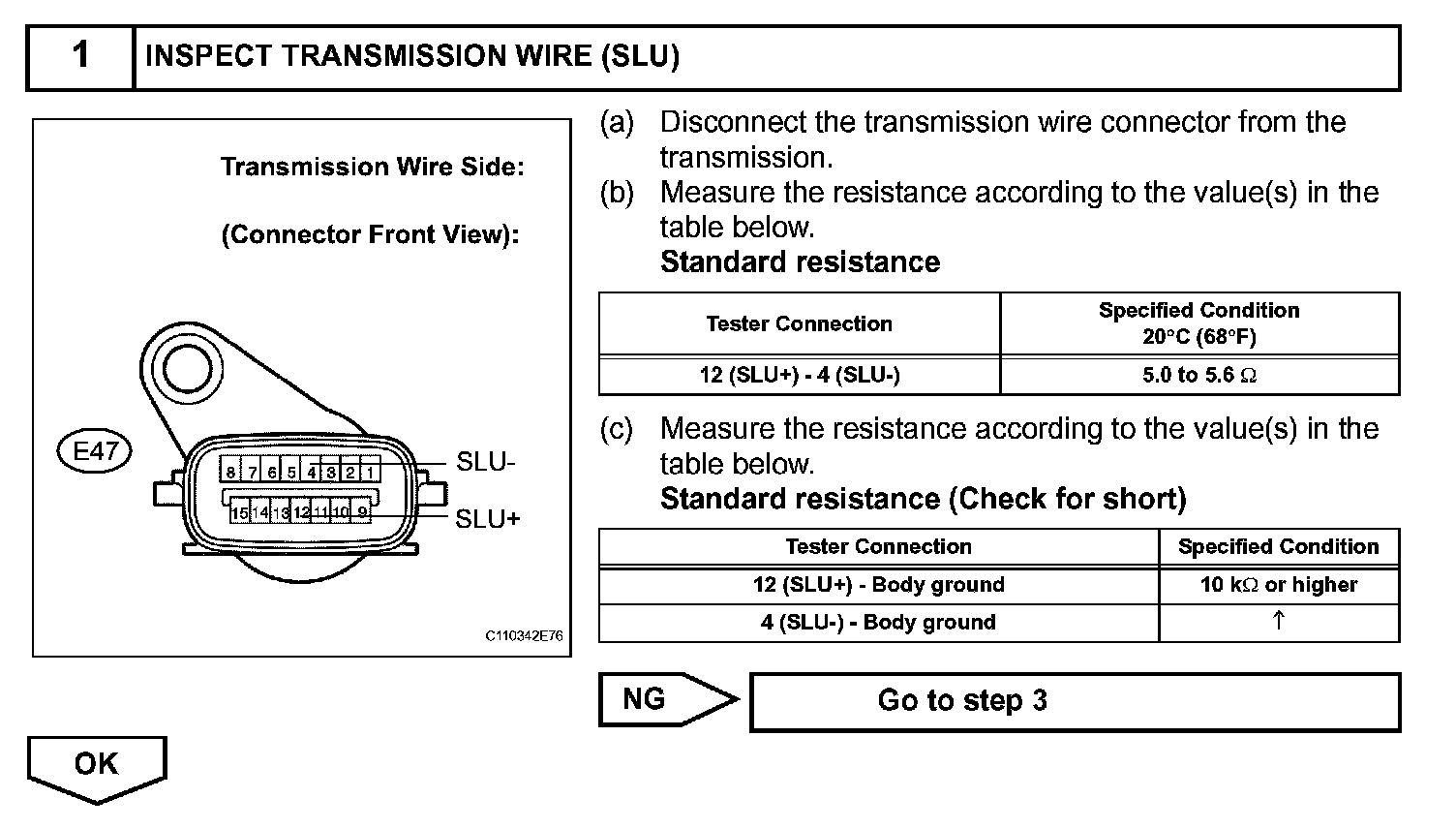

Step 1:

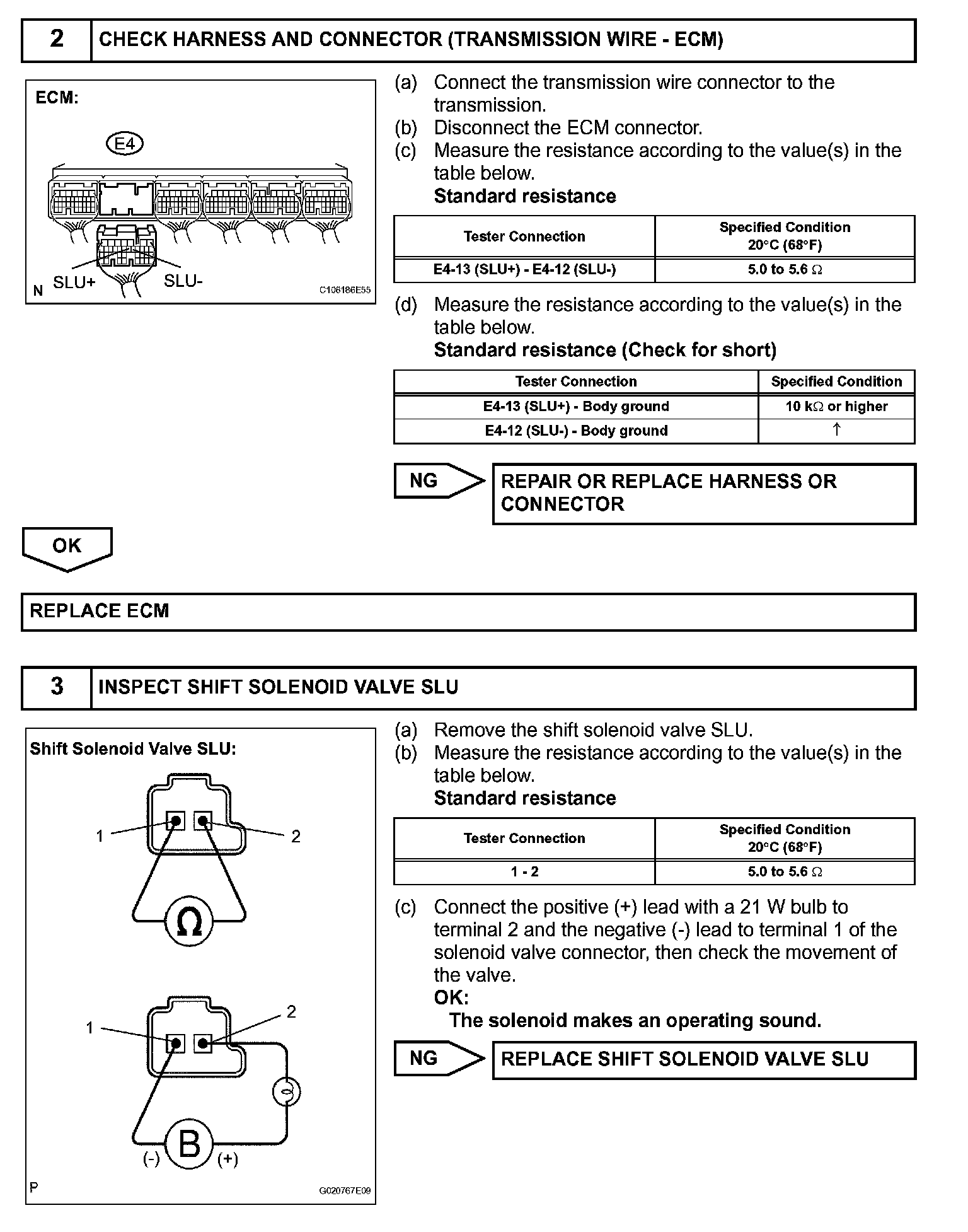

Steps 2-3:

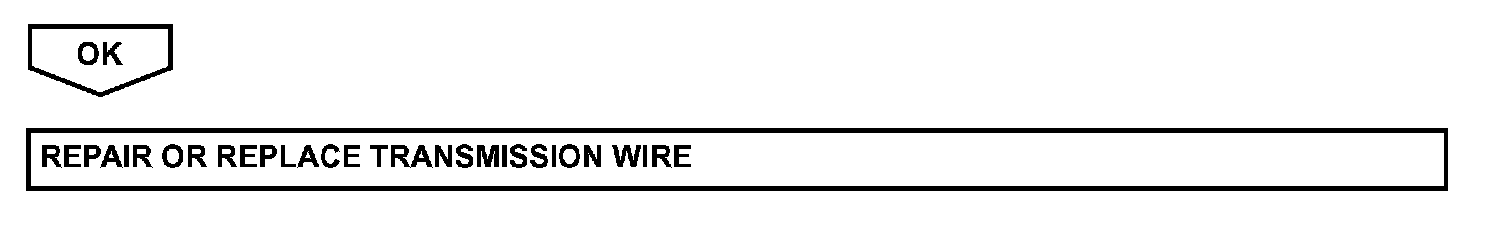

Step 3 (continued):
