P2714

DTC P2714 Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT)

SYSTEM DESCRIPTION

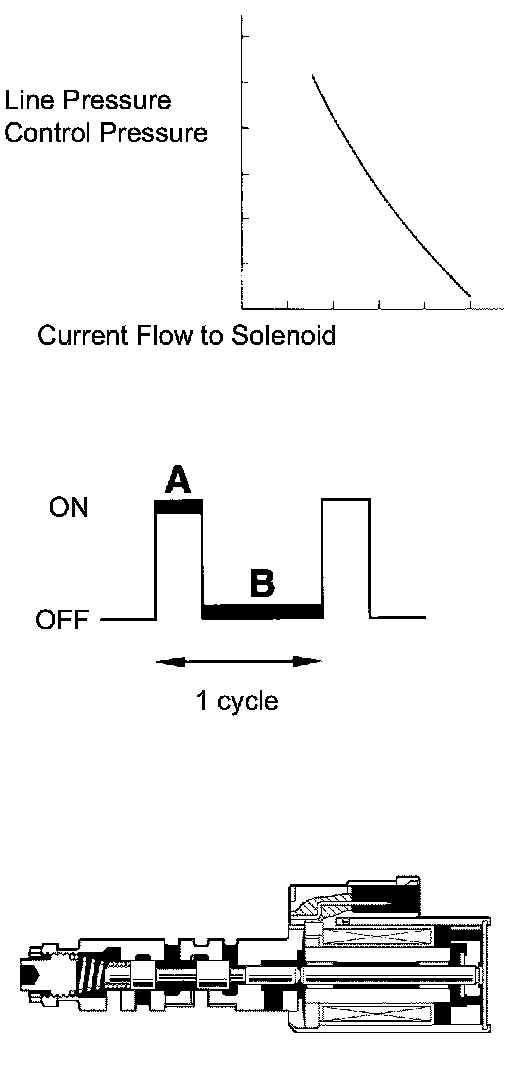

The linear solenoid valve (SLT) controls the transmission line pressure for smooth transmission operation based on signals from the throttle position sensor and the vehicle speed sensor. The ECM adjusts the duty ratio (*) of the SLT solenoid valve to control hydraulic line pressure coming from the primary regulator valve. Appropriate line pressure assures smooth shifting with varying engine outputs.
(*): Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then Duty Ratio = A/(A+B) x 100(%)

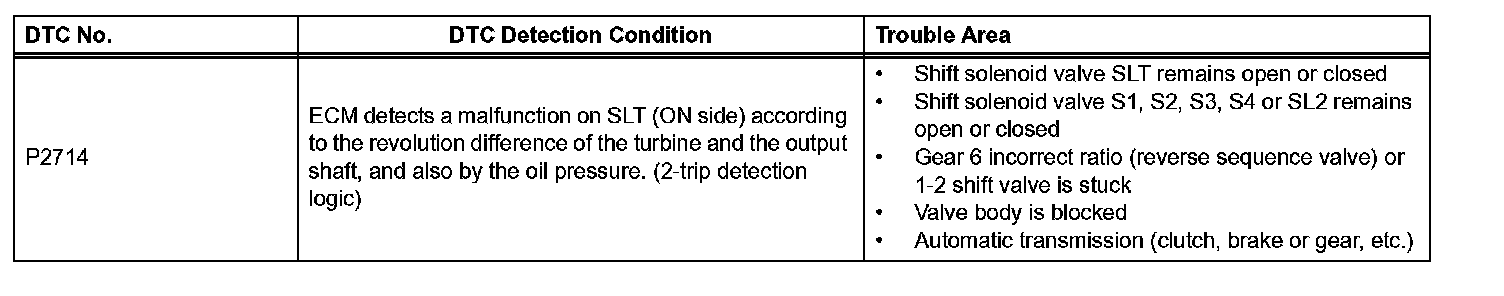

DTC Detection Condition:

MONITOR DESCRIPTION
The ECM calculates the amount of heat absorbed by the friction material based on the difference in revolution (clutch slippage) between the turbine and output shaft. The ECM turns on the MIL and outputs this DTC when the amount of heat absorption exceeds the specified value.
When the shift solenoid valve SLT remains on, oil pressure goes down and clutch engagement force decreases.

NOTICE: If you continue driving under these conditions, the clutch will burn out and the vehicle will no longer be driveable.

Monitor Strategy:

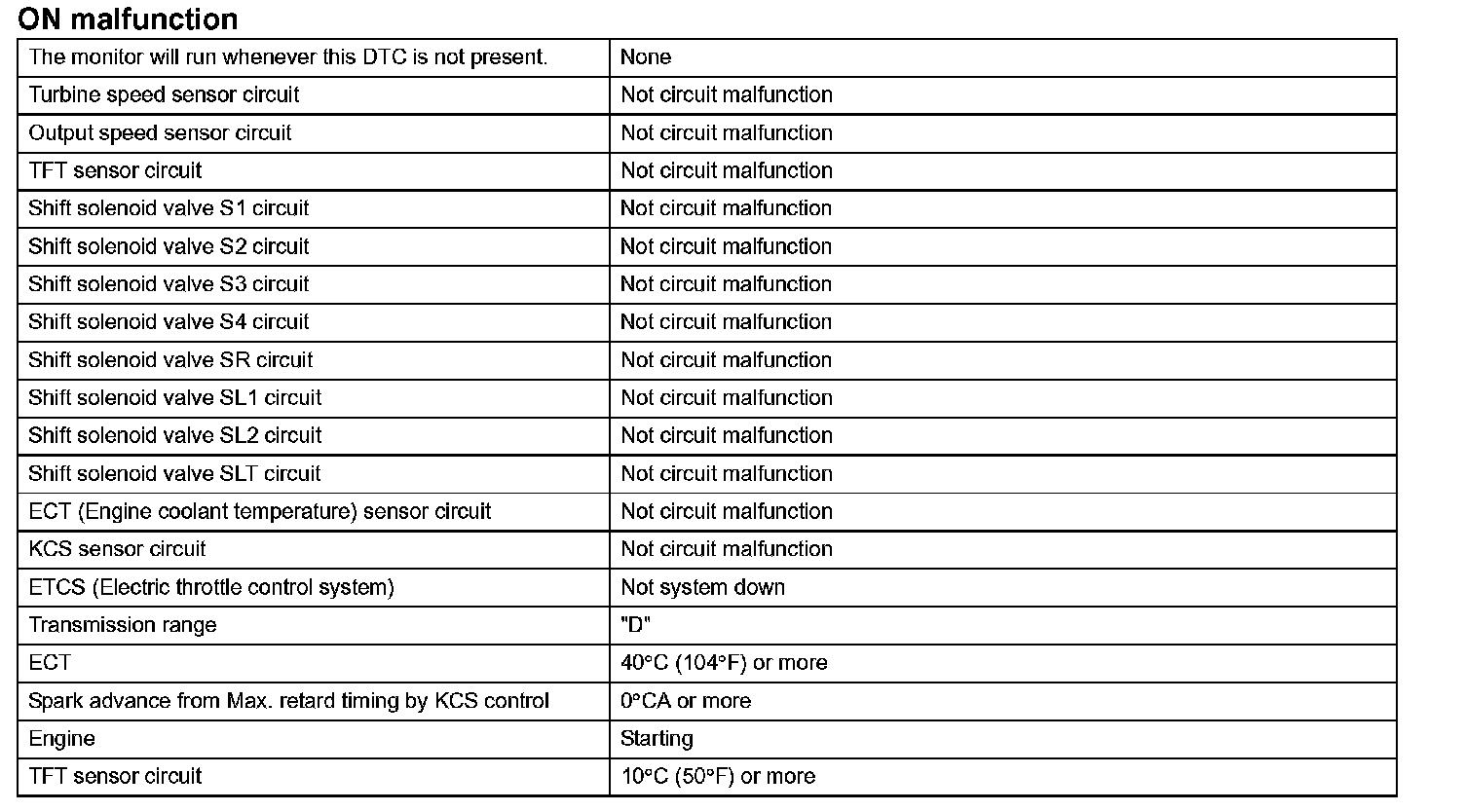

Typical Enabling Conditions:

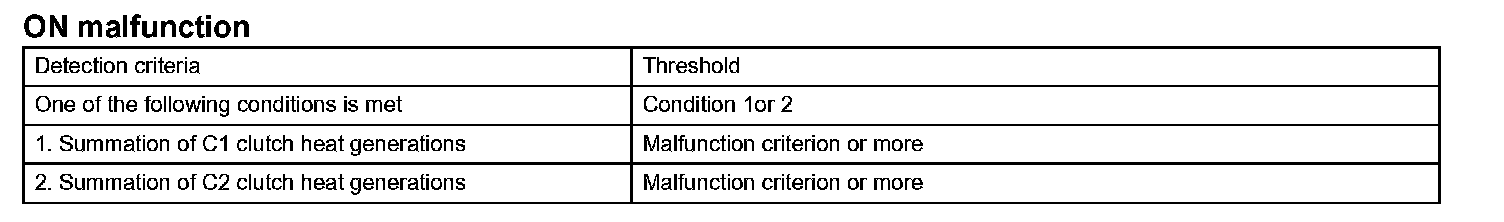

Typical Malfunction Thresholds:

INSPECTION PROCEDURE

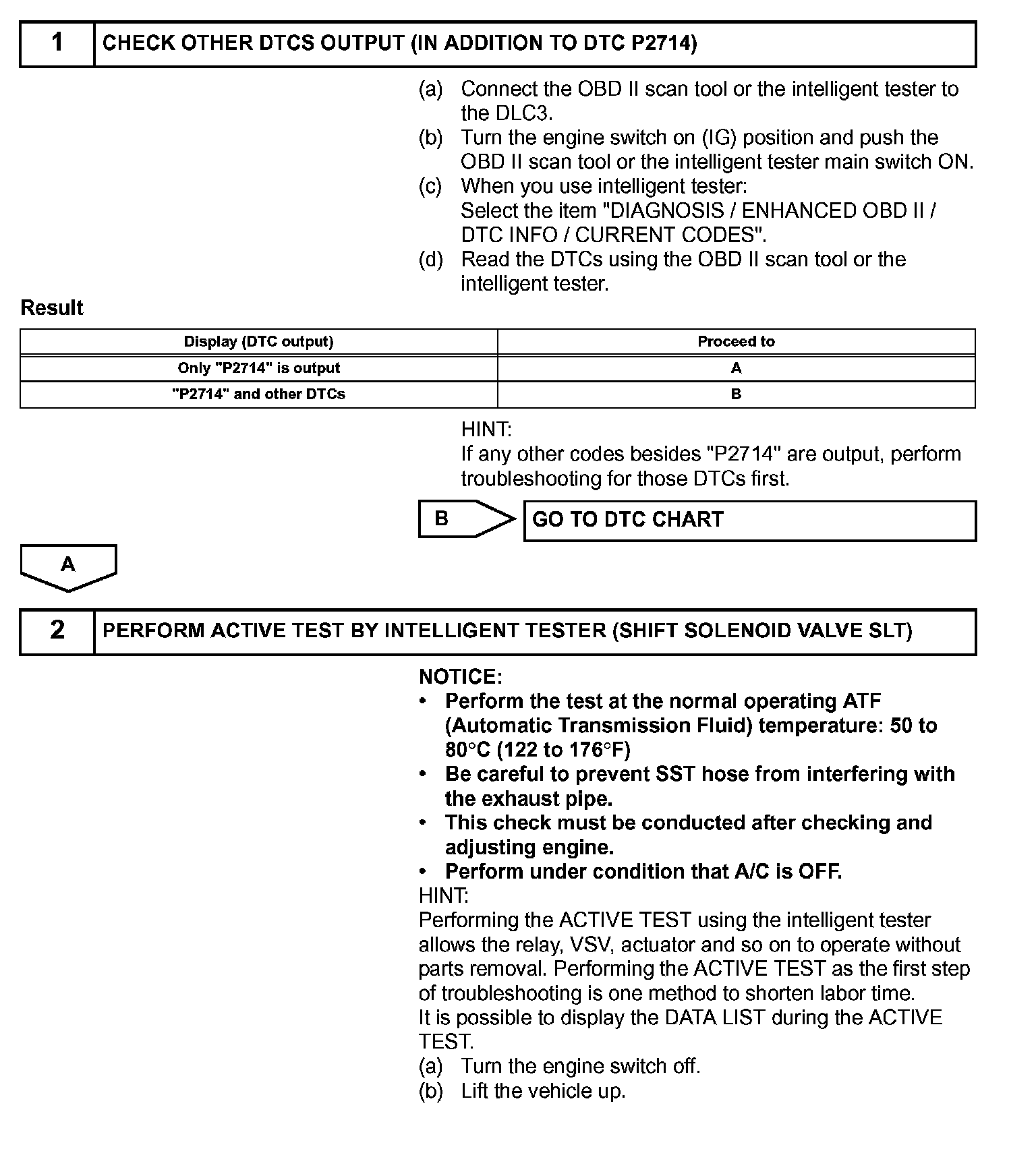

Steps 1-2:

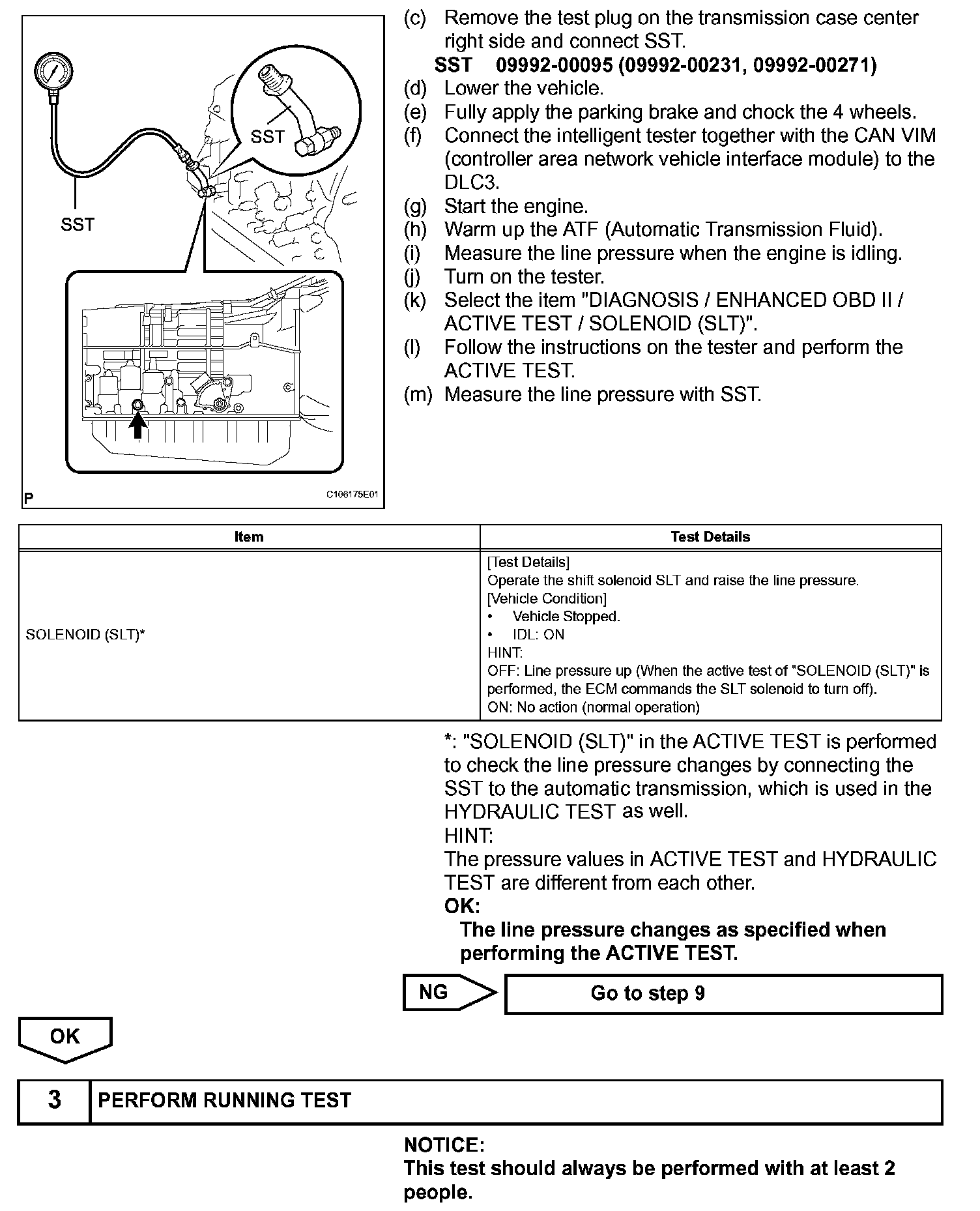

Steps 2-3:

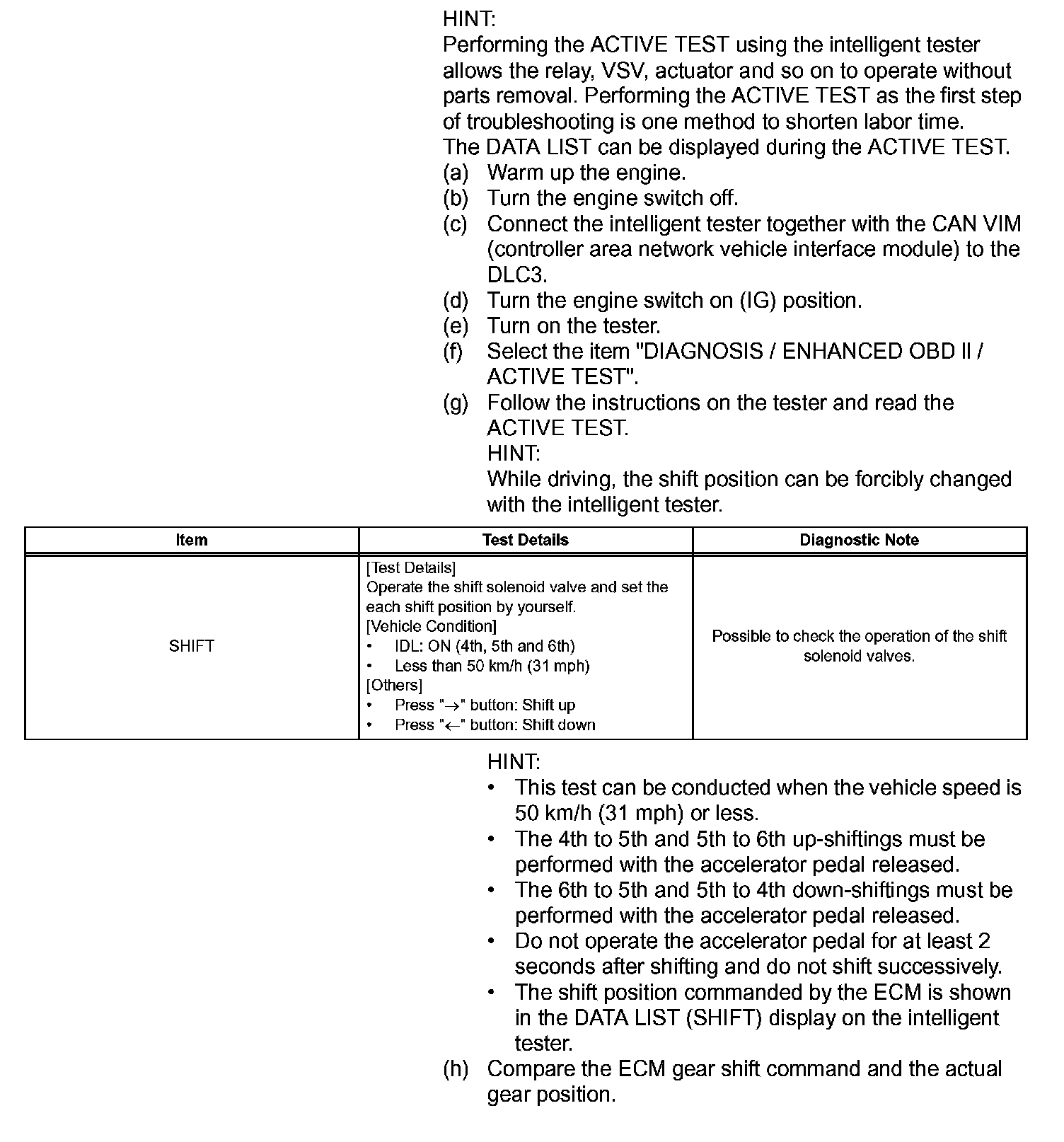

Step 3 (continued):

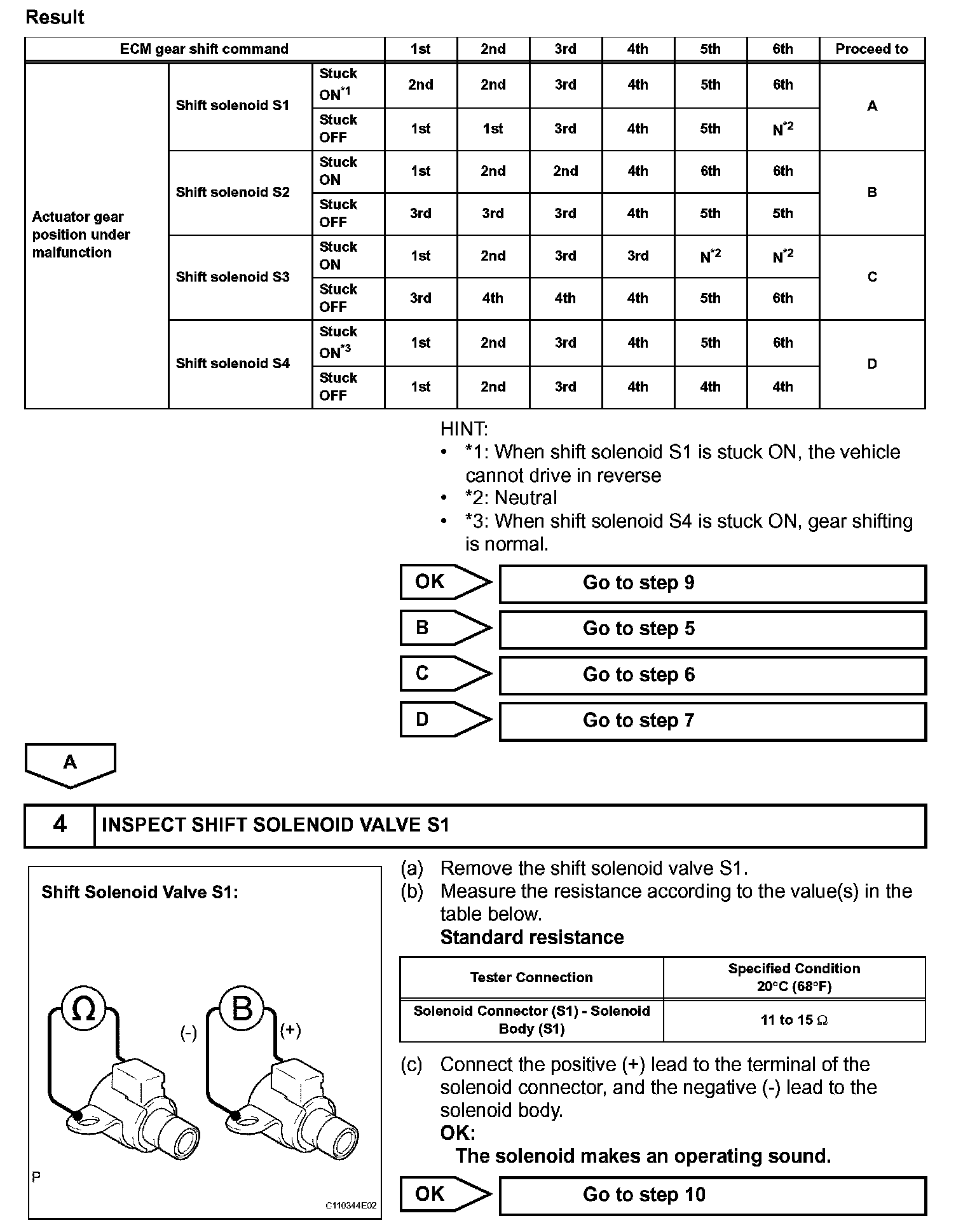

Steps 3-4:

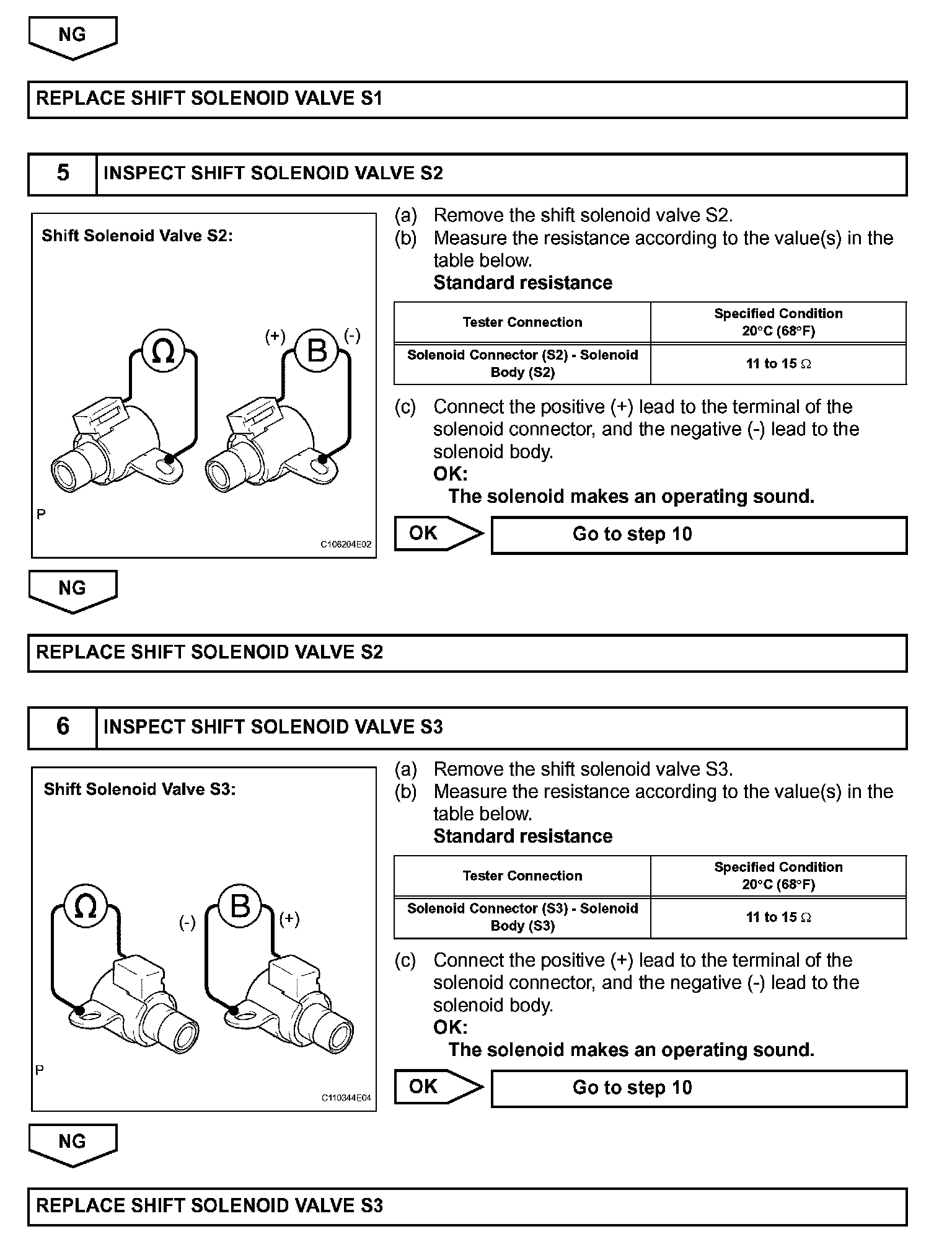

Steps 4-6:

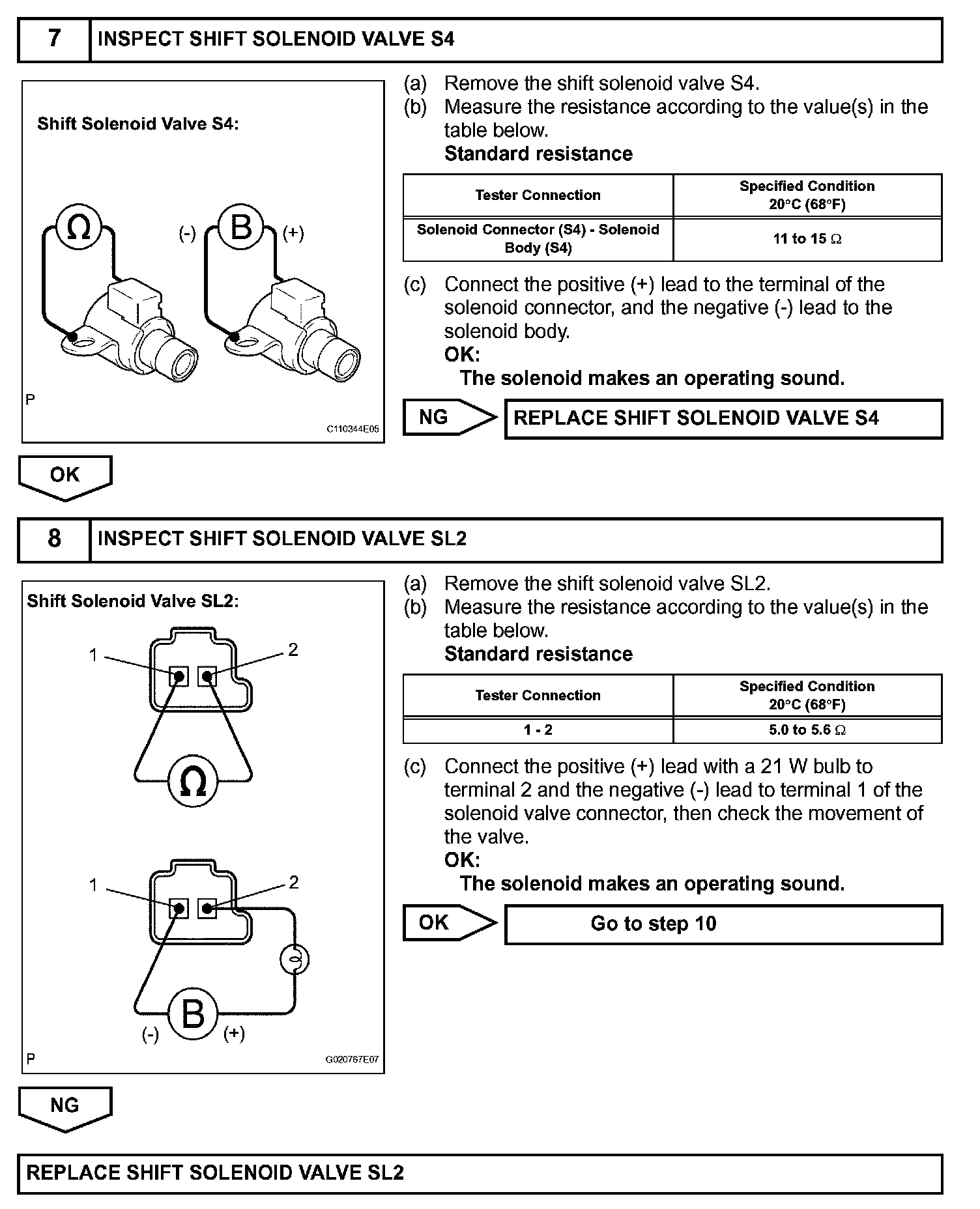

Steps 7-8:

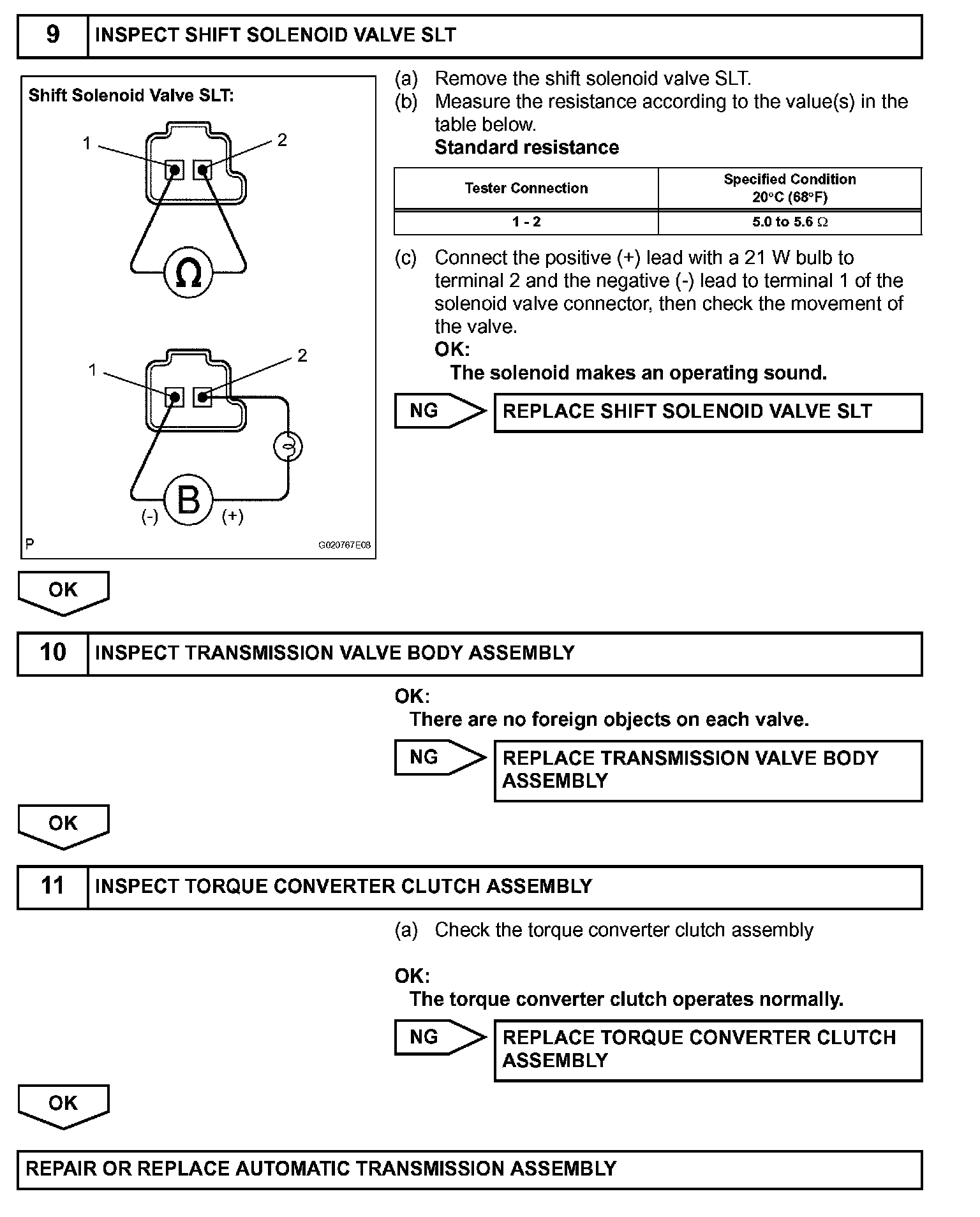

Steps 9-11:
