Transmission Control System

DTC P0724 Brake Switch "B" Circuit High

DESCRIPTION
The purpose of this circuit is to prevent the engine from stalling while driving in lock-up condition when brakes are suddenly applied.
When the brake pedal is depressed, this switch sends a signal to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in progress.

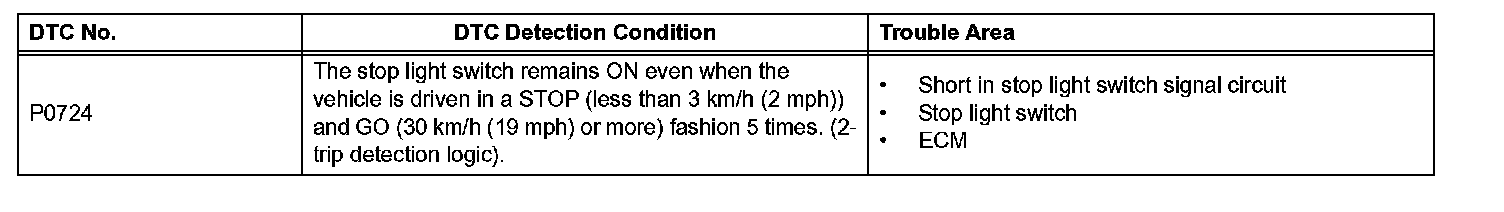

DTC Detection Condition:






MONITOR DESCRIPTION
This DTC indicates that the stop light switch remains on. When the stop light switch remains ON during "stop and go" driving, the ECM interprets this as a fault in the stop light switch and the MIL comes on and the ECM stores the DTC. The vehicle must stop (less than 3 km/h (2 mph)) and go (30 km/h (19 mph) or more) ten times for two driving cycles in order to detect a malfunction.

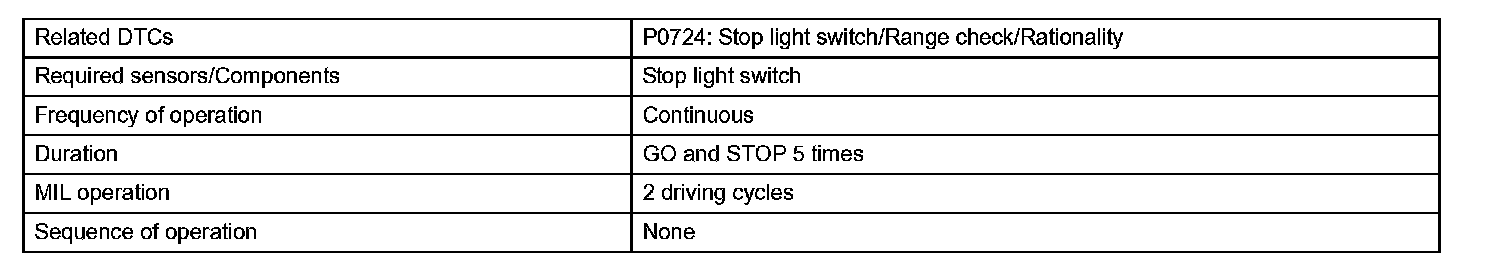

Monitor Strategy:

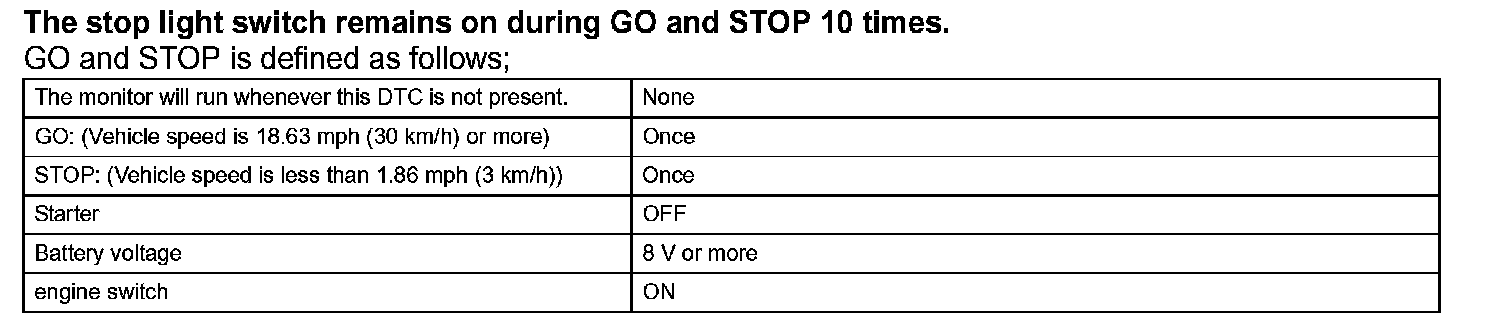

Typical Enabling Conditions:




Typical Malfunction Thresholds:





WIRING DIAGRAM
Refer to Powertrain Management, Diagrams, Electrical.


INSPECTION PROCEDURE

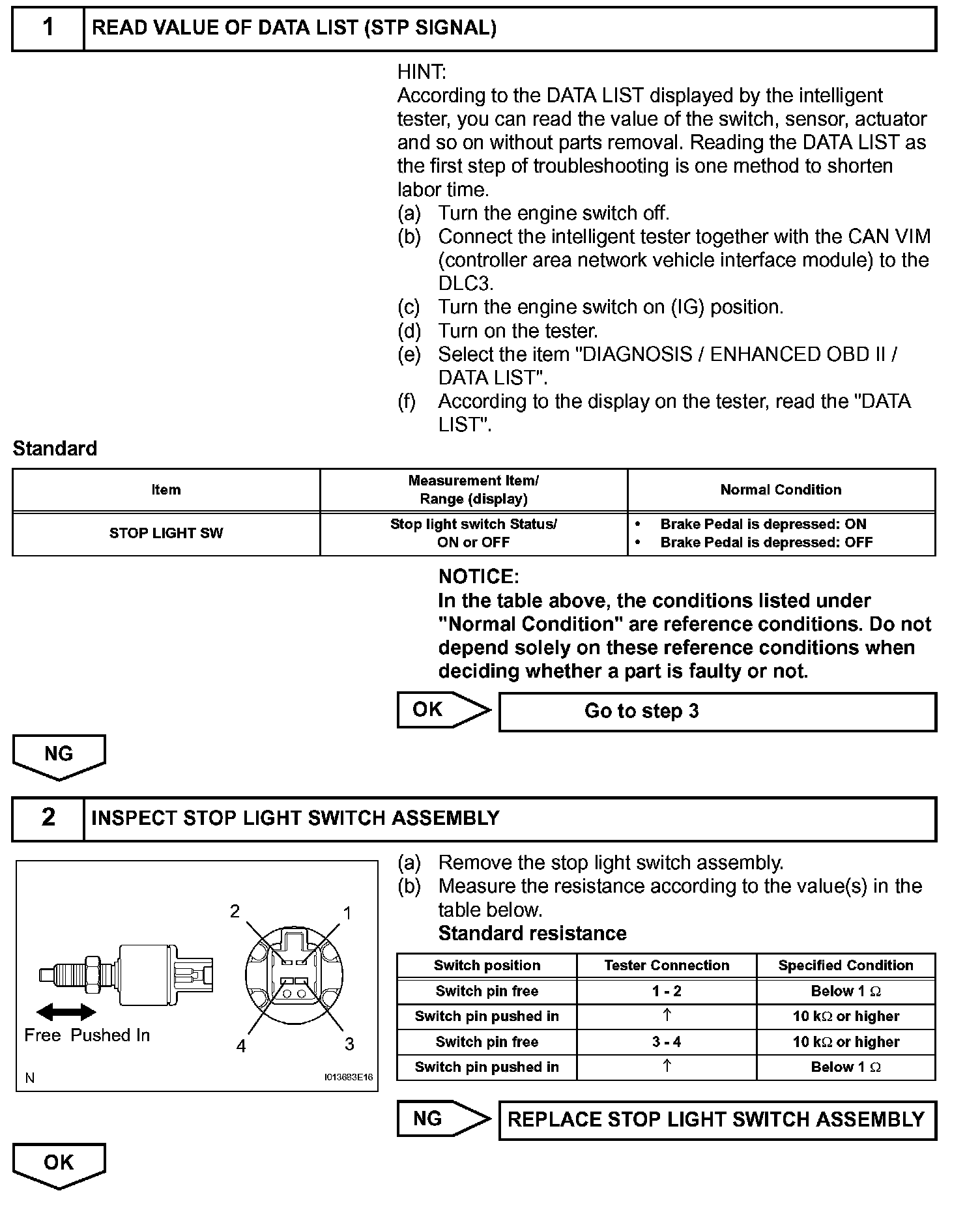

Steps 1-2:

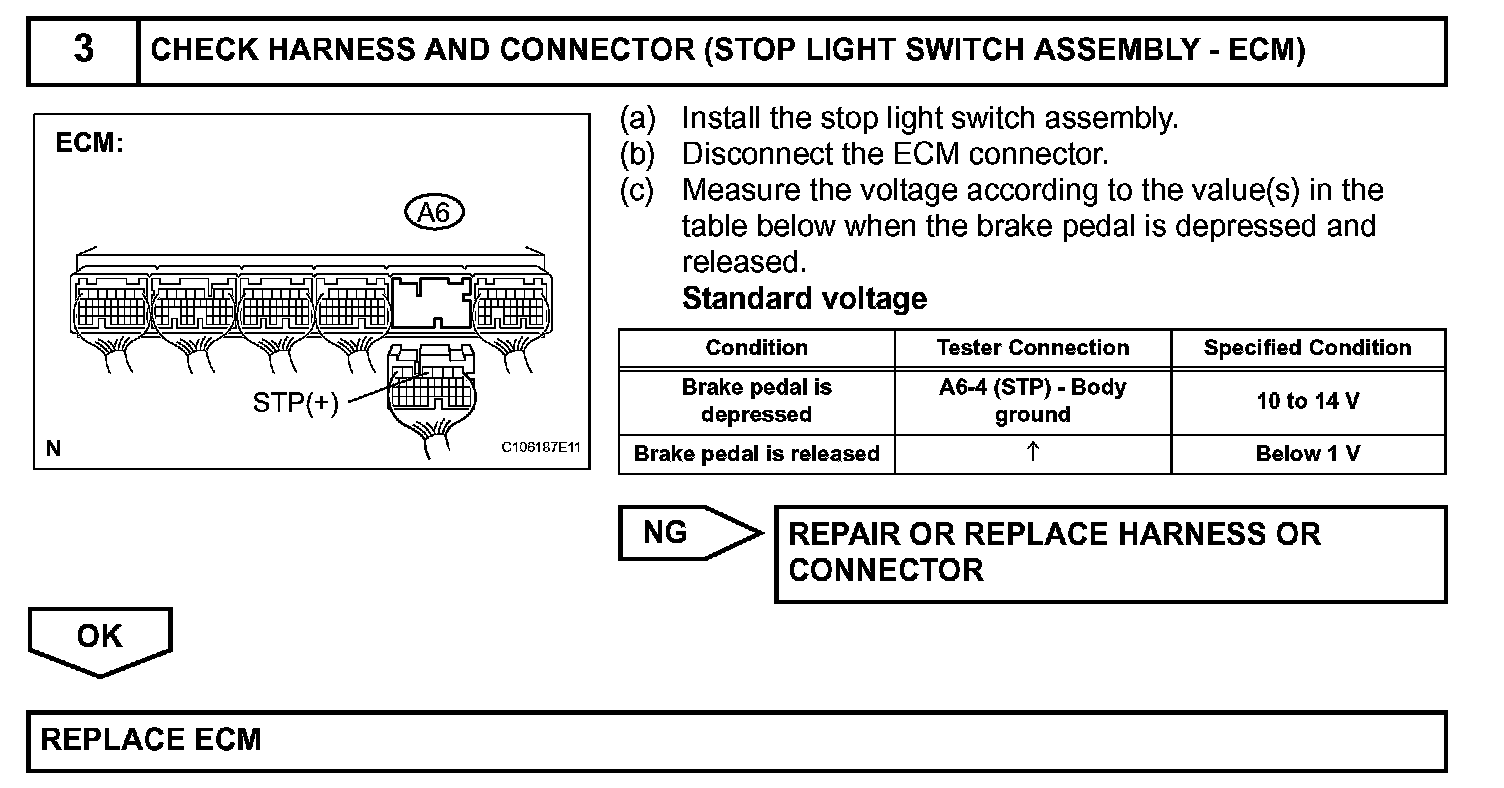

Step 3:
