DTC 74-40

DTC 74-40 Short in Speaker Circuit

DESCRIPTION

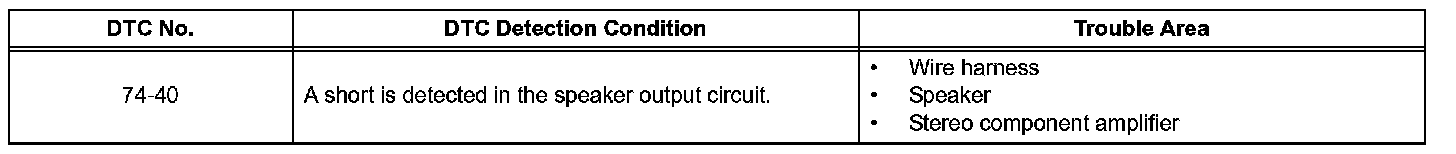

DTC Detection Condition:

This circuit has a fail-safe function.
When a short in the speaker circuit is detected, all sound output is stopped.

HINT: After the inspection is completed, clear the DTCs.

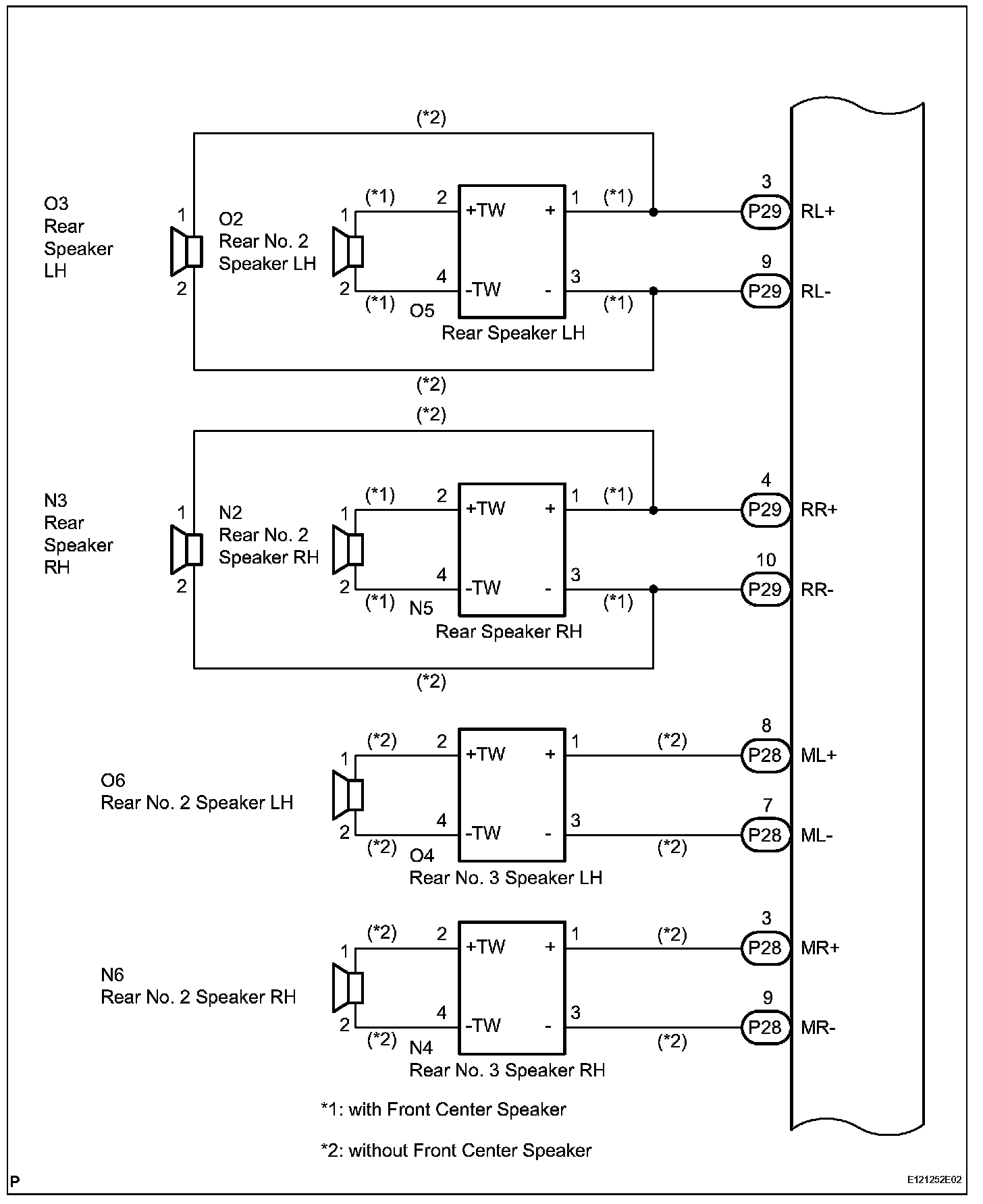

Wiring Diagram (Part 1):

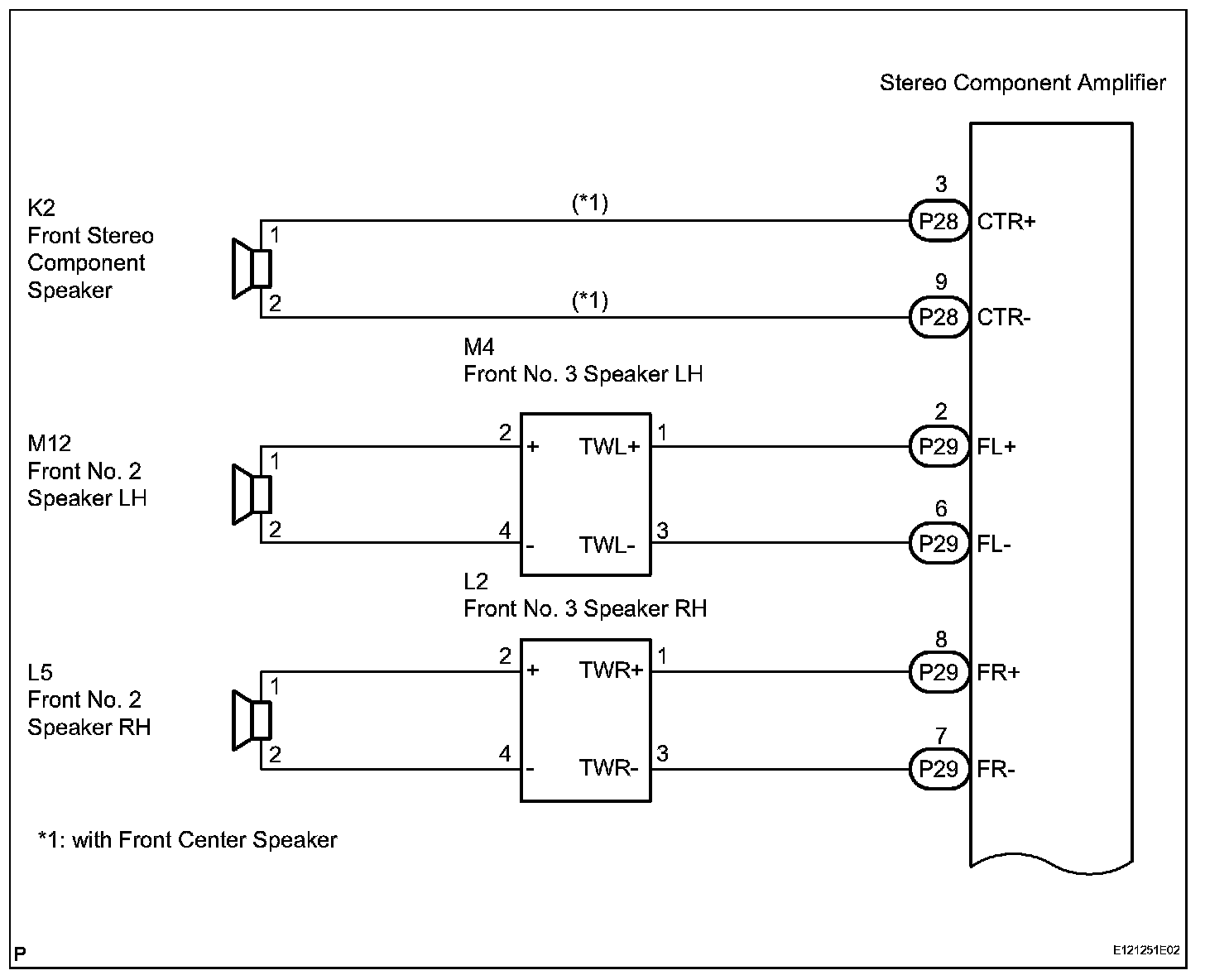

Wiring Diagram (Part 2):

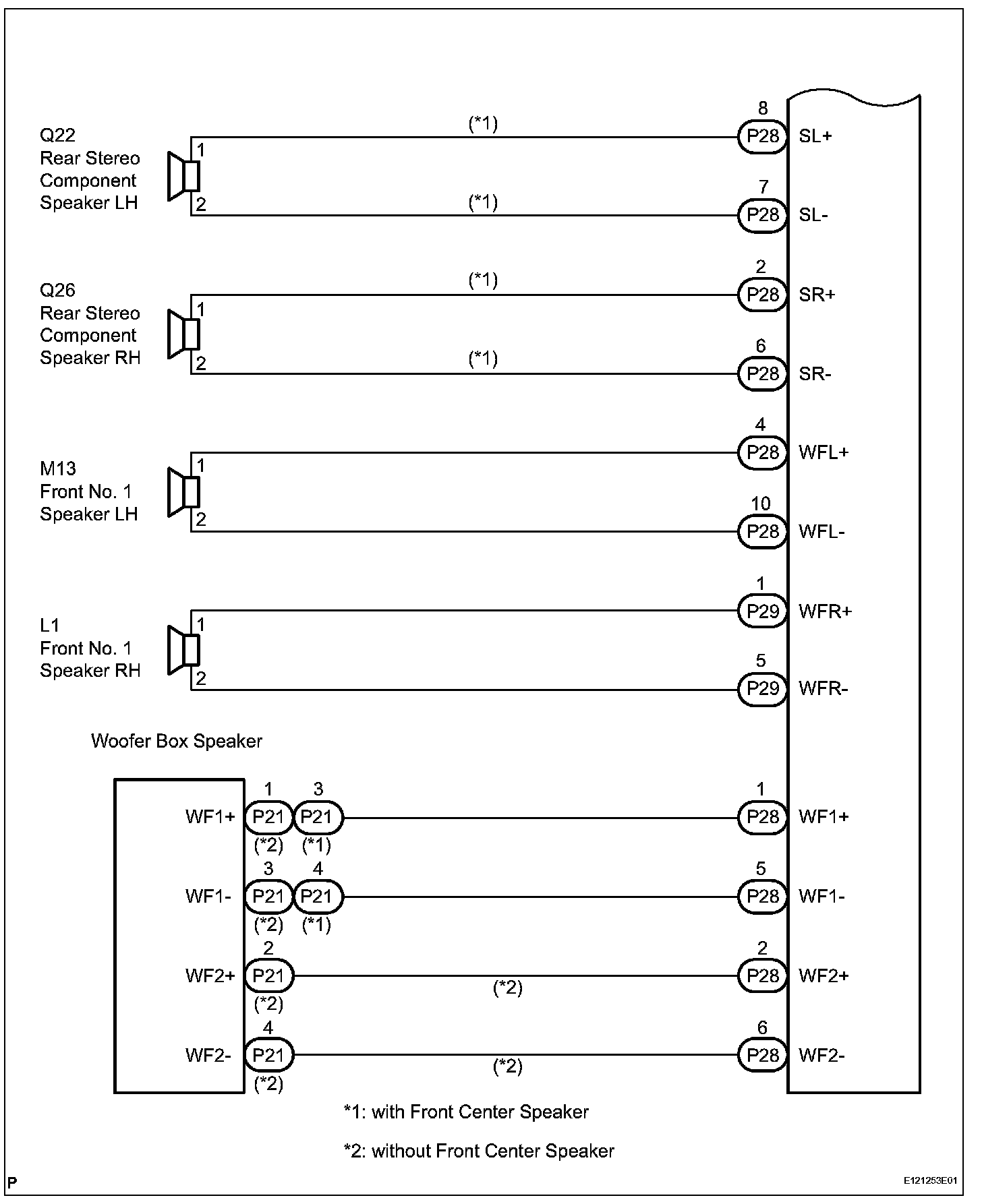

Wiring Diagram (Part 3):

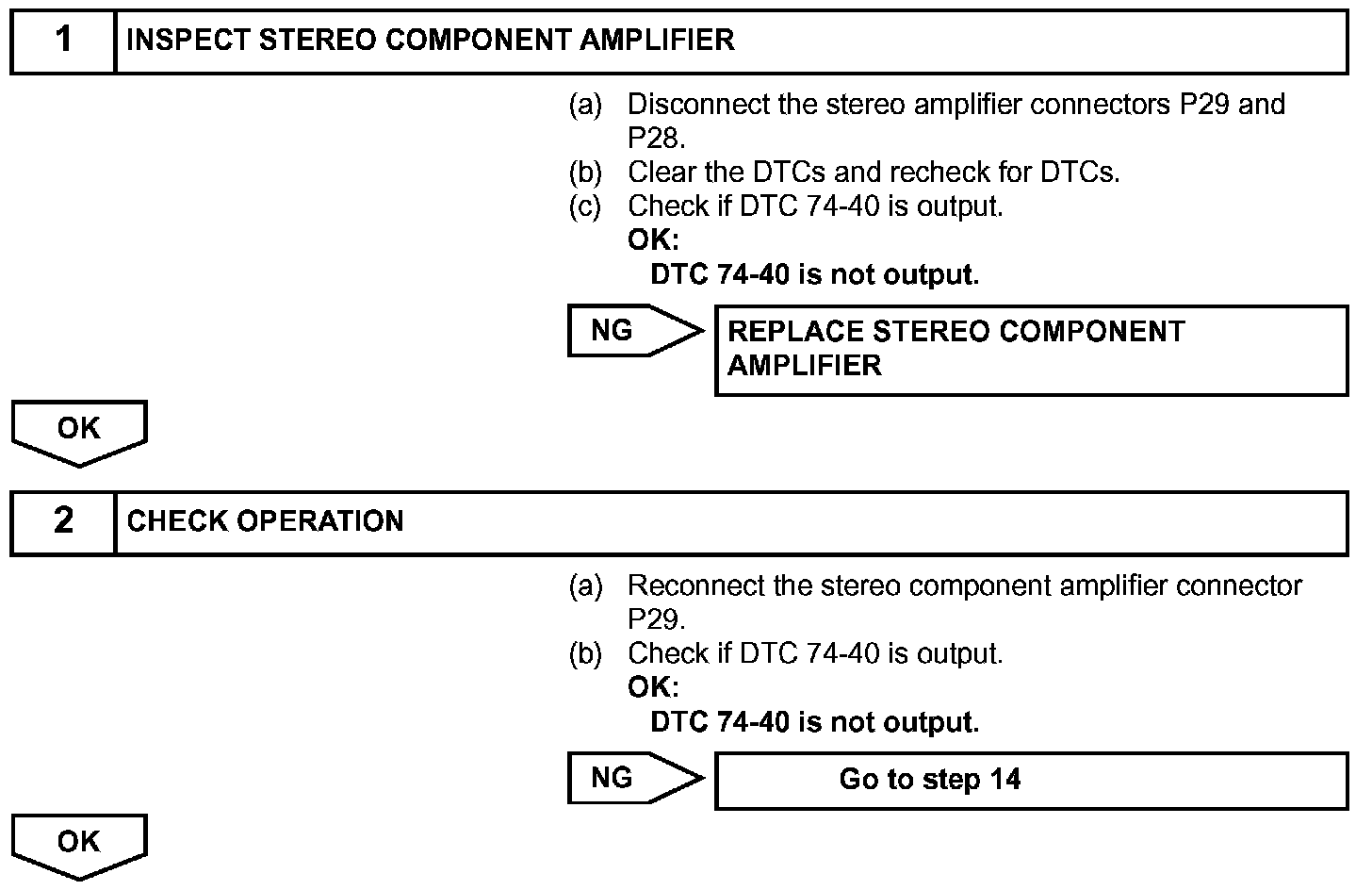

Step 1-2:

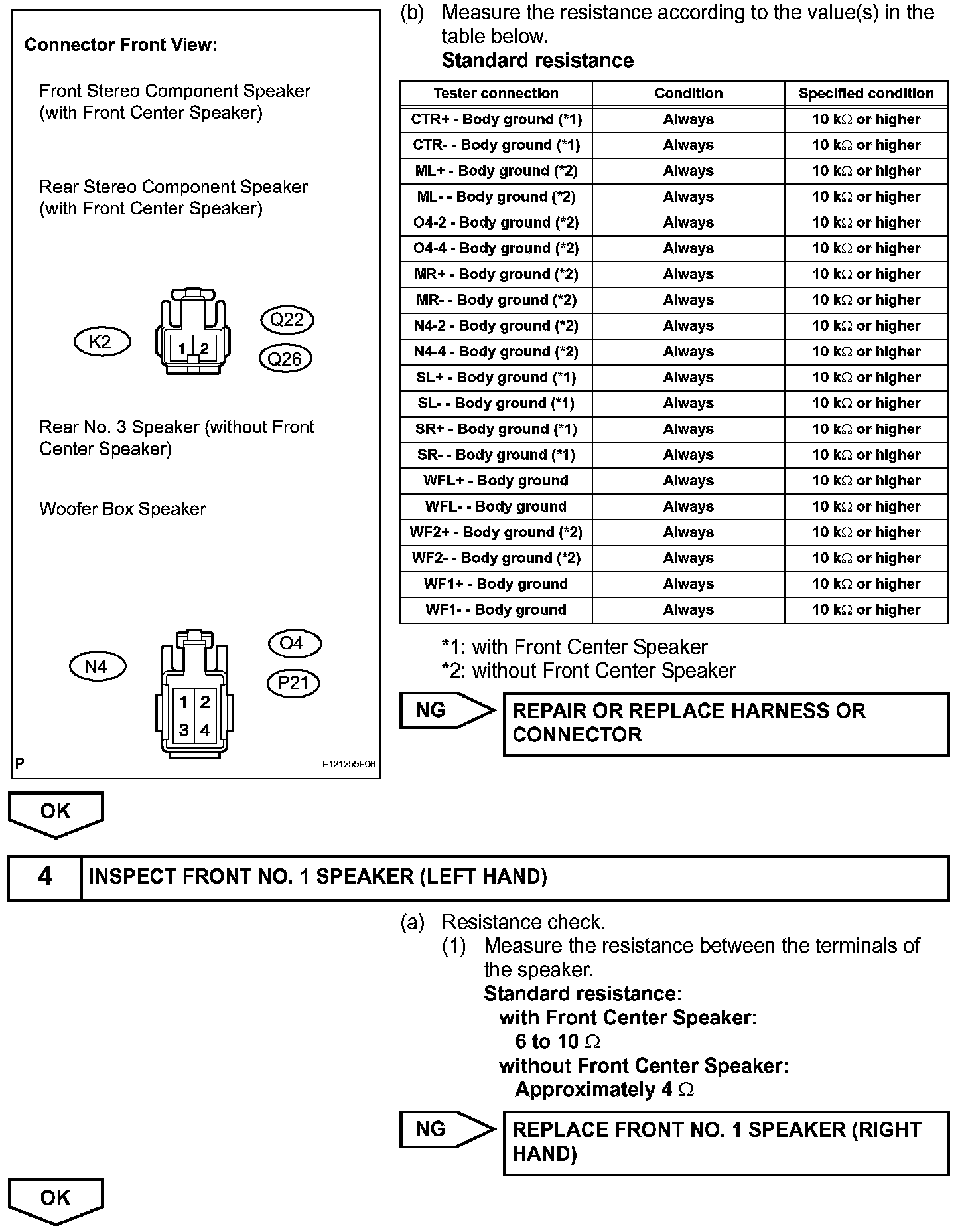

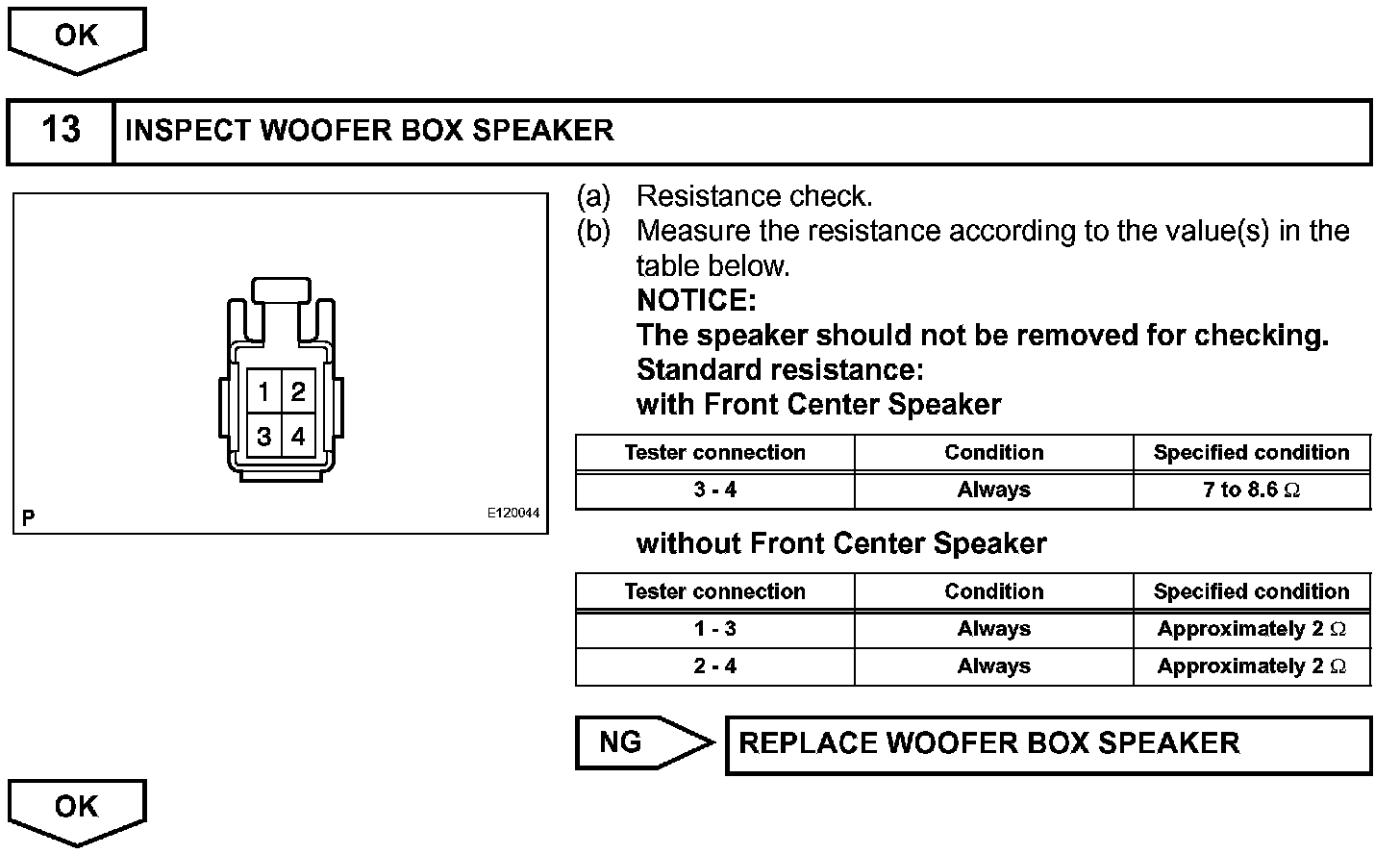

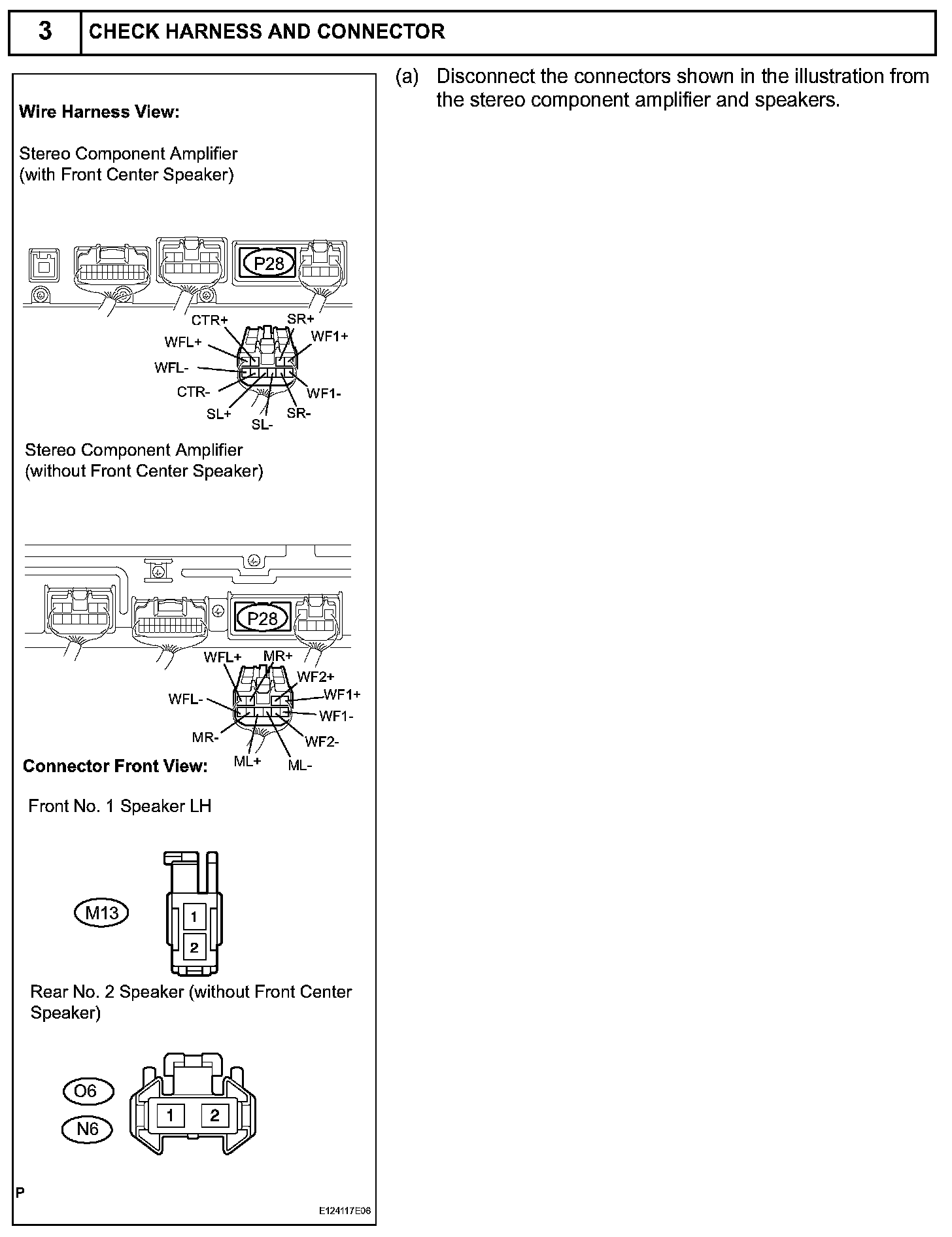

Step 3:

Step 3(continued)-4:

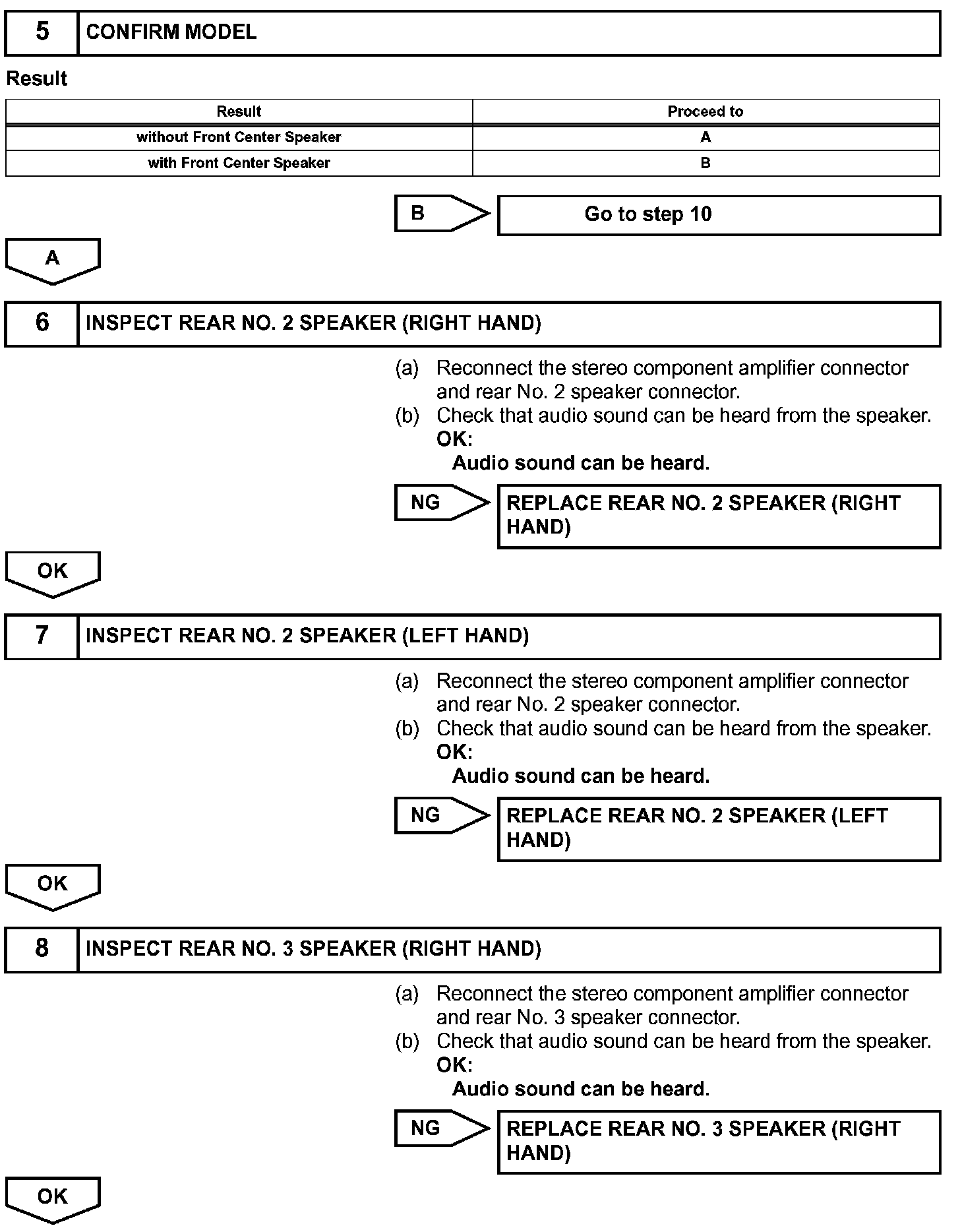

Step 5-8:

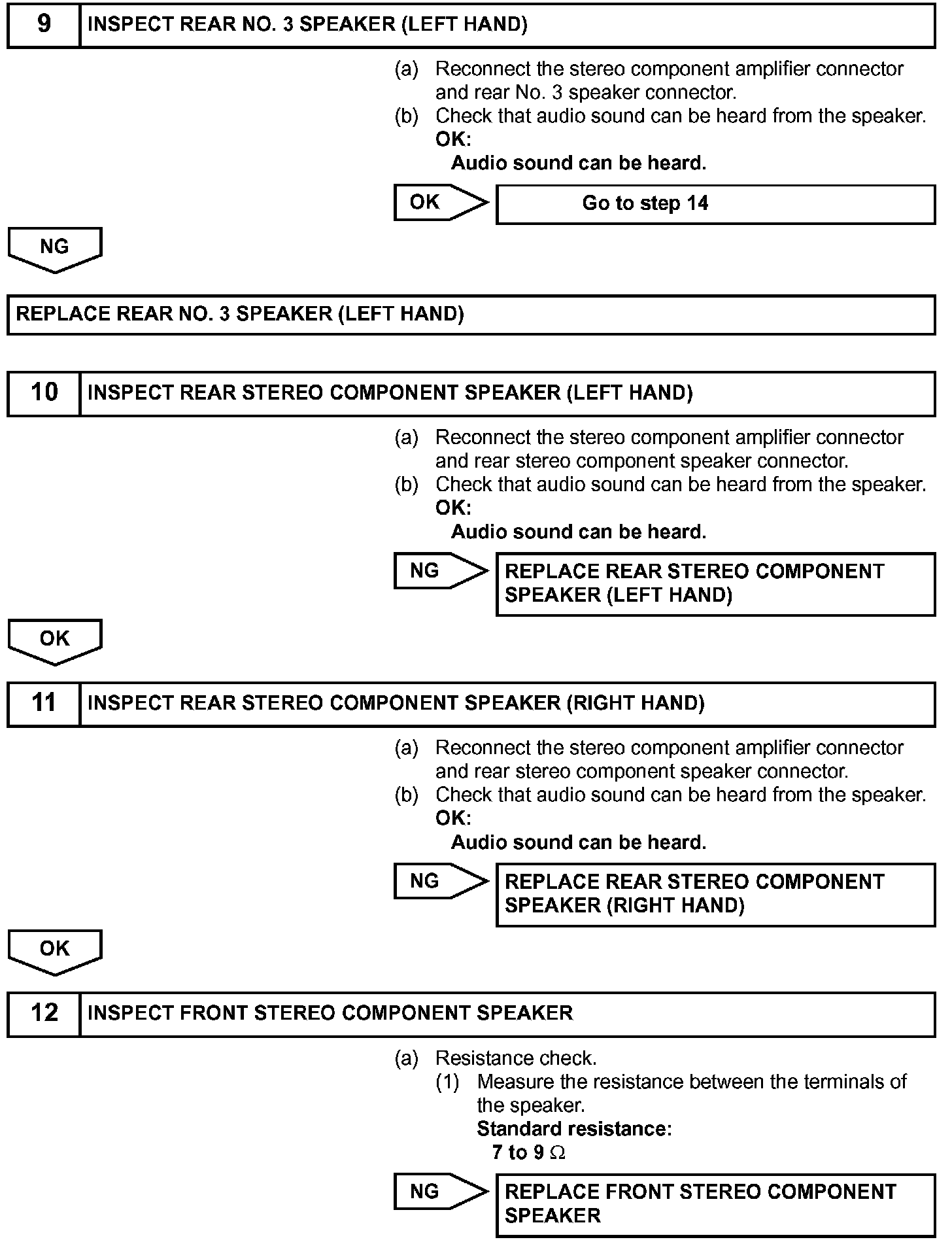

Step 9-12:

Step 12(continued)-13:

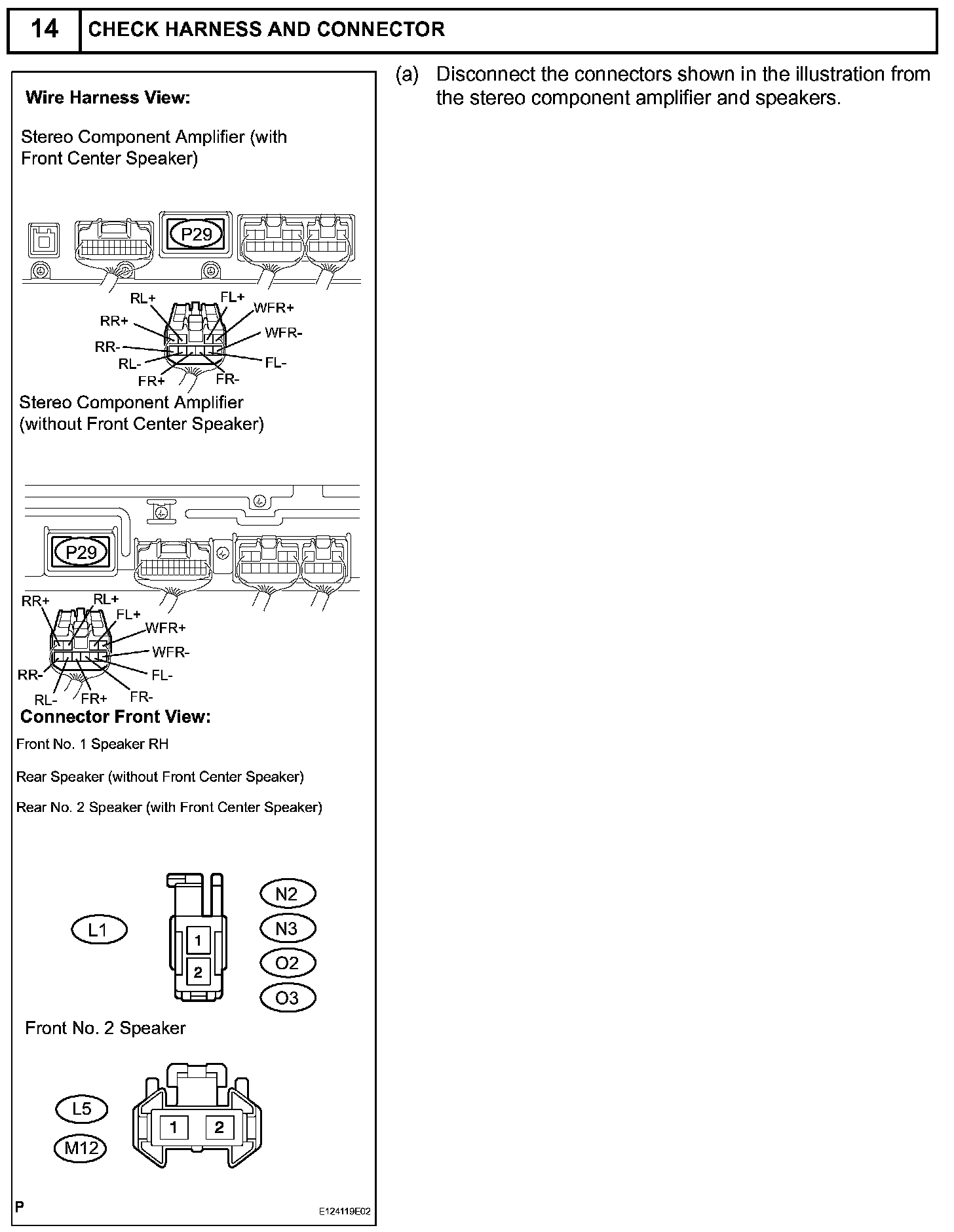

Step 14:

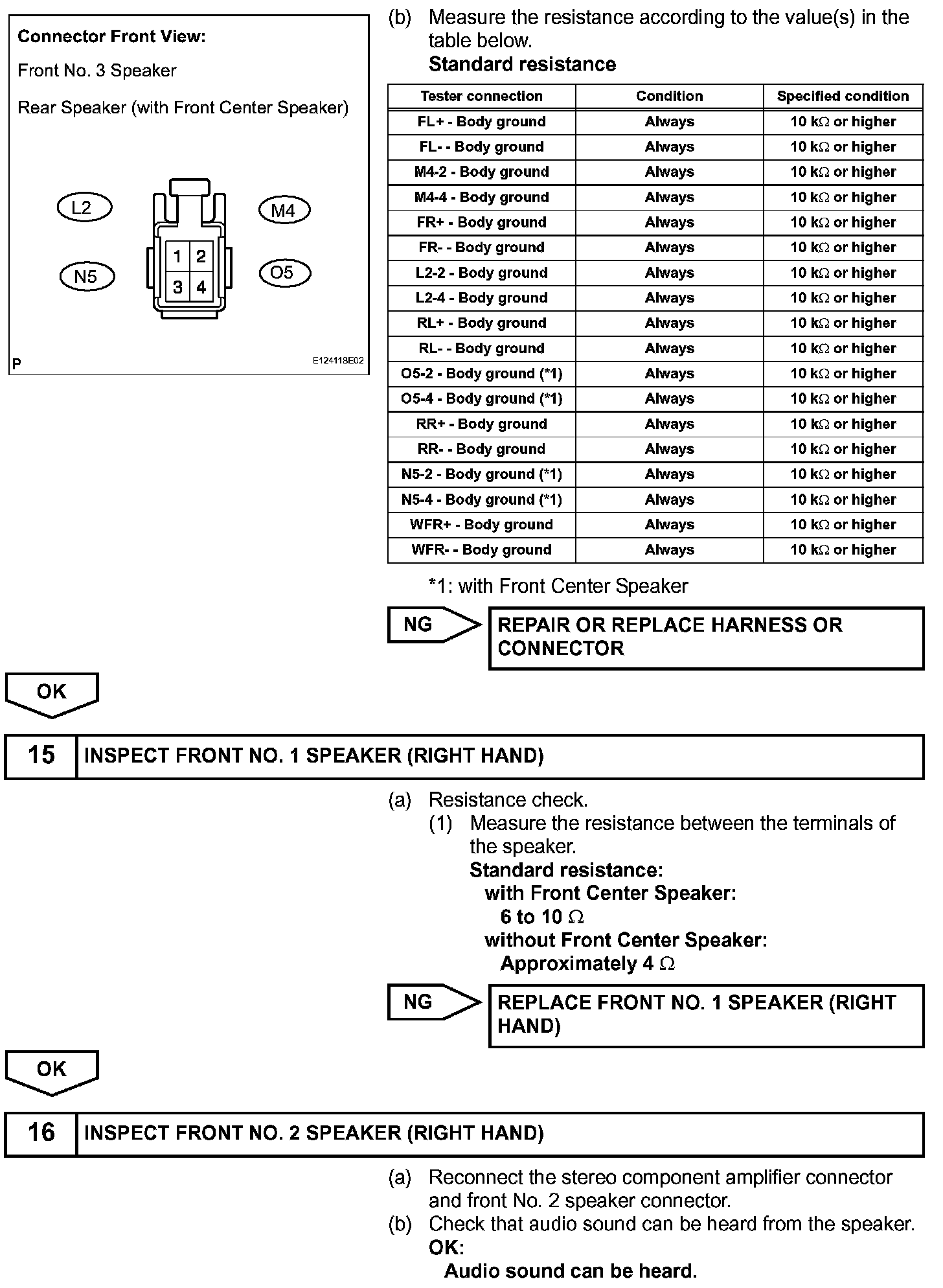

Step 14(continued)-16:

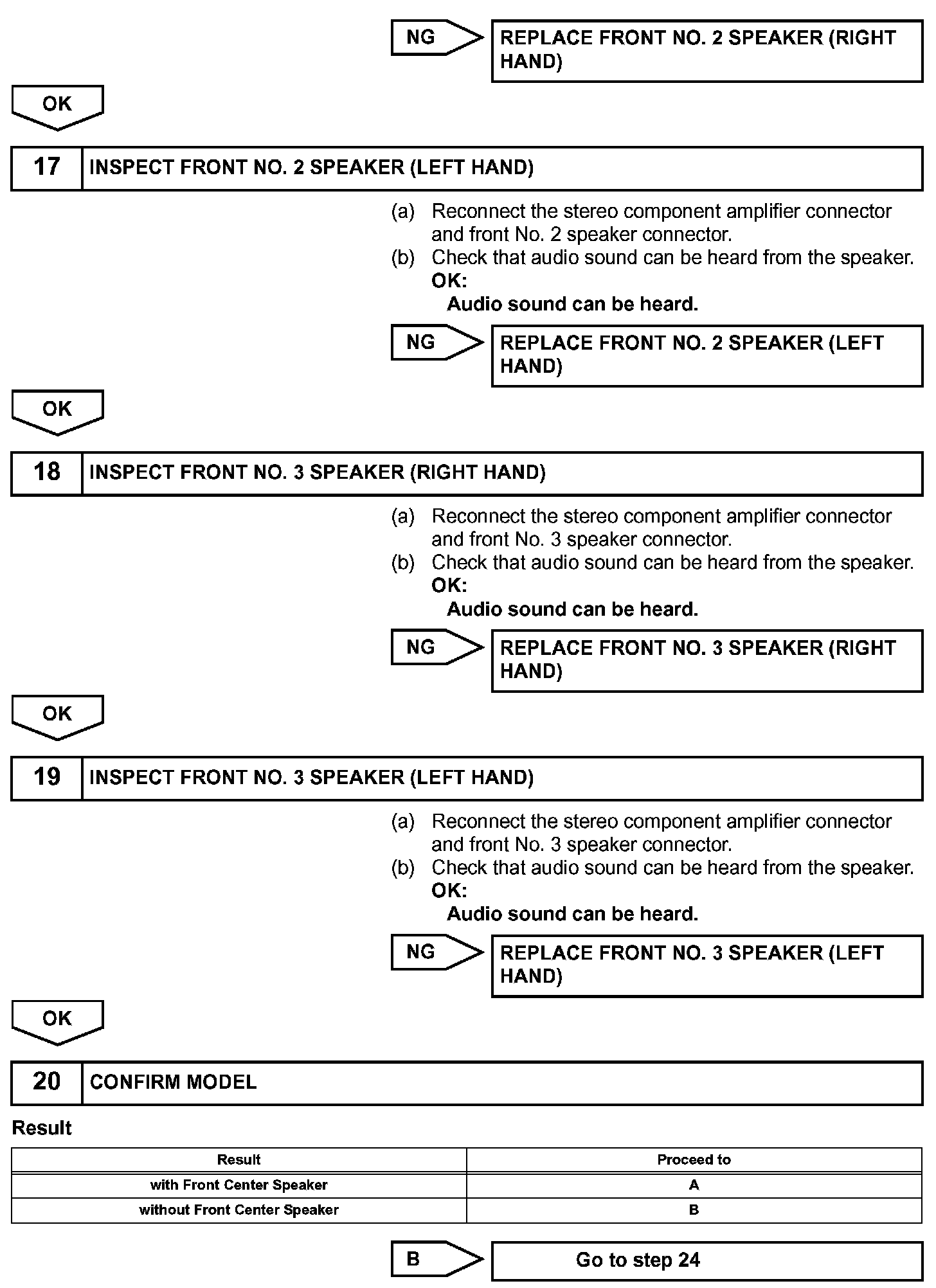

Step 16(continued)-20:

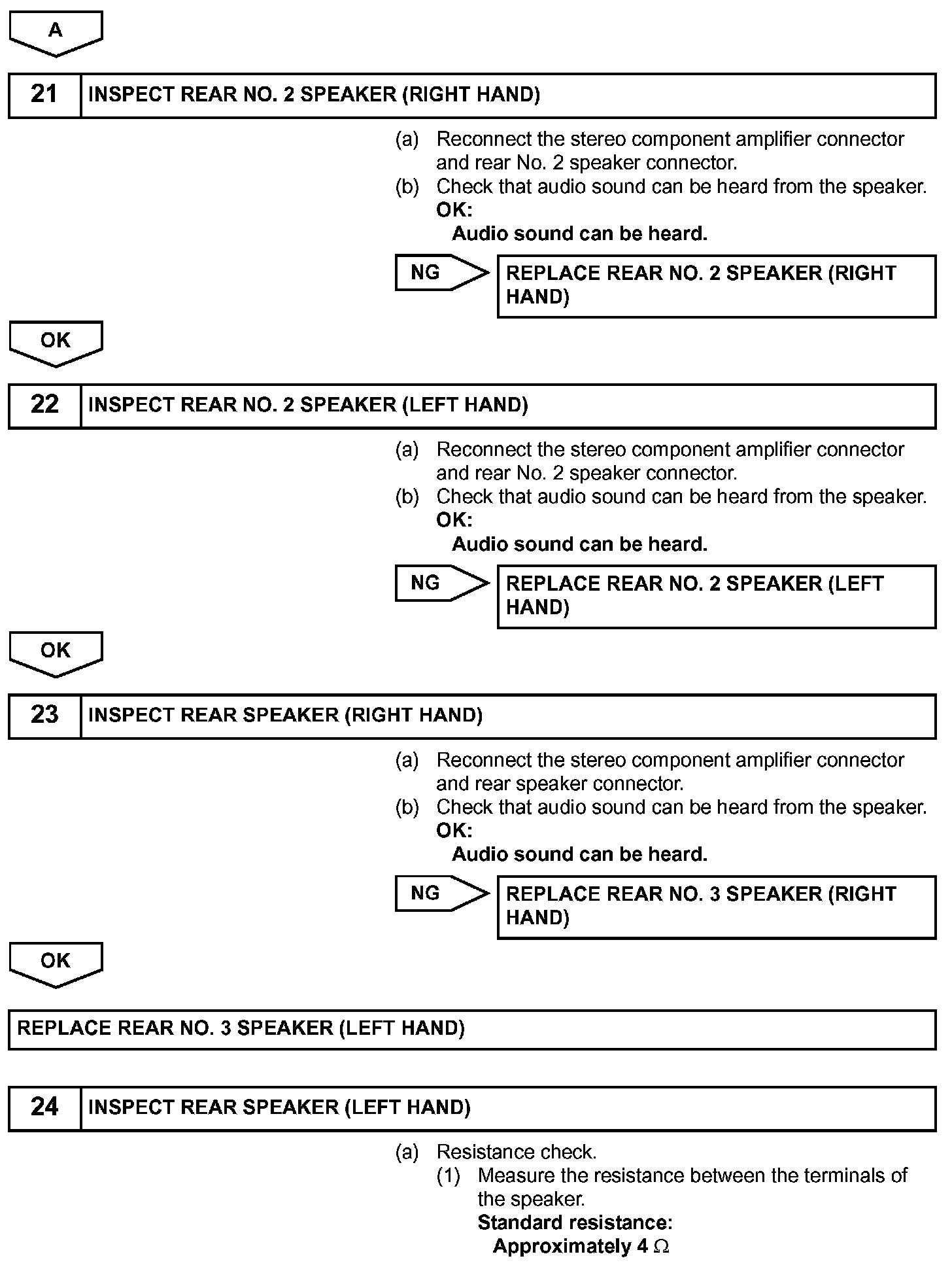

Step 20(continued)-24:

Step 24(continued):

INSPECTION PROCEDURE
