Vehicle Stability Control System (w/ VDIM)

DIAGNOSTIC TROUBLE CODE CHART
^ If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective DTC No. in the DTC chart.
^ Inspect the fuse and relay before investigating the trouble areas as shown in the table.

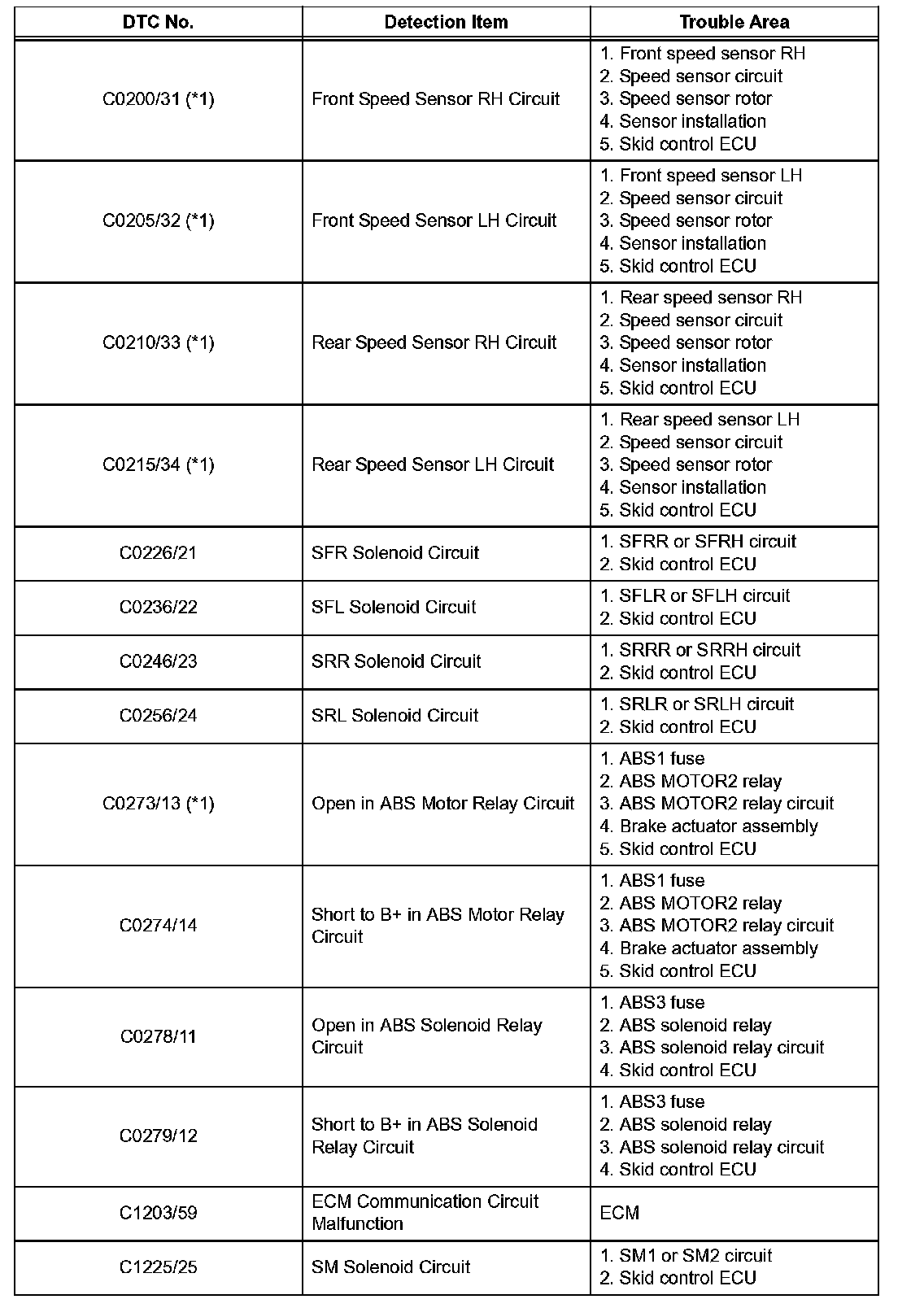

C0200-C1225:

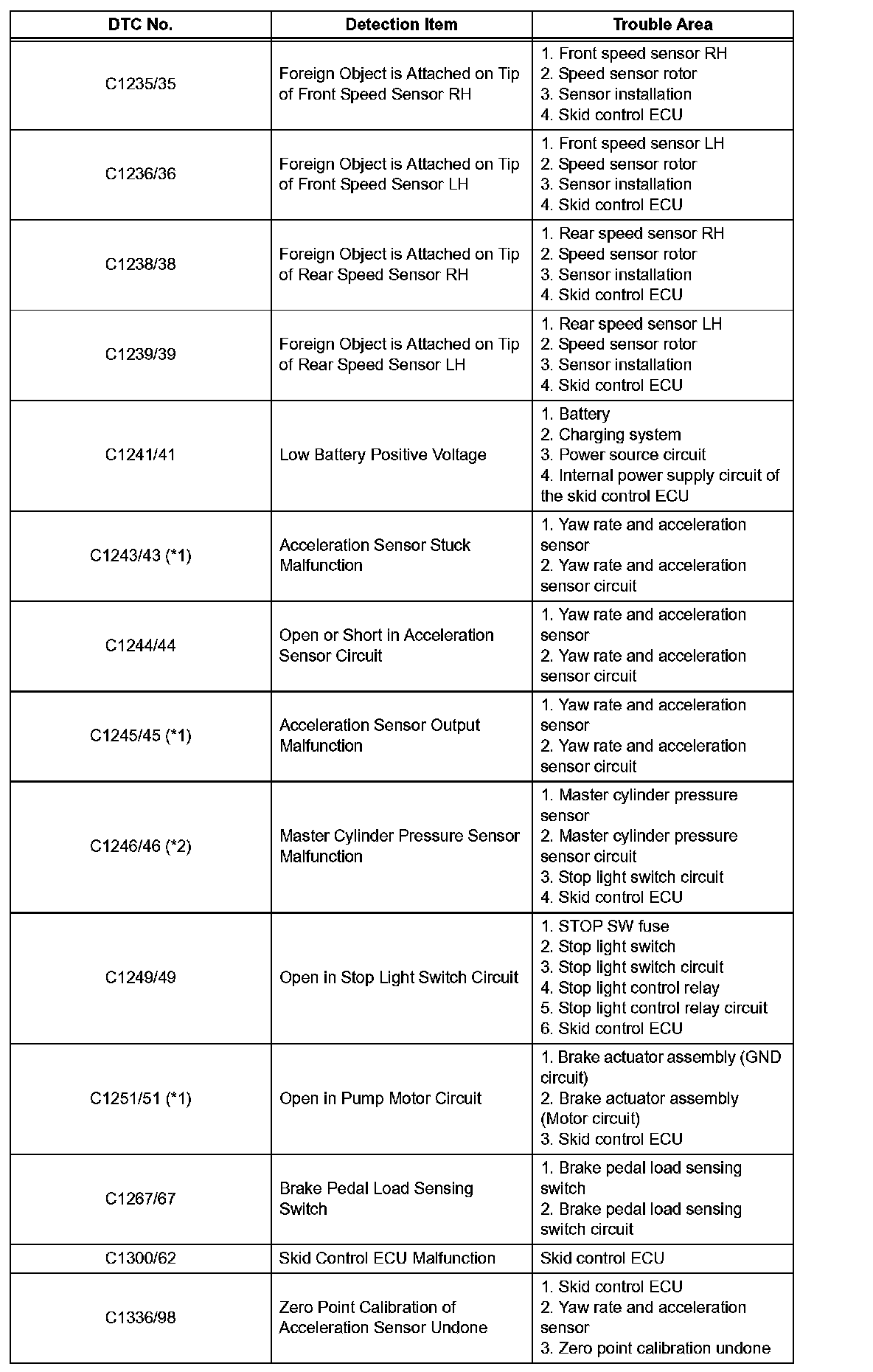

C1235-C1336:

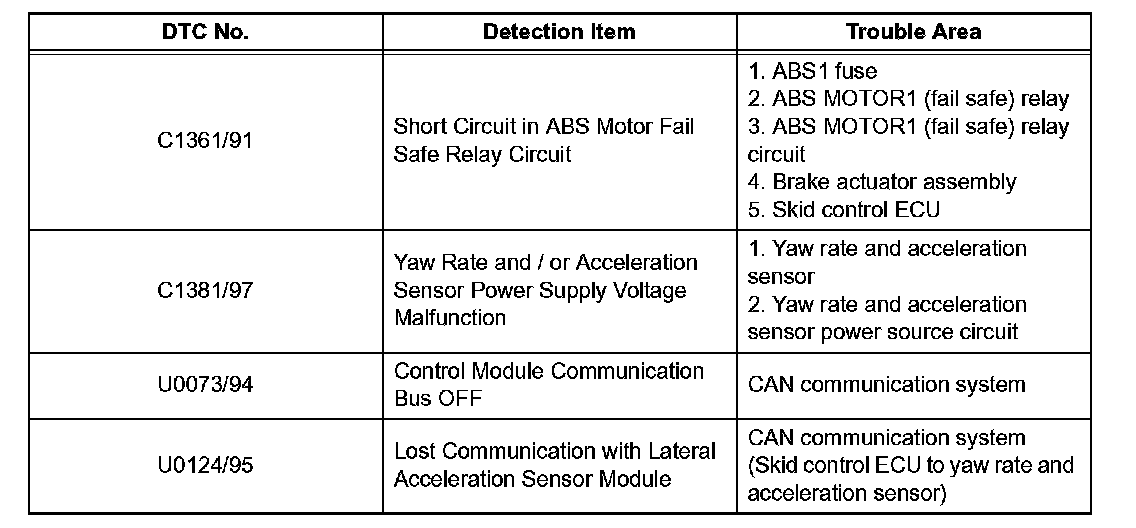

C1361-C1381 & U0073-U0124:

(*1, *2):
Even after the trouble areas are repaired, the ABS warning light will not go off unless these operations are performed:
^ (*1):
a. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
b. Clear the DTC.
^ (*2):
a. Keep the vehicle stationary for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
b. Drive the vehicle at the vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for approximately 3 seconds.
c. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
d. Clear the DTC.

HINT: In some cases, the intelligent tester cannot be used when the ABS warning light remains on.

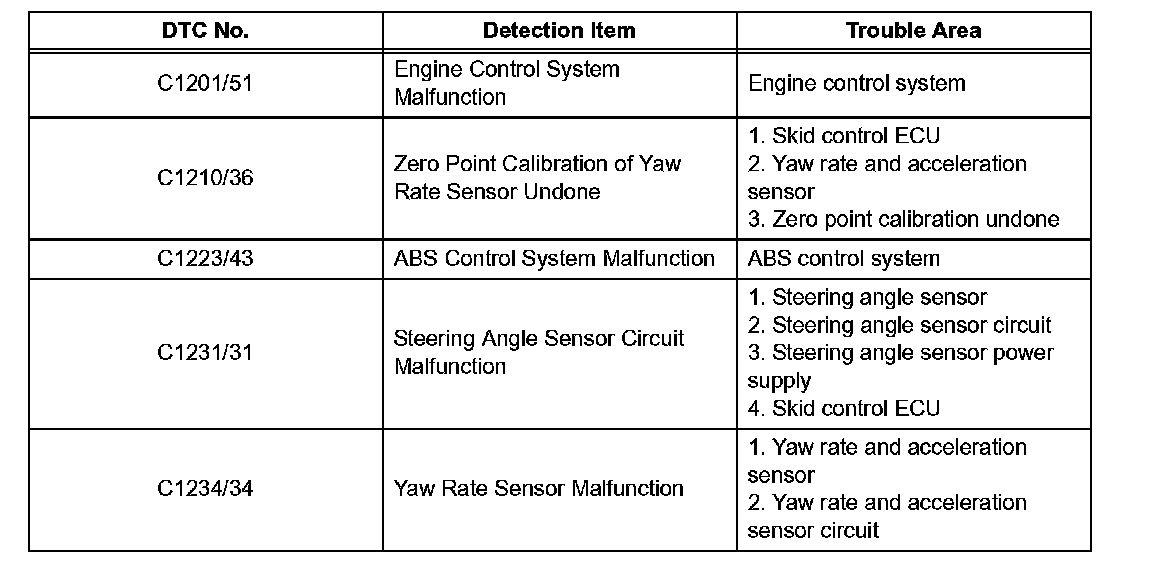

C1201-C1234:

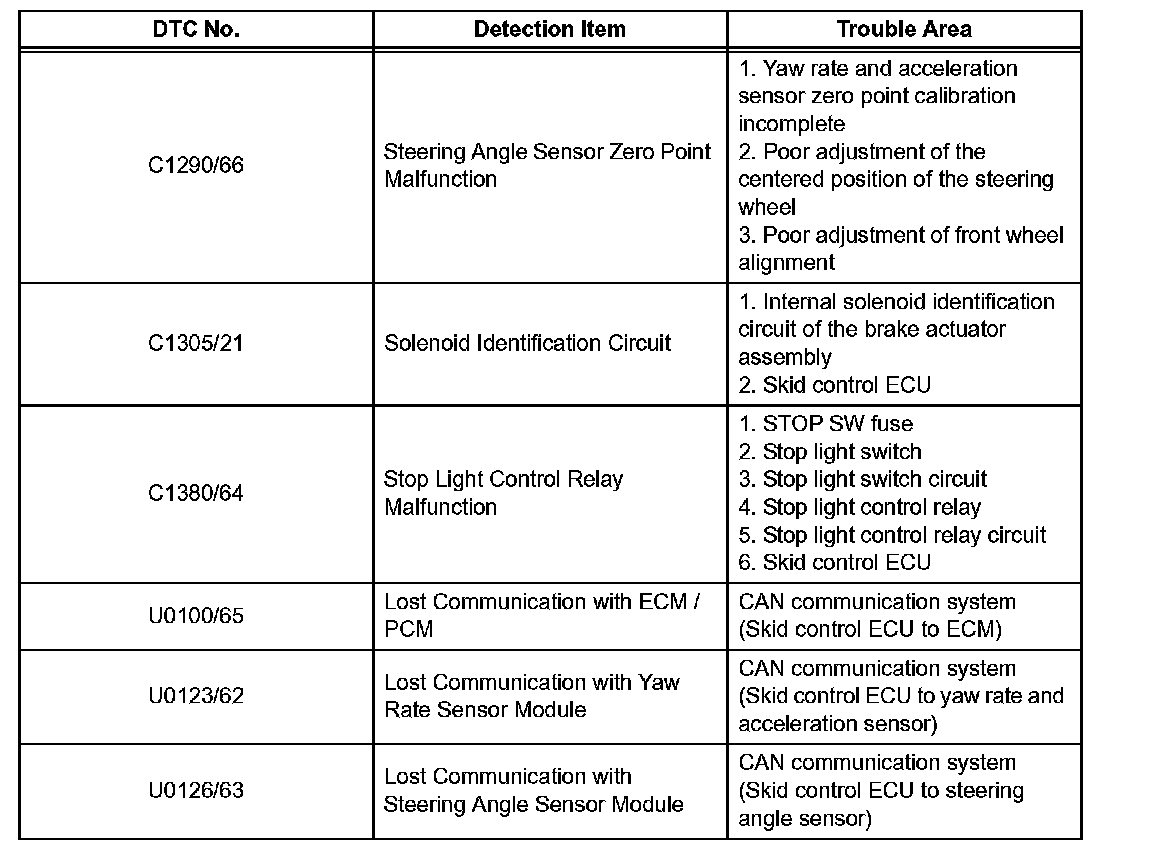

C1290-C1380 & U0100-U0126:

DTC Chart of VSC

HINT: In some cases, the intelligent tester cannot be used when the VSC warning (multi information display and master caution indicator light) light remains on.

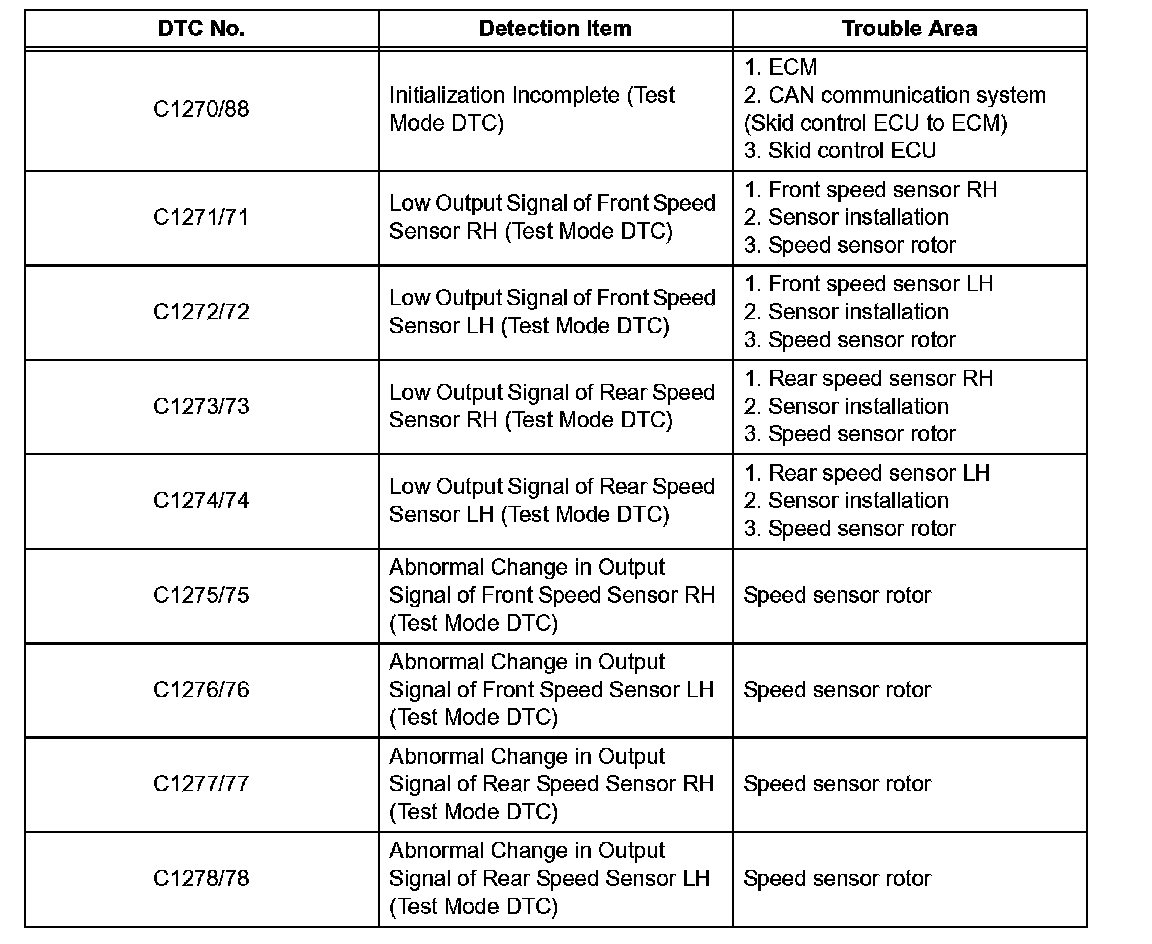

C1270-C1278:

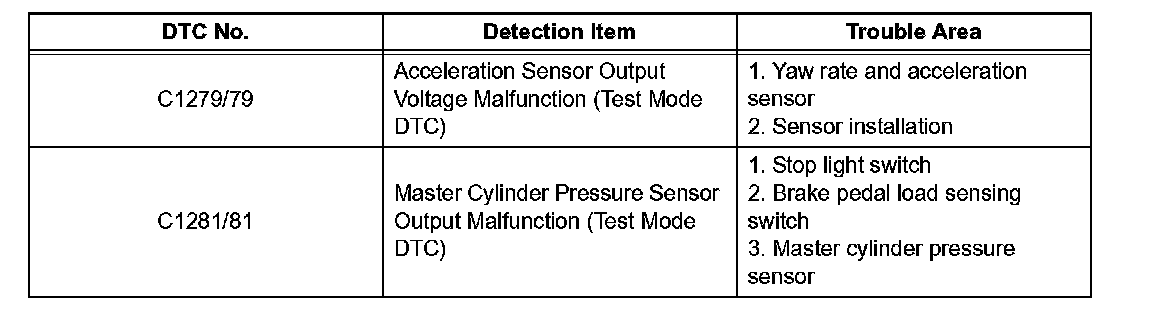

C1279-C1281:

Test Mode DTC of ABS

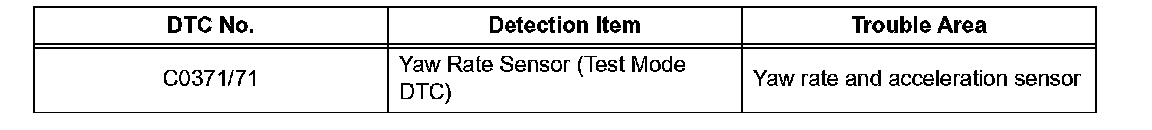

C0371:

Test Mode DTC of VSC
