SFI System

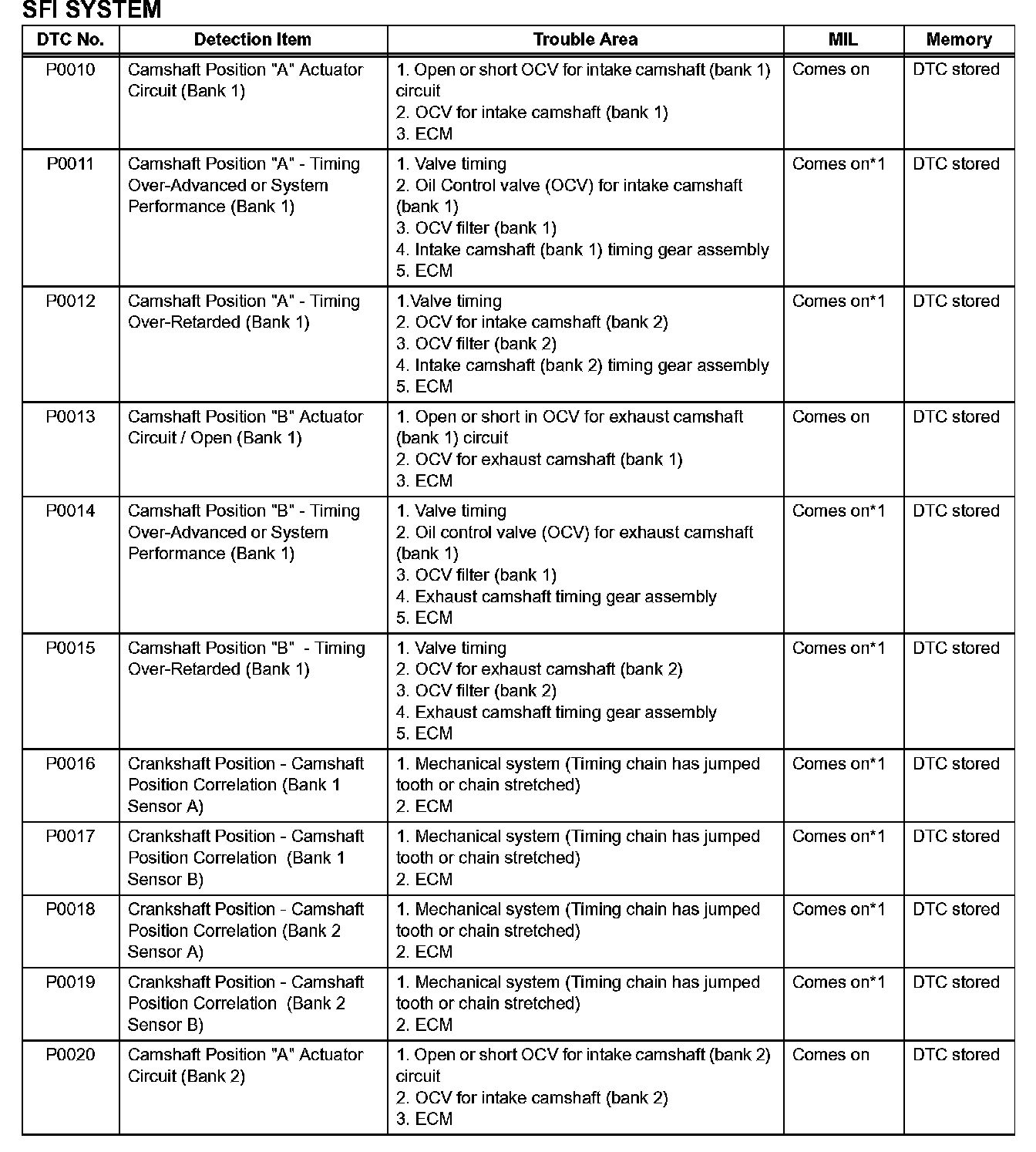

DIAGNOSTIC TROUBLE CODE CHARTP0010-P0020:

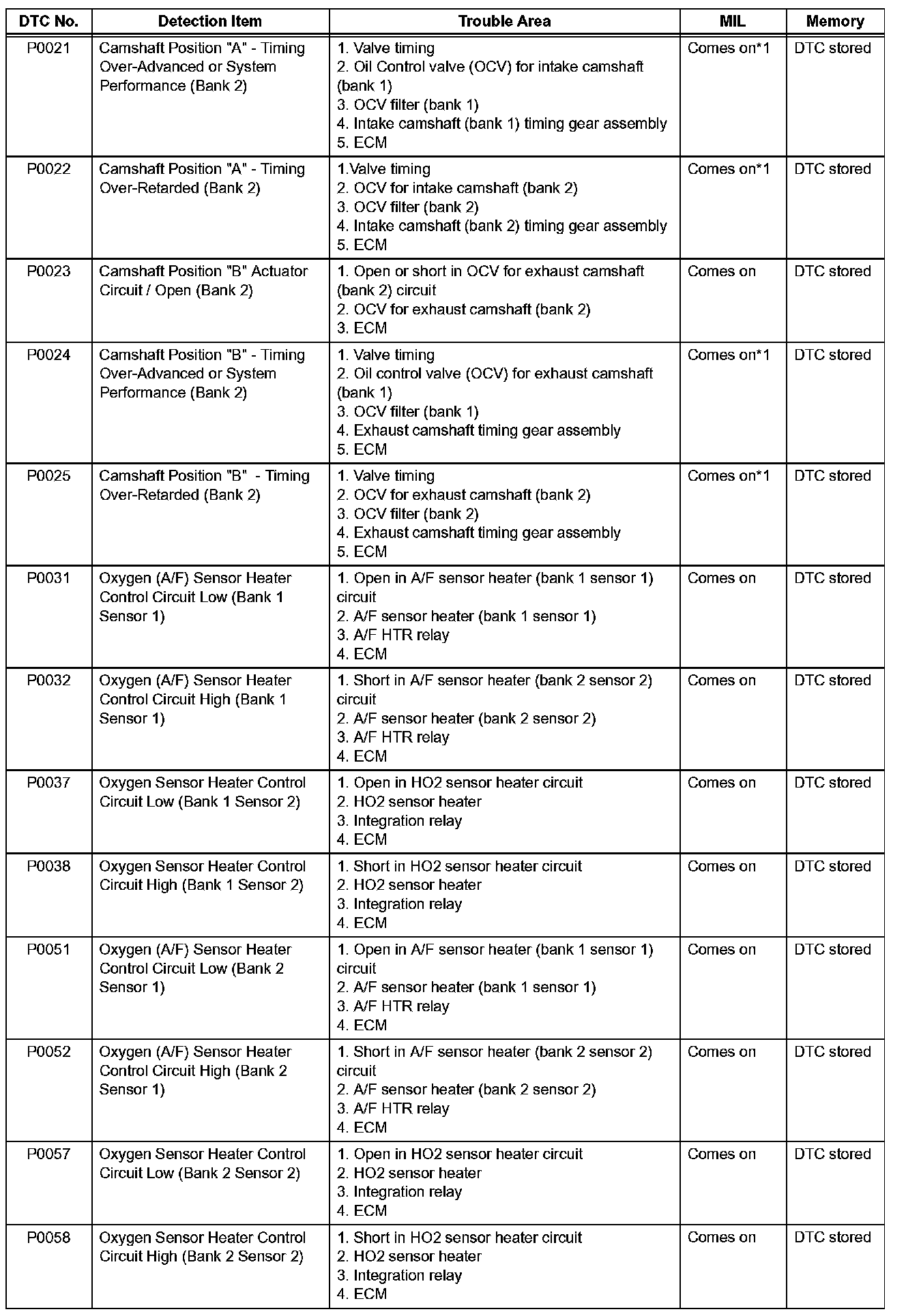

P0021-P0058:

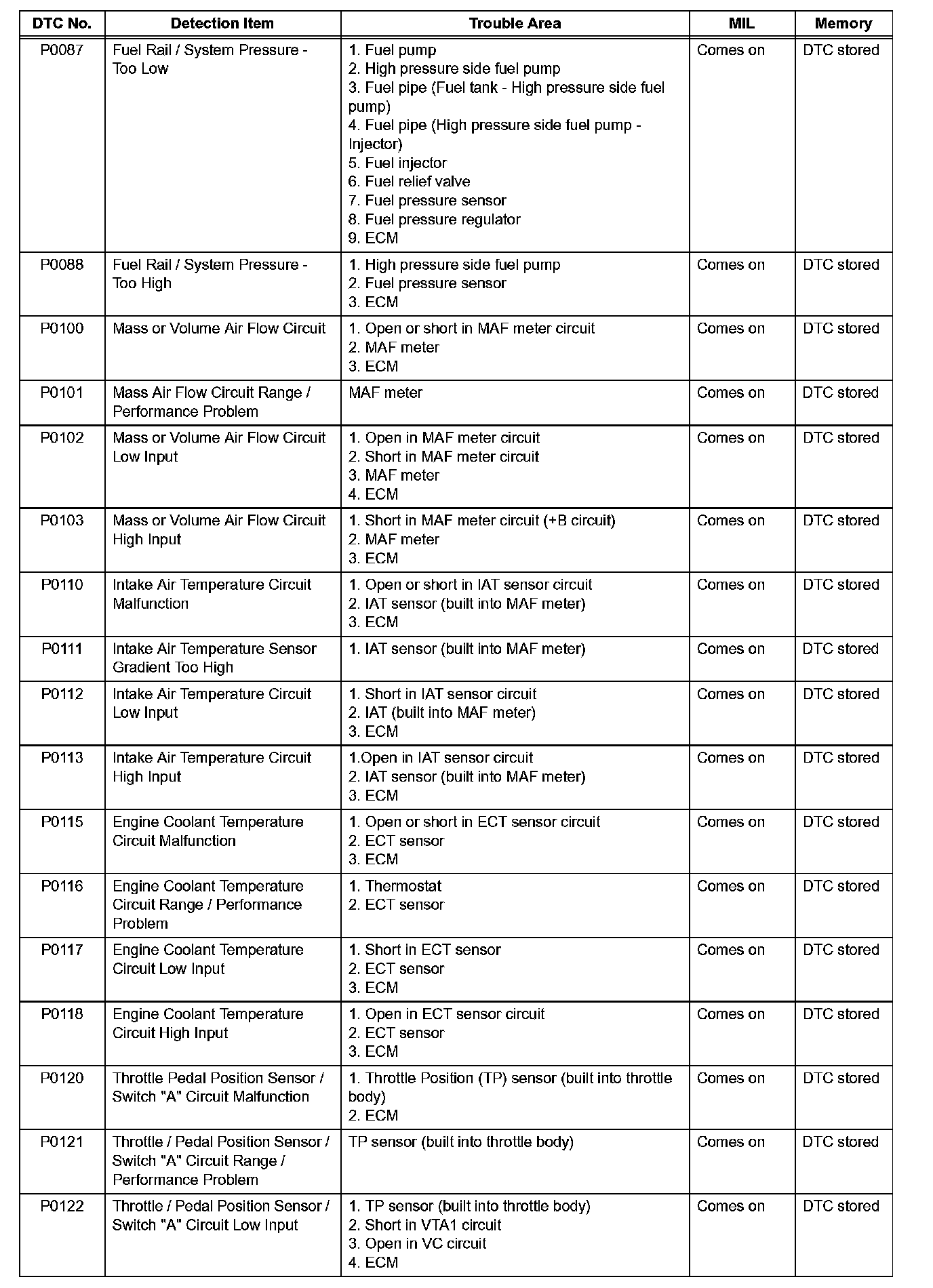

P0087-P0122:

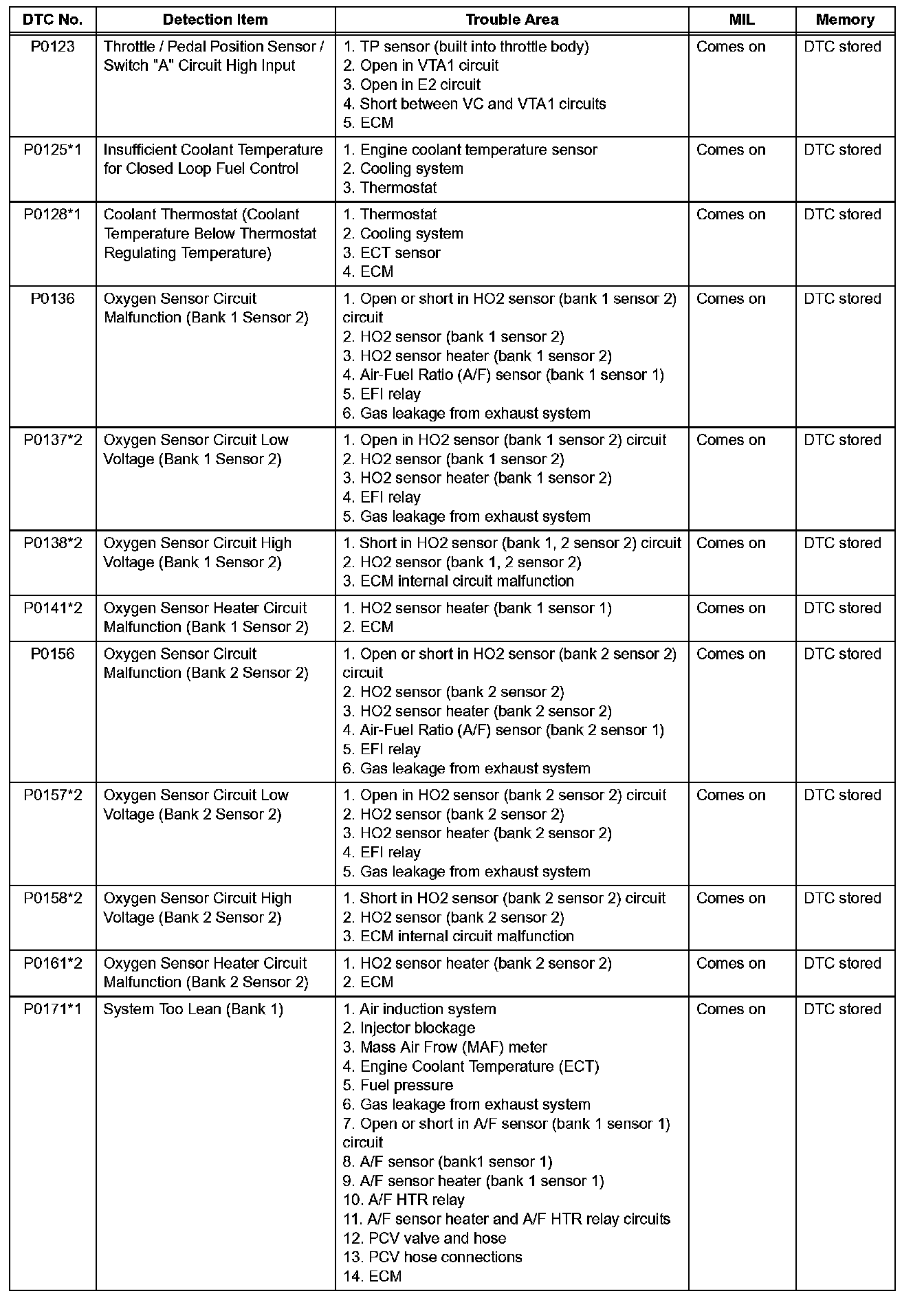

P0123-P0171*1:
P0172*1-P0202:

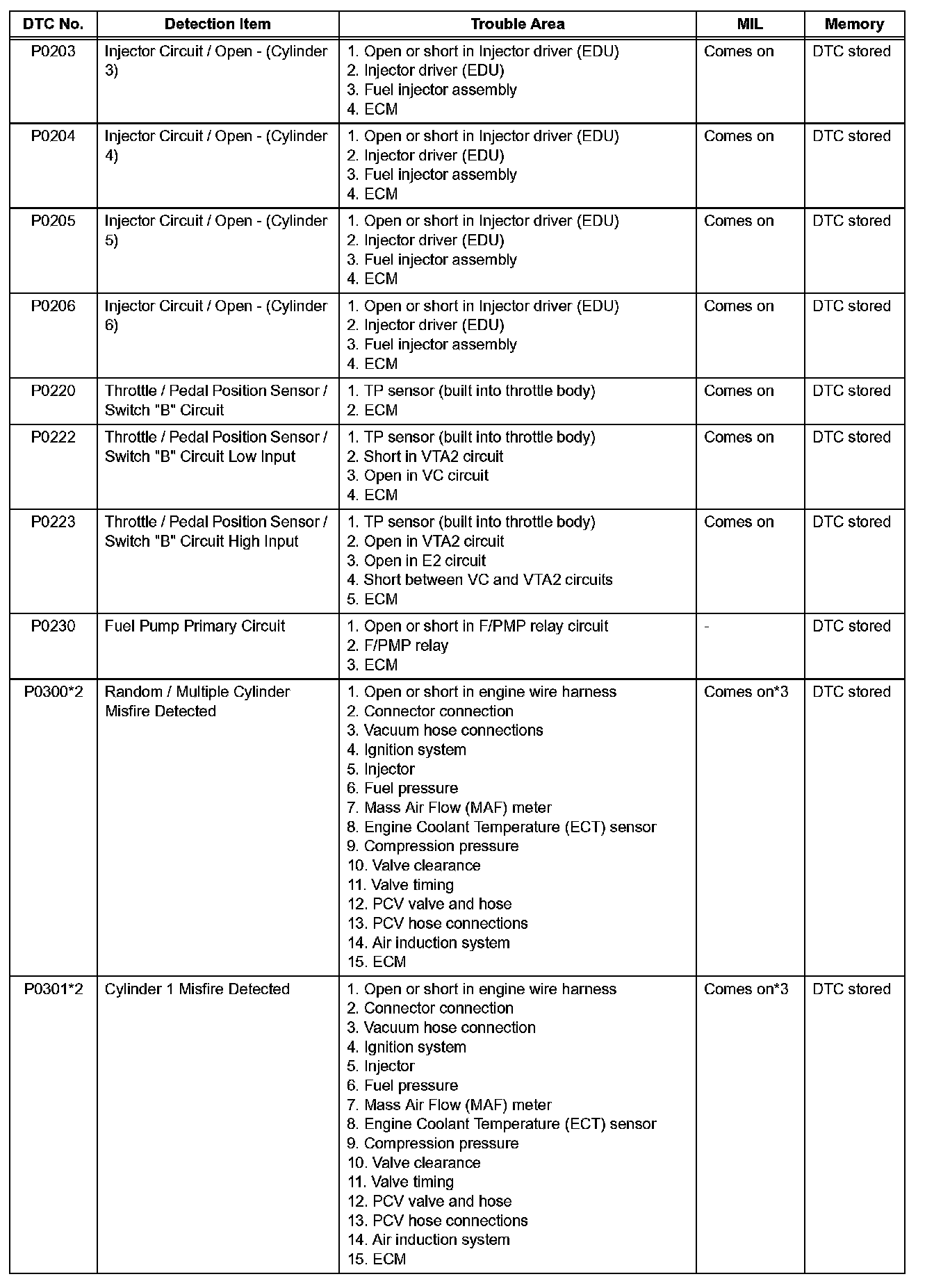

P0203-P0301*2:

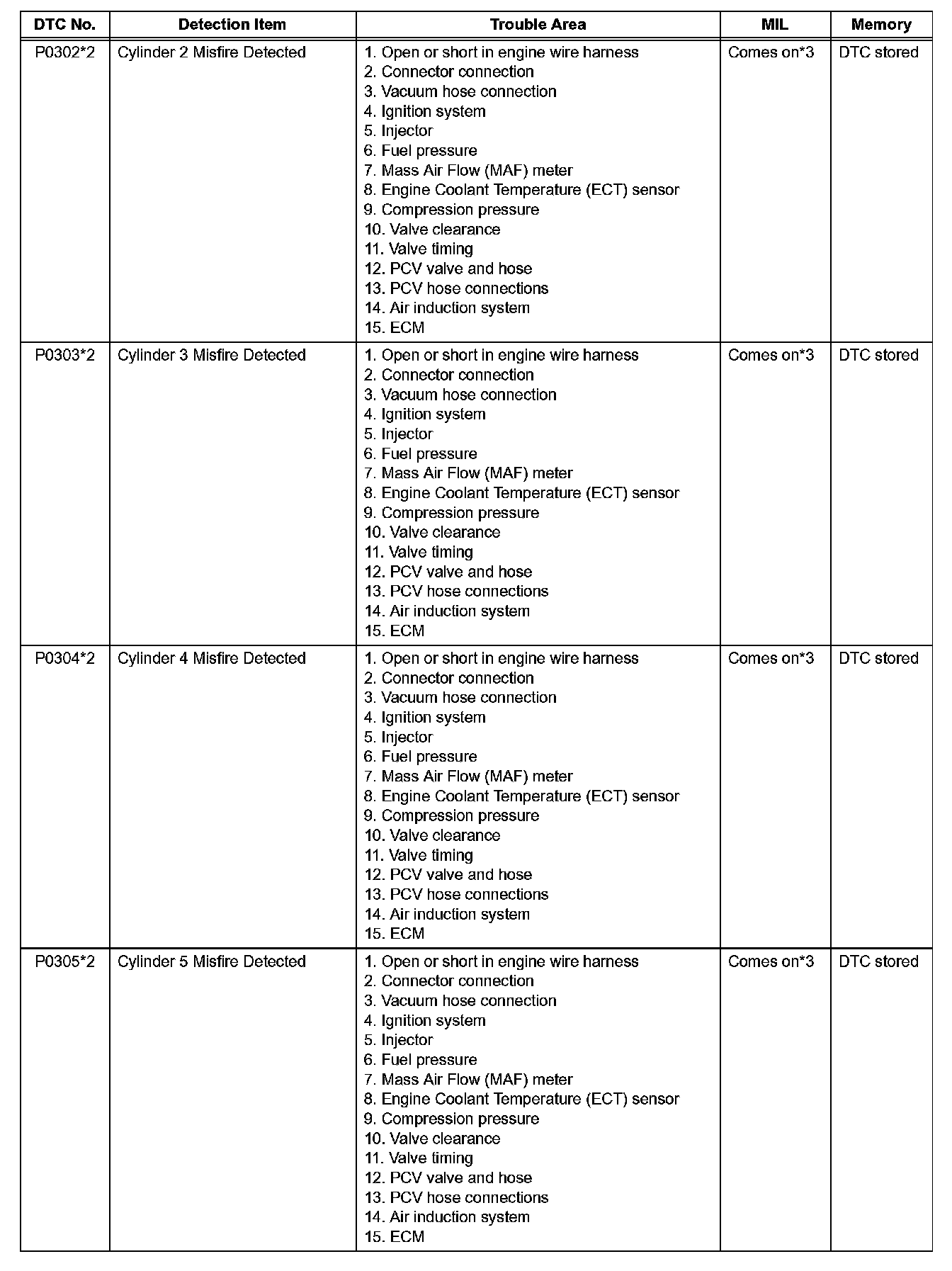

P0302*2-P0305*2:

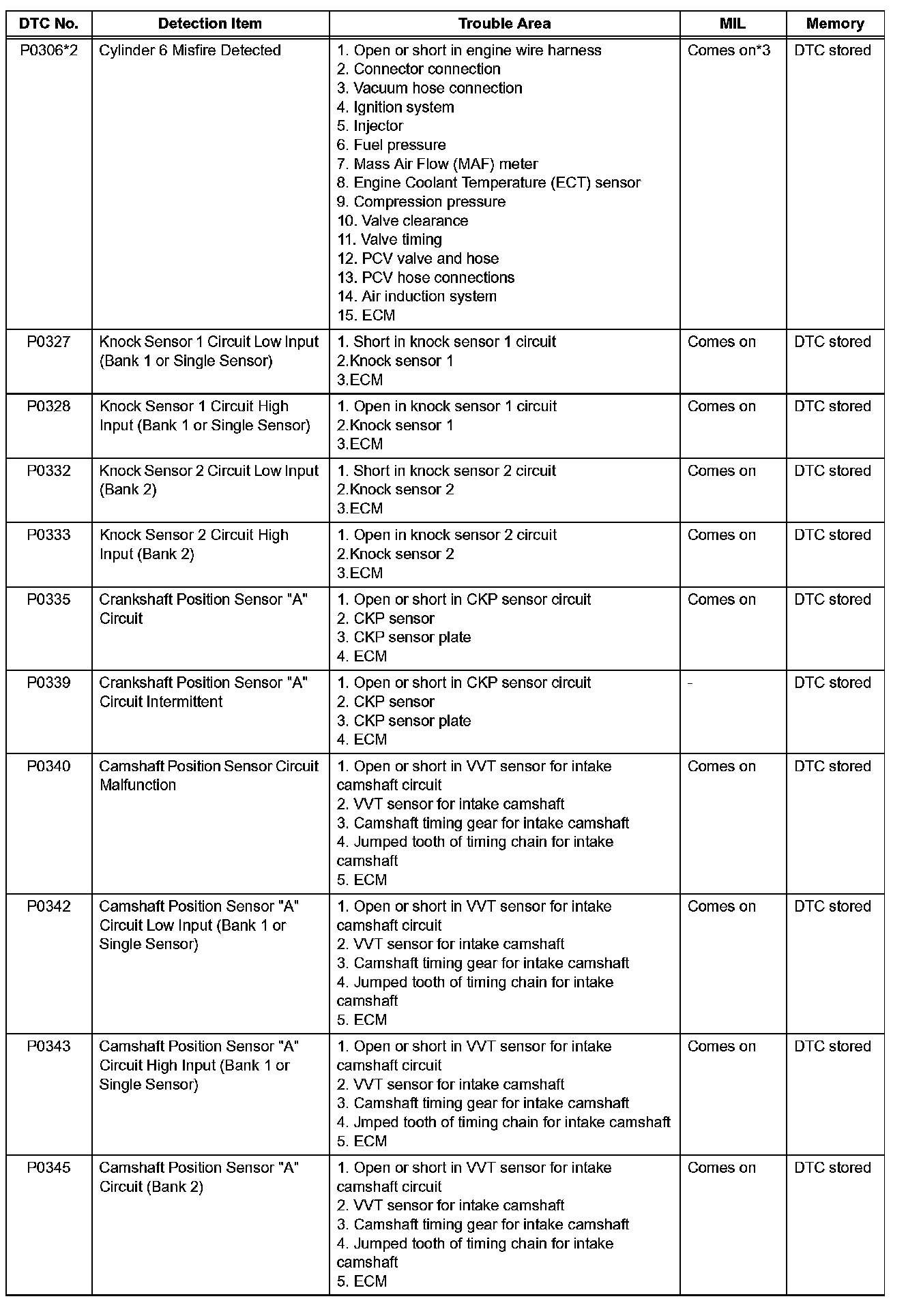

P0306*2-P0345:

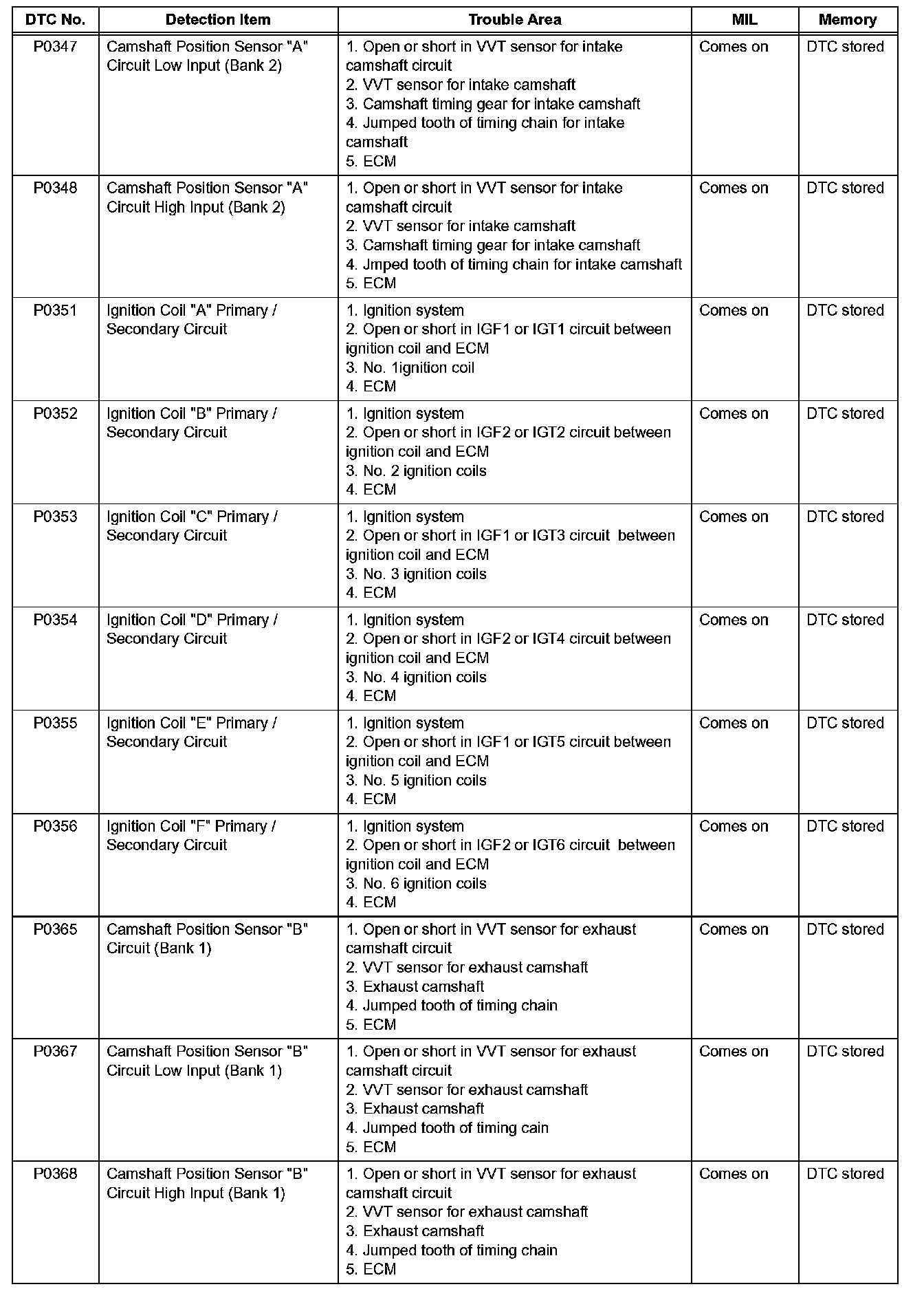

P0347-P0368:

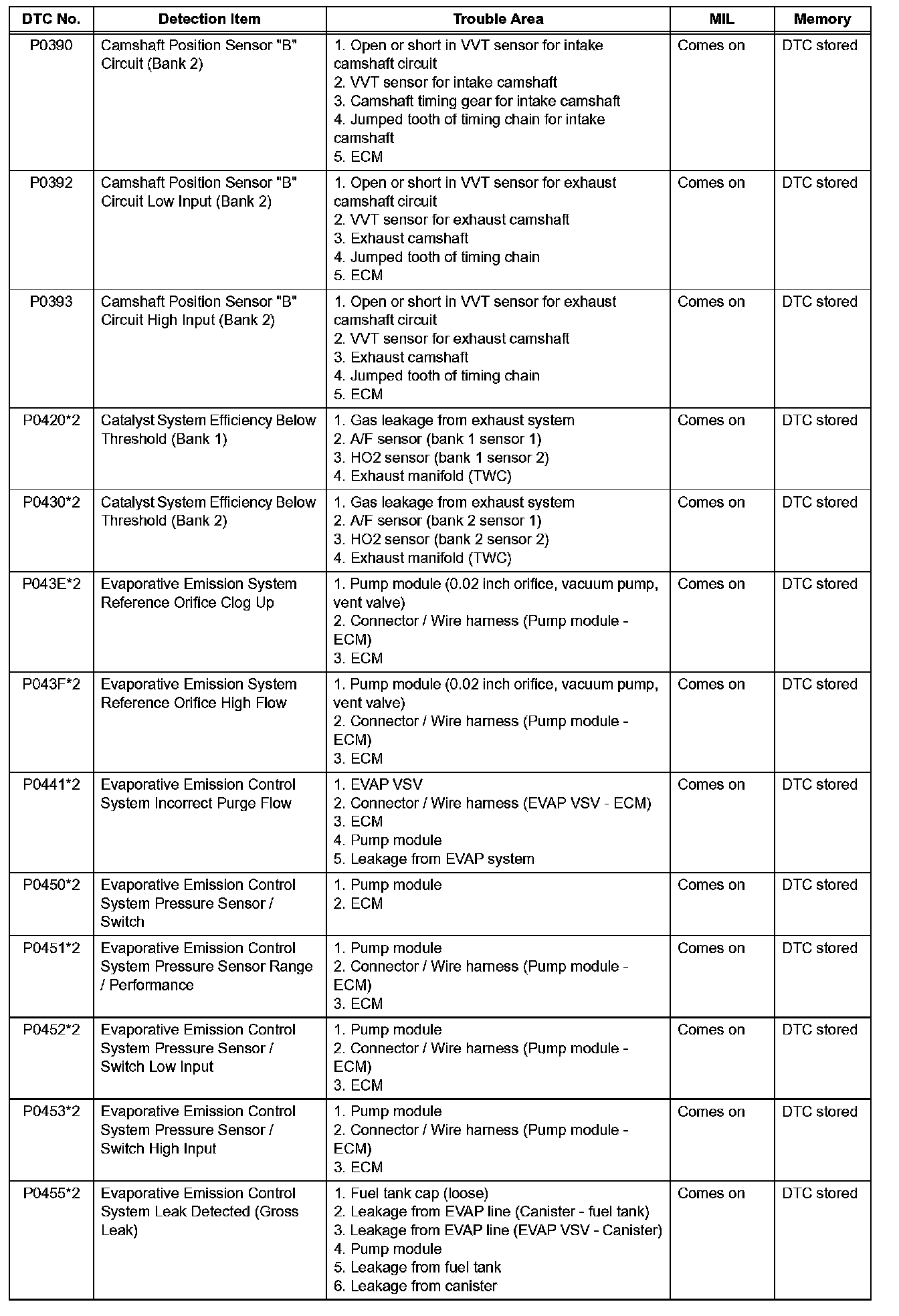

P0390-P0455*2:

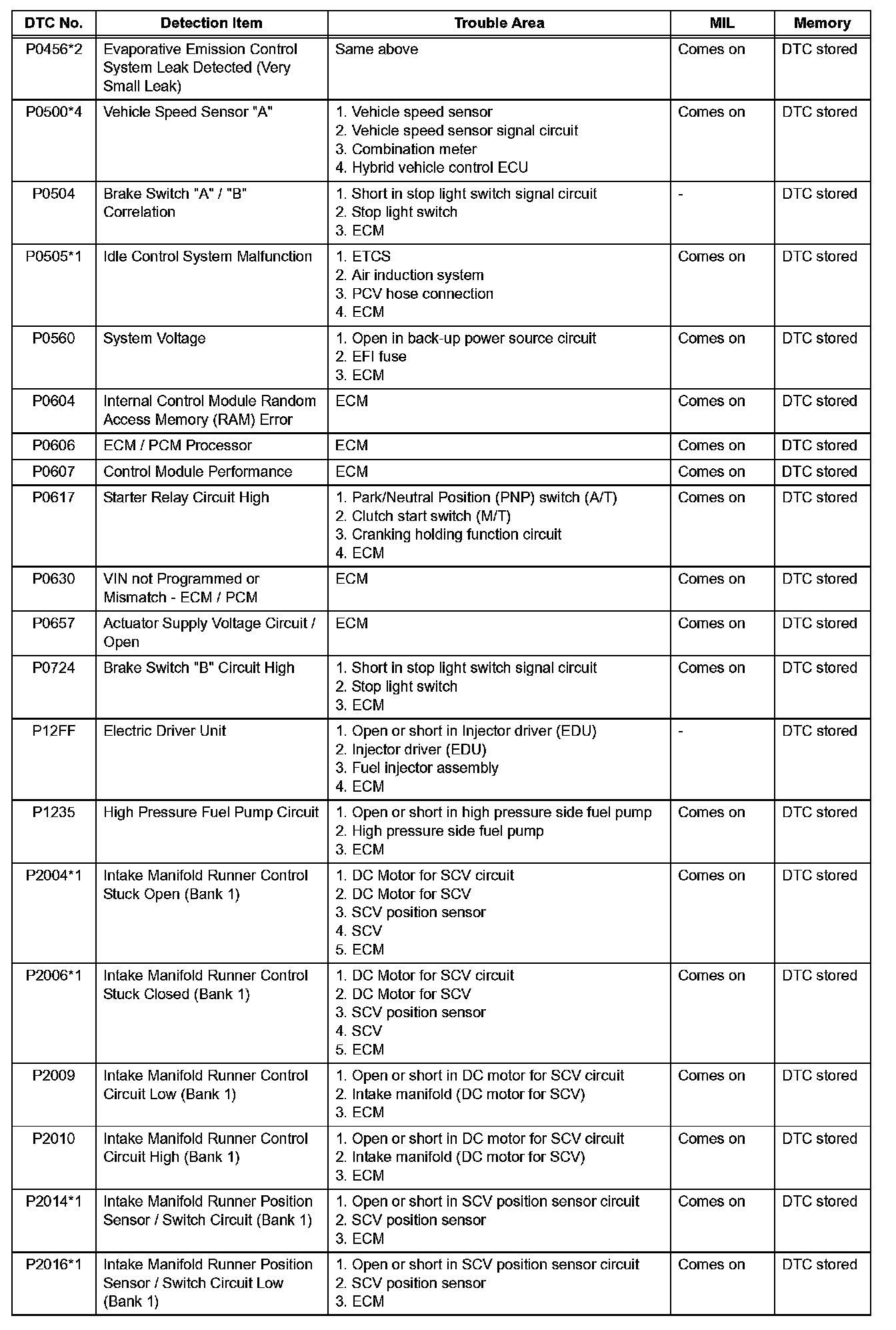

P0456*2-P2016*1:
P2017*1-P2195*2:
P2196*2-P2252:

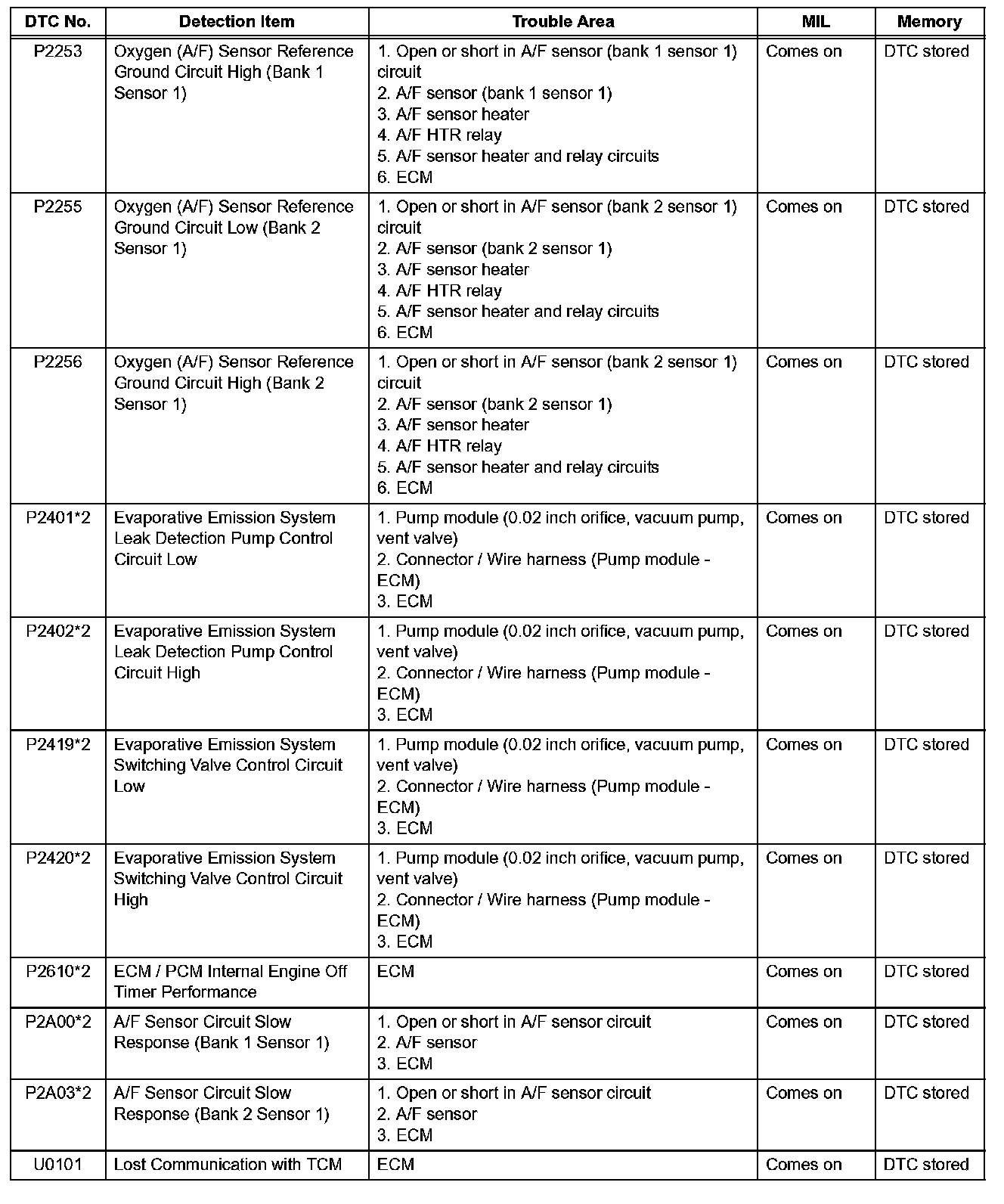

P2253-U0101:
HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a DTC is displayed, check the trouble area for the DTC listed in the table. For details of each DTC, refer to the respective "DTC No." in the DTC chart.
*1:Except KOREA
*2:Except KOREA and TAIWAN
*3:MIL flashes when a catalyst damaged misfire is detected.
*4:GM/T only.
