C1524

DTC C1523 Motor Circuit Malfunction

DTC C1524 Motor Circuit Malfunction

DESCRIPTION
The power steering ECU assembly supplies current to the power steering motor through this circuit.

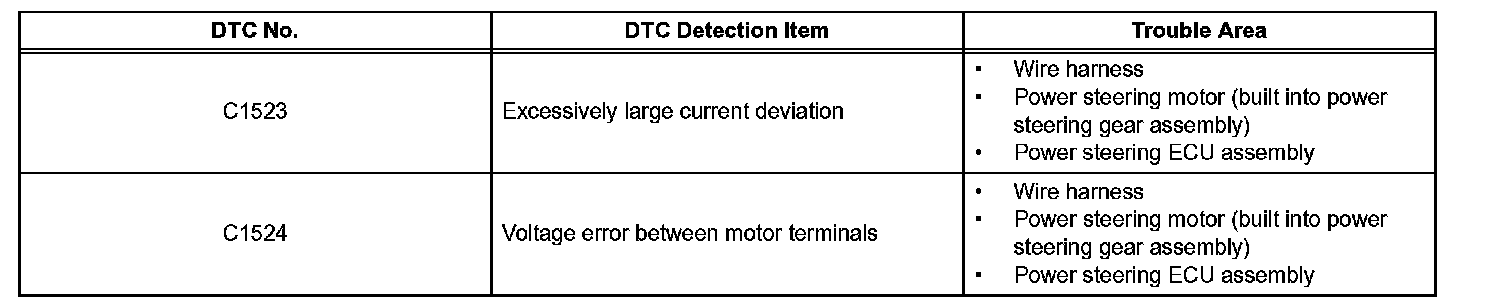

DTC Detection Condition:

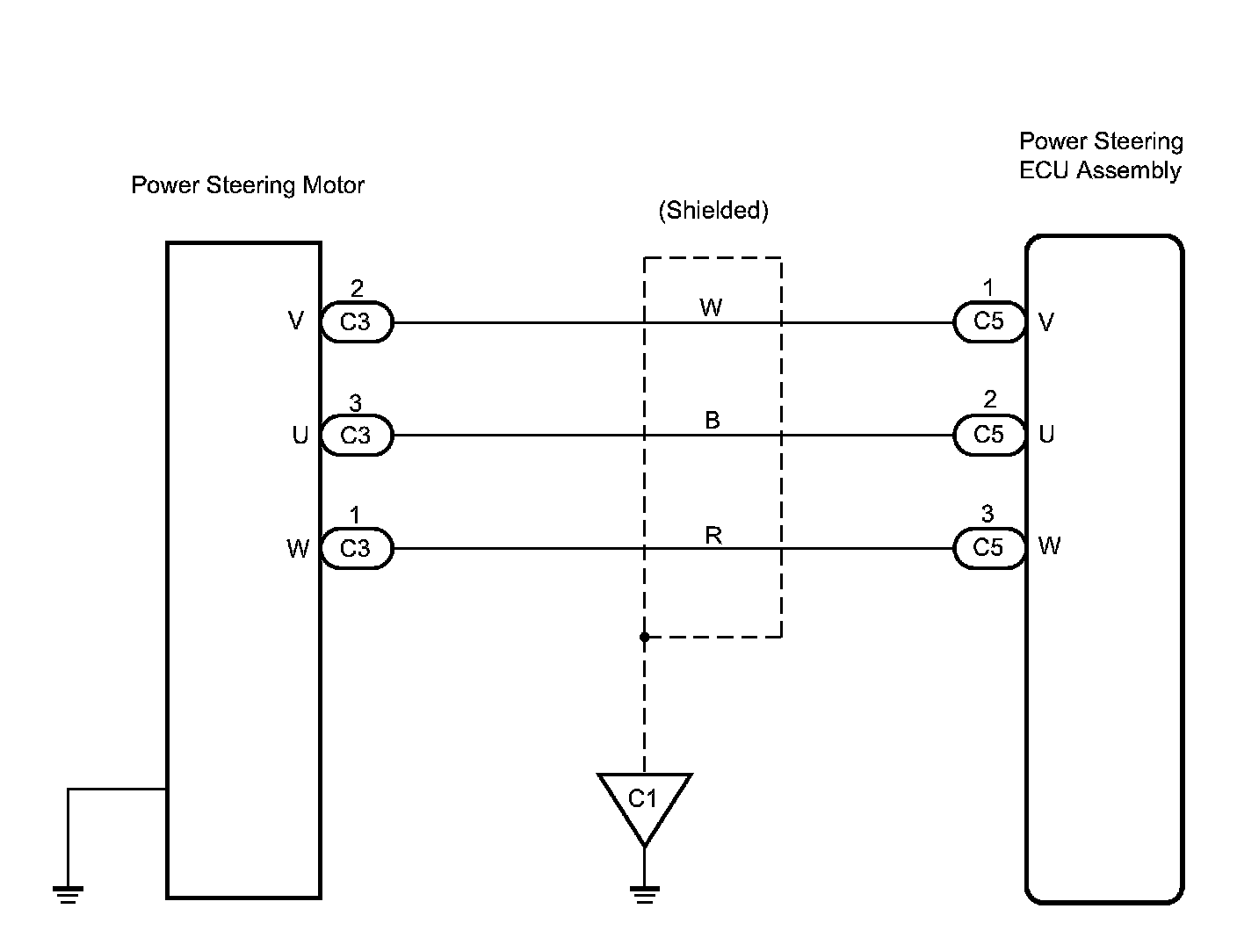

Wiring Diagram:

INSPECTION PROCEDURE

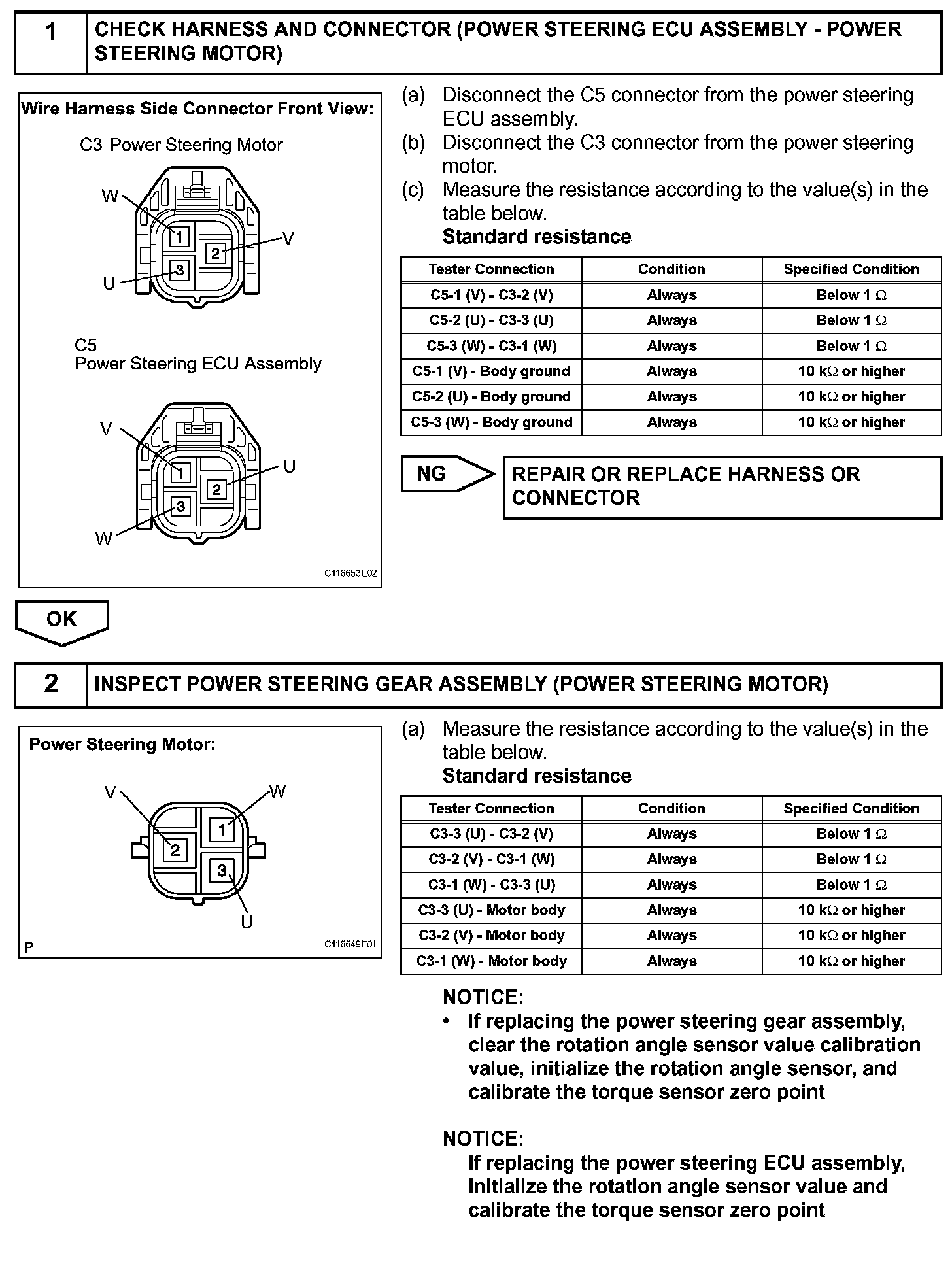

Steps 1-2:

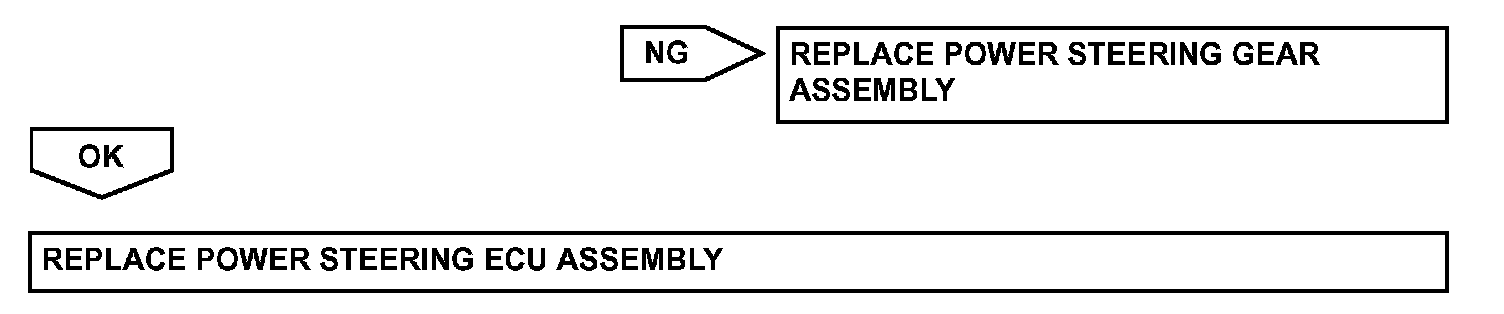

Step 2 (continued):
