Vehicle Stability Control System (w/o VDIM)

DTC C1380/64 Stop Light Control Relay Malfunction

DESCRIPTION

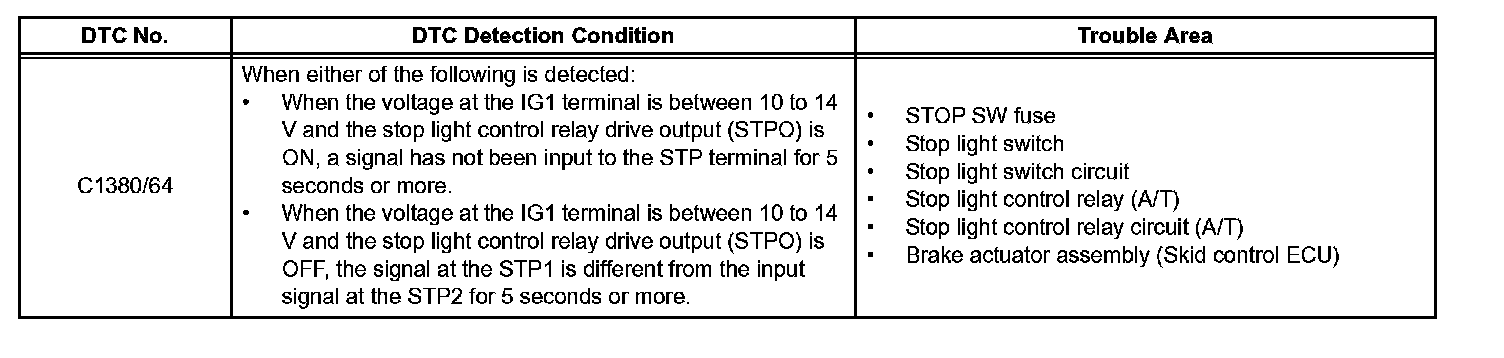

DTC DETECTION CONDITION:

Upon receiving the hill-start assist control (HAC) operating signal from the skid control ECU, the relay contact turns on and the stop light comes on.

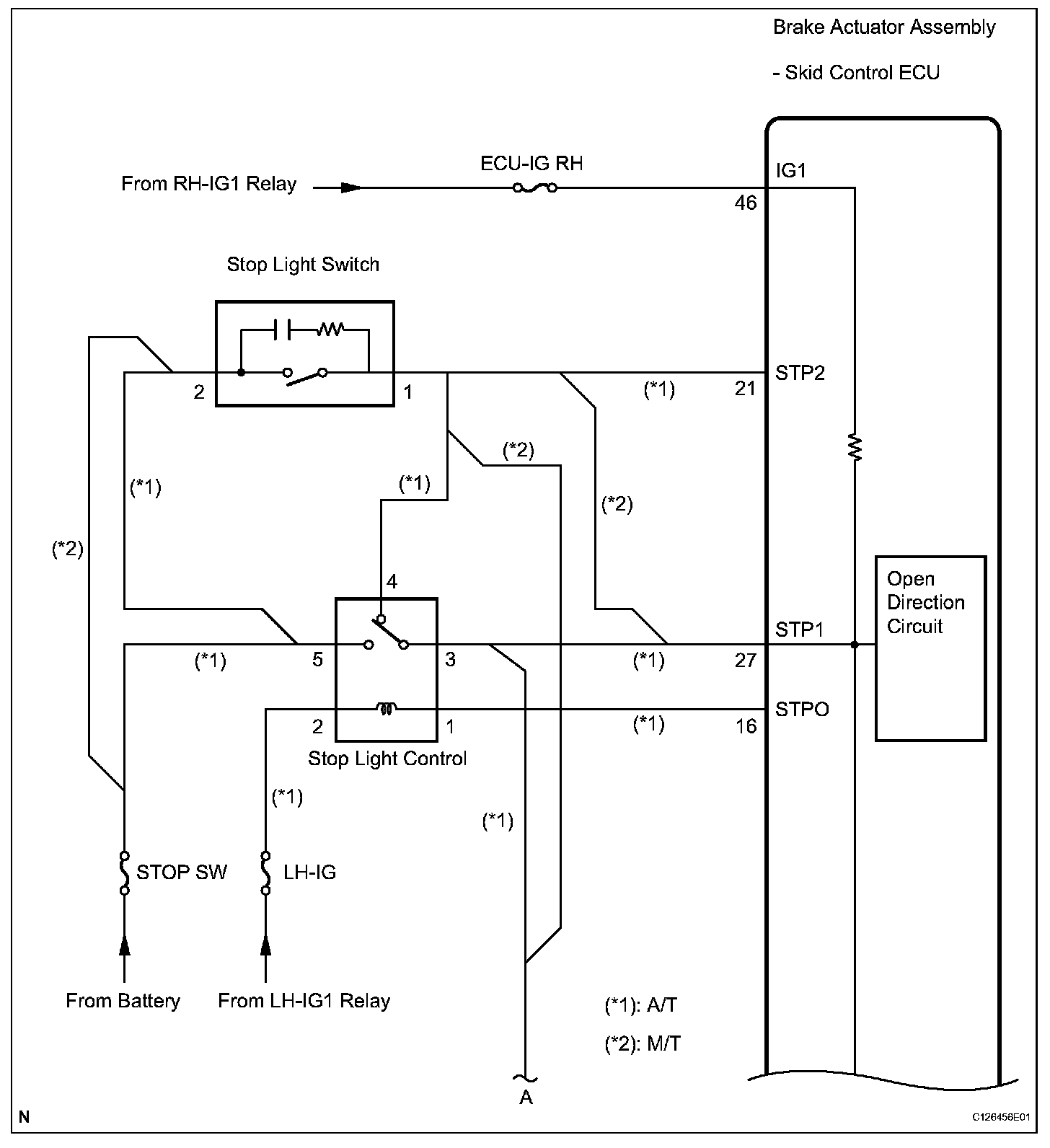

WIRING DIAGRAM:

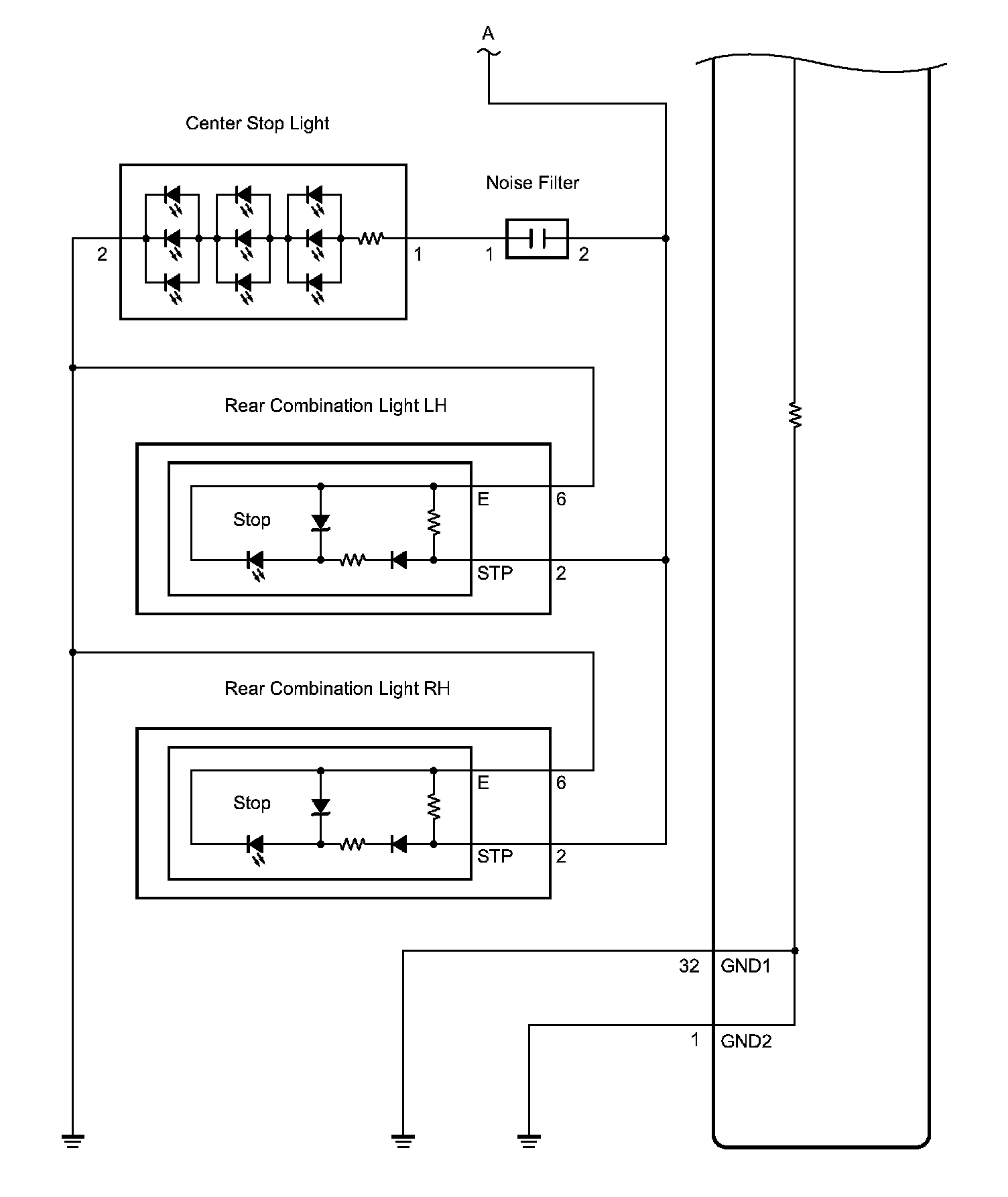

WIRING DIAGRAM:

NOTICE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)

HINT: When C1249/49 is output together with C1380/64, inspect and repair the trouble areas indicated by C1249/49 first.

INSPECTION PROCEDURE

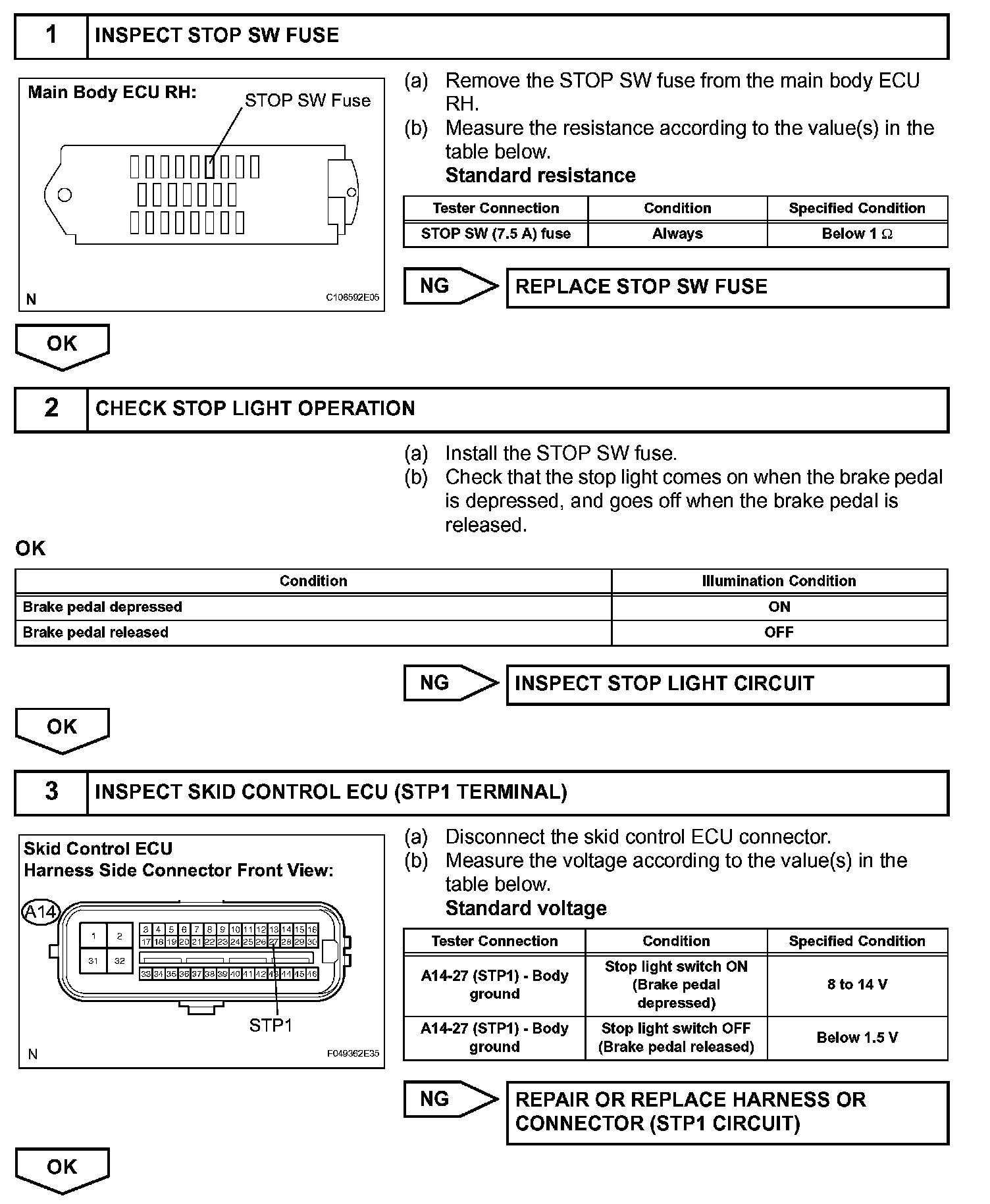

Steps 1-3:

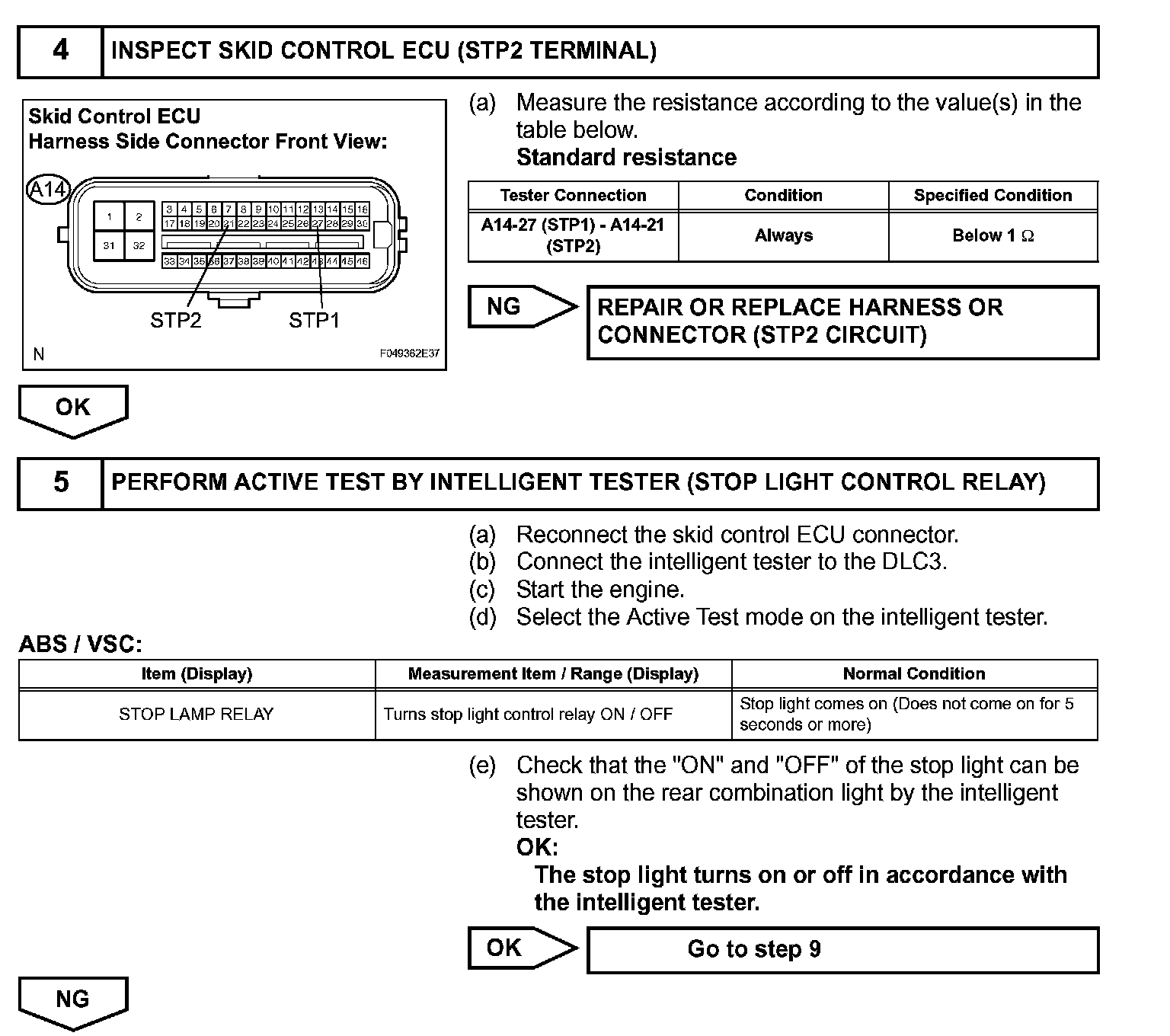

Steps 4-5:

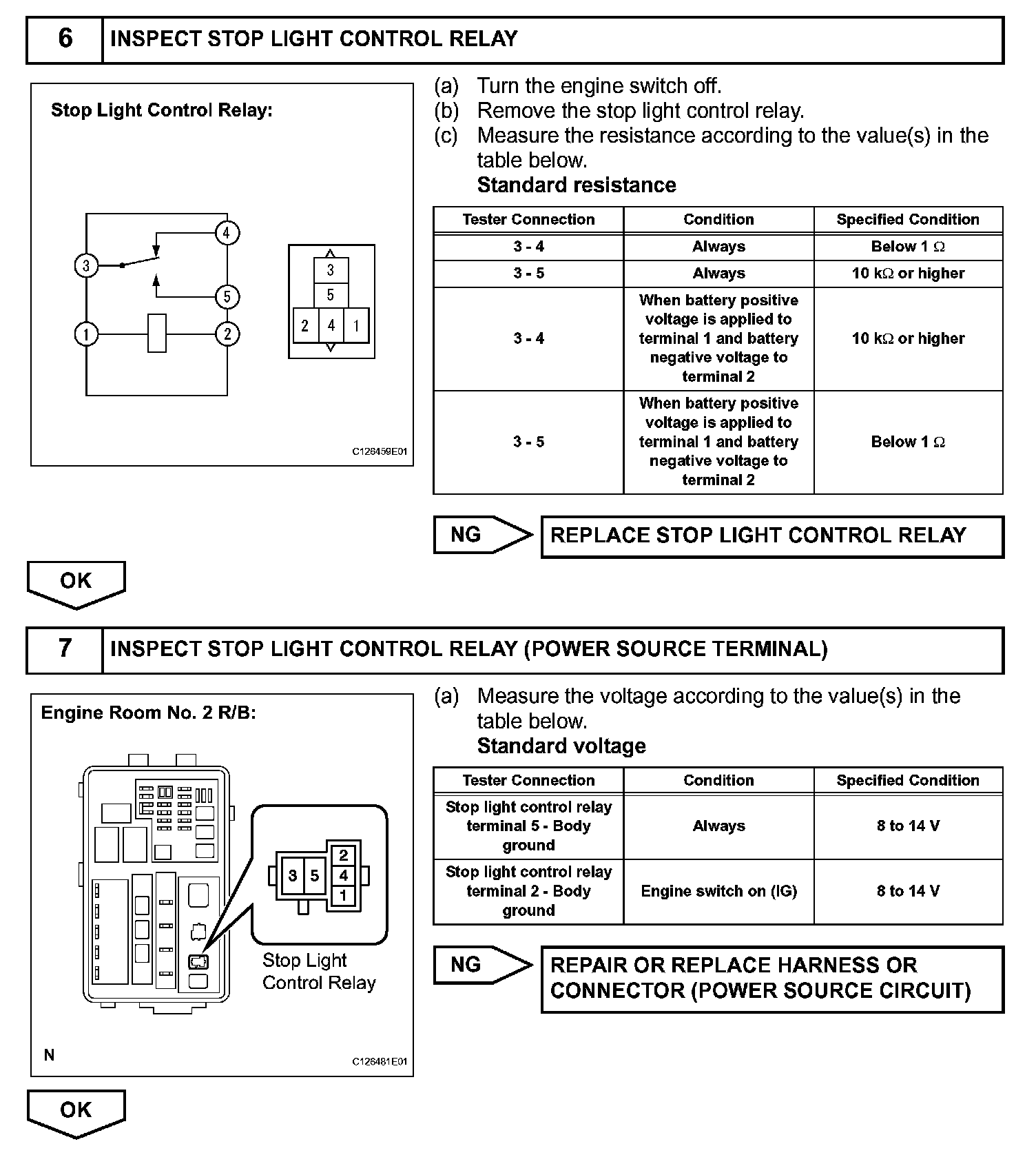

Steps 6-7:

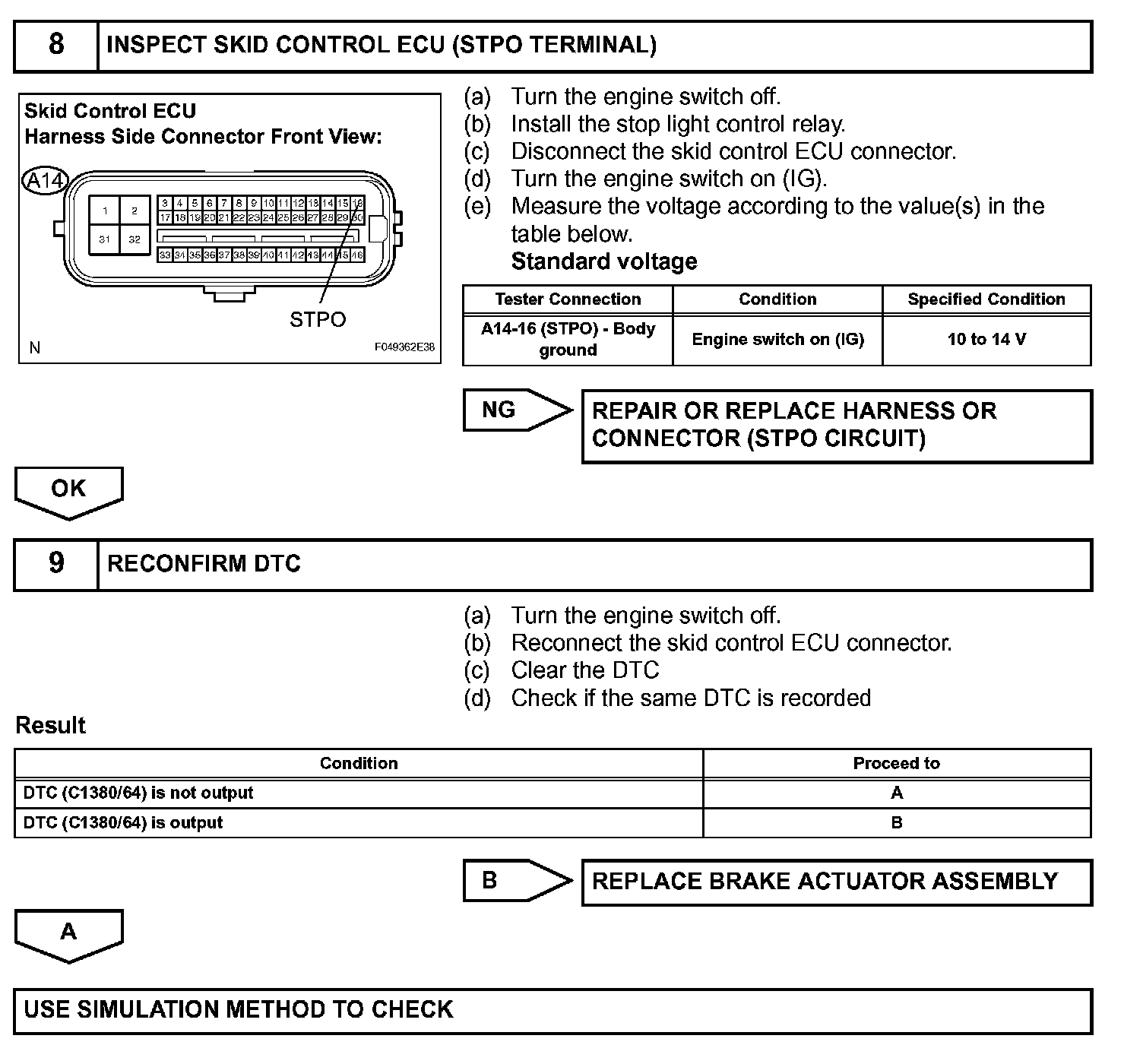

Steps 8-9:
