Vehicle Stability Control System (w/o VDIM)
DTC C1267/67 Brake Pedal Load Sensing SwitchDESCRIPTION

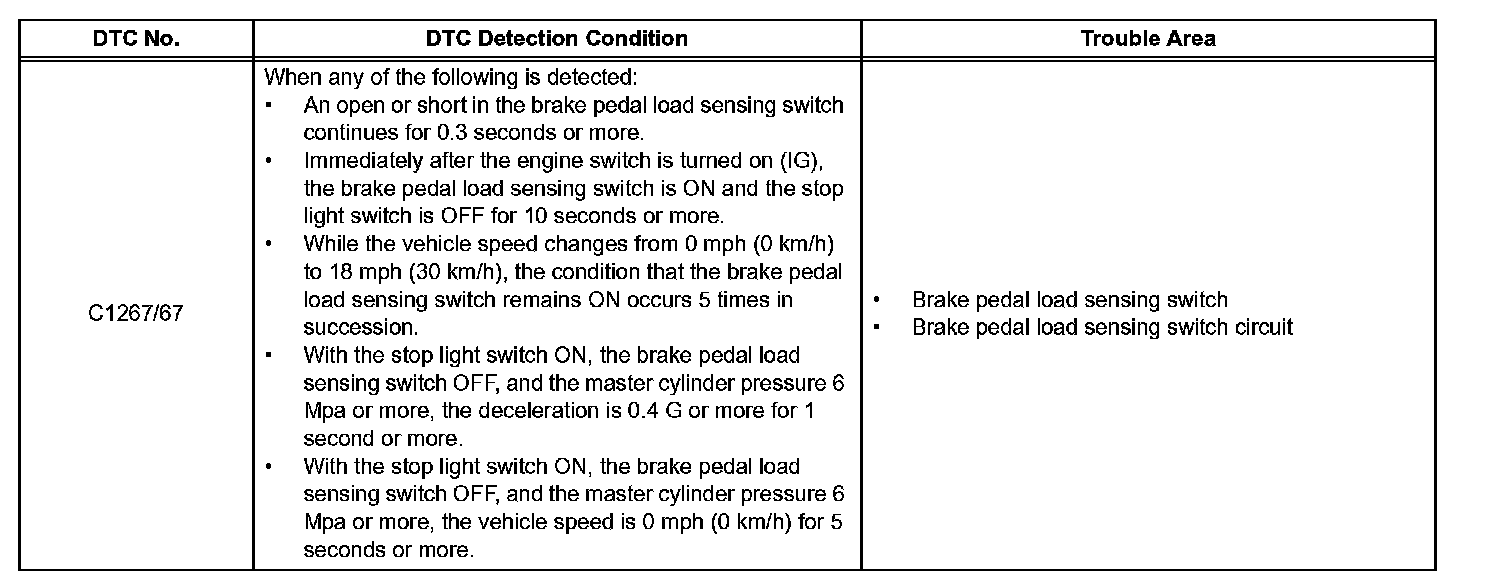

DTC DETECTION CONDITION:
The brake pedal load sensing switch is turned on when the brake pedal is depressed with force exceeding a predetermined level.
The skid control ECU detects if the brake pedal is depressed or not via this circuit.

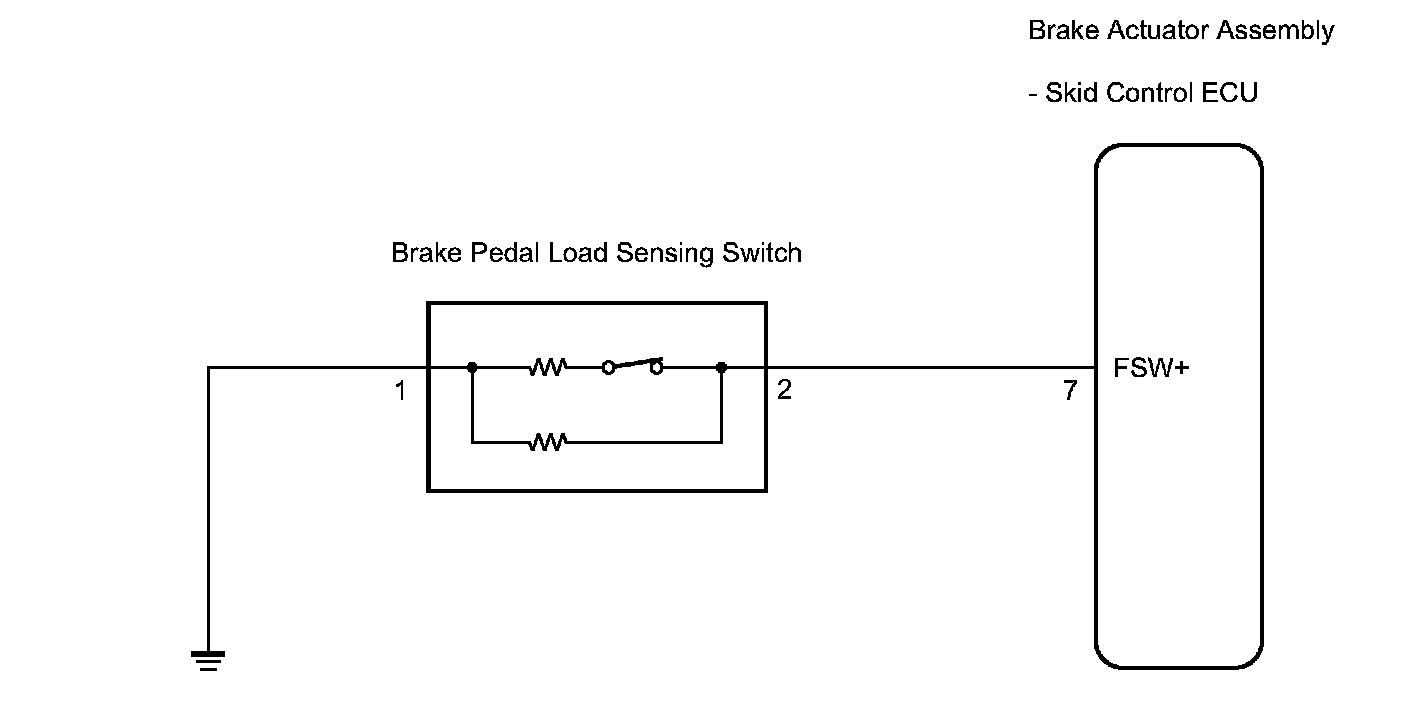

WIRING DIAGRAM:
NOTICE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
HINT: If C1249/49 is output, repair it before repairing C1267/67 based on the flow chart.
INSPECTION PROCEDURE

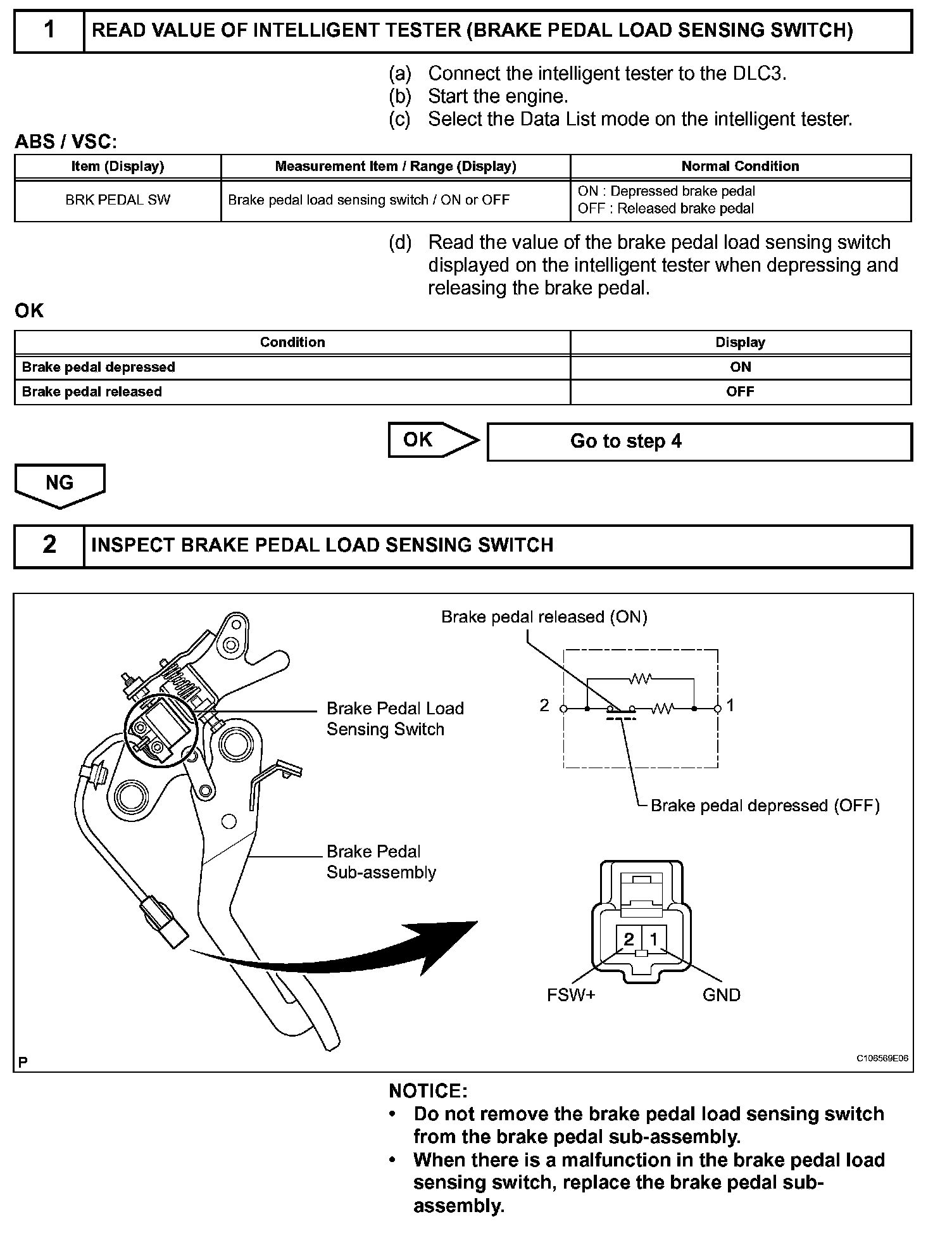

Steps 1-2:

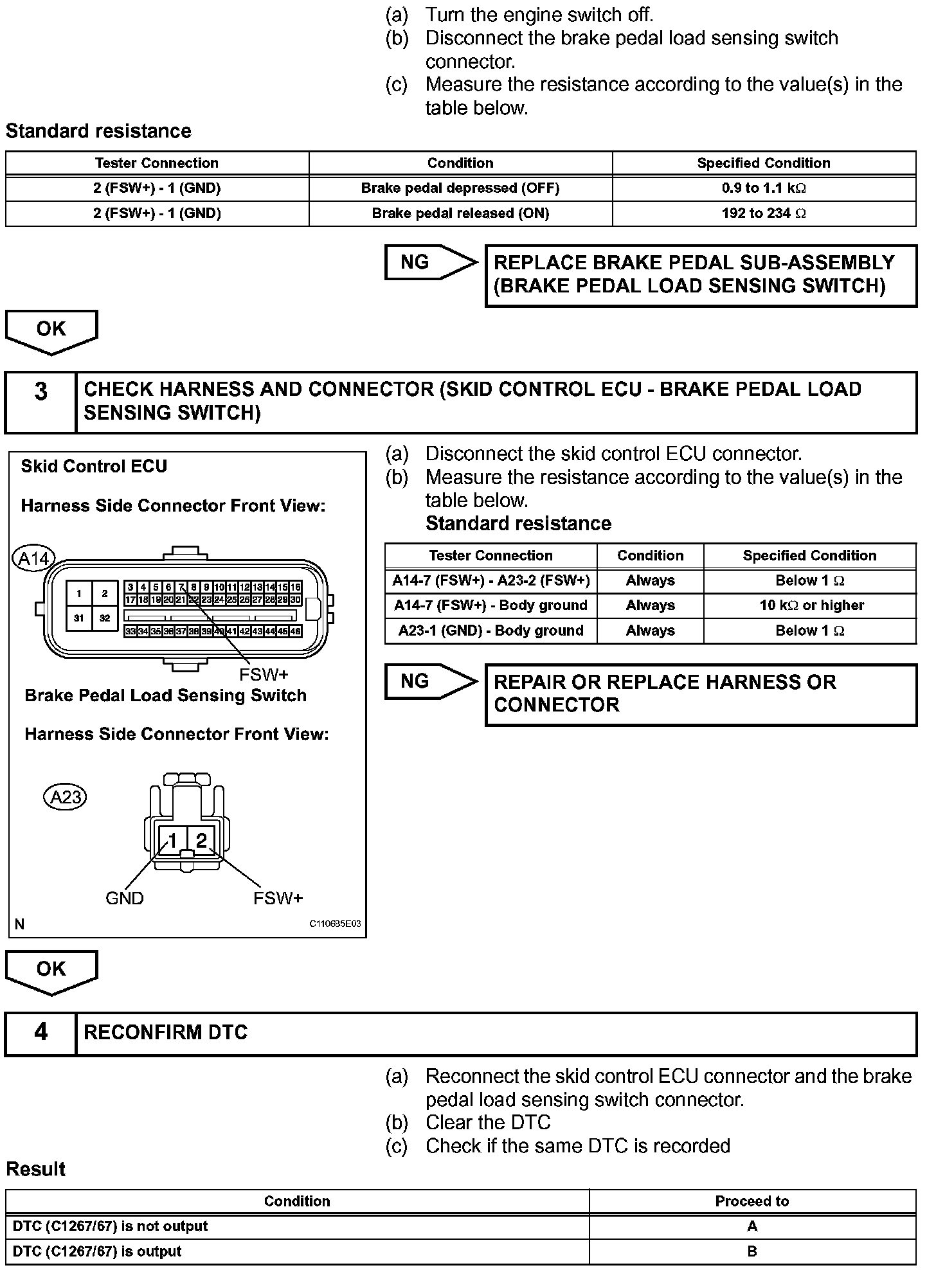

Steps 2 (Continued)-4:

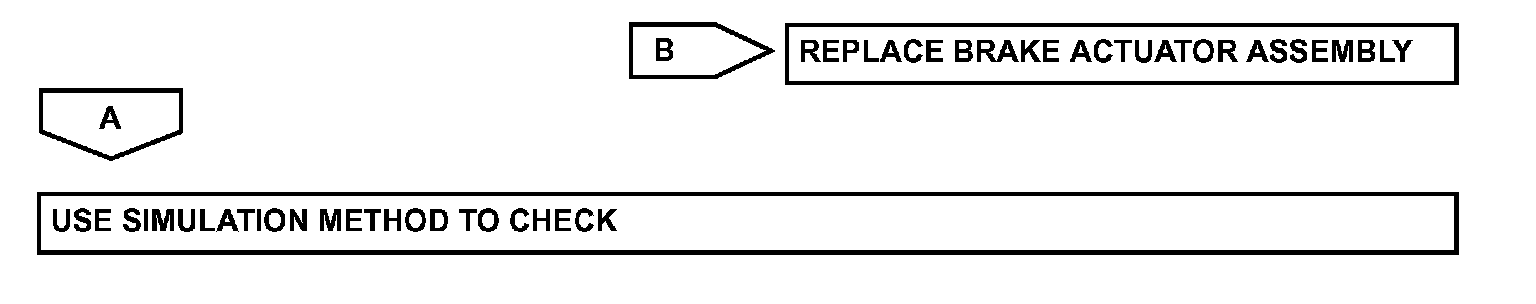

Step 4 (Continued):
