DTC C1251/51 Open In Pump Motor Circuit
DTC DETECTION CONDITION:
DESCRIPTION

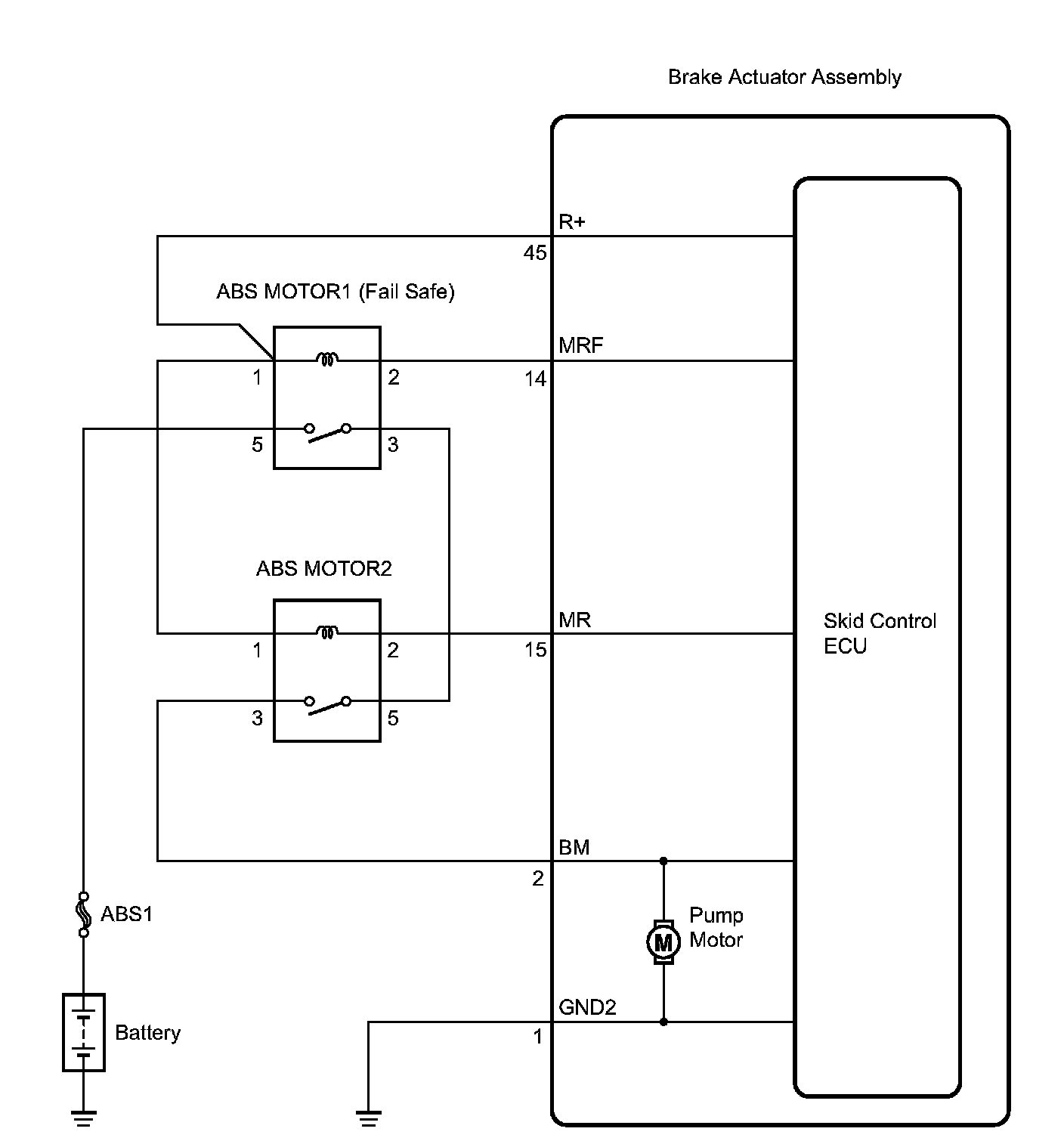

WIRING DIAGRAM:
INSPECTION PROCEDURE

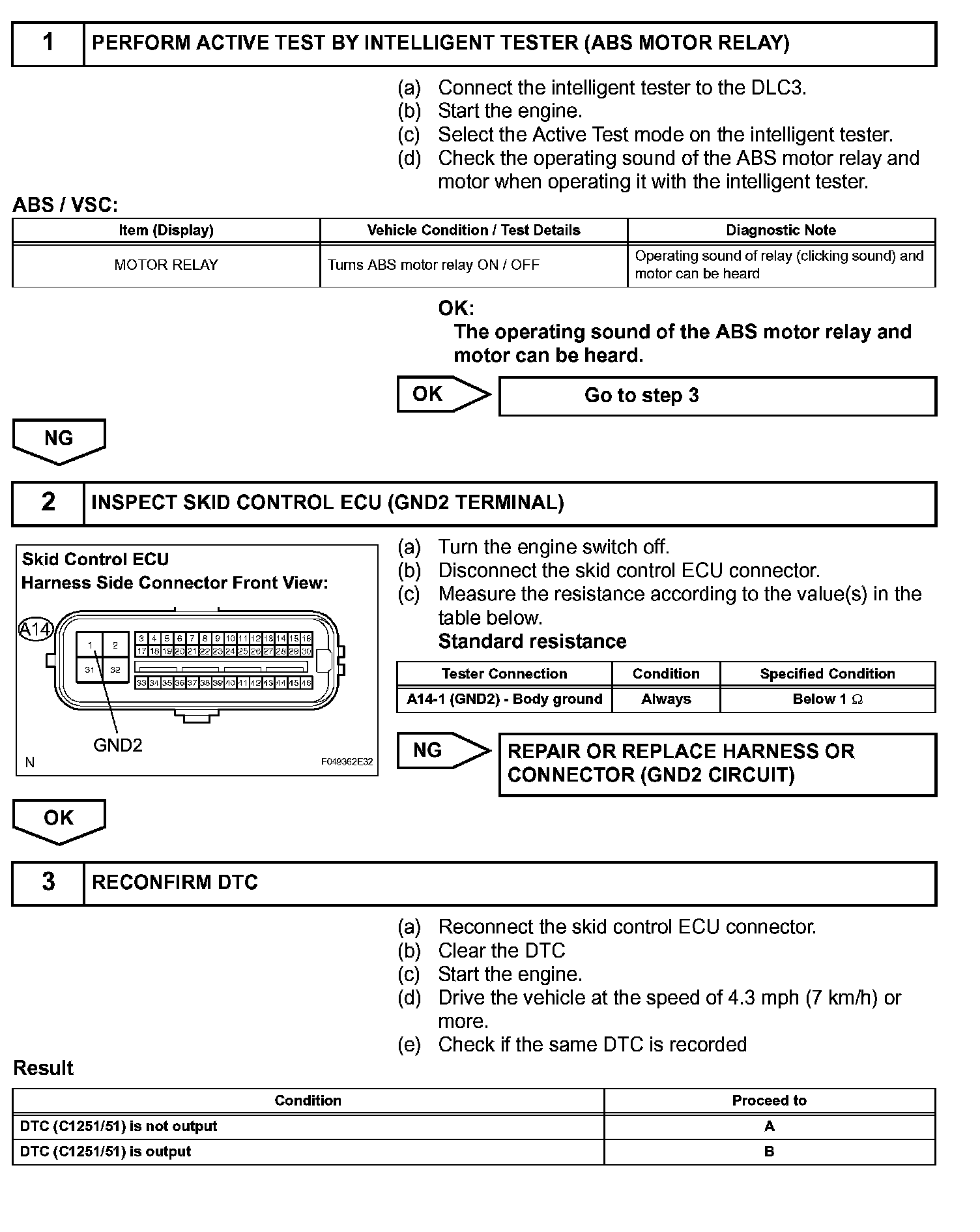

Steps 1-3:

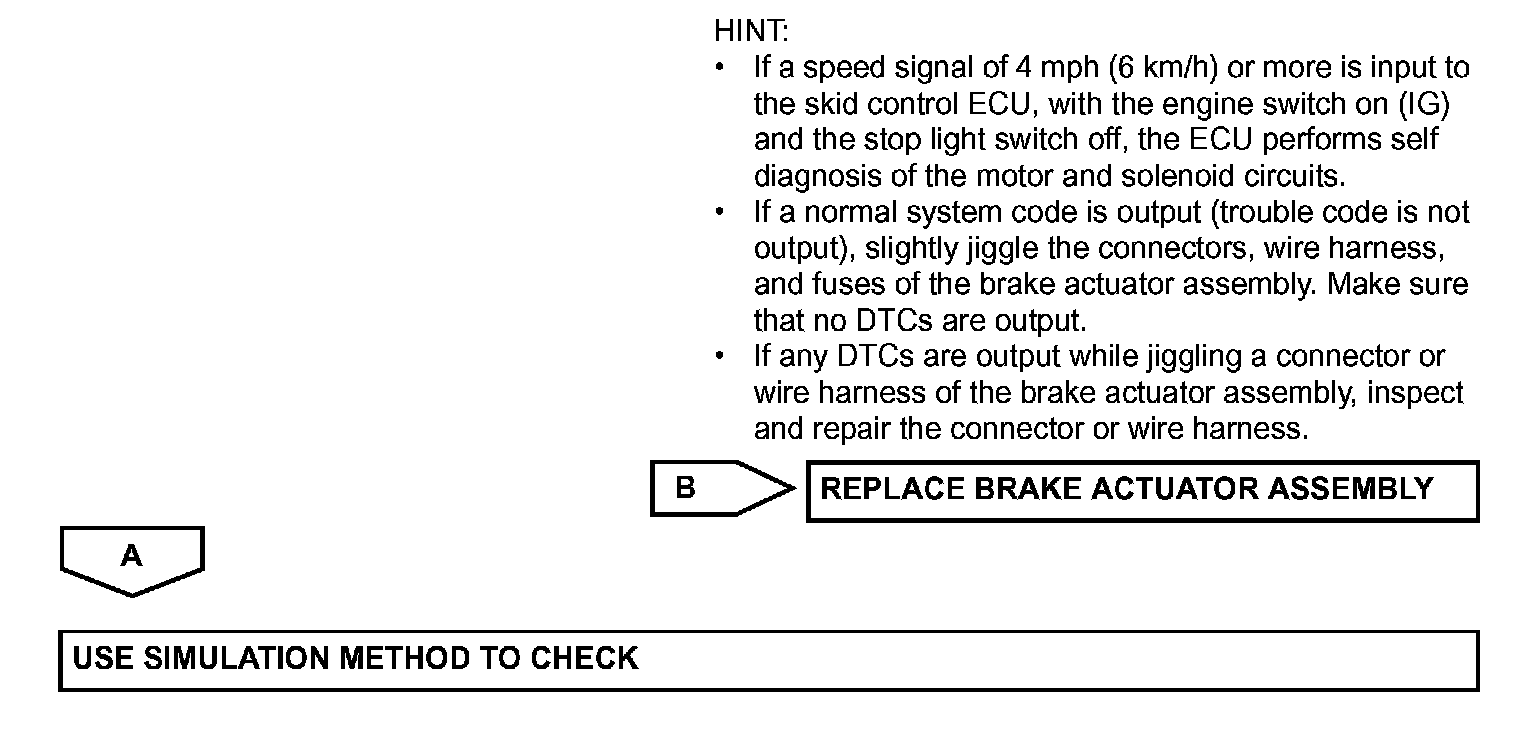

Step 3 (Continued):
