Vehicle Stability Control System (w/ VDIM)

DTC C1251/51 Open In Pump Motor Circuit

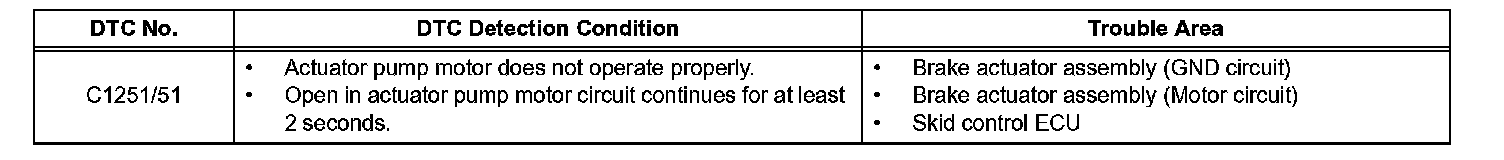

DTC DETECTION CONDITION:

DESCRIPTION

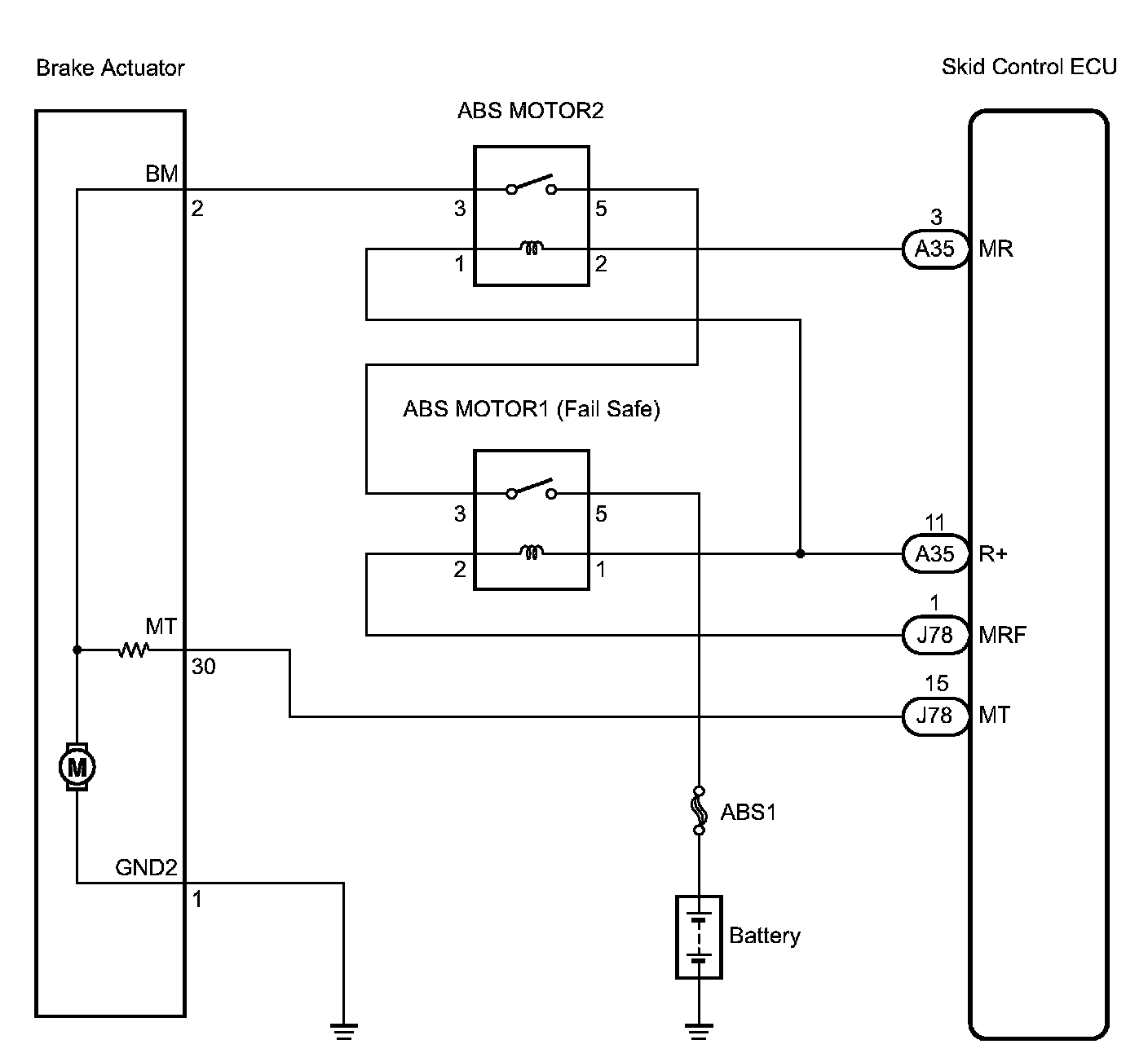

WIRING DIAGRAM:

NOTICE: When replacing the skid control ECU, perform zero point calibration. Vehicle Stability Control System (W/ VDIM)

HINT: When C0273/13, C0274/14 or C1361/91 is output together with C1251/51, inspect and repair the trouble areas indicated by C0273/13, C0274/14 or C1361/91 first.

INSPECTION PROCEDURE

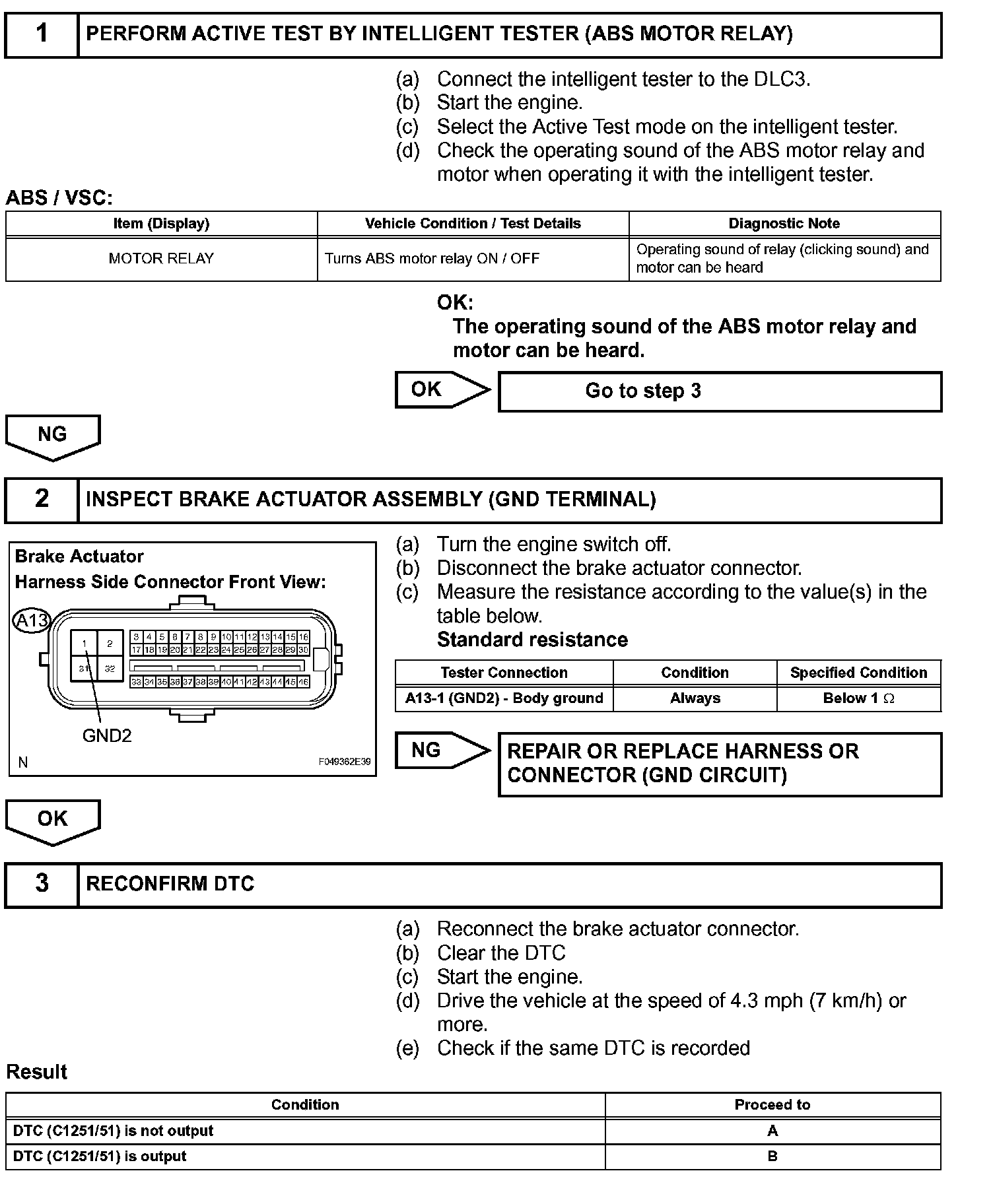

Steps 1-3:

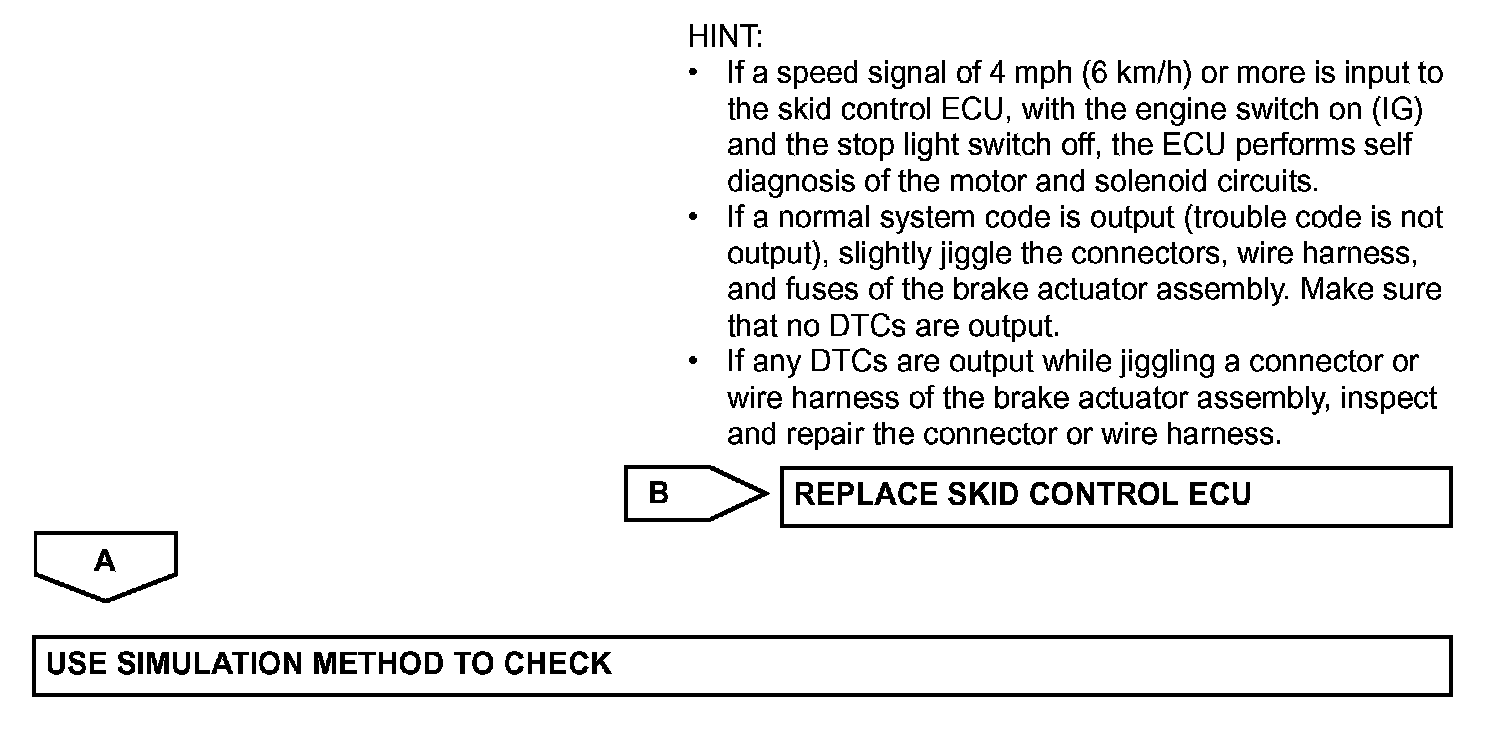

Step 3 (Continued):
