Vehicle Stability Control System (w/o VDIM)
DTC C1223/43 ABS Control System MalfunctionDESCRIPTION

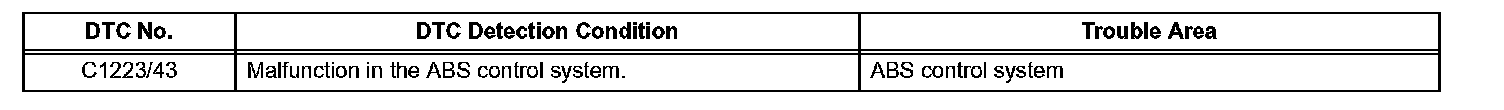

DTC DETECTION CONDITION:
This DTC is output when the VSC system detects a malfunction in the ABS control system.
NOTICE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)

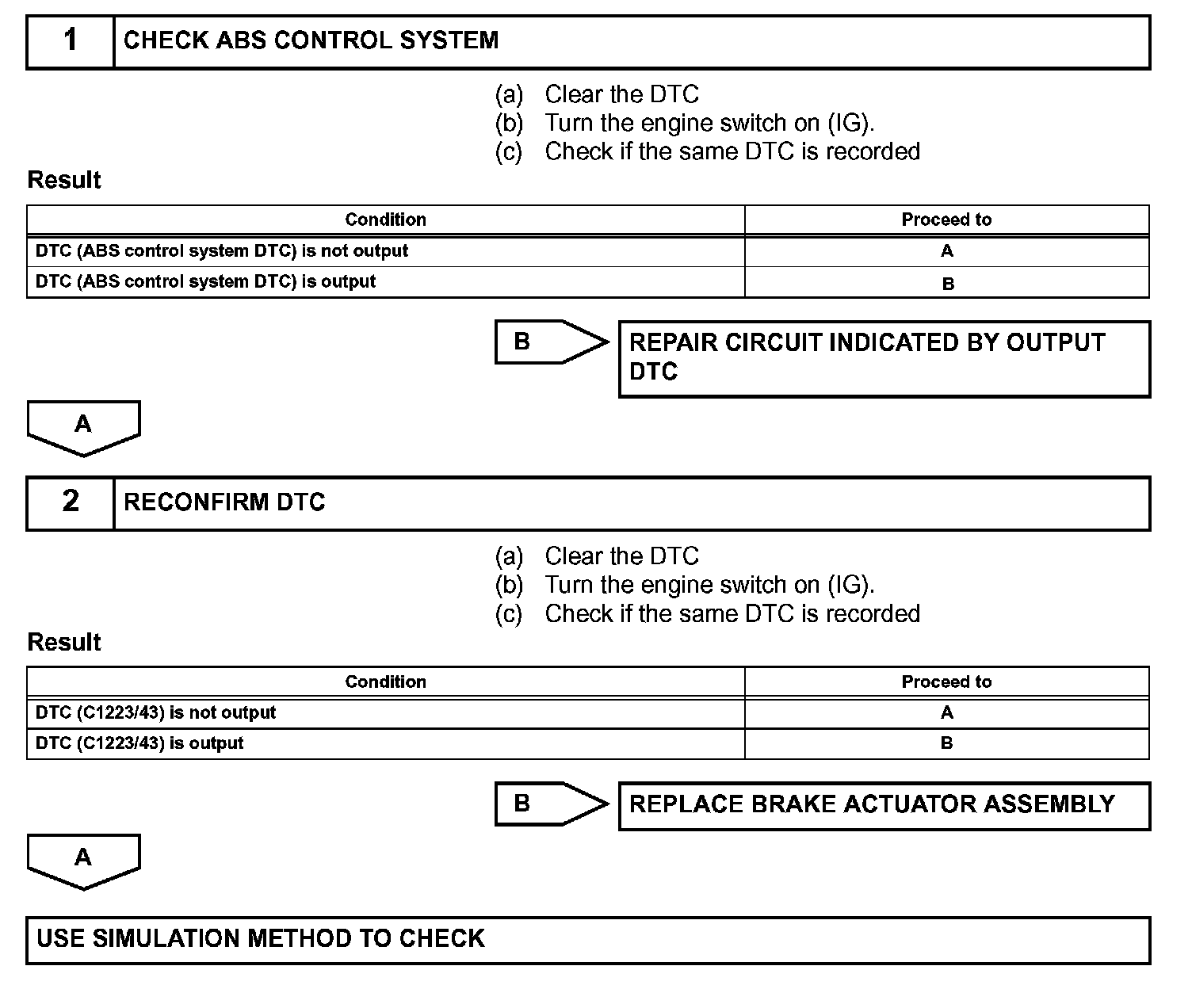

INSPECTION PROCEDURE
Steps 1-2:
