Vehicle Stability Control System (w/ VDIM)

DTC C1223/43 ABS Control System Malfunction

DESCRIPTION
This DTC is output when the VSC system detects a malfunction in the ABS control system.

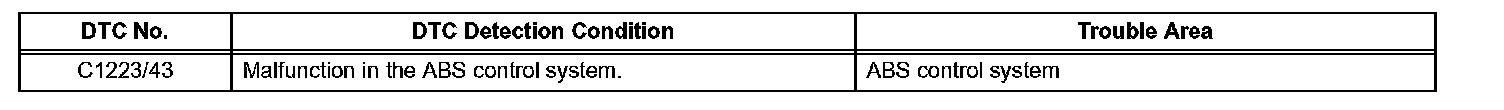

DTC DETECTION CONDITION:





NOTICE: When replacing the skid control ECU, perform zero point calibration. Vehicle Stability Control System (W/ VDIM)

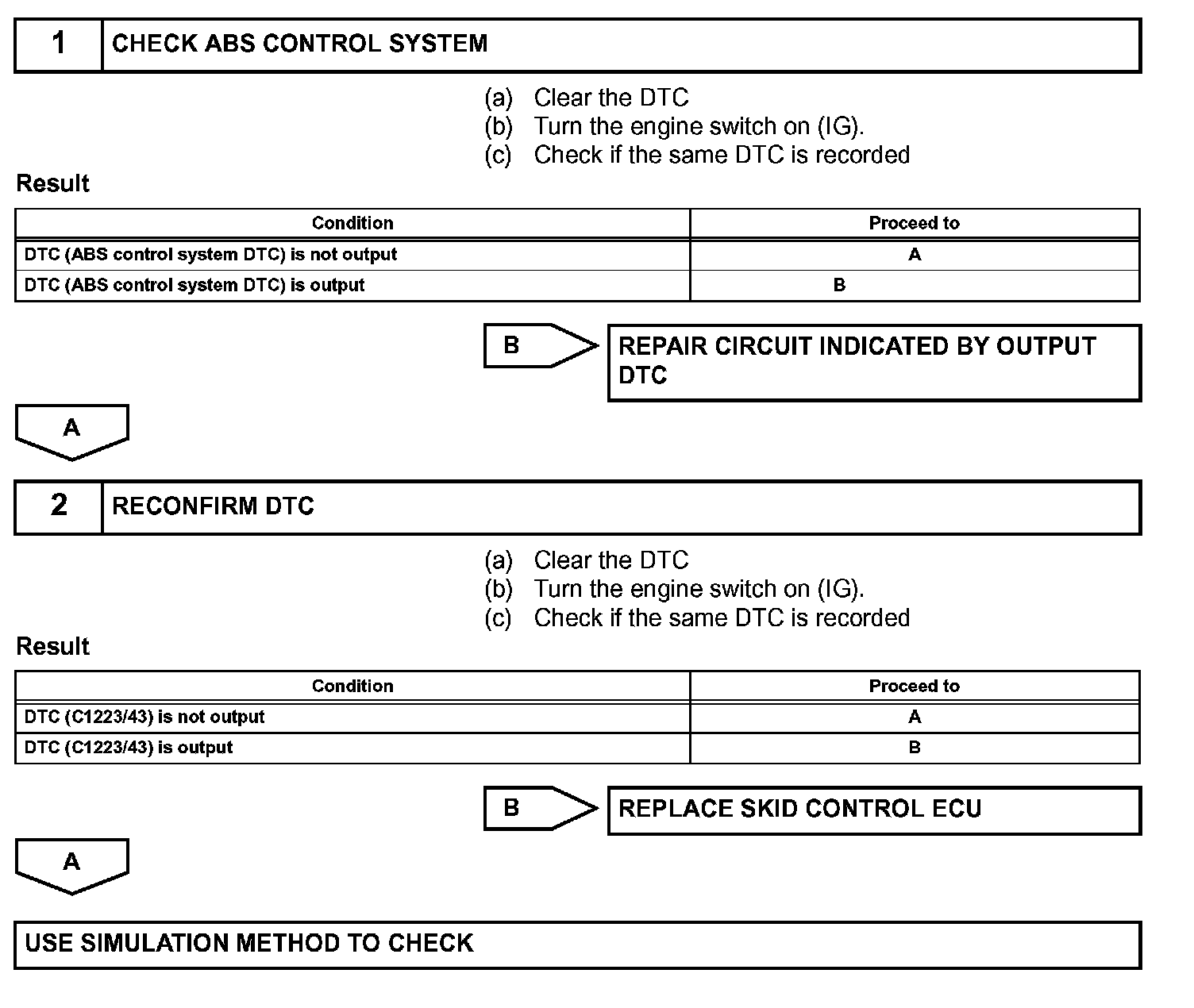

INSPECTION PROCEDURE

Steps 1-2:
