B2286

DTC B2286 Runnable Signal Malfunction

DESCRIPTION

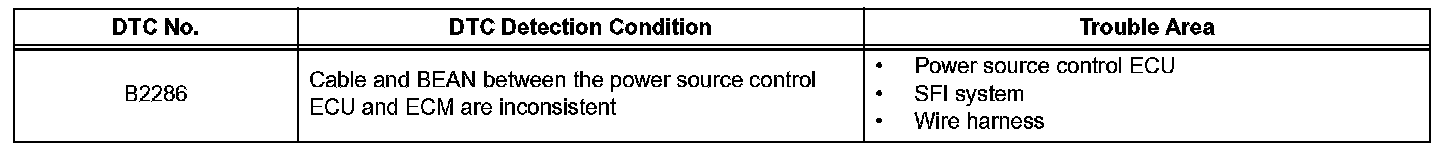

DTC Detection Condition:

The power source control ECU and the ECM are connected by a cable and the BEAN. If the cable information and BEAN information are inconsistent, this DTC will be output.

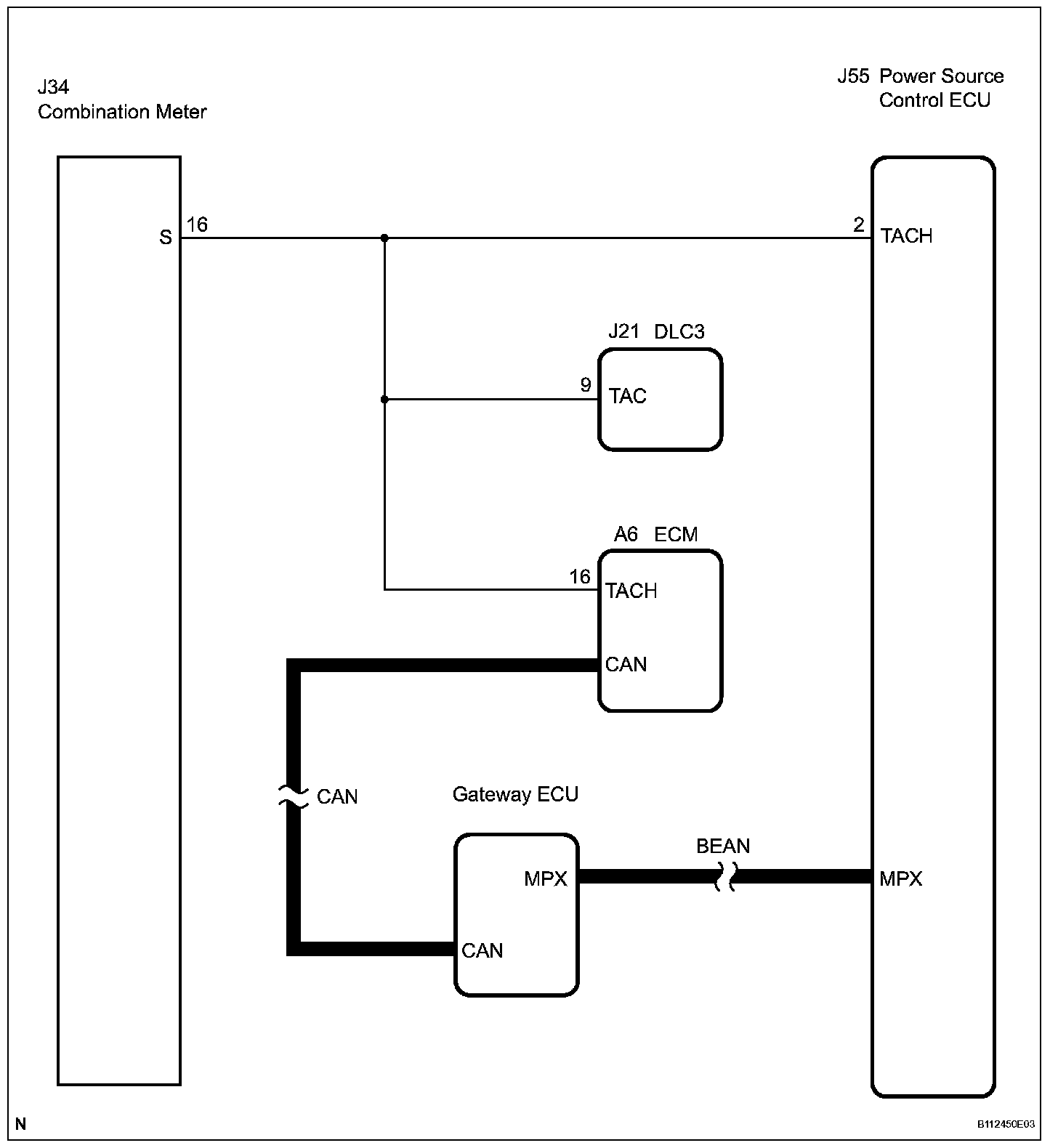

Wiring Diagram:

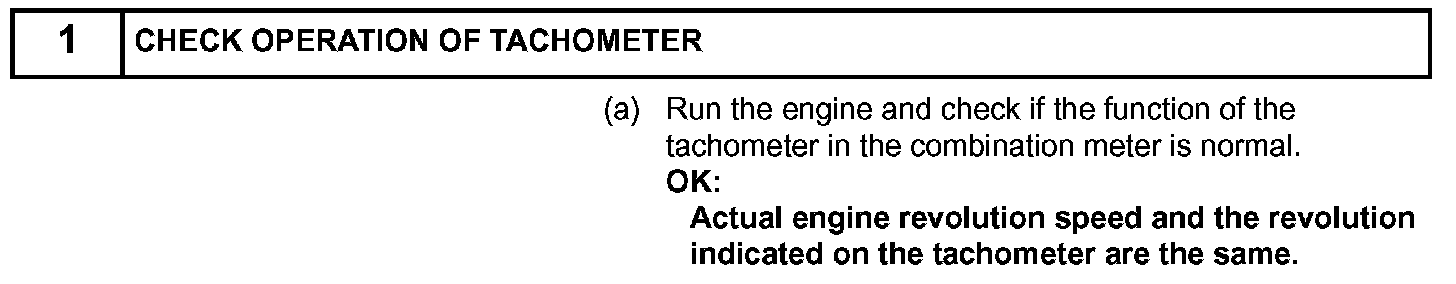

Step 1:

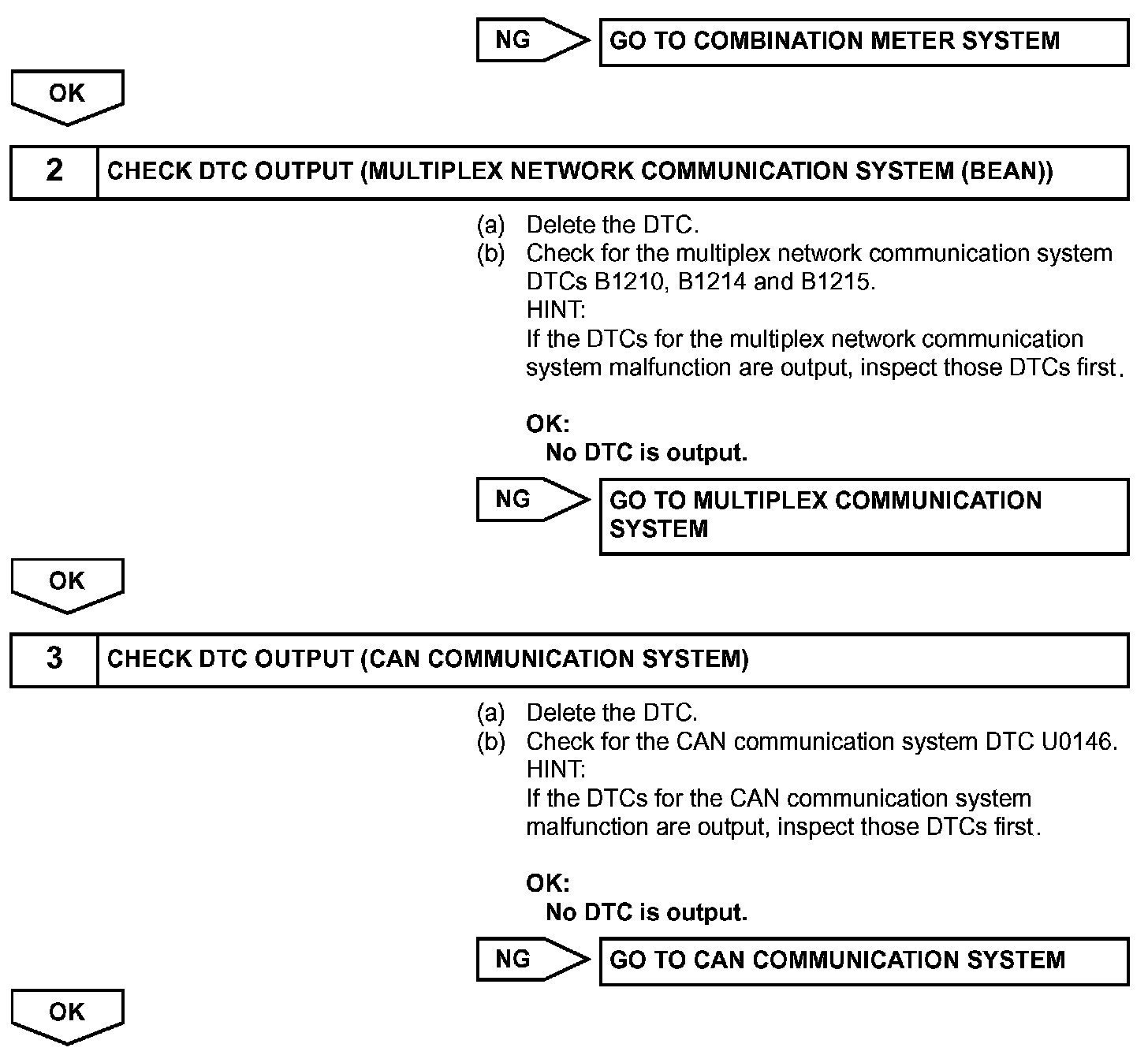

Step 1(continued)-3:

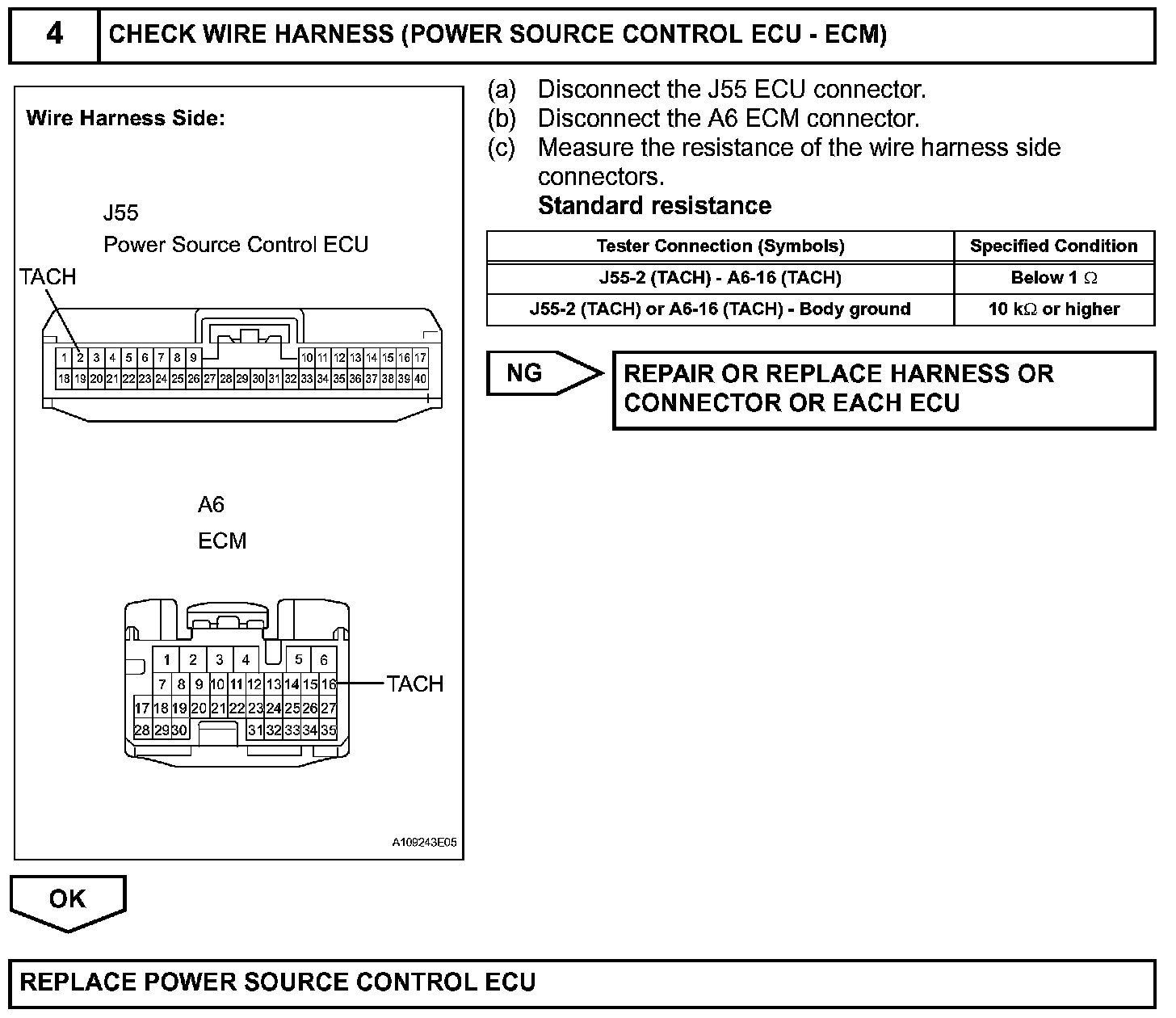

Step 4:

INSPECTION PROCEDURE
