B2284

DTC B2284 Brake Signal Malfunction (Cable-IInformation does not Match to Bean-Information)

DESCRIPTION

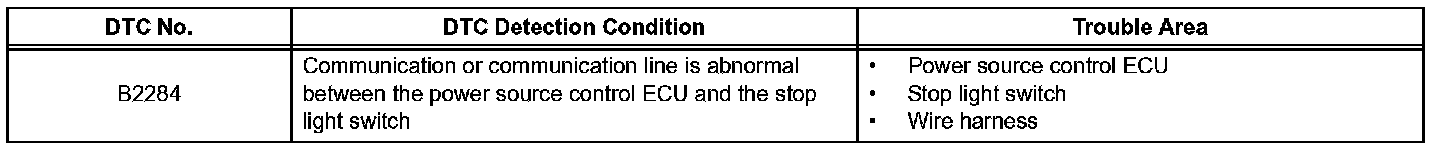

DTC Detection Condition:

This DTC is output when: 1) the brake signal circuit between the power source control ECU and the stop light switch is malfunctioning; and 2) the BEAN information is inconsistent.

HINT: Before performing the inspection procedure, depress the brake pedal and check that the stop lights come on. If the stop lights do not come on when the brake pedal is depressed.

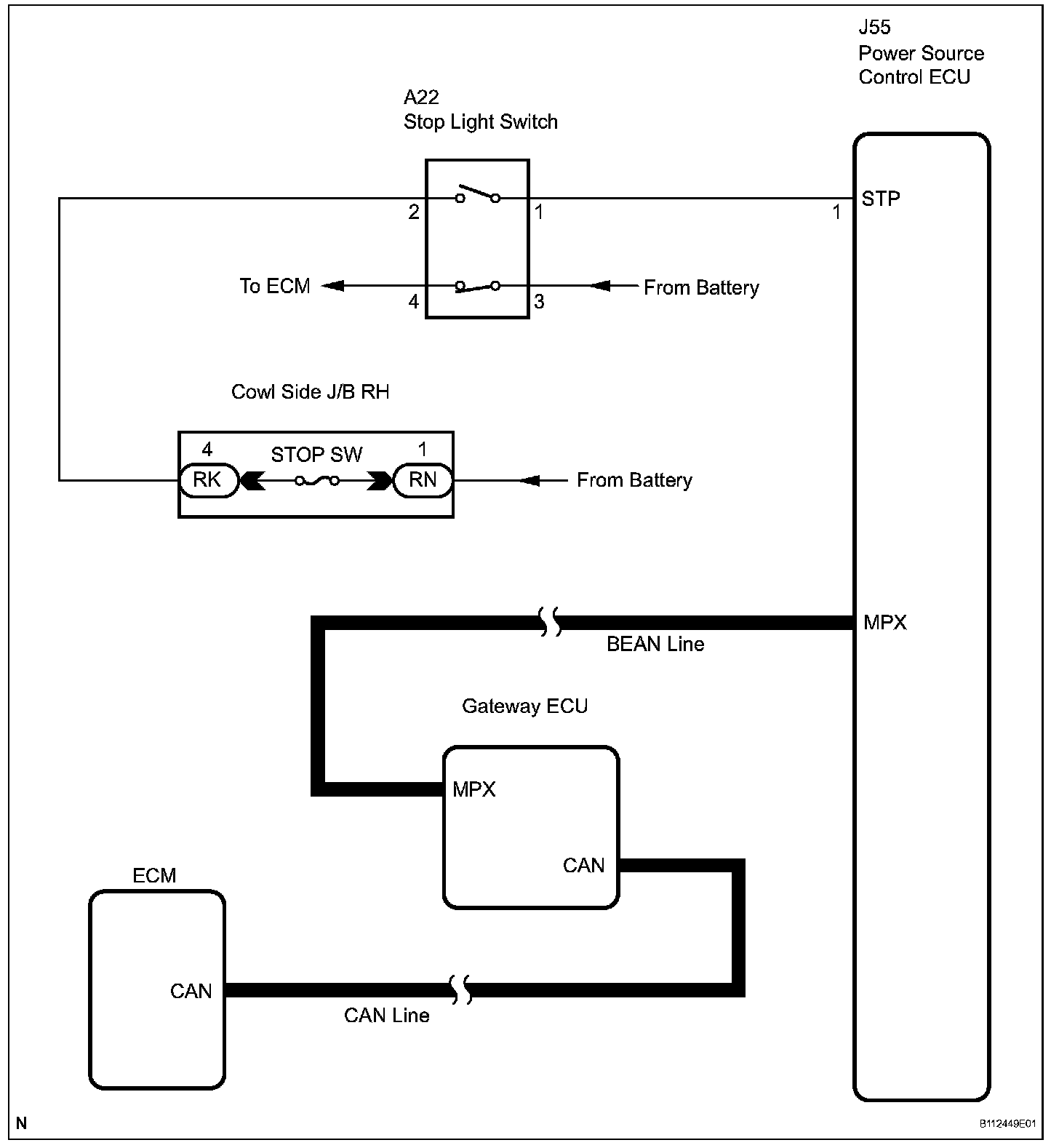

Wiring Diagram:

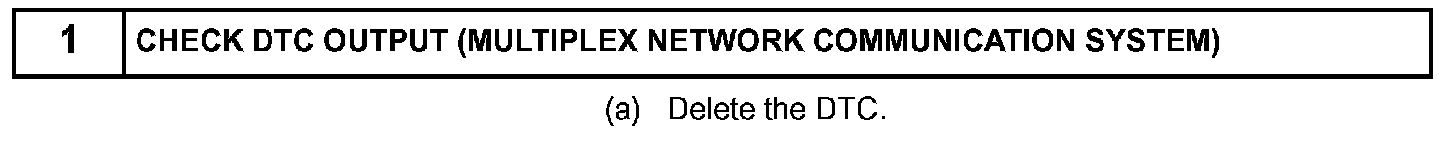

Step 1:

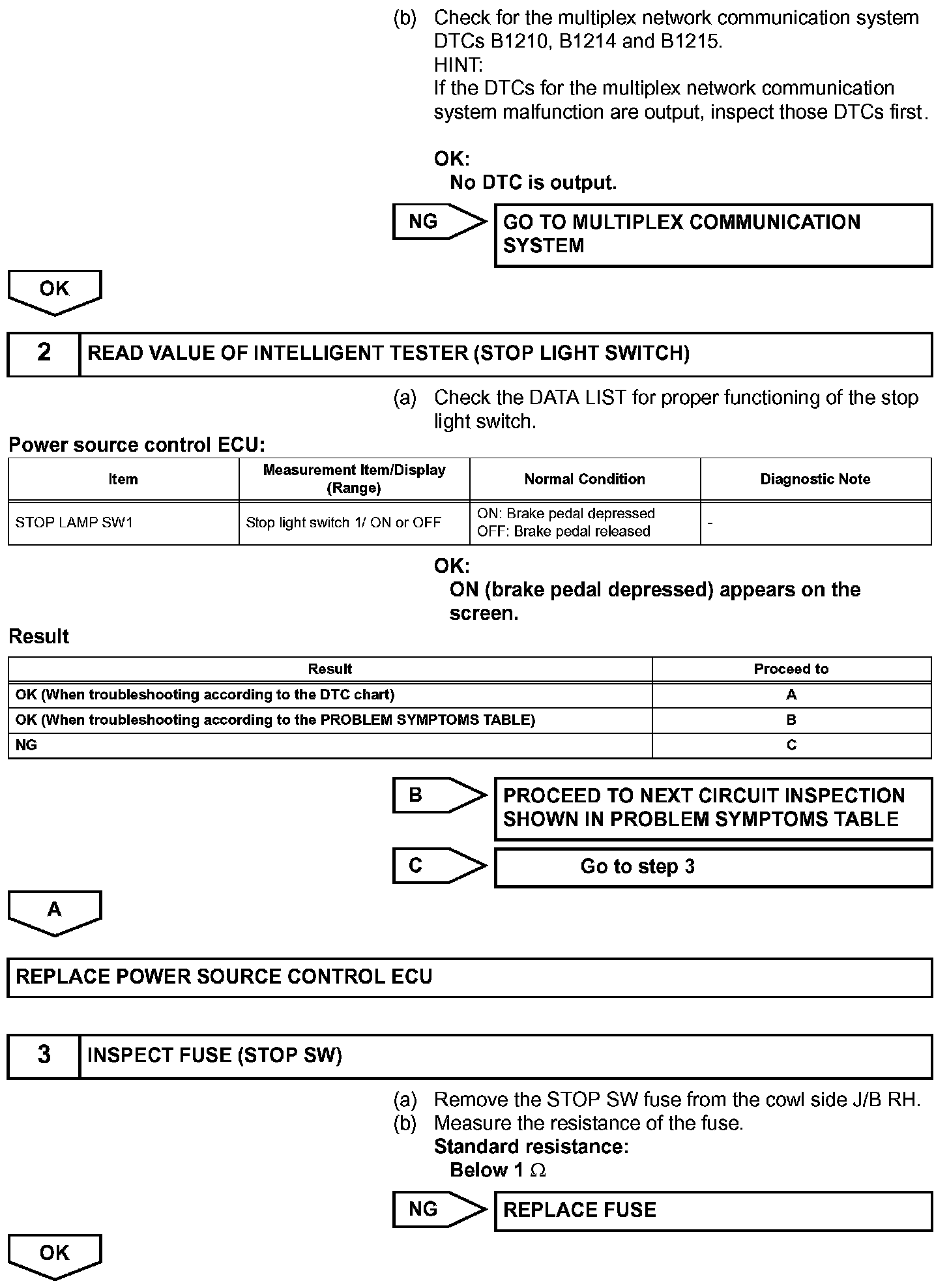

Step 1(continued)-3:

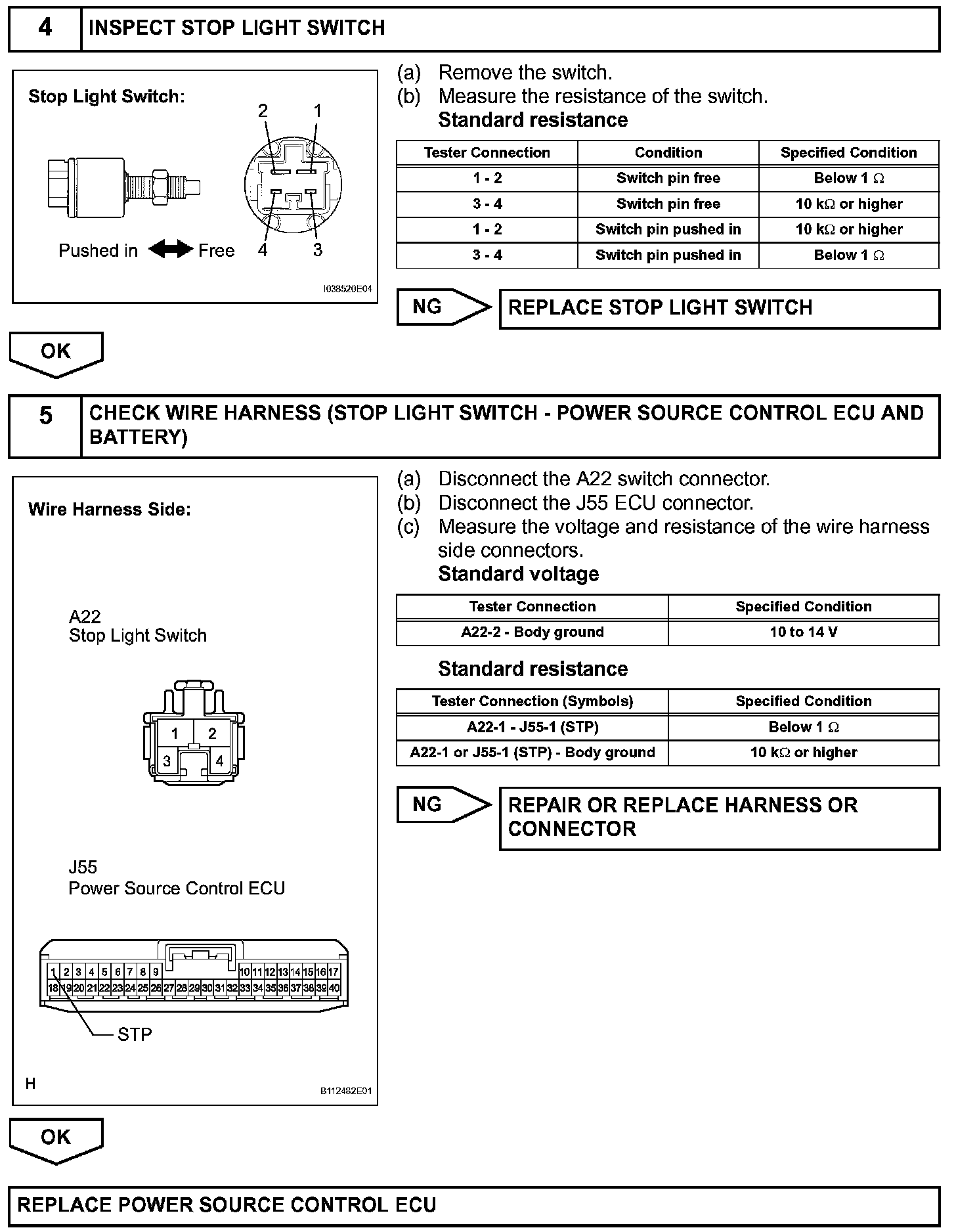

Step 4-5:

INSPECTION PROCEDURE
