B2281

DTC B2281 "P" Signal Malfunction (Cable- Information does not Match to Bean- Information)

DESCRIPTION

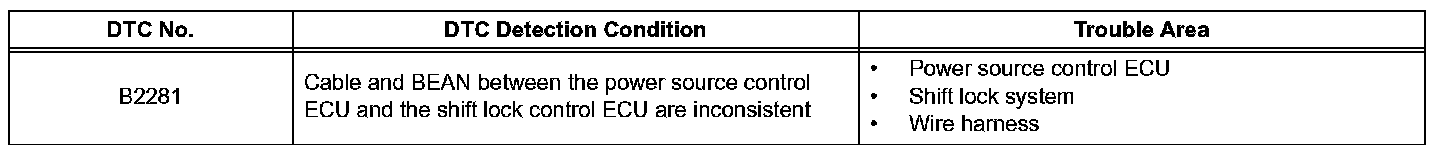

DTC Detection Condition:

The power source control ECU and the shift lock control ECU are connected by a cable and the BEAN.If the cable information and BEAN information are inconsistent, this DTC will be output.

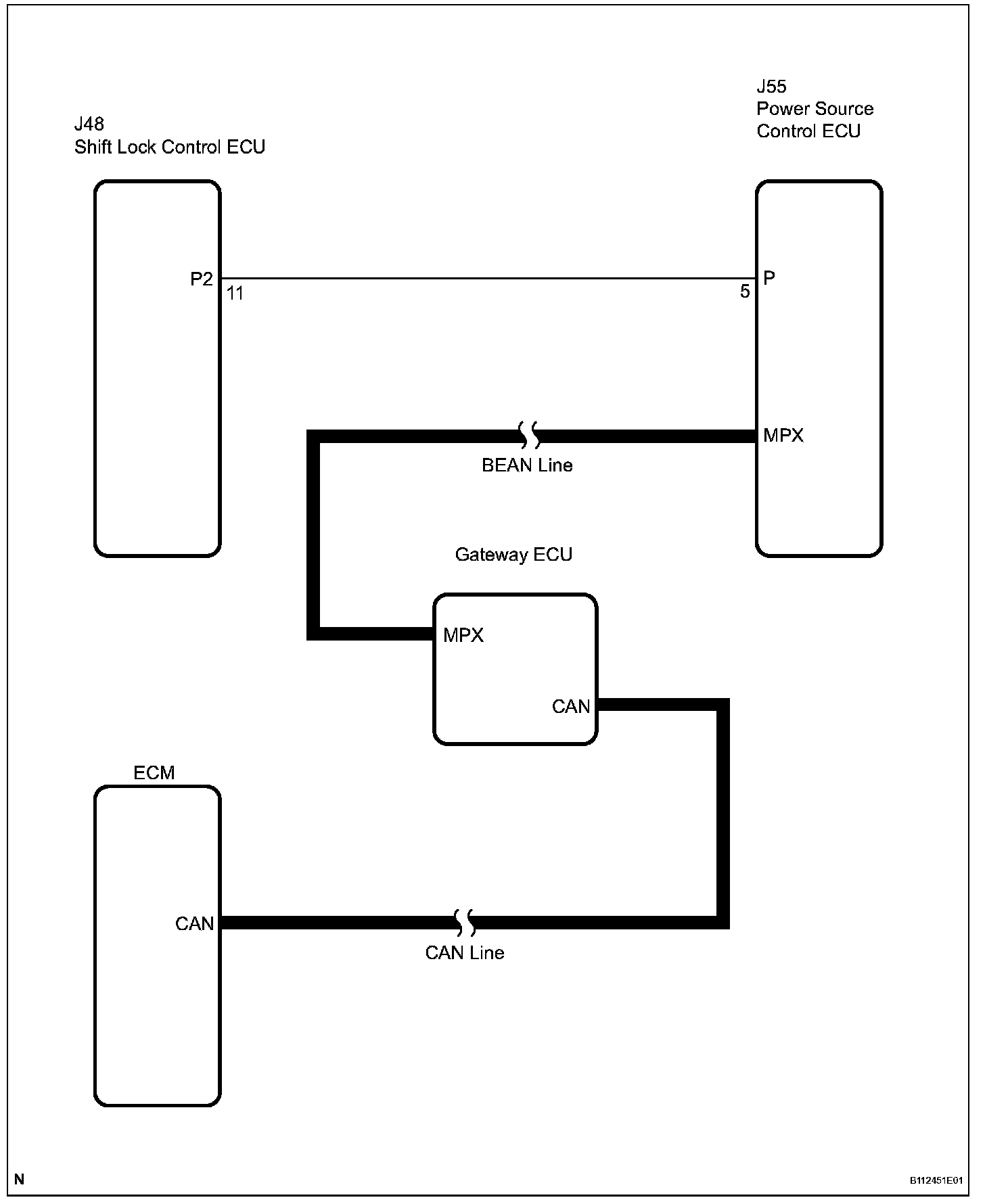

Wiring Diagram:

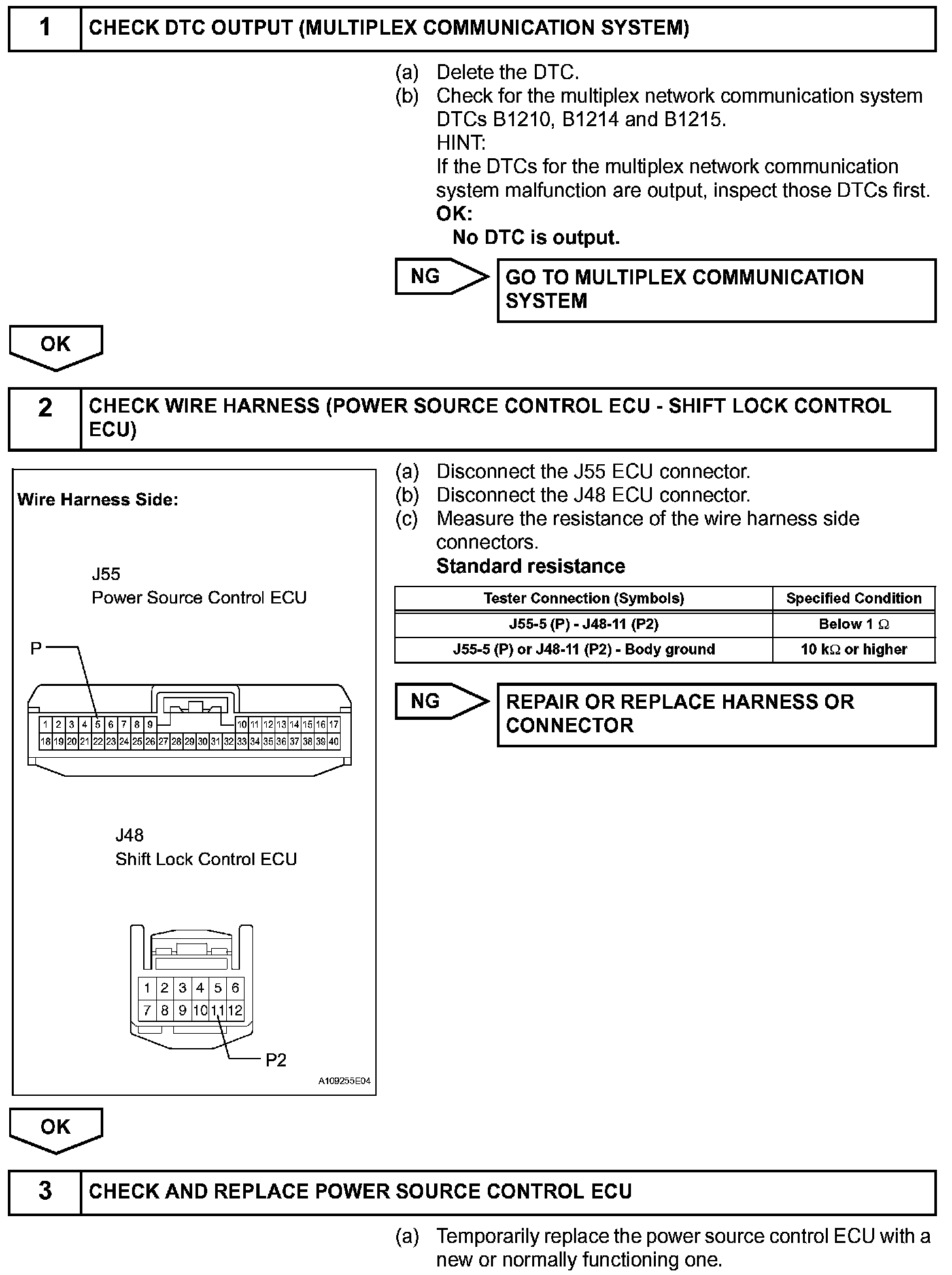

Step 1-3:

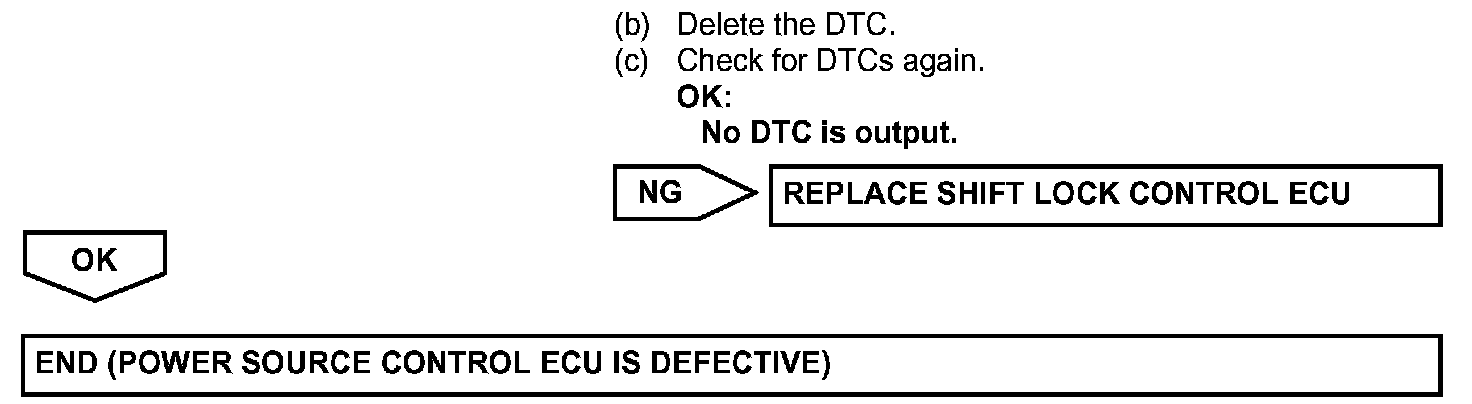

Step 3(continued):

INSPECTION PROCEDURE
