Seals and Gaskets: Service and Repair
EXTENSION HOUSING REAR OIL SEALCOMPONENTS:
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT EXHAUST PIPE ASSEMBLY
3. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
4. DRAIN AUTOMATIC TRANSMISSION FLUID

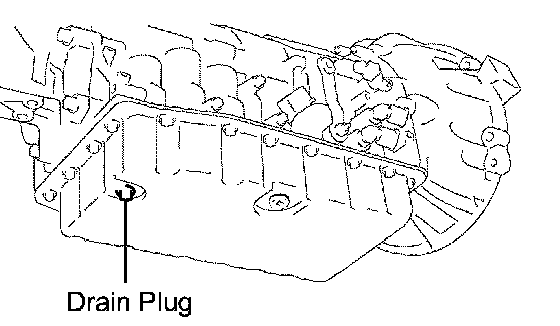

a. Remove the drain plug, the gasket, and drain the ATF.
b. Install a new gasket and the drain plug.
Torque: 20 Nm (205 kgf-cm, 15 ft. lbs.)
5. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
a. Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010
HINT: Move the shift lever to the P position.
b. Set the SST.
SST 09330-00021, 09950-30012 (09955-03040)
c. Using SST and 30 mm socket wrench, remove the nut.
d. Remove the SST
e. Tap the output flange with a plastic hammer to remove it.

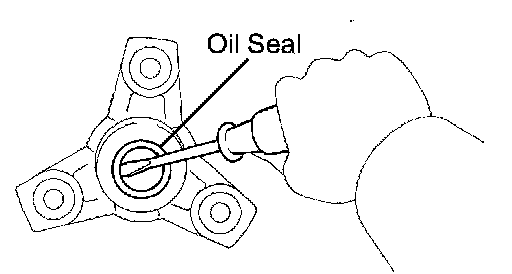

f. Using a screwdriver, remove the oil seal from the automatic transmission flange yoke.
6. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

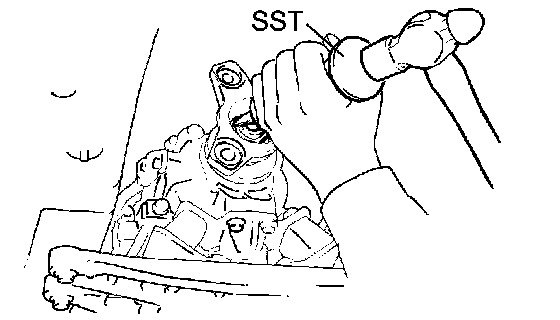

a. Using SST, remove the oil seal.
SST 09308-00010
INSTALLATION
1. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
a. Coat the lip of a new oil seal with MP grease.

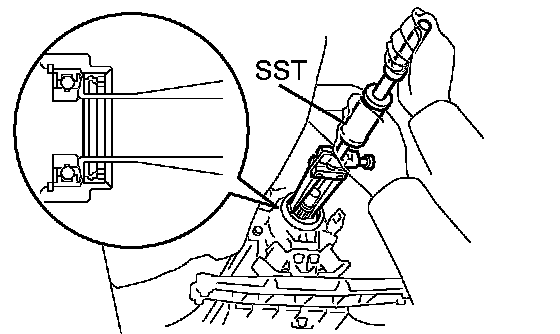

b. Using SST and a hammer, drive in the oil seal with the lip facing inside of the automatic transmission.
SST 09316-60011 (09316-00011, 09316-00051)
Oil seal depth from flat end: 1.8 to 2.2 mm (0.07 to 0.09 inch)
2. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
a. Using SST and a hammer, drive in a new oil seal.
SST 09517-36010
b. Install the automatic transmission flange yoke.
c. Set the SST.
SST 09330-00021, 09950-30012 (09955-03040)
d. Using SST and 30 mm socket wrench, install and tighten a new nut.
Torque: 126 Nm (1,285 kgf-cm, 93 ft. lbs.)
e. Using a chisel and hammer, securely stake the nut.
3. INSTALL PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
4. INSTALL FRONT EXHAUST PIPE ASSEMBLY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. ADD AUTOMATIC TRANSMISSION FLUID
7. PERFORM INITIALIZATION
8. CHECK FOR EXHAUST GAS LEAKS
