Home >> Lexus >> 2006 >> GS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Exhaust System >> System Specifications

System Specifications

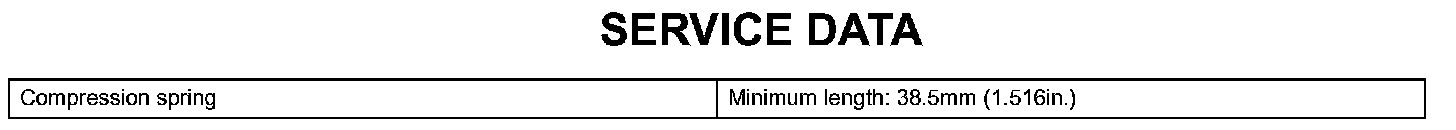

Exhaust-service Data:

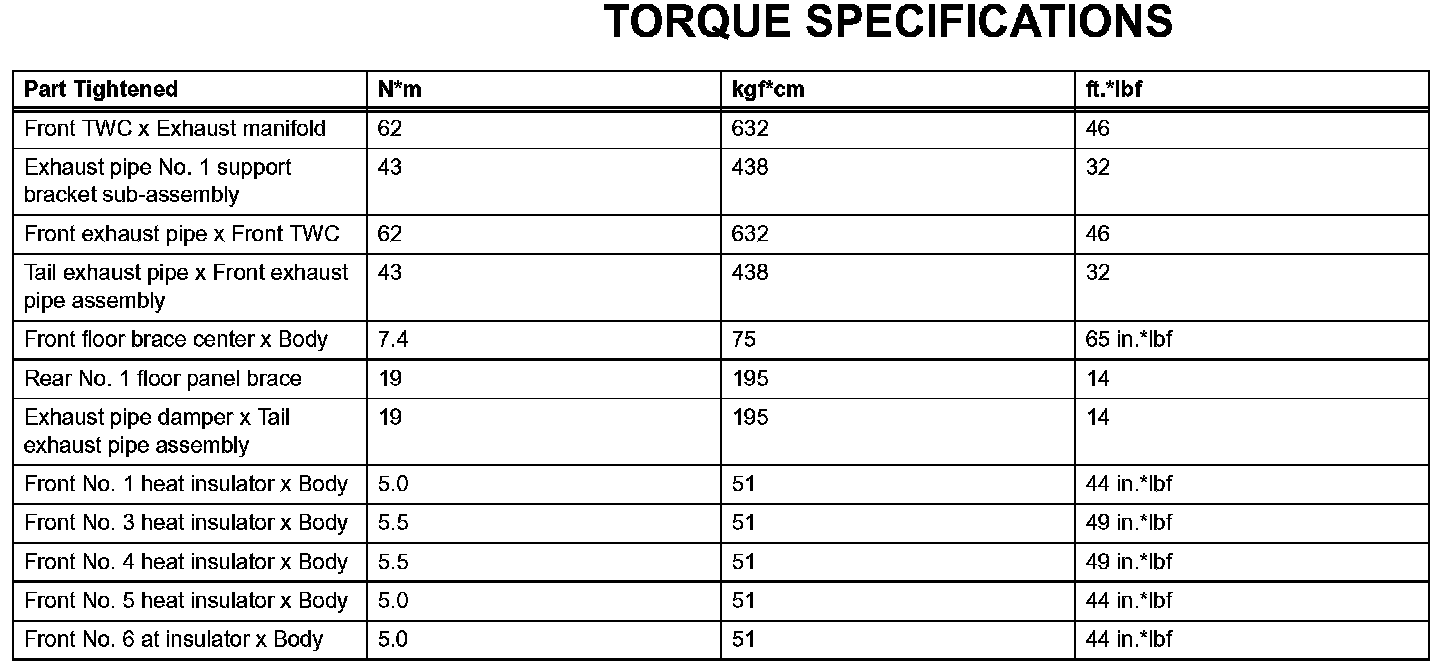

Exhaust-Torque Specifications:
