Fuel Delivery and Air Induction: Description and Operation

SYSTEM DIAGRAM

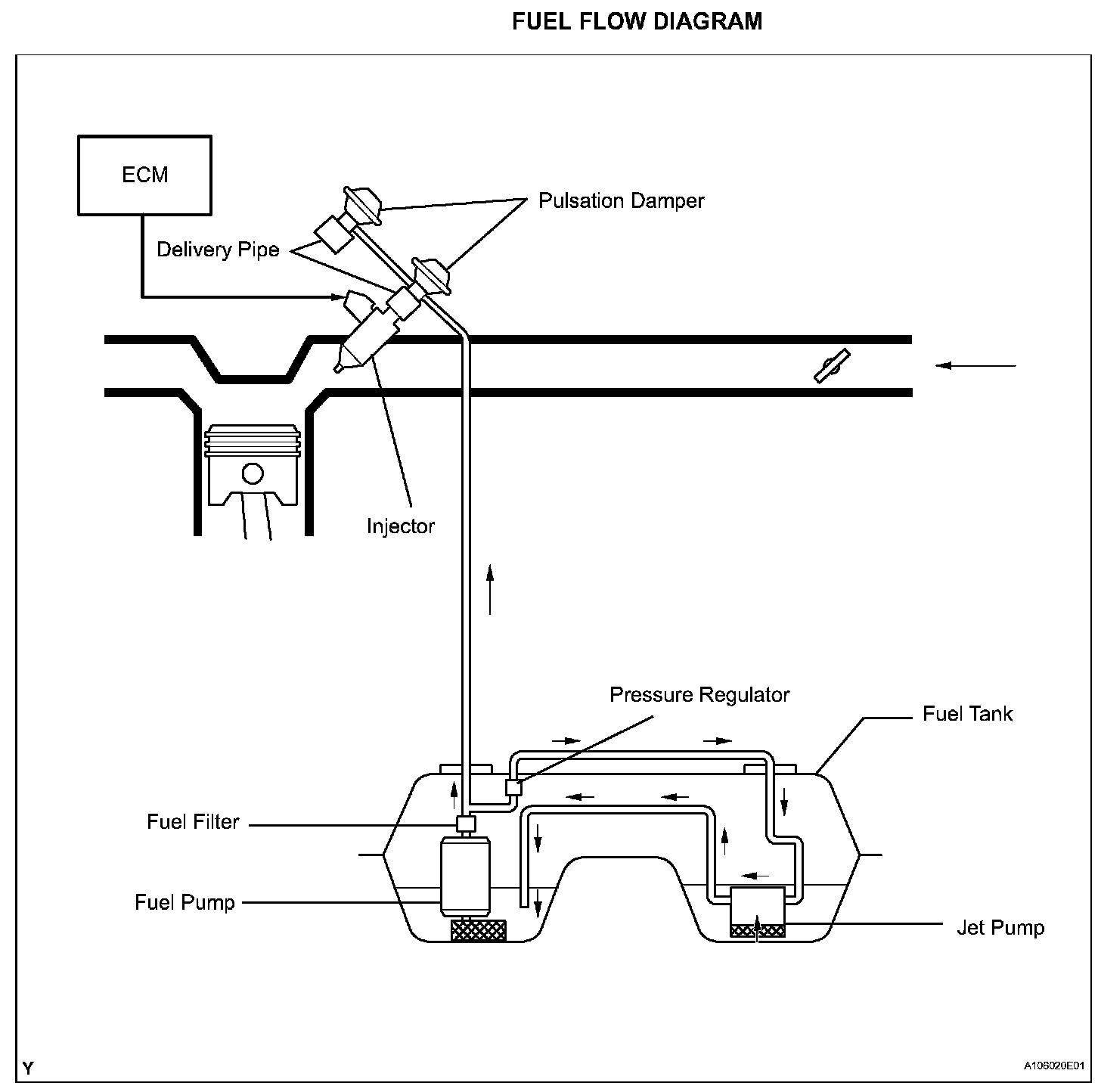

Fuel Flow Diagram:

1. FUEL FLOW DIAGRAM

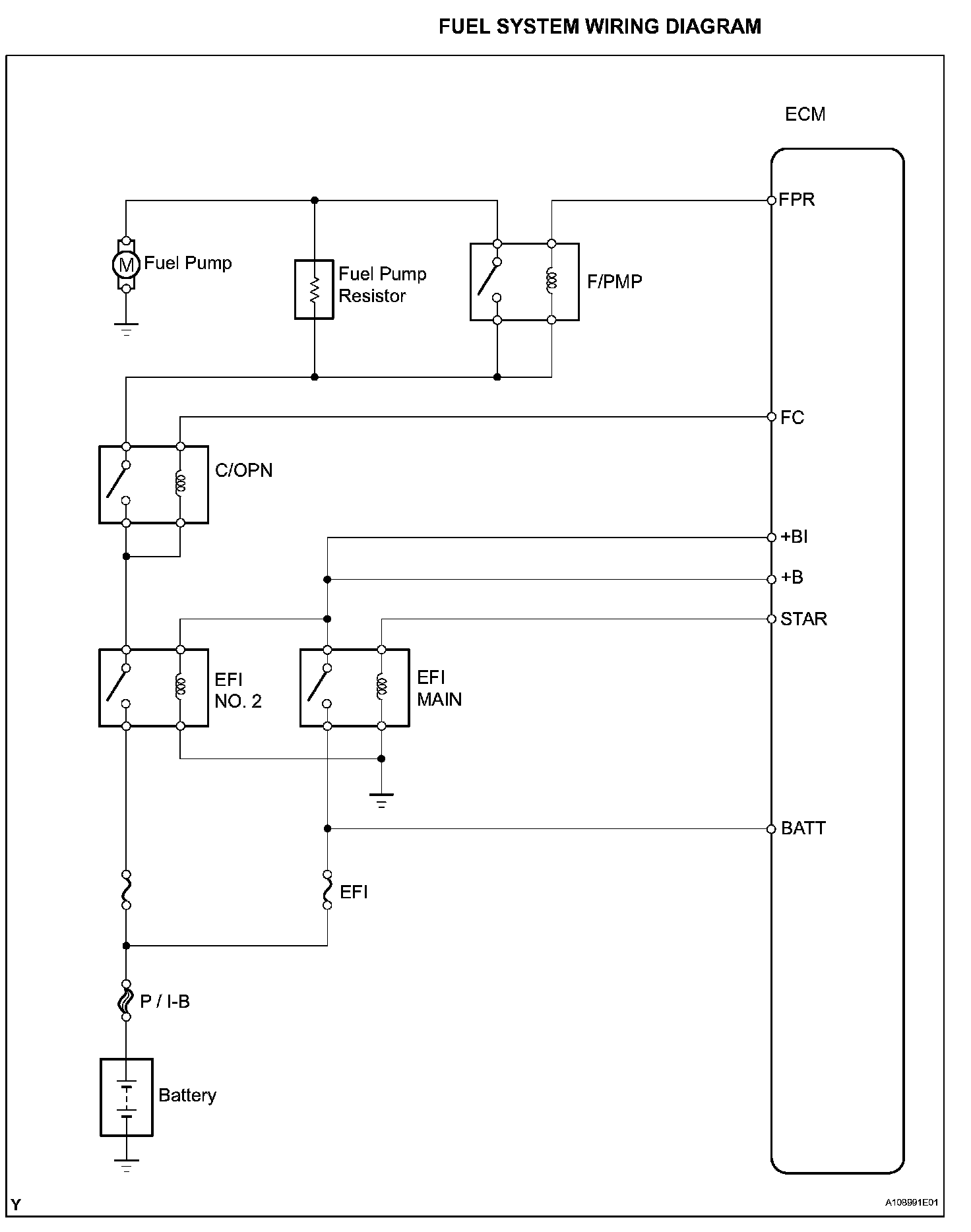

Fuel System Wiring Diagram:

2. FUEL SYSTEM WIRING DIAGRAM

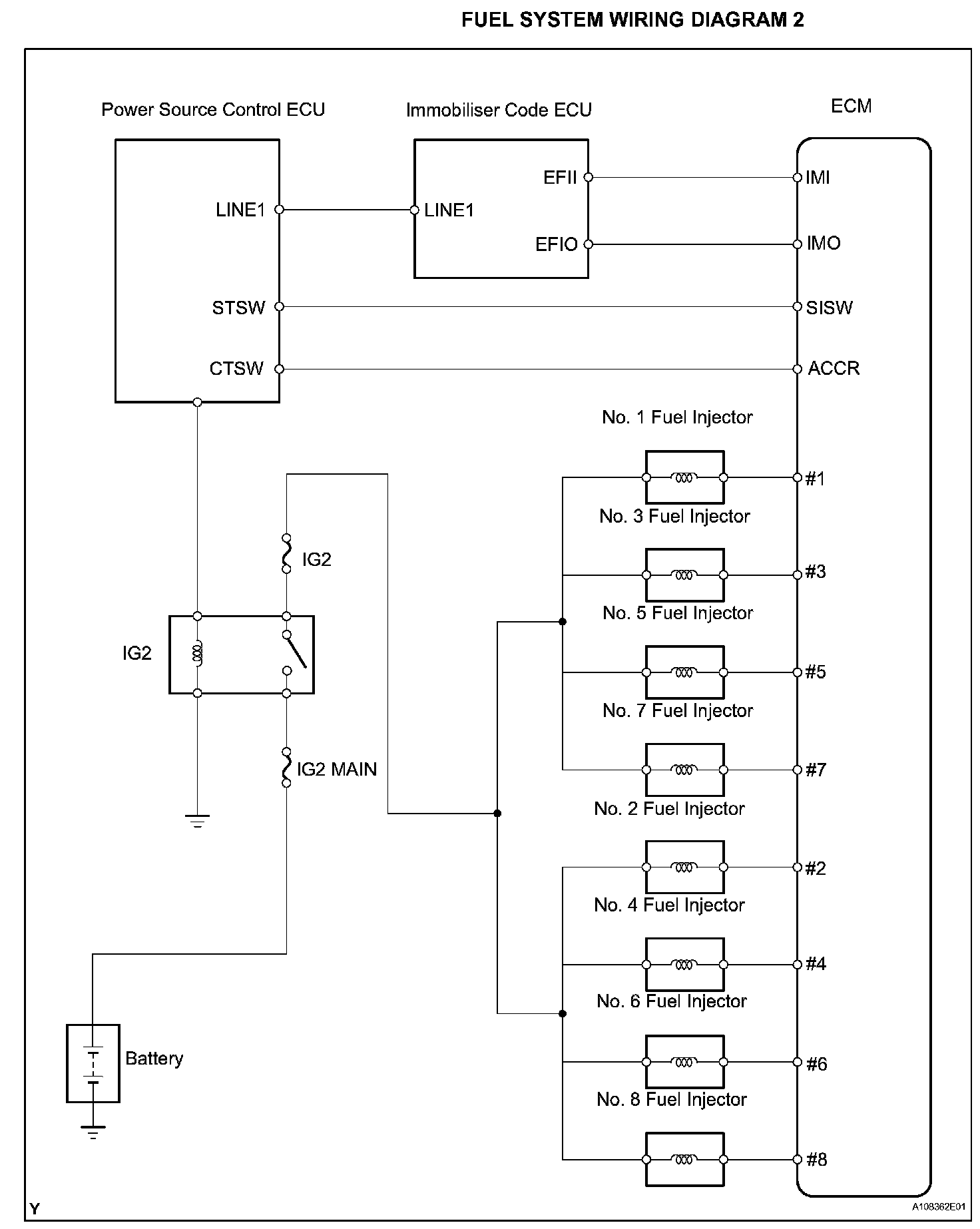

Fuel System Wiring Diagram 2:

3. FUEL SYSTEM WIRING DIAGRAM 2
