Pinout Values and Diagnostic Parameters

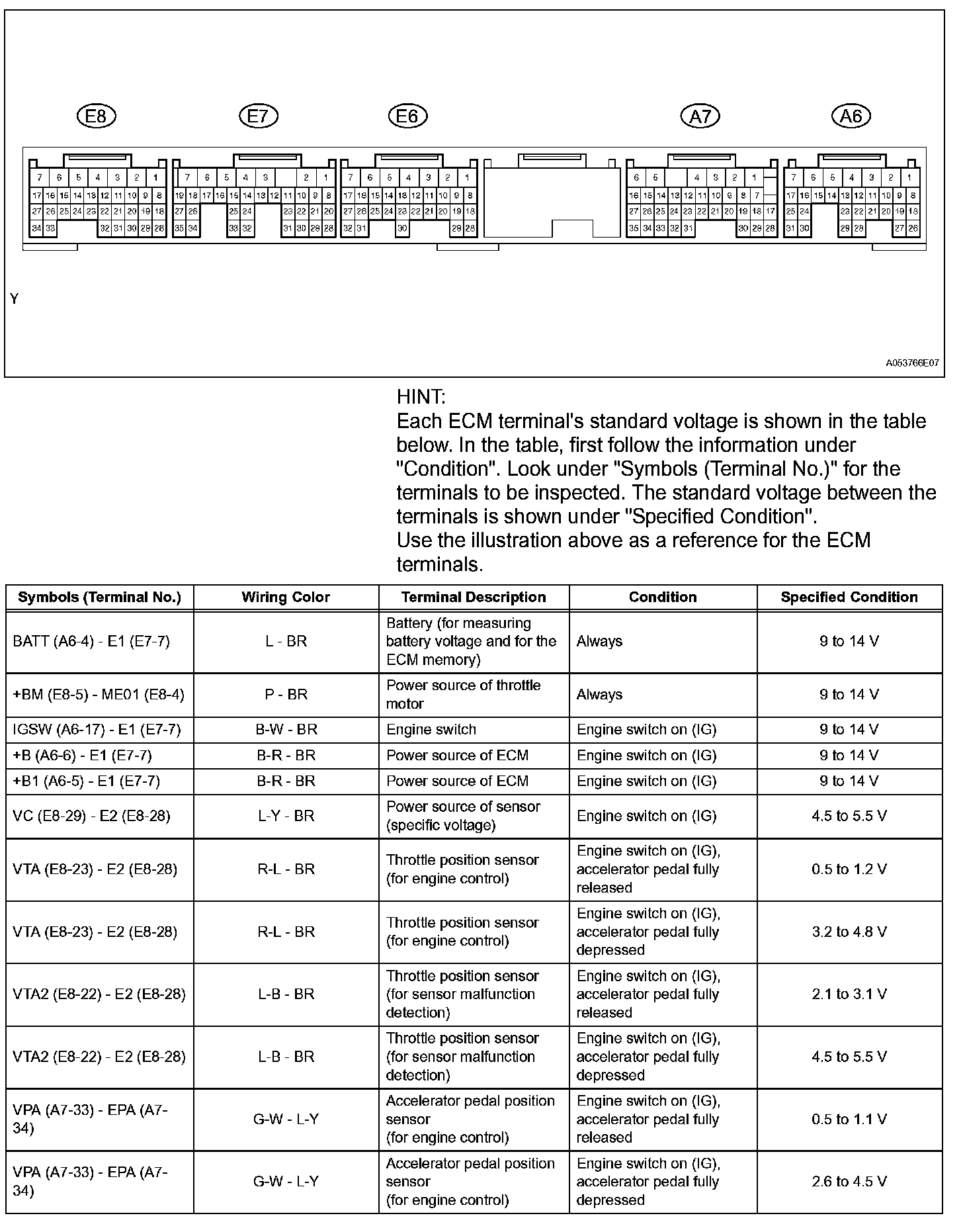

Terminlas Of ECM/Pinouts (Part 1):

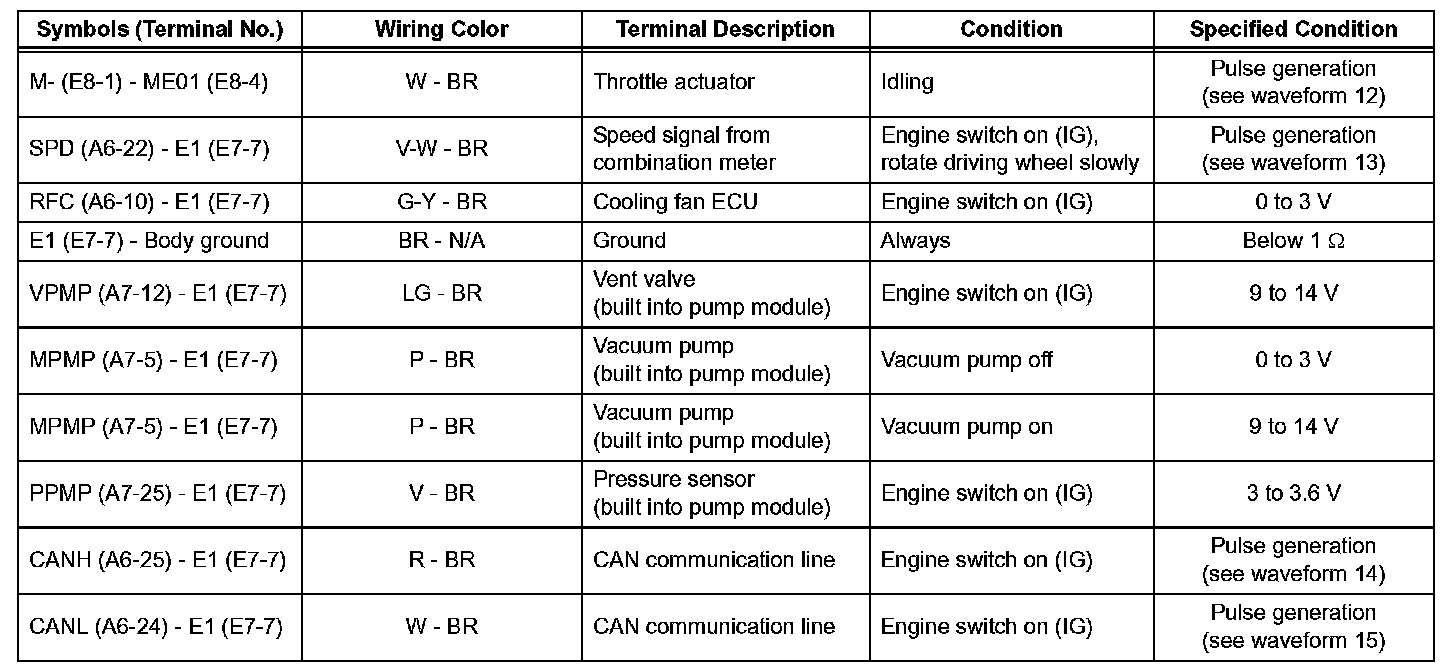

Terminlas Of ECM/Pinouts (Part 2):

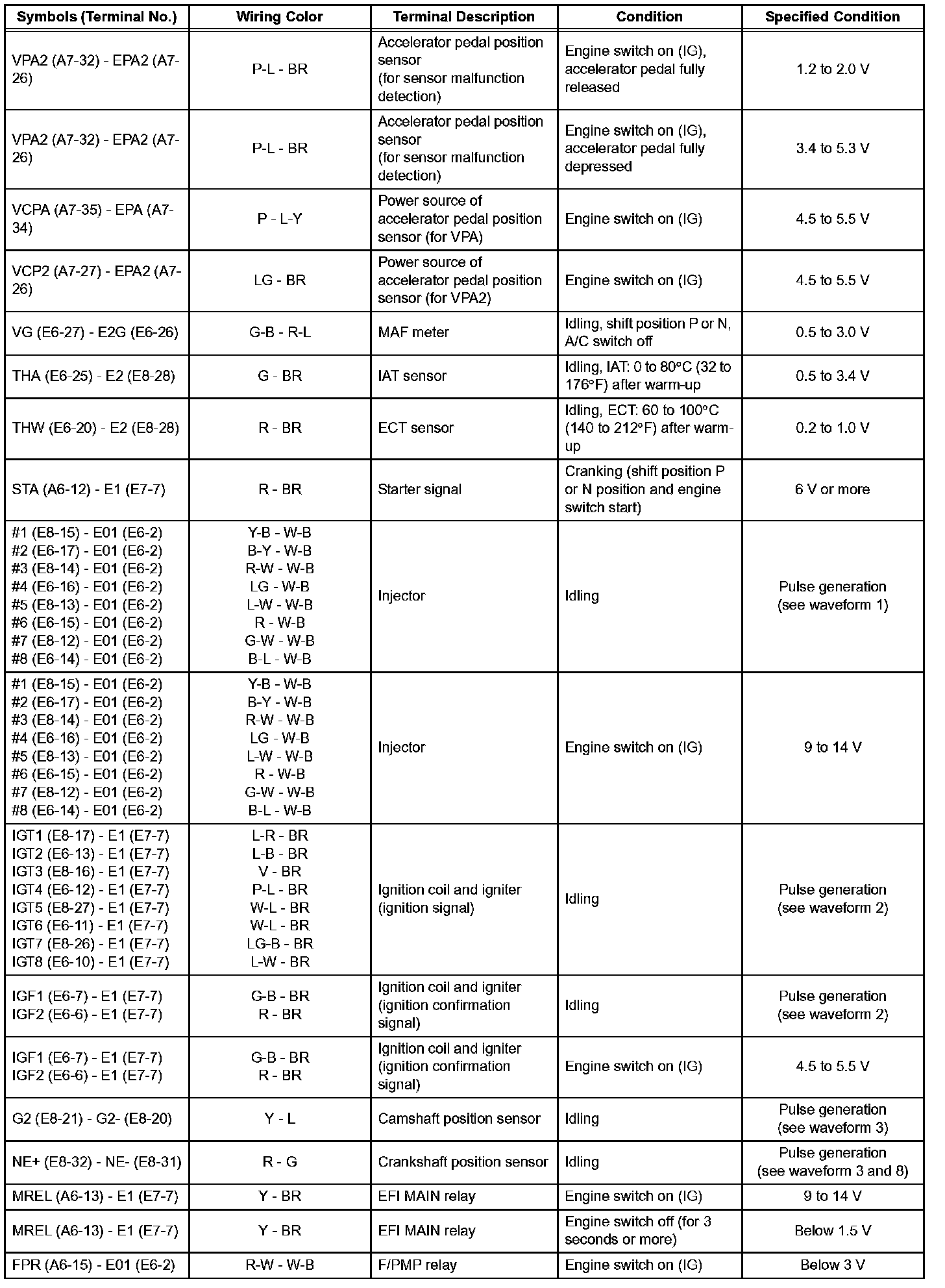

Terminlas Of ECM/Pinouts (Part 3):

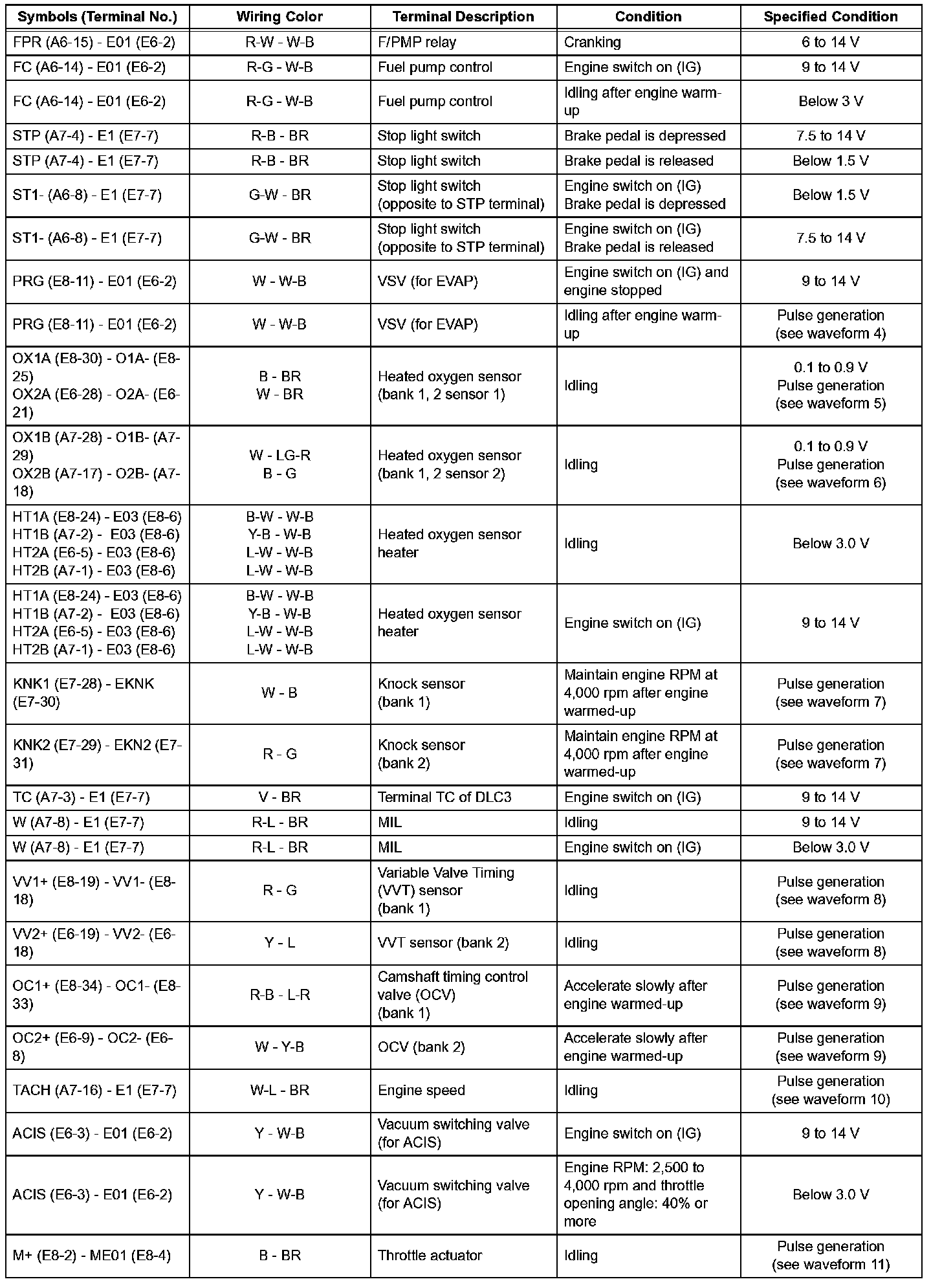

Terminlas Of ECM/Pinouts (Part 4):

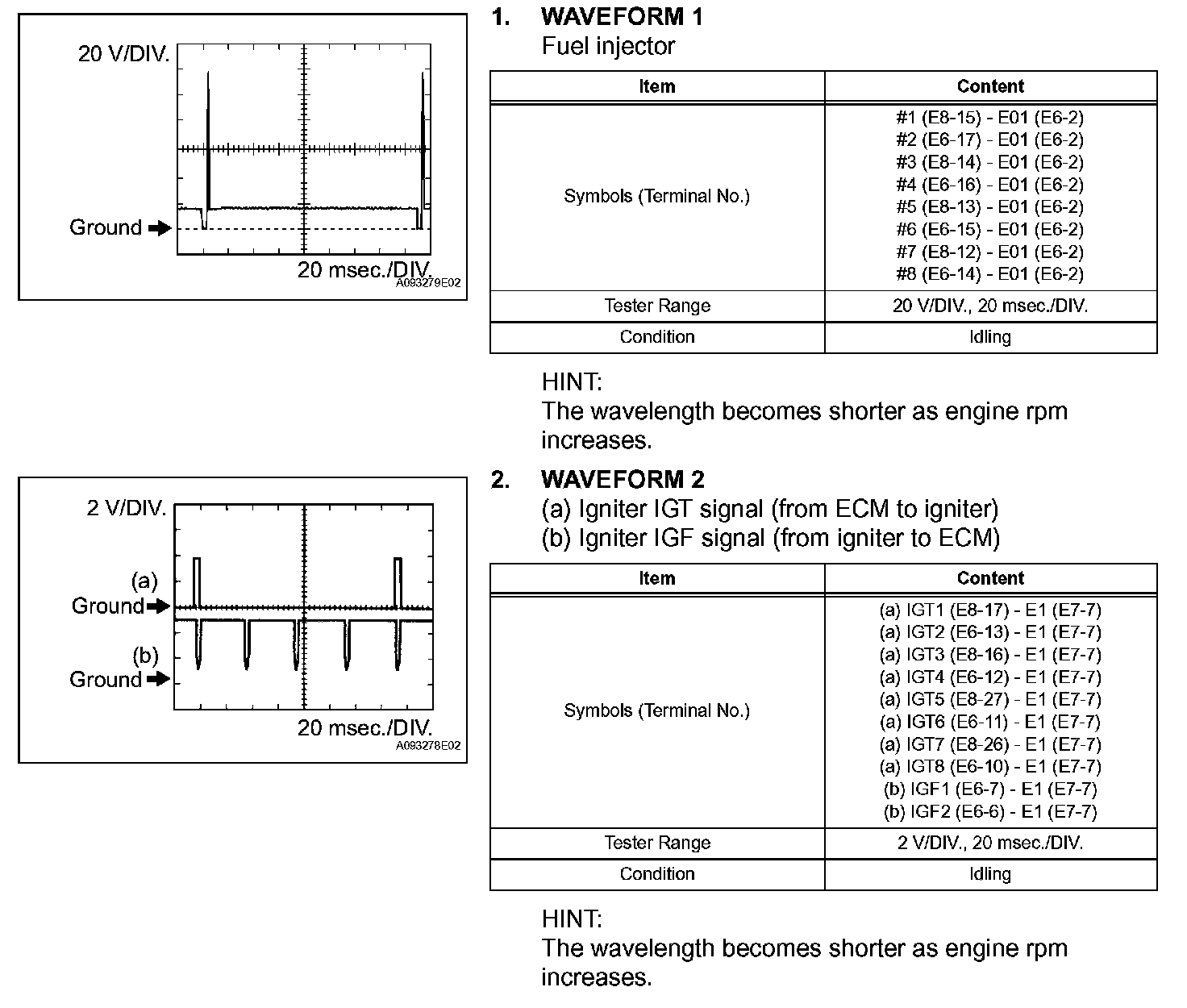

Oscilloscope Waveforms (Part 1):

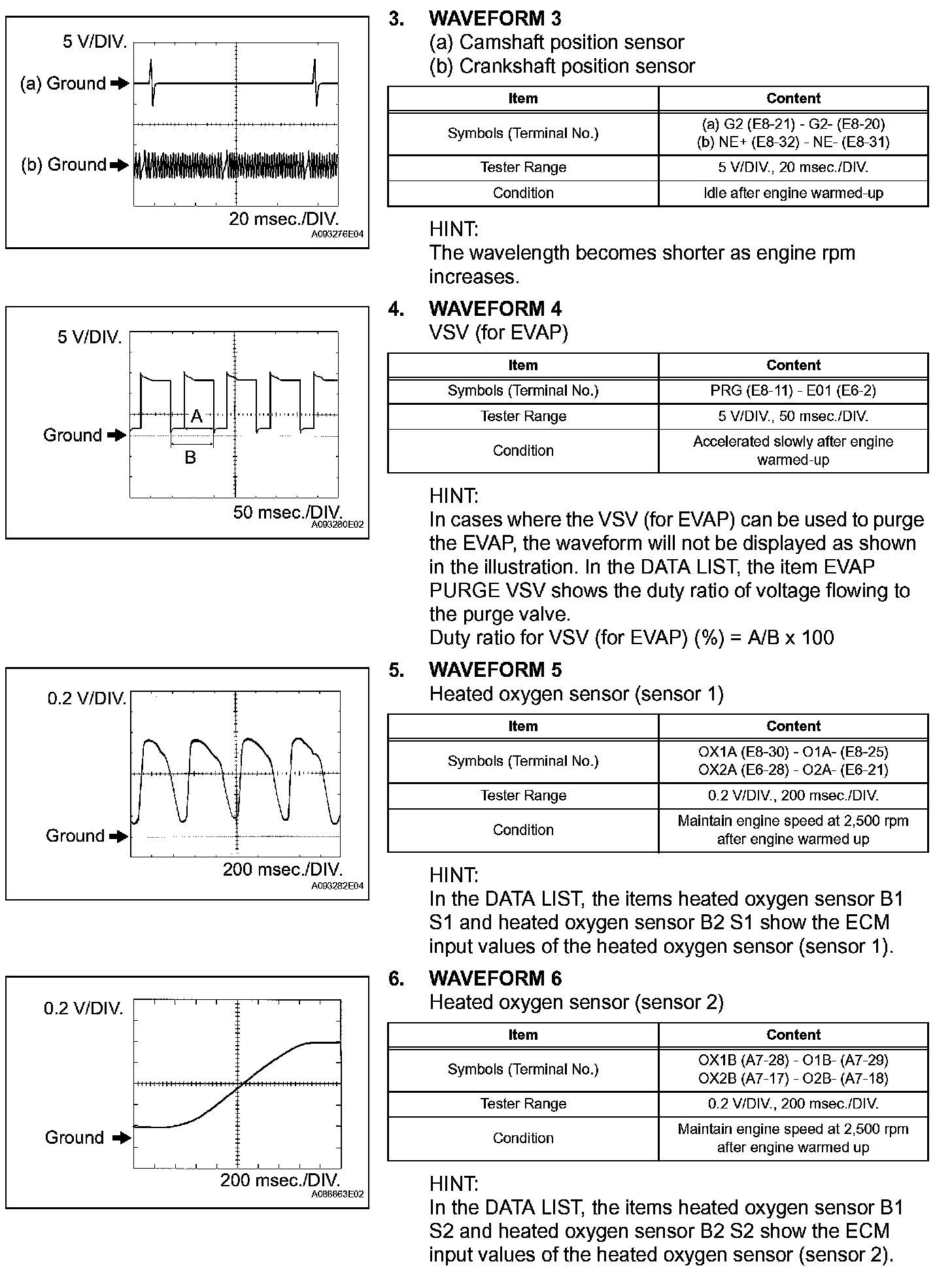

Oscilloscope Waveforms (Part 2):

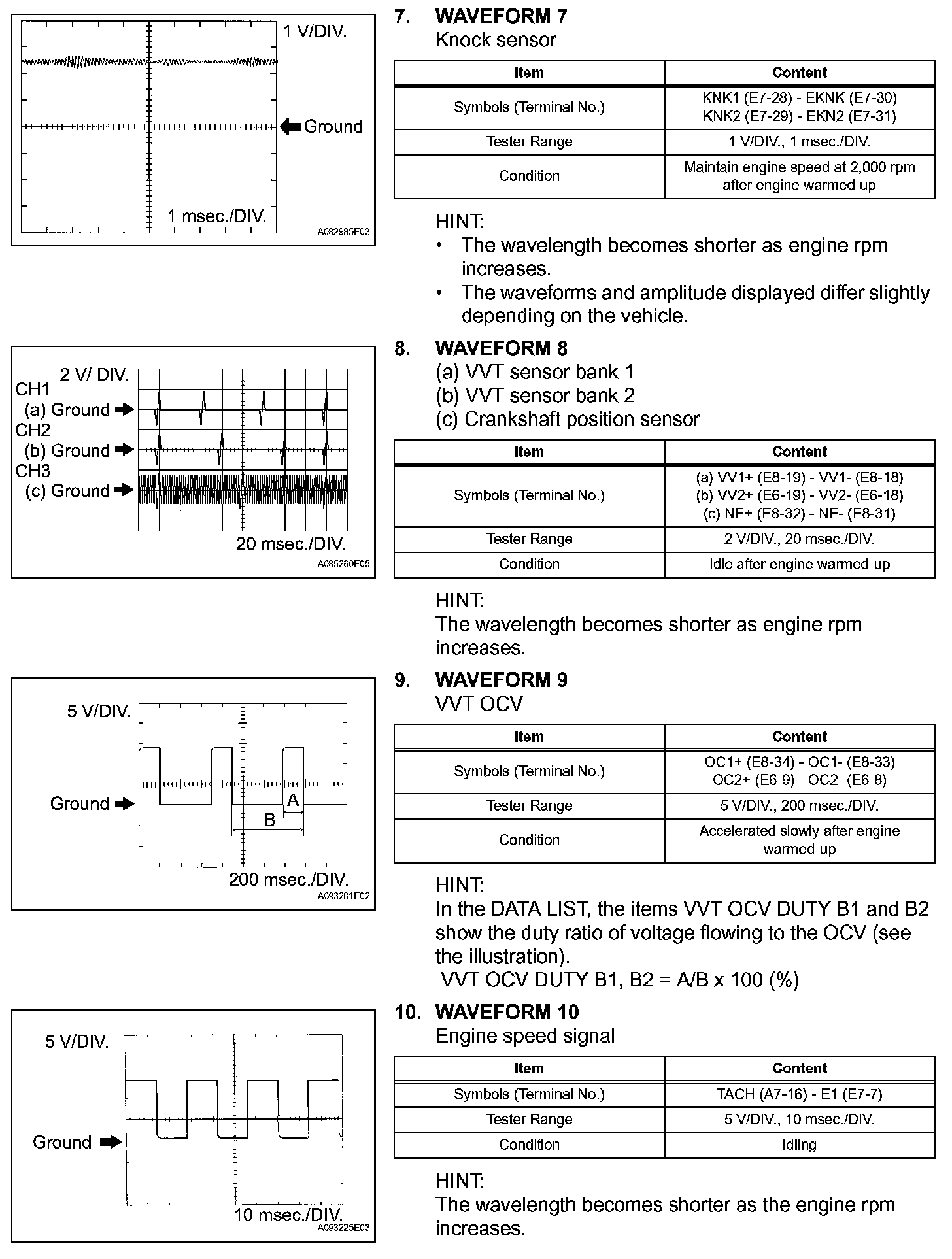

Oscilloscope Waveforms (Part 3):

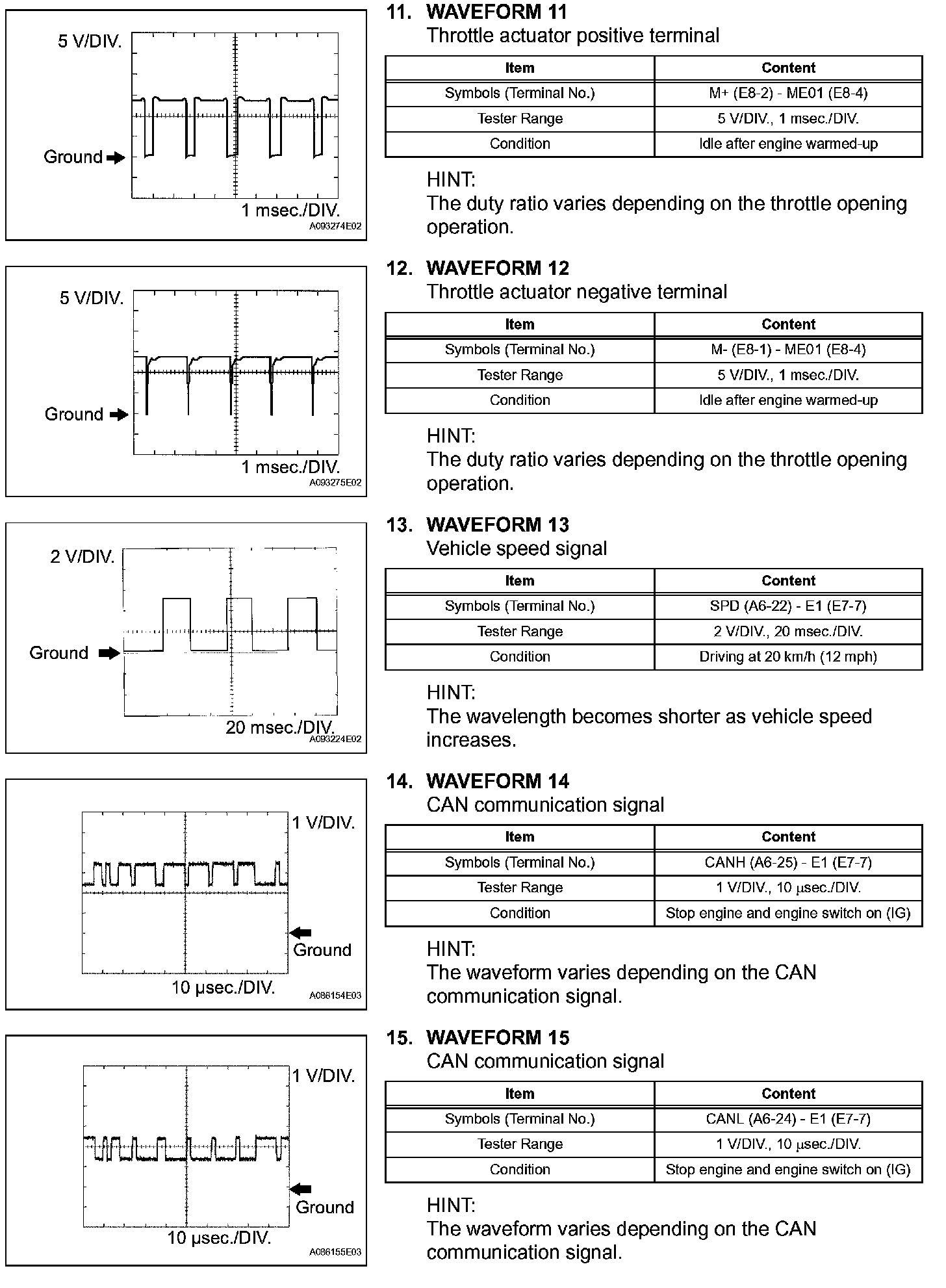

Oscilloscope Wave Forms (Part 4):
