Heated Oxygen Sensor (For Sensor 1)
ON-VEHICLE INSPECTIONINSPECT HEATED OXYGEN SENSOR

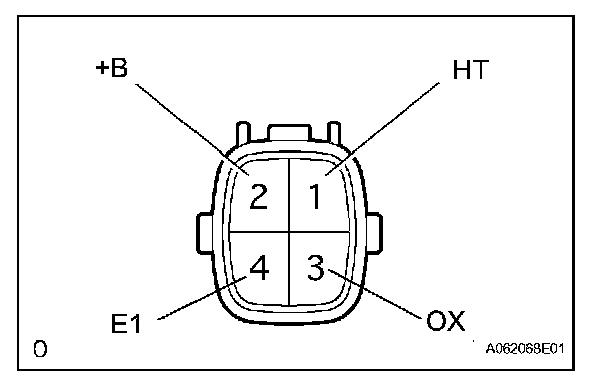

a. Disconnect the sensor connector.

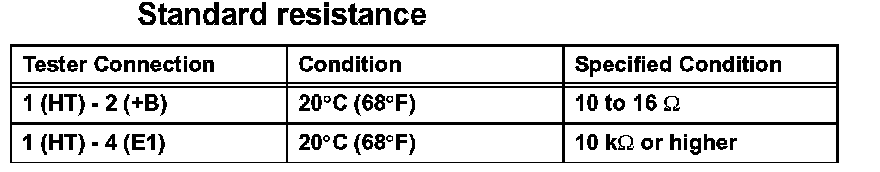

b. Measure the resistance of the sensor.
If the result is not as specified, replace the sensor.
INSPECT HEATED OXYGEN SENSOR
a. Disconnect the sensor connector.
b. Measure the resistance of the sensor.
If the result is not as specified, replace the sensor.
