Part 2
ENGINE ASSEMBLY INSTALLATION Continued39. INSTALL ENGINE WIRE
40. INSTALL ENGINE WITH TRANSMISSION ASSEMBLY
a. Set the engine lifter.
b. Operate the engine lifter, then install the engine to the vehicle.

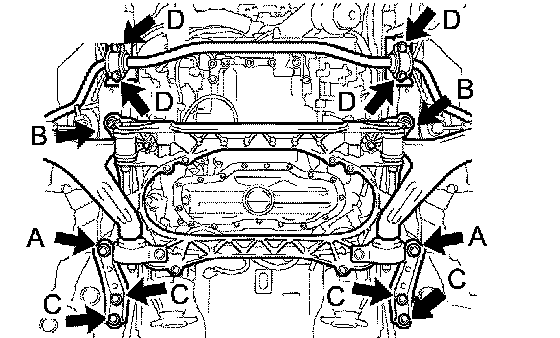

c. Install the 12 bolts.
Torque: 204 Nm (2,080 kgf-cm, 150 ft. lbs.) for bolt D

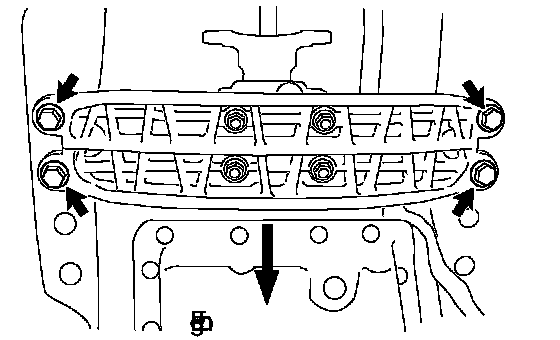

d. Install the engine rear mounting member with the 4 bolts.
Torque: 26 Nm (265 kgf-cm, 19 ft. lbs.)

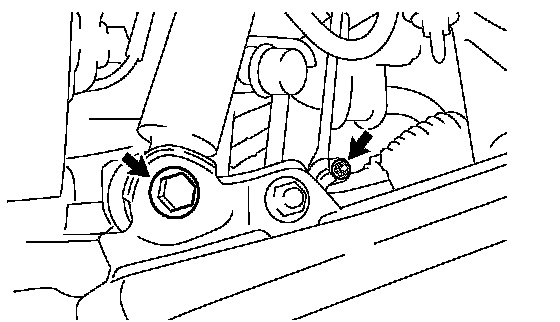

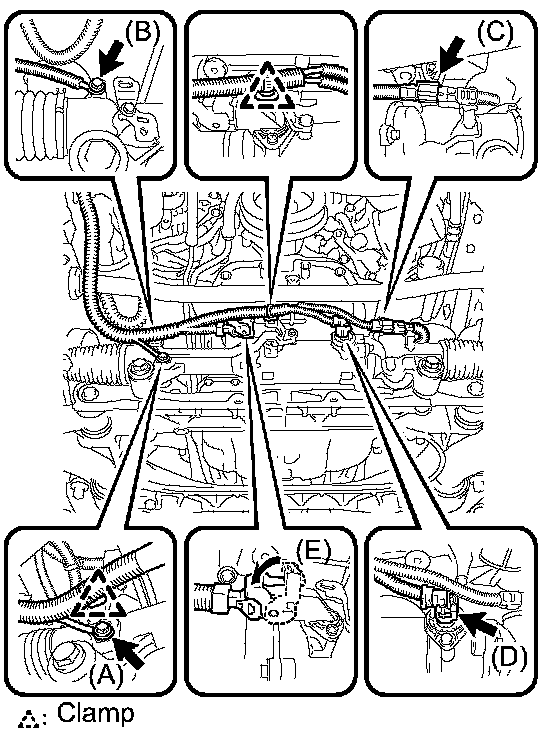

41. INSTALL POWER STEERING LINK WIRE HARNESS
a. Install the power steering ground wire to the power steering link with bolt (B).
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
b. Connect wire harness connector (E) to the power steering link and securely lock the connector.
c. Connect 2 wire harness connectors
c. and (D) to the power steering.
d. Install the 2 wire harness clamps to the power steering link.
e. Connect the ground wire to the bracket with bolt (A).
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

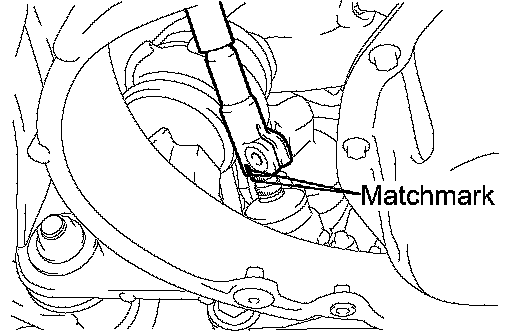

42. INSTALL NO.2 STEERING INTERMEDIATE SHAFT ASSEMBLY
a. Align the matchmarks on the intermediate shaft assembly No.2 and the power steering link.
b. Install bolt (A) and tighten the 2 bolts.
Torque: 35 Nm (360 kgf-cm, 26 ft. lbs.)

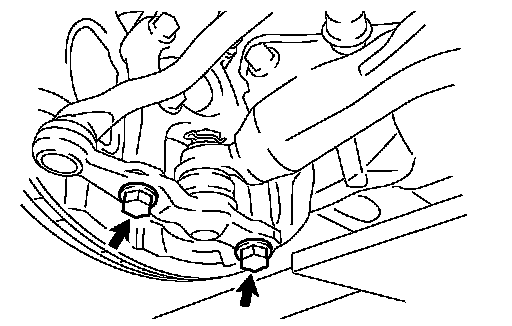

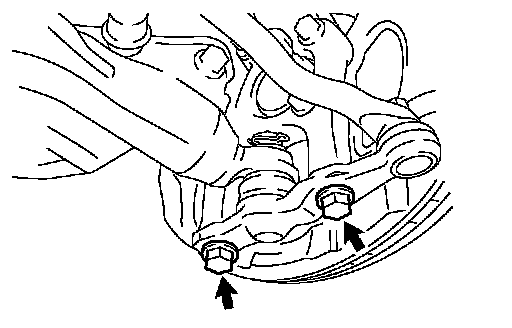

43. INSTALL LOWER BALL JOINT ASSEMBLY FRONT LH
a. Install the steering knuckle to the lower ball joint with the 2 bolts.
Torque: 120 Nm (1220 kgf-cm, 89 ft. lbs.)
44. INSTALL LOWER BALL JOINT ASSEMBLY FRONT RH
a. Install the steering knuckle to the lower ball joint with the 2 bolts.
Torque: 120 Nm (1220 kgf-cm, 89 ft. lbs.)

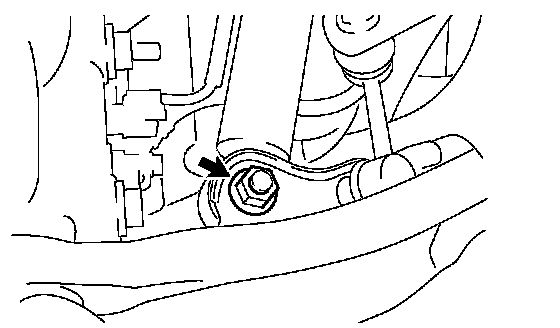

45. INSTALL SHOCK ABSORBER ASSEMBLY FRONT RH
a. Fully tighten the bolt on the lower side of the front shock absorber while holding the nut.
Torque: 157 Nm (1,600 kgf-cm, 116 ft. lbs.)

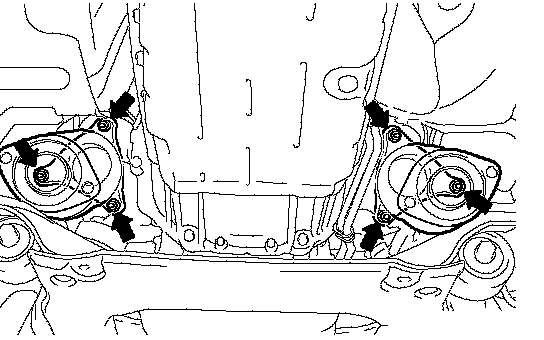

46. INSTALL SHOCK ABSORBER ASSEMBLY FRONT LH
a. Fully tighten the bolt on the lower side of the front shock absorber while holding the nut.
Torque: 157 Nm (1,600 kgf-cm, 116 ft. lbs.)
47. INSTALL HEIGHT CONTROL SENSOR LINK
a. Connect the height control sensor link with the nut.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
48. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
49. INSPECT SHIFT LEVER POSITION

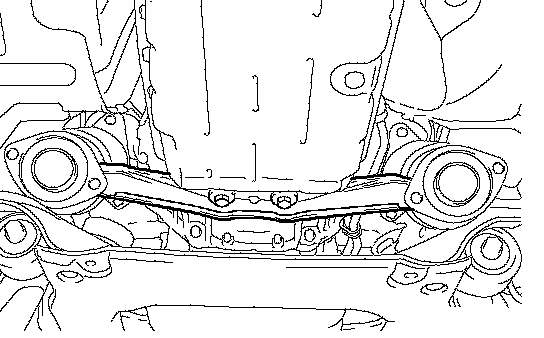

50. INSTALL NO.1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
a. Install the support bracket with the 2 bolts.
Torque: 43 Nm (438 kgf-cm, 32 ft. lbs.)
51. INSTALL FRONT TWC
a. Install 2 new gaskets to the 2 TWCs.
NOTICE: Do not reuse gasket.
b. Install the 2 TWCs to the exhaust manifold with the 6 nuts.
Torque: 62 Nm (632 kgf-cm, 46 ft. lbs.)
52. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
53. INSTALL FRONT NO.1 FLOOR HEAT INSULATOR
54. INSTALL FRONT NO.6 FLOOR HEAT INSULATOR
55. INSTALL FRONT NO.5 FLOOR HEAT INSULATOR
56. INSTALL FRONT EXHAUST PIPE ASSEMBLY

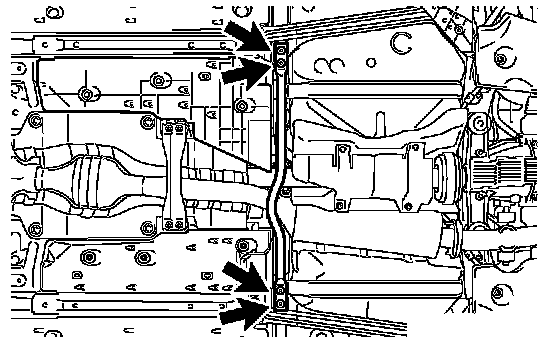

57. INSTALL FRONT FLOOR BRACE CENTER
a. Install the floor brace with the 4 bolts.
Torque: 7.4 Nm (75 kgf-cm, 65 inch lbs.)
b. Install the panel brace with the 4 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft. lbs.)

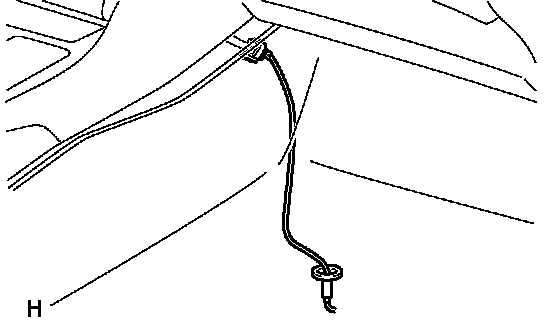

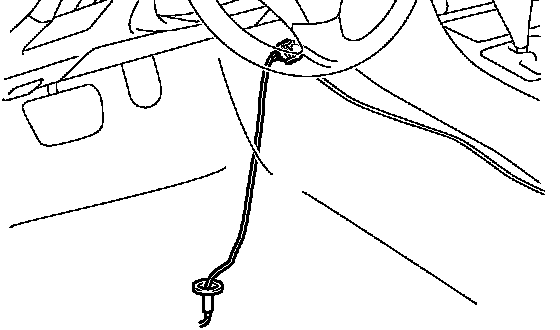

58. CONNECT HEATED OXYGEN SENSOR CONNECTOR
a. Pass the sensor (bank 1 sensor 2) connector through the cabin and install the grommet.
b. Connect the sensor connector.
c. Pass the sensor connector through the cabin and install the grommet.
d. Connect the sensor (bank 2 sensor 2) connector.
59. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
60. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
61. INSTALL CONSOLE UPPER PANEL ASSEMBLY
62. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
63. INSTALL COMPRESSOR WITH PULLEY ASSEMBLY
a. Install the compressor with the 3 bolts, nut and bracket.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.) for bolt 30 Nm (306 kgf-cm, 22 ft. lbs.) for nut
64. INSTALL UNION TO CHECK VALVE HOSE
a. Connect the union to check valve hose with the clamp.

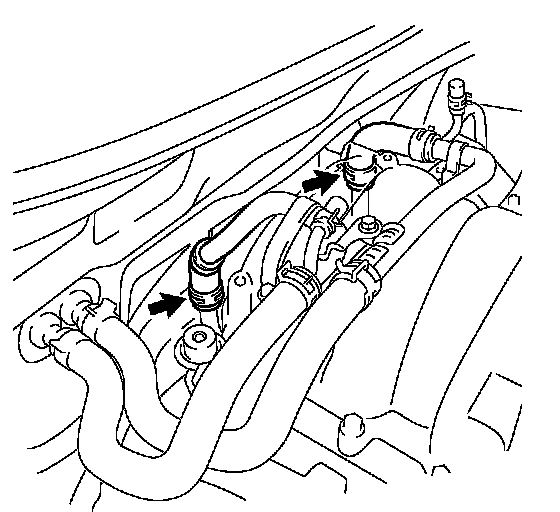

65. INSTALL HEATER WATER OUTLET HOSE A (FROM HEATER UNIT)
a. Connect the heater water outlet hose A with the clamp.
66. INSTALL HEATER WATER INLET HOSE A
a. Connect the heater water inlet hose A with the clamp.
67. CONNECT ENGINE WIRE
a. Connect the ground wire and install it with the bolt.
Torque: 10 Nm (102 kgf-cm, 89 ft. lbs.)
b. Connect the wire to the engine room No.1 junction block. Then, install it with the nut.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
c. Install the engine room No.1 relay block cover.
d. Connect the positive (+) battery cable and install it with the nut.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
e. Connect the ECM connectors.
f. Connect the engine wire to the connector holder.
68. INSTALL FAN AND GENERATOR V-BELT
69. INSTALL NO.2 FUEL PIPE SUB-ASSEMBLY

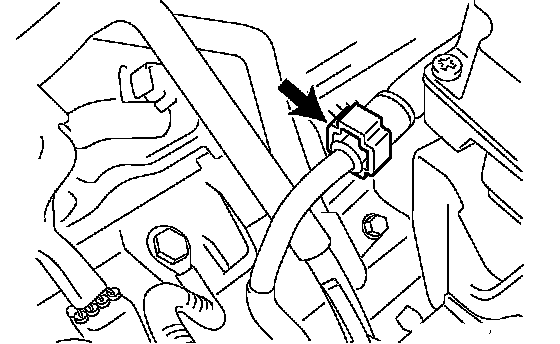

a. Connect the connector of the fuel tube connected to the fuel main tube, then pinch the connector.
70. INSTALL RADIATOR ASSEMBLY
a. Installation procedure.
71. INSTALL NO.1 OIL COOLER OUTLET TUBE
72. INSTALL NO.1 OIL COOLER INLET TUBE
73. INSTALL RADIATOR HOSE OUTLET
74. INSTALL RADIATOR HOSE INLET
75. INSTALL AIR CLEANER ASSEMBLY
a. Install the air cleaner assembly with the 3 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
b. Connect the MAF meter connector and clamp to the air cleaner.
76. INSTALL INTAKE AIR CONNECTOR PIPE
77. ADD AUTOMATIC TRANSMISSION FLUID
78. ADD ENGINE COOLANT
79. ADD ENGINE OIL
80. INSTALL ENGINE UNDER COVER REAR LH
81. INSTALL ENGINE UNDER COVER REAR RH
82. INSTALL NO.2 ENGINE UNDER COVER
a. Install the undercover with the clips.
83. INSTALL ENGINE UNDER COVER
a. Install the under cover with the 10 screws and 3 clips.
84. INSTALL FRONT WHEELS

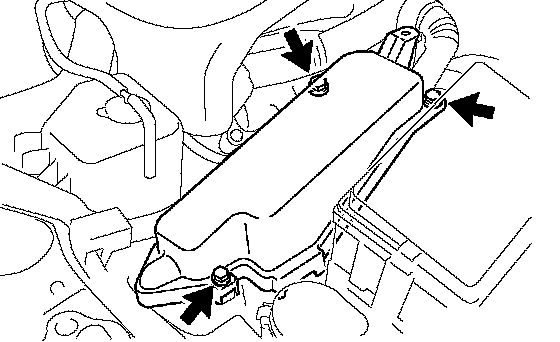

85. INSTALL ECM COVER
a. Install the ECM cover with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)
86. INSTALL V-BANK COVER
a. Install the V-bank cover with the 2 nuts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
NOTICE: Make sure that the wire harness does not get caught between parts.
87. INSTALL NO.1 AIR CLEANER INLET
a. Install the air cleaner inlet and bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
88. INSTALL ENGINE ROOM SIDE COVER LH
89. INSTALL ENGINE ROOM SIDE COVER RH
90. INSTALL COOL AIR INTAKE DUCT SEAL
91. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
92. INSTALL FRONT WHEELS
93. CHECK FOR FUEL LEAKS
94. PERFORM INITIALIZATION
a. Perform initialization.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal. Repair Instruction - Initialization
95. CHECK AND ADJUST FRONT WHEEL ALIGNMENT
96. CHECK IGNITION TIMING
97. CHECK ENGINE IDLE SPEED
98. CHECK CO/HC
99. CHECK FOR ENGINE OIL LEAKS
100. CHECK FOR ENGINE COOLANT LEAKS
a. Check for engine coolant leaks.
101. CHECK ENGINE OIL LEVEL
102. CHECK AUTOMATIC TRANSMISSION FLUID LEVEL
