Home >> Lexus >> 2006 >> GS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations >> Vehicle Stability Control System

Vehicle Stability Control System

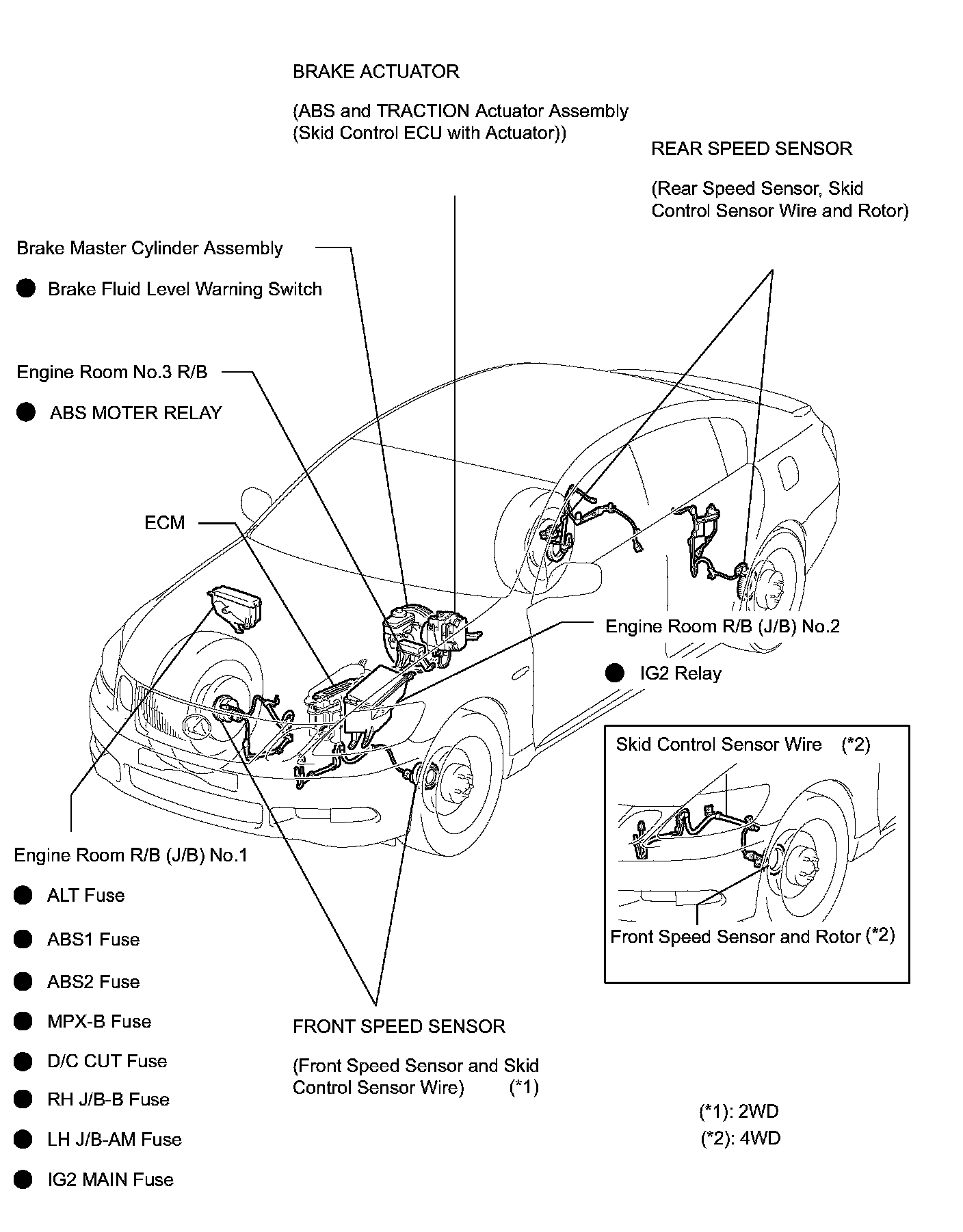

Parts Location:

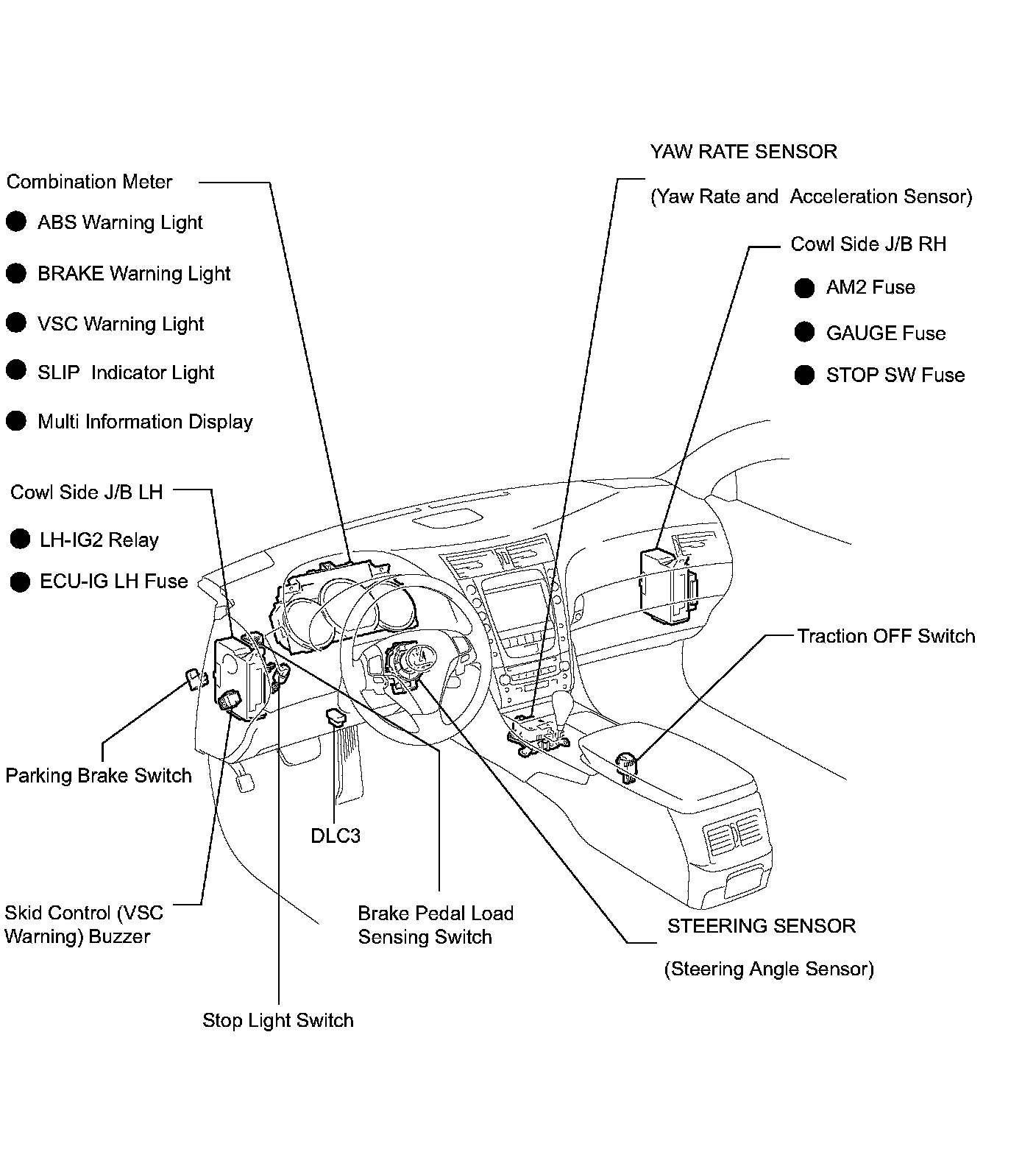

Parts Location:
