P2121

DTC P2121 Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance

DESCRIPTION

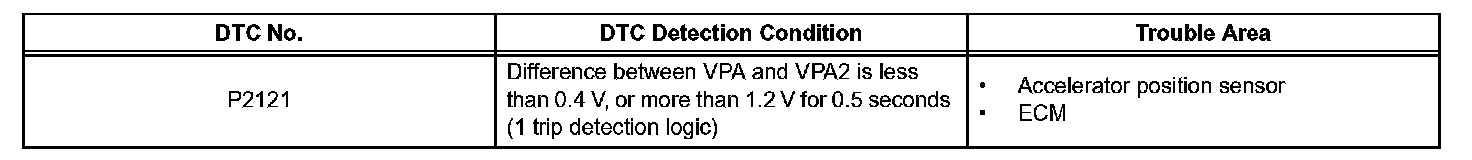

DTC Detection Condition:

HINT:
- The Electronic Throttle Control System (ETCS) does not use a throttle cable.
- The accelerator pedal position sensor is a non-contact type.
- The ETCS does not use a throttle cable.

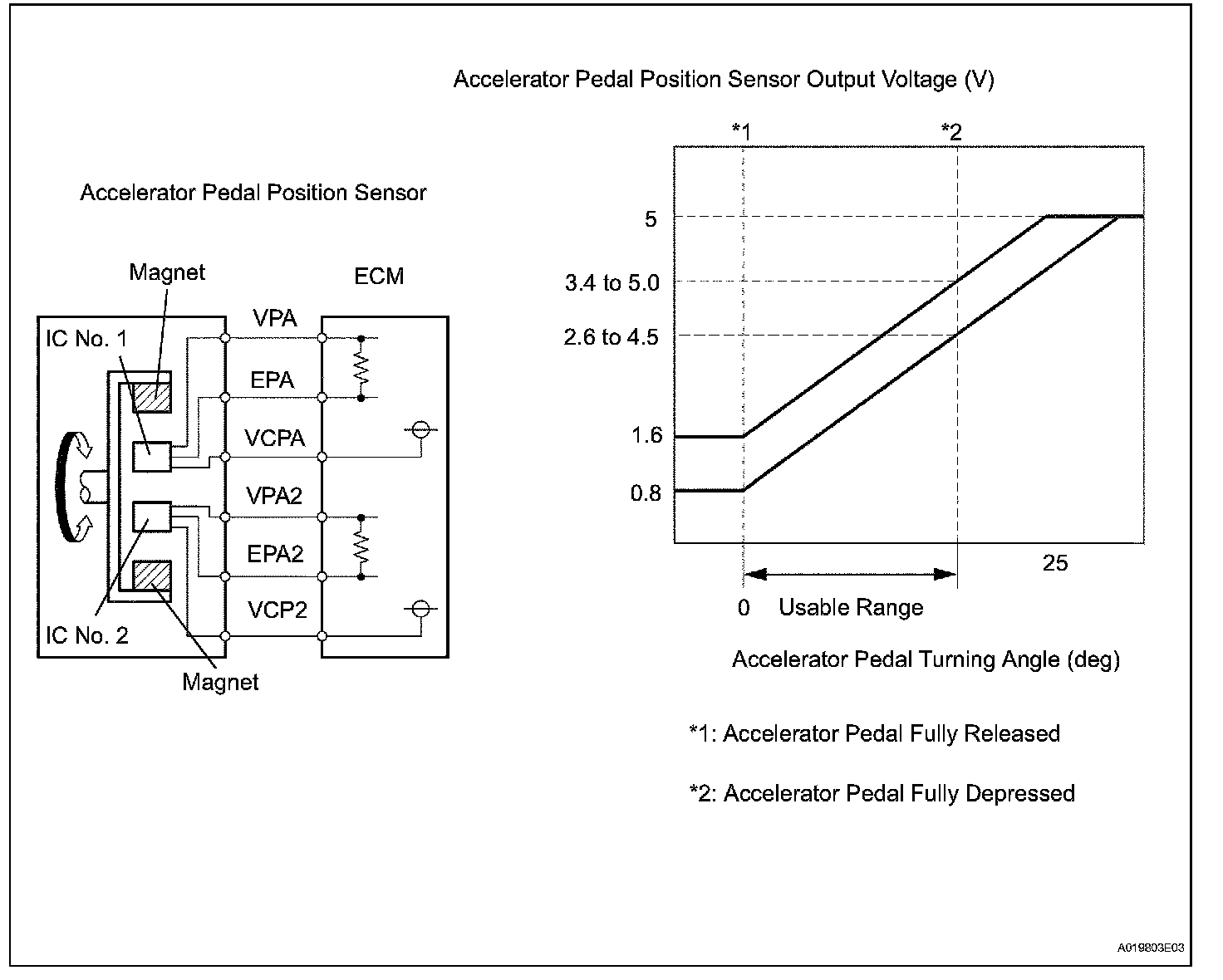

The accelerator pedal position sensor is mounted on the accelerator pedal bracket and has 2 sensor circuits: VPA (main) and VPA2 (sub). This sensor uses Hall-effect elements to yield accurate signals, even in extreme driving conditions, such as at high speeds as well as very low speeds. The voltage, which is applied to terminals VPA and VPA2 of the ECM, varies between 0 V and 5 V in proportion to the operating angle of the accelerator pedal (throttle valve). A signal from VPA indicates the actual accelerator pedal opening angle (throttle valve opening angle) and is used for engine control. A signal from VPA2 conveys the status of the VPA circuit and is used to check the accelerator pedal position sensor itself.

The ECM monitors the actual accelerator pedal opening angle (throttle valve opening angle) through the signals from VPA and VPA2, and controls the throttle actuator according to these signals.

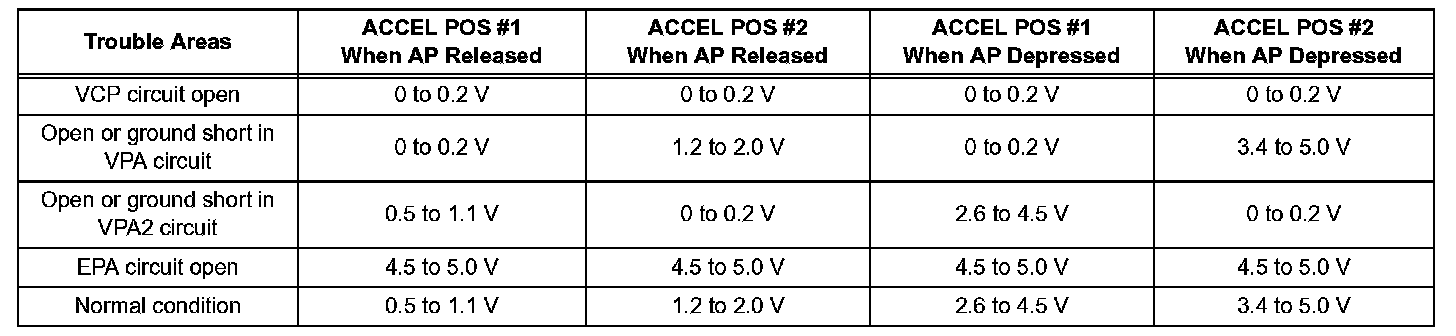

HINT: When any of these DTCs are set, check the accelerator pedal position sensor voltage by entering the following menus on the intelligent tester: DIAGNOSIS / ENHANCED OBD II/ DATA LIST / PRIMARY / ACCEL POS #1 and ACCEL POS #2.

HINT:
- Accelerator pedal positions are expressed as voltages.
- AP stands for Accelerator Pedal.

MONITOR DESCRIPTION

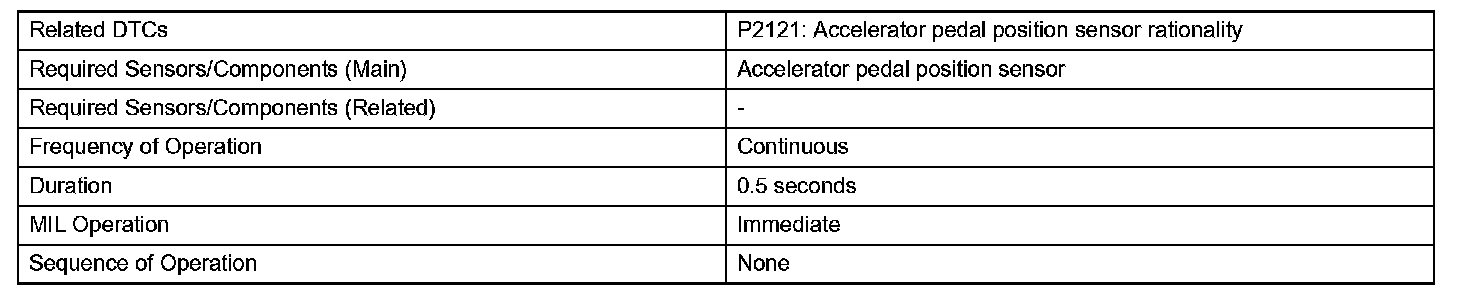

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

The accelerator pedal position sensor is mounted on the accelerator pedal bracket. The accelerator pedal position sensor has 2 sensor elements, VPA and VPA2, each with their own signal outputs. VPA is used to detect the actual accelerator pedal angle (used for engine control) and VPA2 is used to detect malfunctions in VPA. When the difference between the output voltage of VPA and VPA2 deviates from the standard, the ECM determines that the accelerator pedal position sensor is malfunctioning. The ECM turns on the MIL and sets the DTC.

FAIL-SAFE

The accelerator pedal position sensor has 2 (main and sub) sensor circuits. If a malfunction occurs in either of the sensor circuits, the ECM detects the abnormal signal voltage difference between the 2 sensor circuits and changes to limp mode. In limp mode, the functioning circuit is used to calculate the accelerator pedal opening angle to allow the vehicle to continue driving. If both circuits malfunction, the ECM regards the opening angle of the accelerator pedal as being fully closed. In this case, the throttle valve remains closed as if the engine is idling.

If a "pass" condition is detected and the engine switch is turned off, the fail-safe operation stops and the system returns to normal.

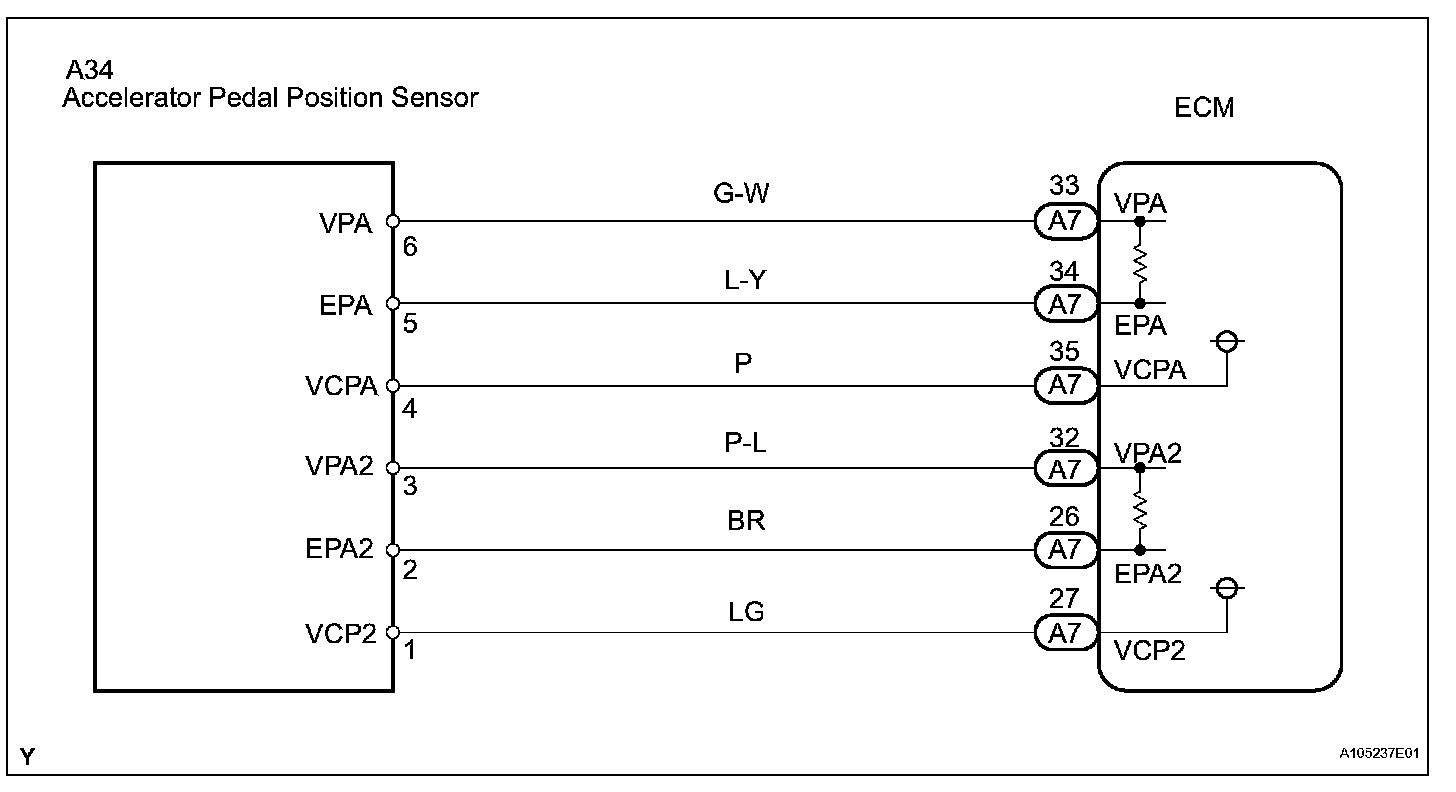

Wiring Diagram:

Step 1:

Step 1(Continued)-4:

Step 4(Continued):

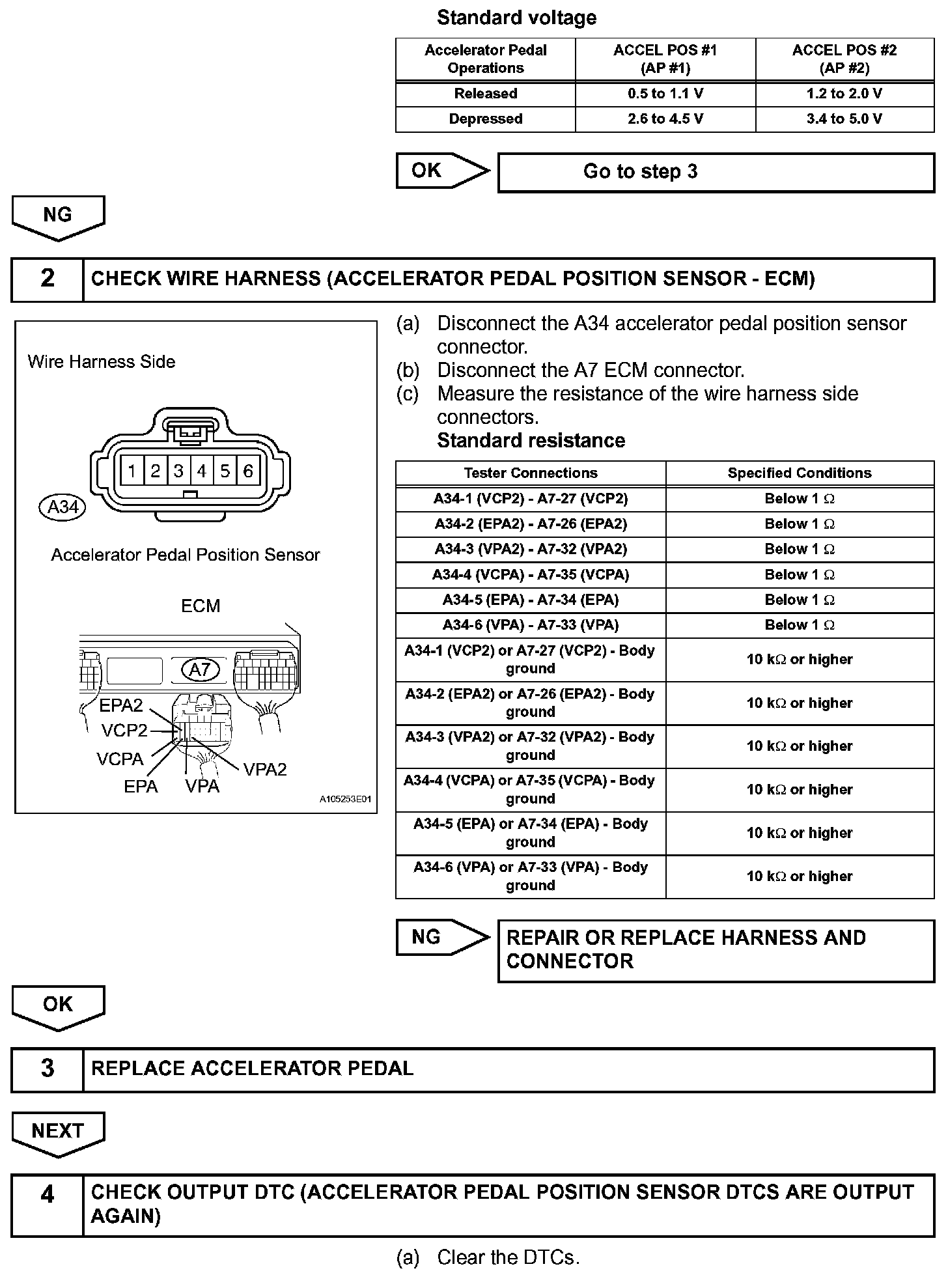

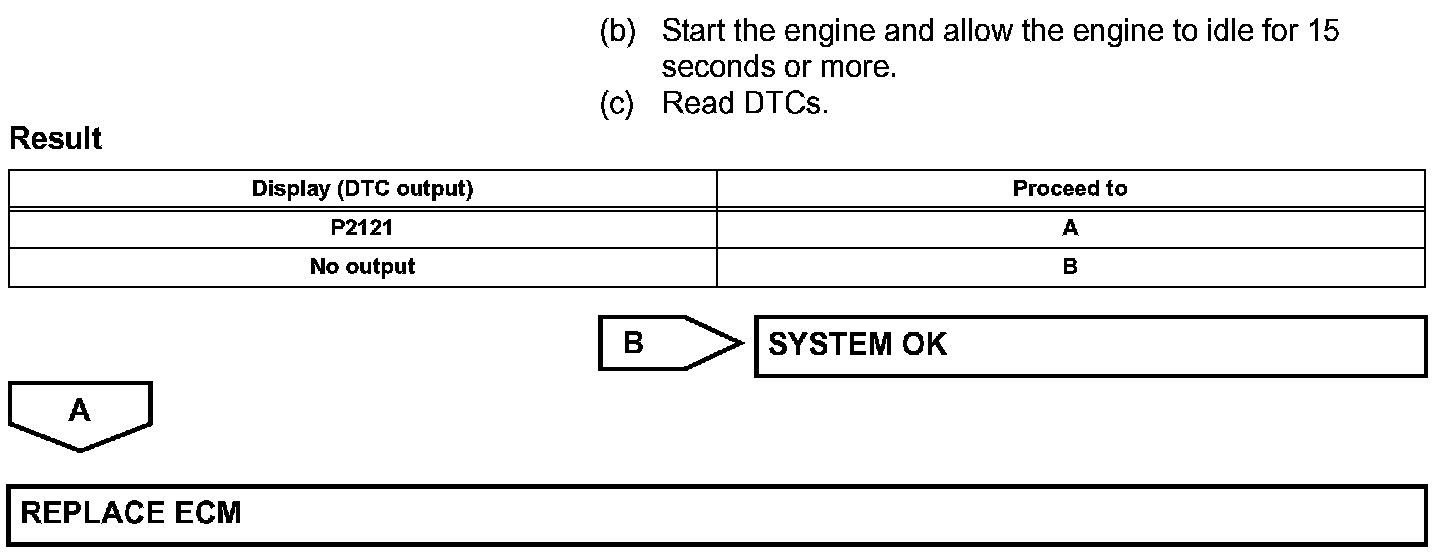

INSPECTION PROCEDURE

HINT:
- Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- This DTC relates to the accelerator pedal position sensor.
