SFI System

DIAGNOSTIC TROUBLE CODE CHART

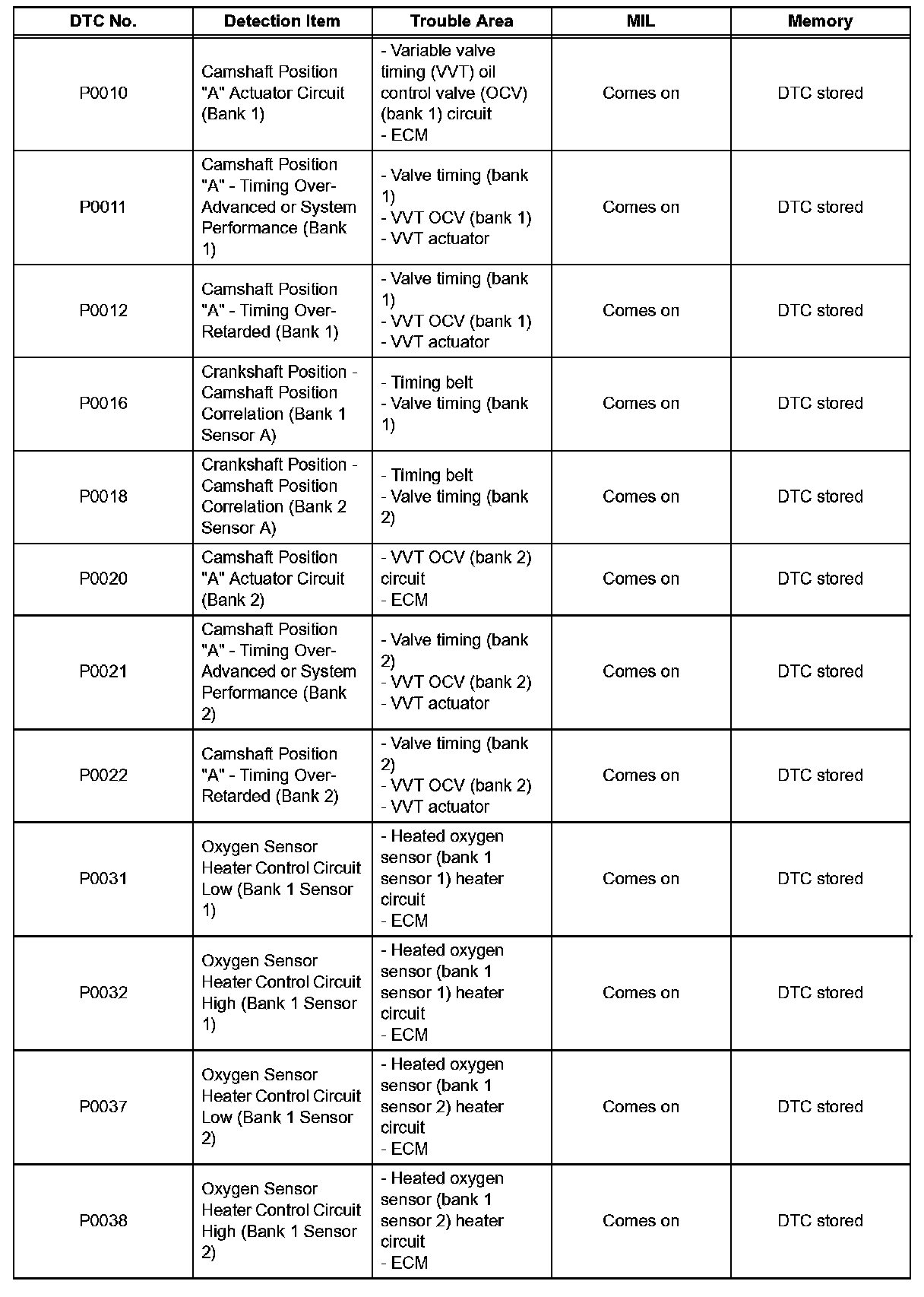

P0010-P0038:

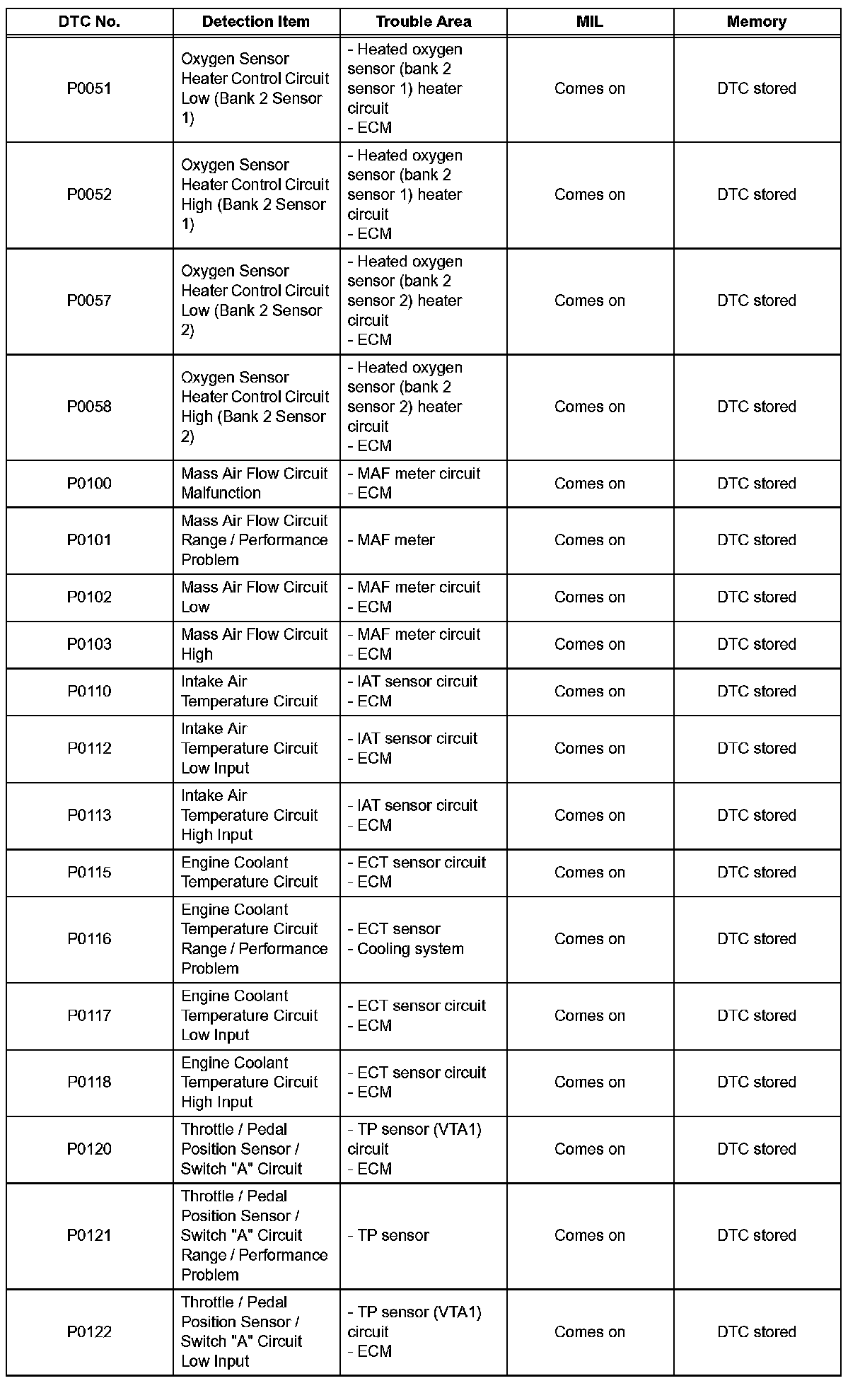

P0051-P0122:

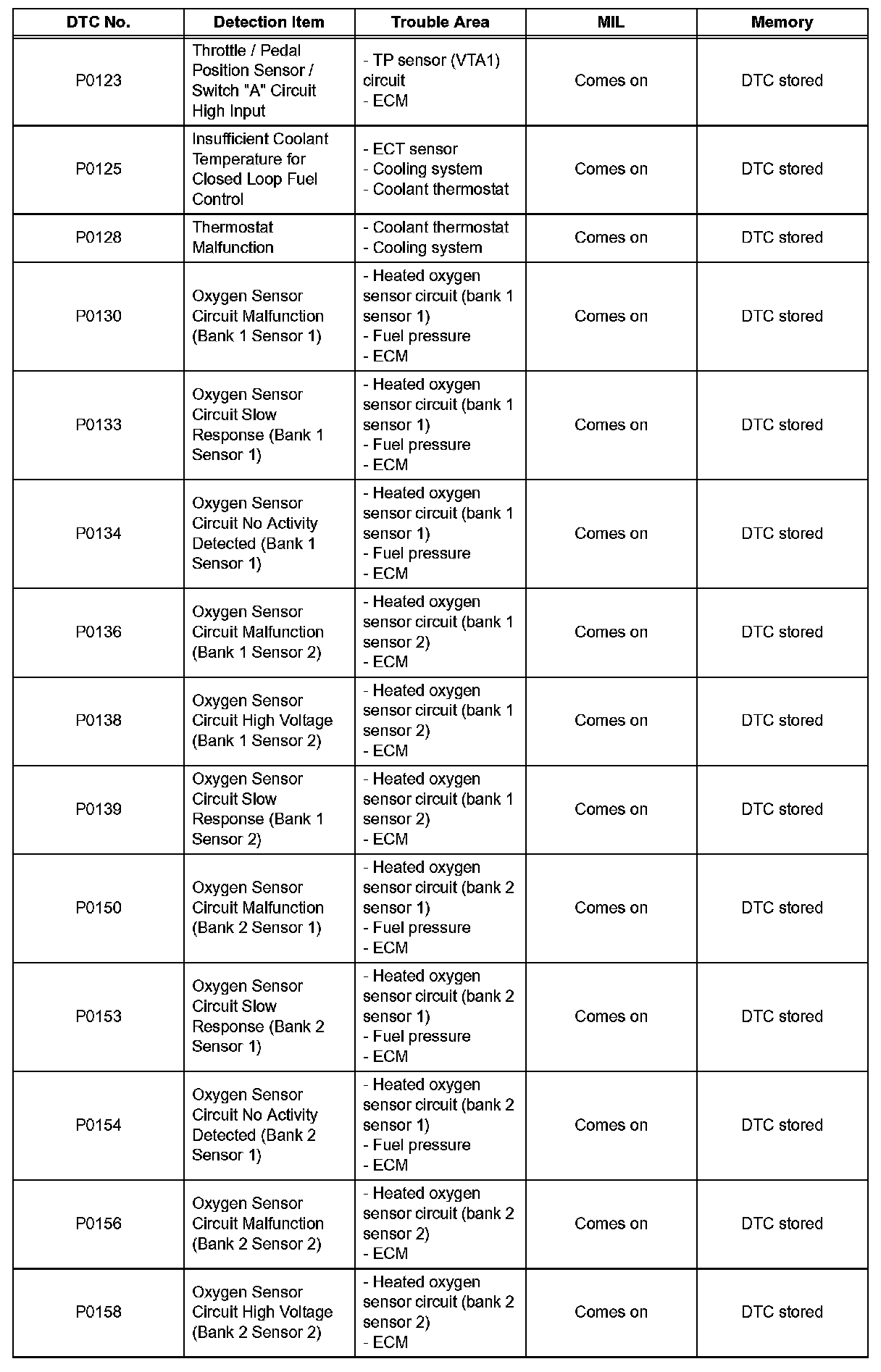

P0123-P0158:

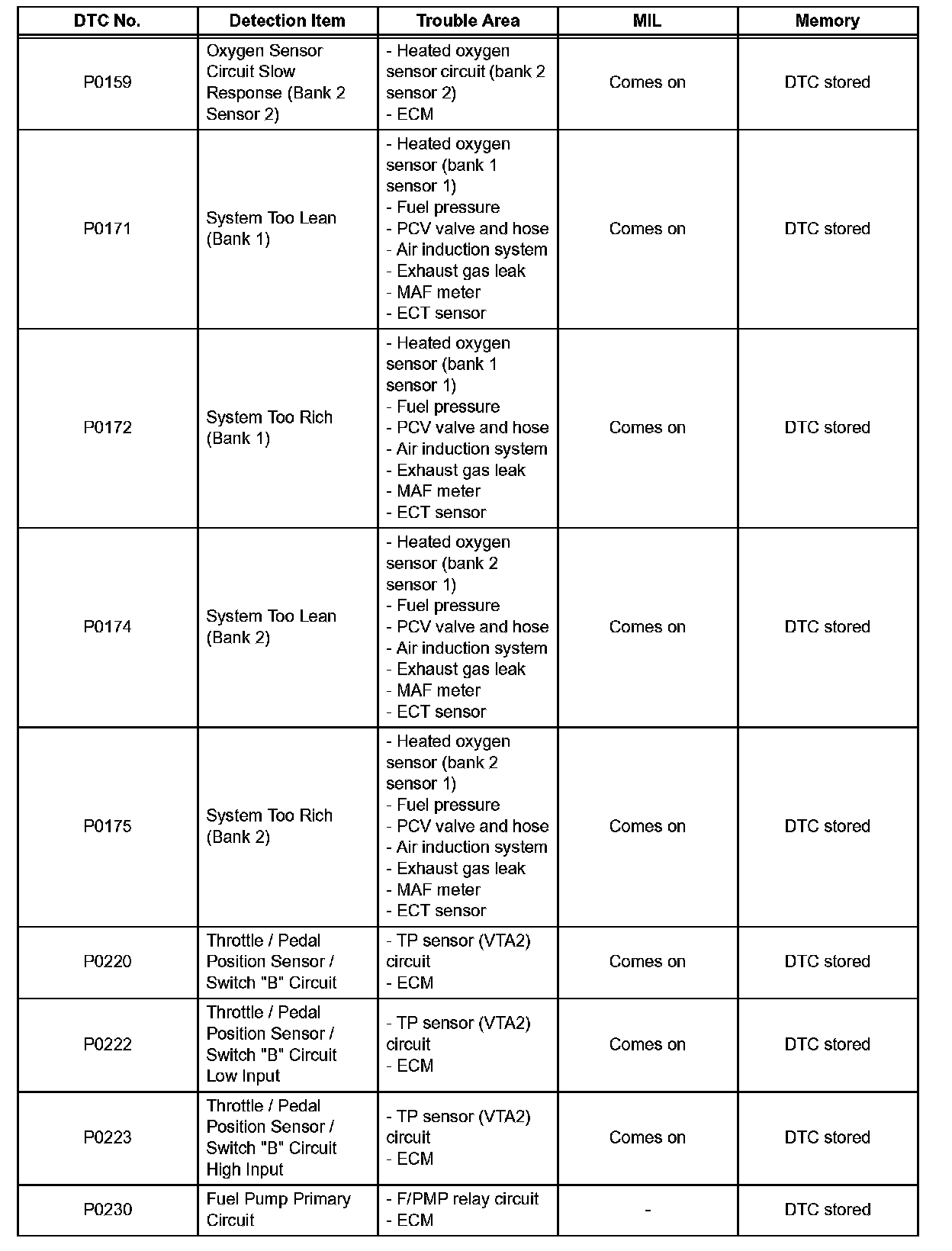

P0159-P0230:

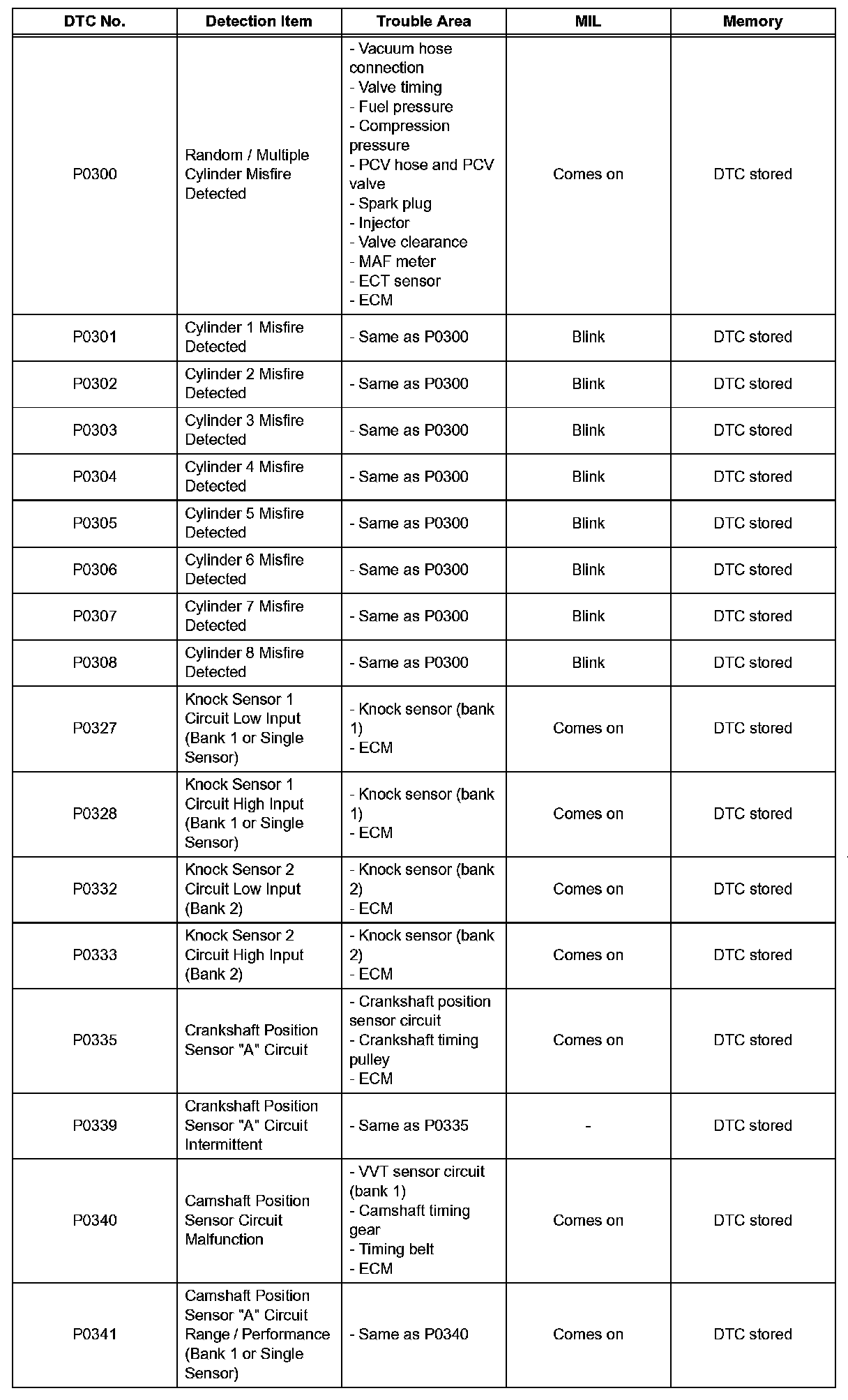

P0300-P0341:

P0345-P043E:

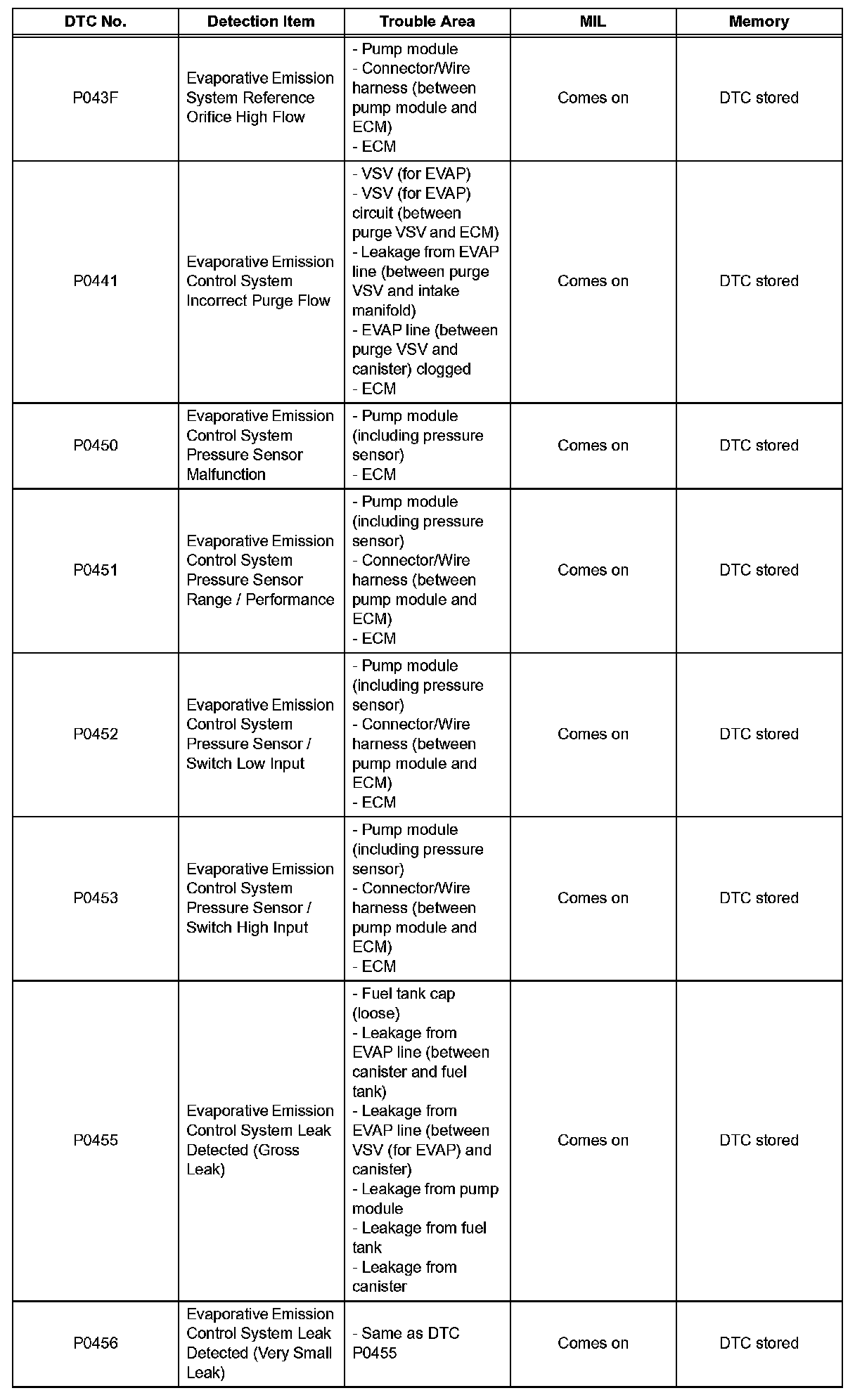

P043F-P0456:

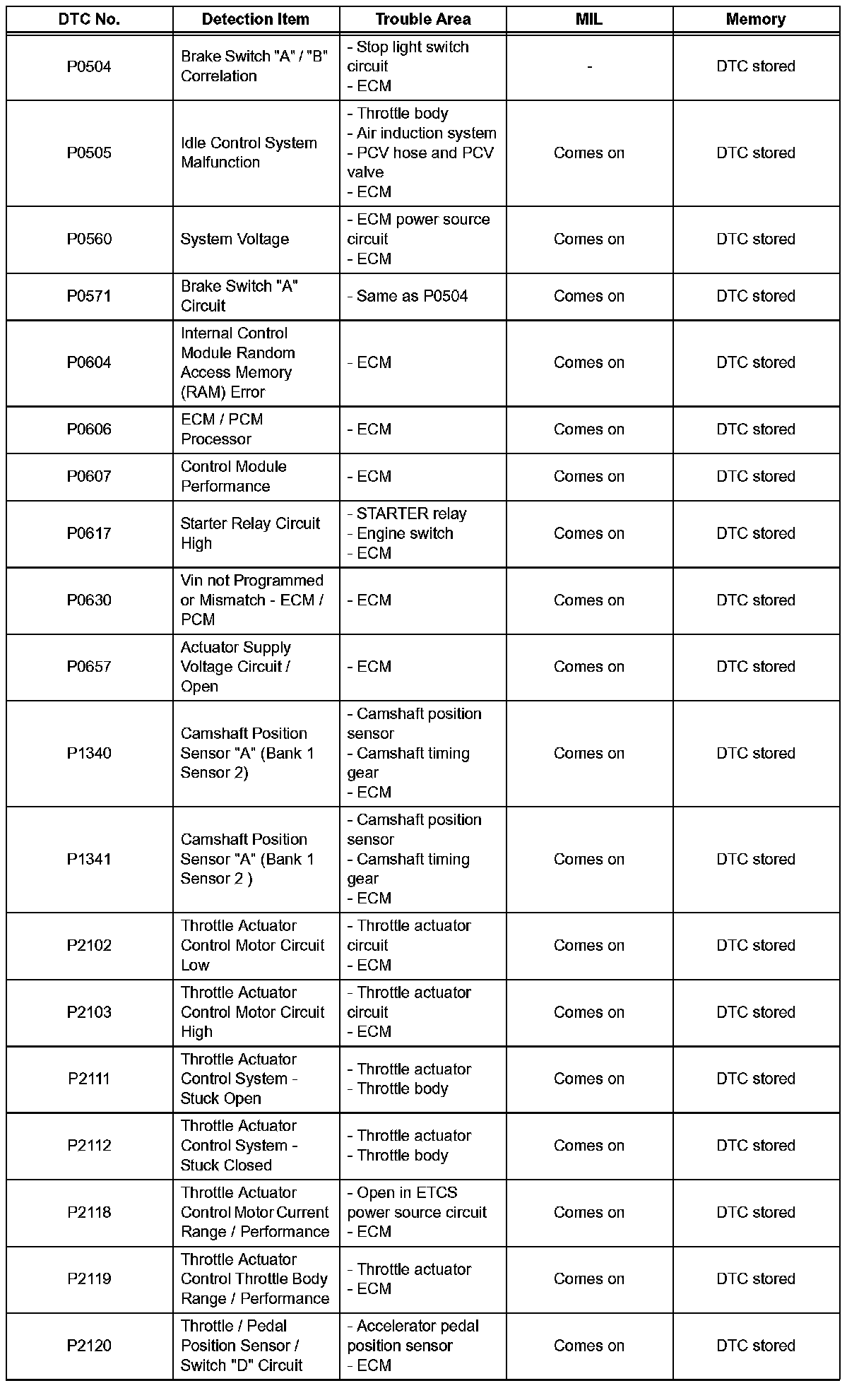

P0504-P2120:

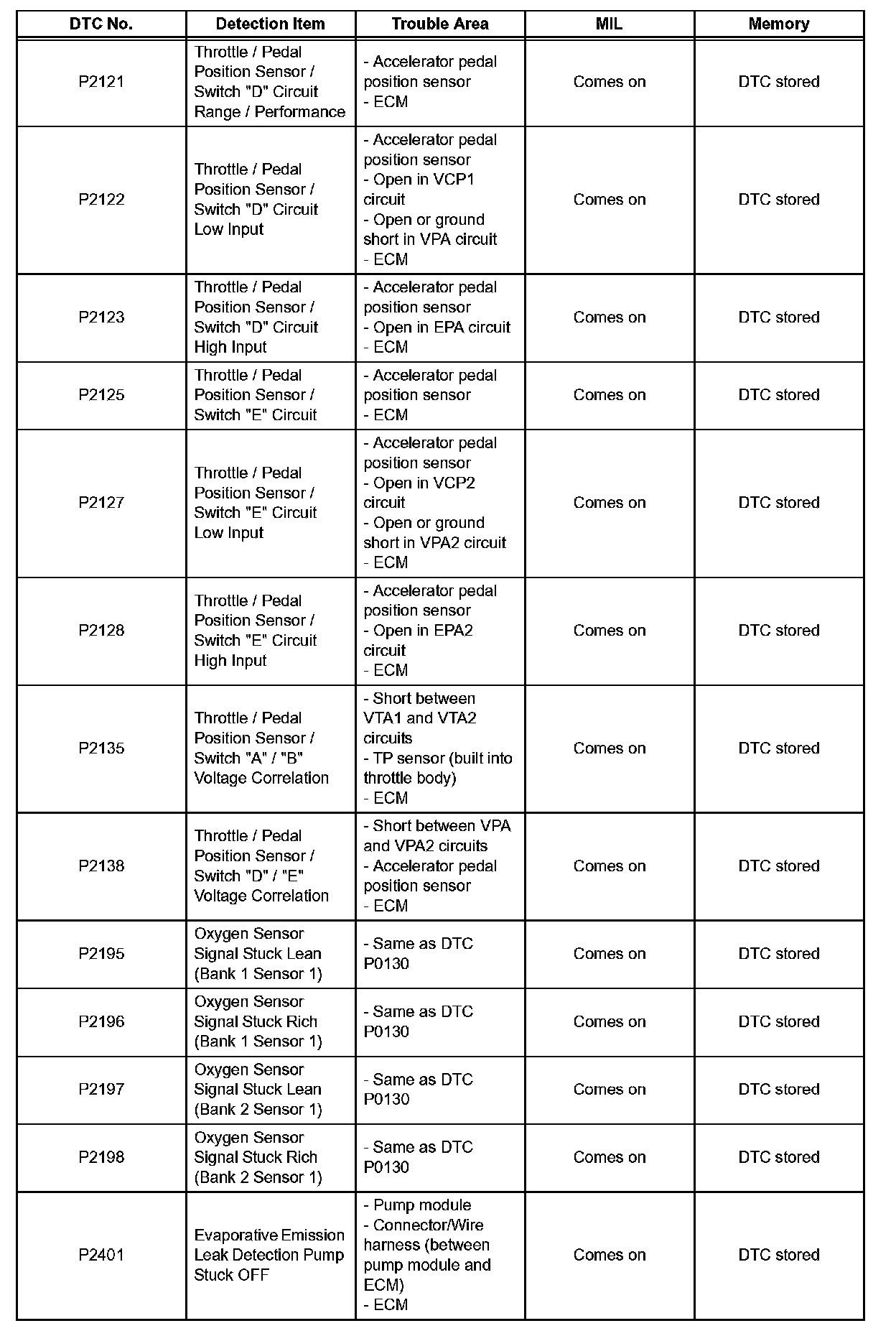

P2121-P2401:

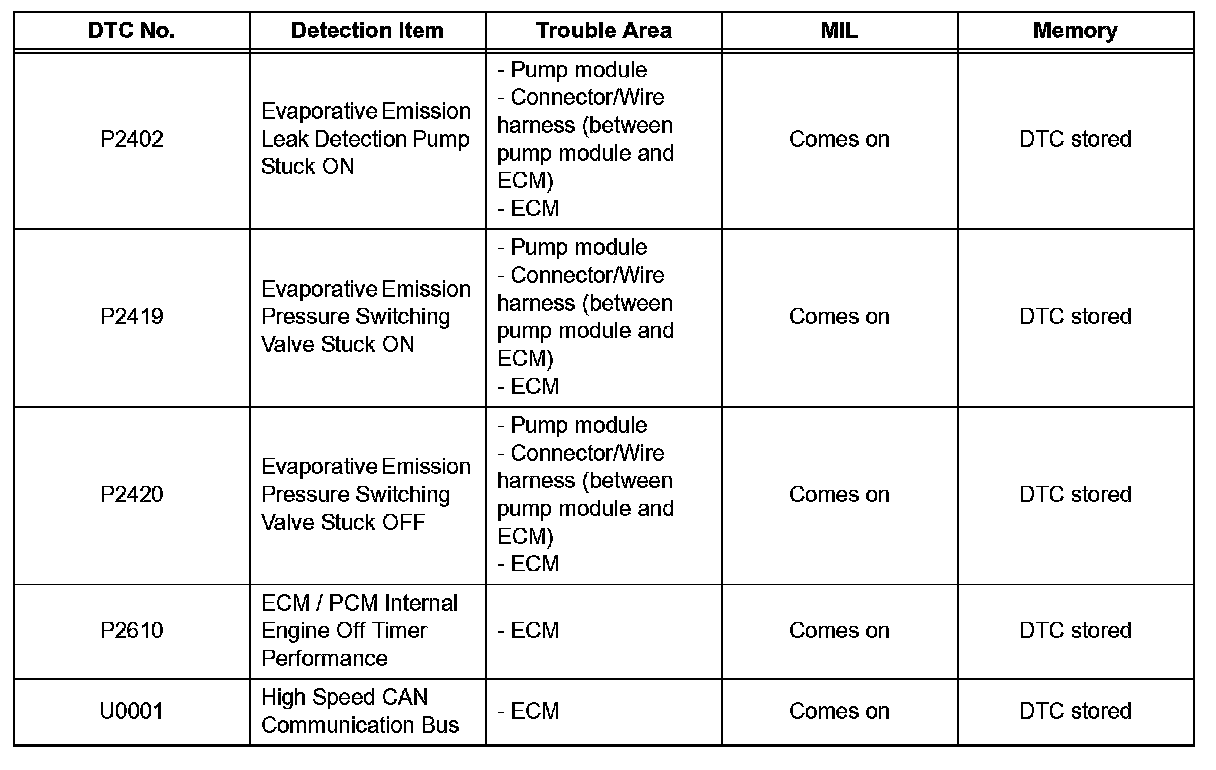

P2402-U0001:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a DTC is displayed, check the trouble area for the DTC listed in the table. For details of each DTC.
