B2278

DTC B2278 Engine Switch Circuit Malfunction

DESCRIPTION

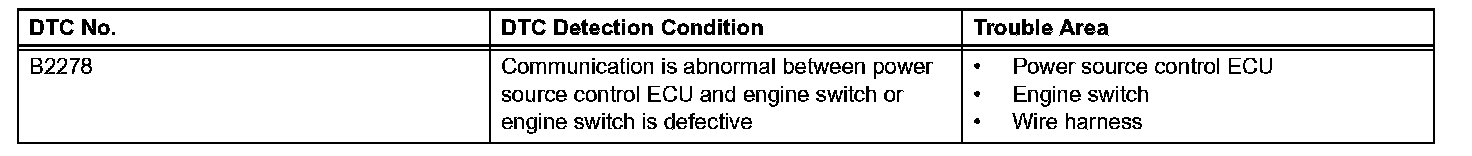

DTC Detection Condition:

This DTC is output when 1)A malfunction is detected between the power source control ECU and the engine switch; or 2)either of the switches inside the engine switch is malfunctioning.

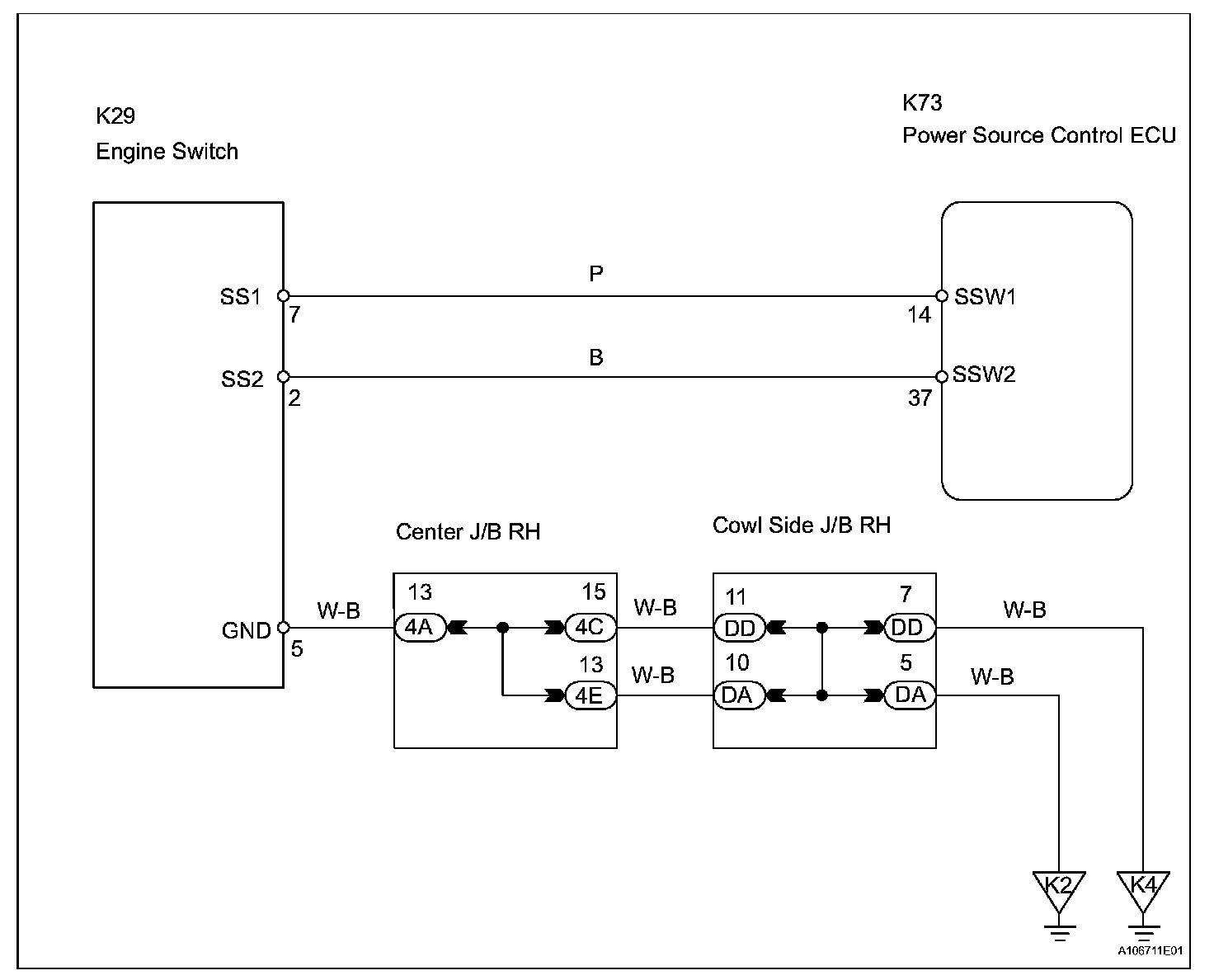

Wiring Diagram:

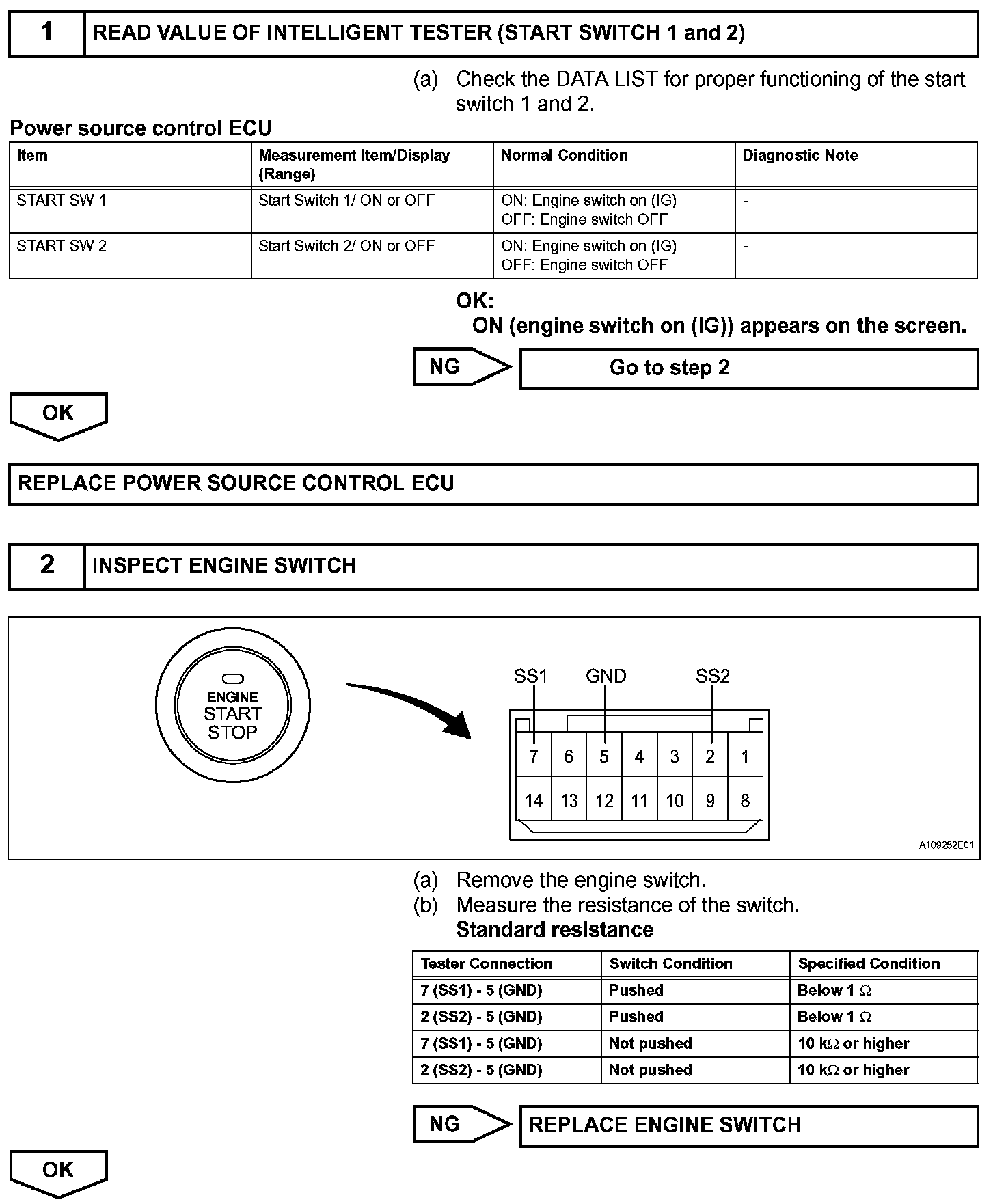

Step 1-2:

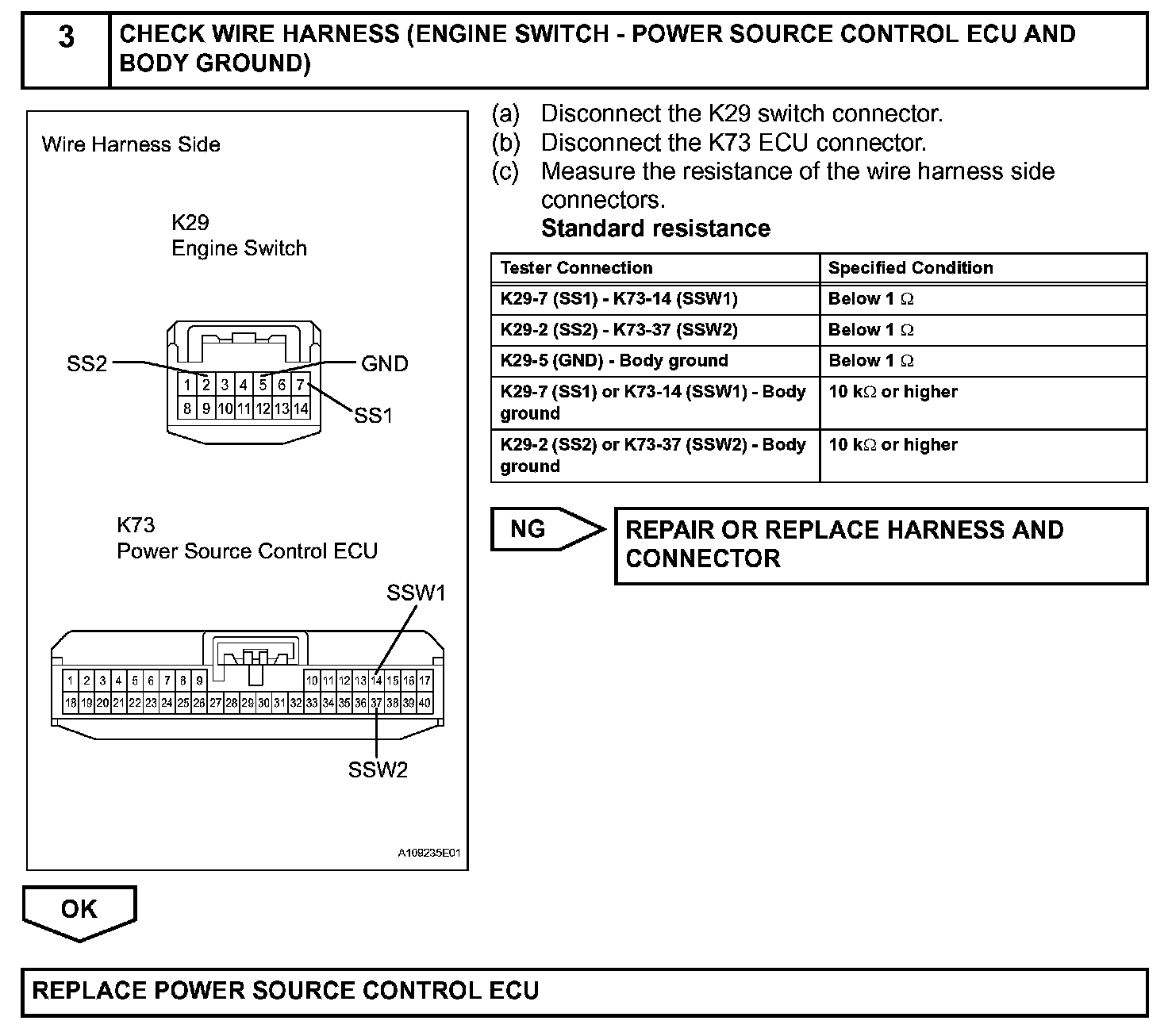

Step 3:

INSPECTION PROCEDURE
