Windshield Washer Spray Nozzle: Testing and Inspection

WASHER NOZZLE

ON-VEHICLE INSPECTION







1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

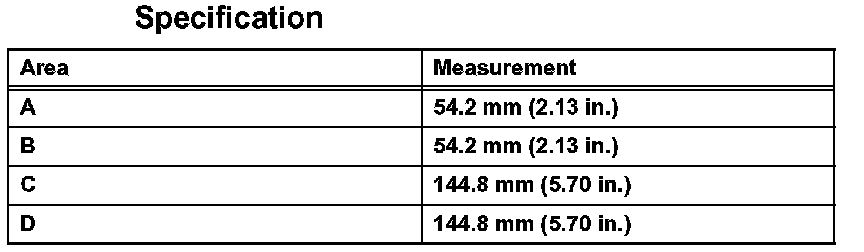

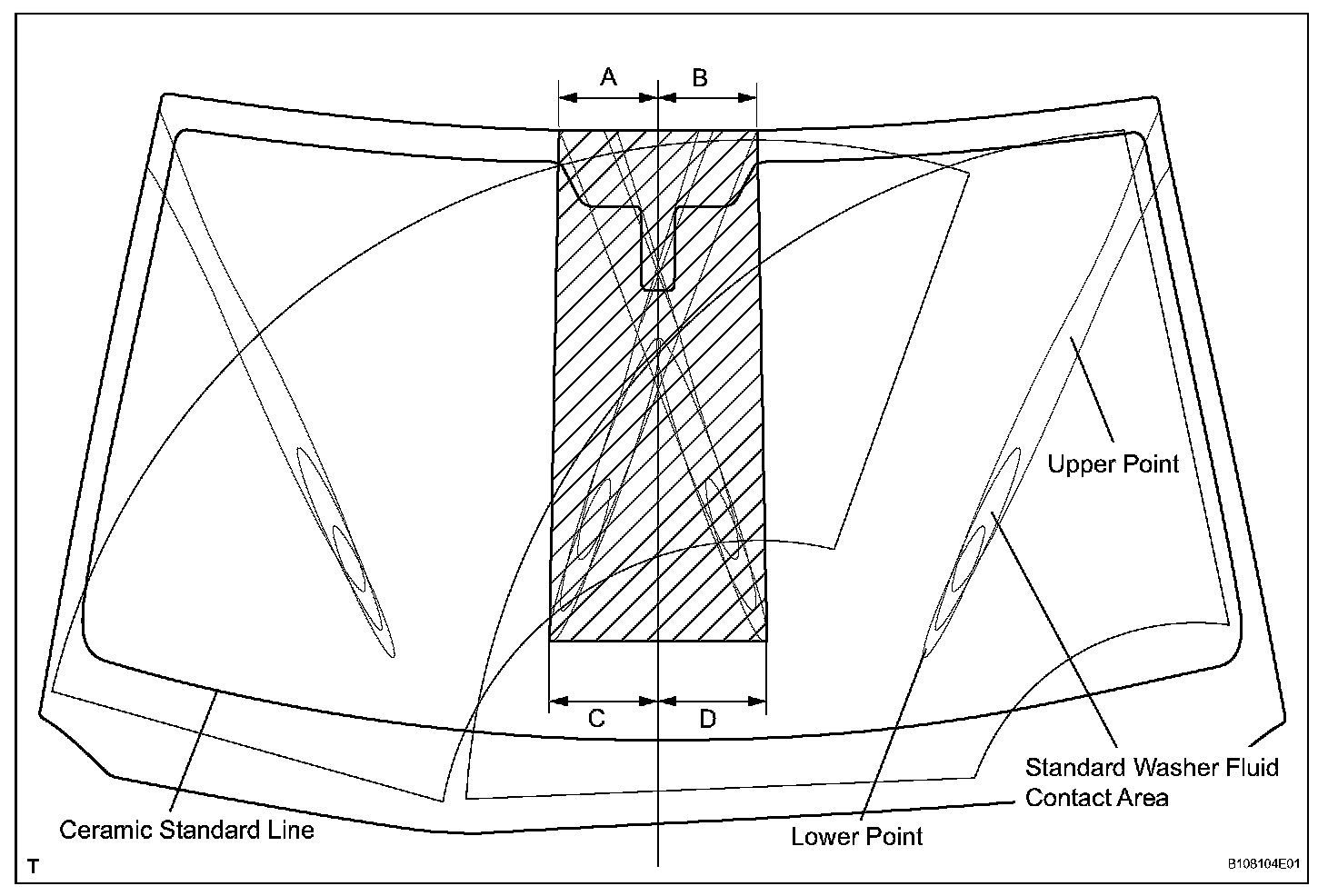

a. With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched areas shown in the illustration.

Standard:
Center stream of washer fluid sprays on windshield properly.
If the result is not as specified, replace the washer nozzle.
