Pinout Values and Diagnostic Parameters

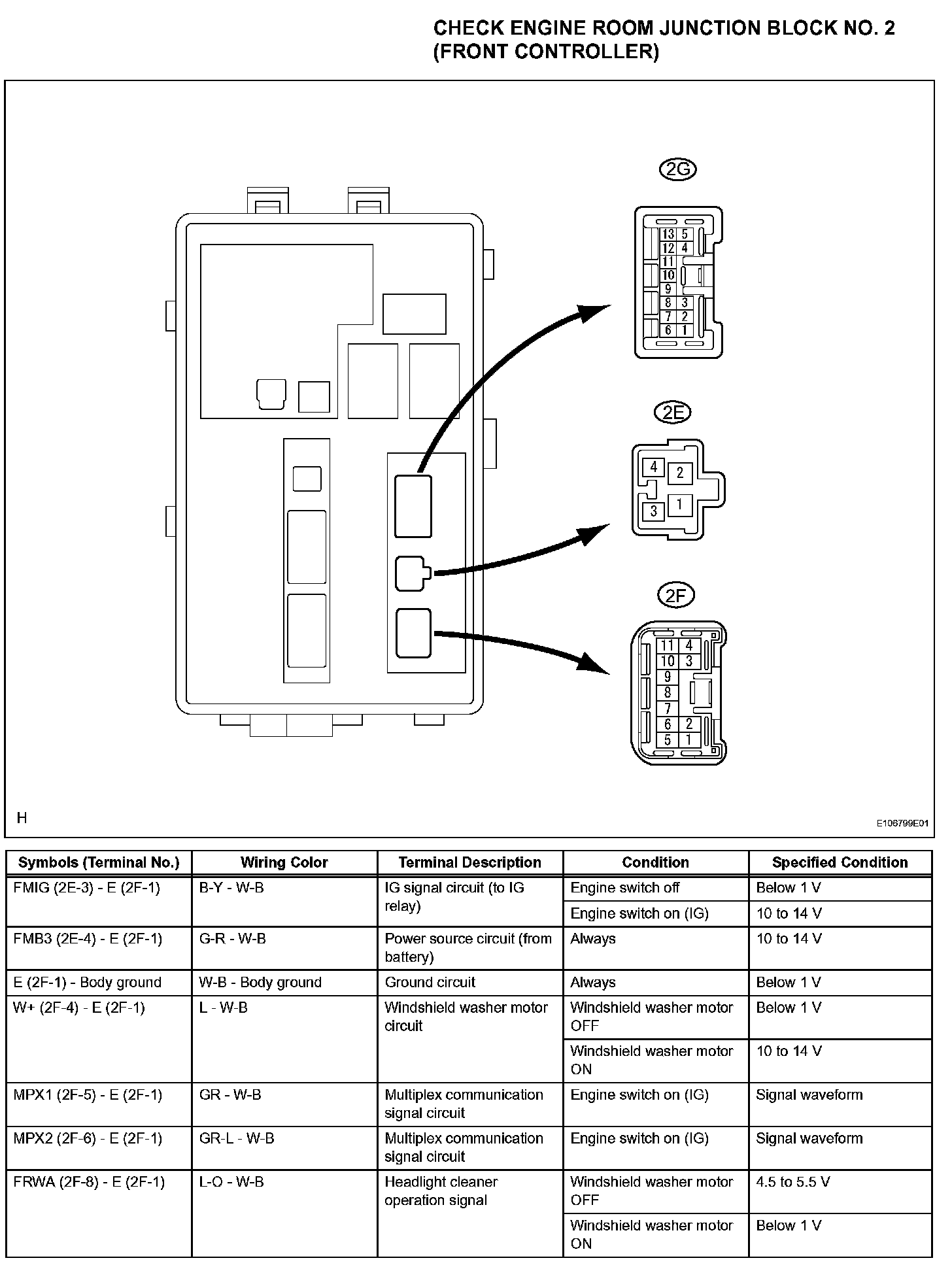

Terminals Of Control Module/Pinouts - Check Engine Room Junction Block No. 2 (Front Controller):

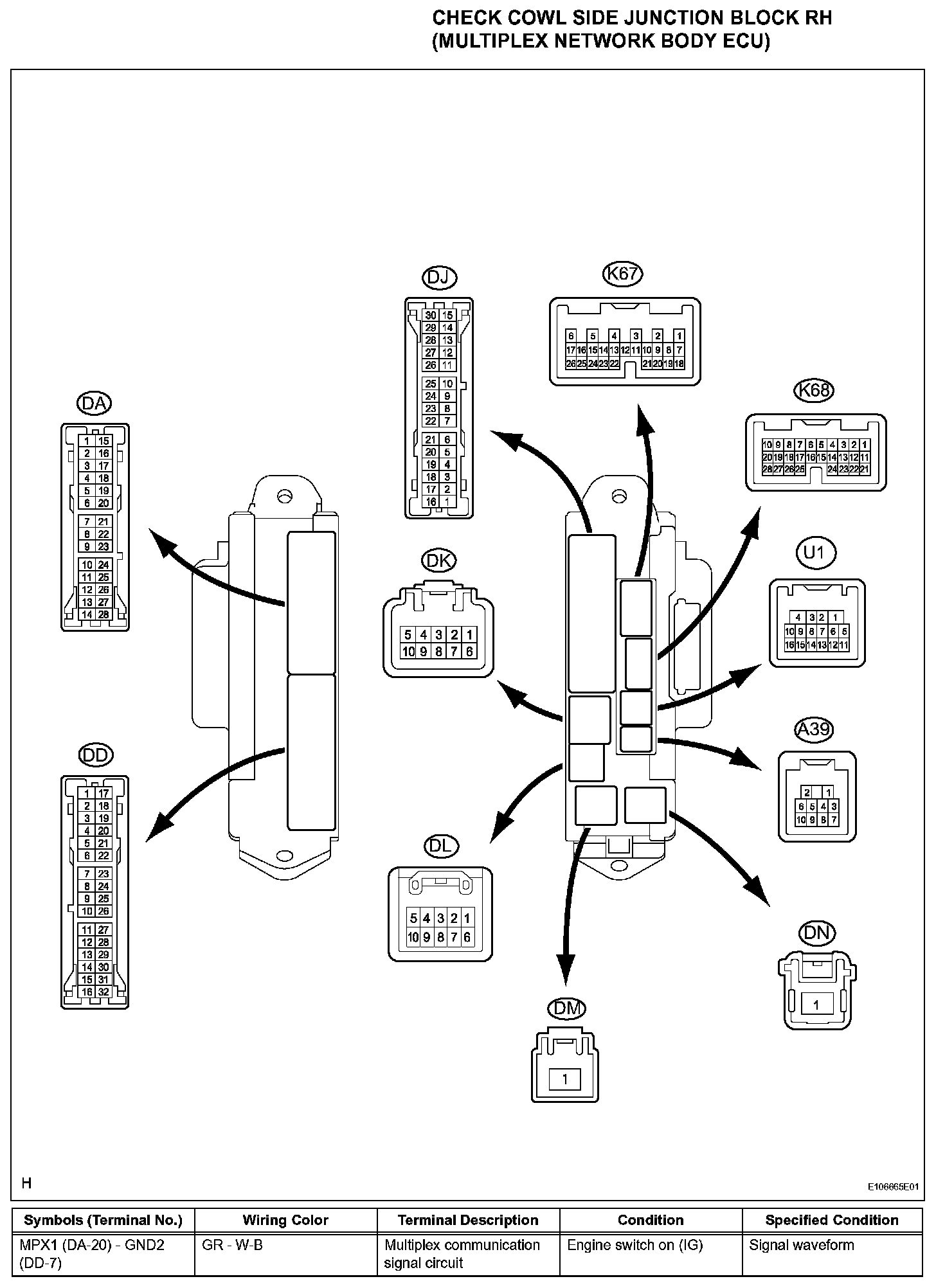

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH (Multiplex Network Body ECU):

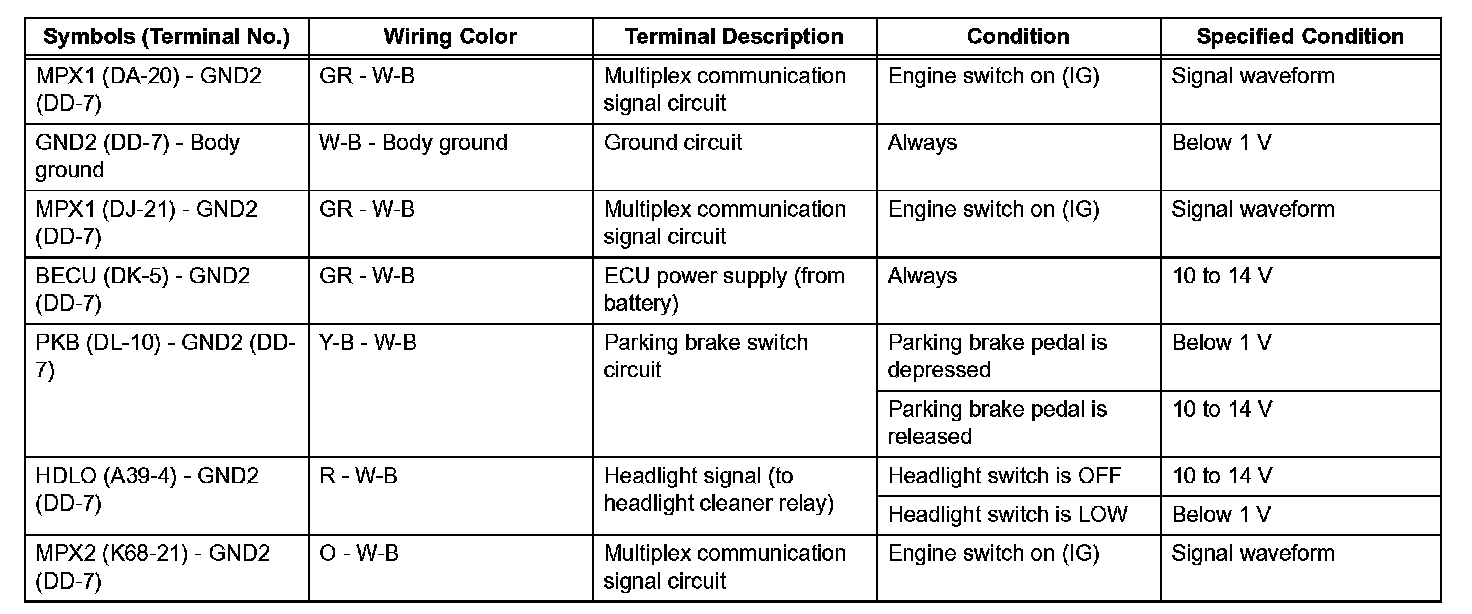

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block RH (Multiplex Network Body ECU):

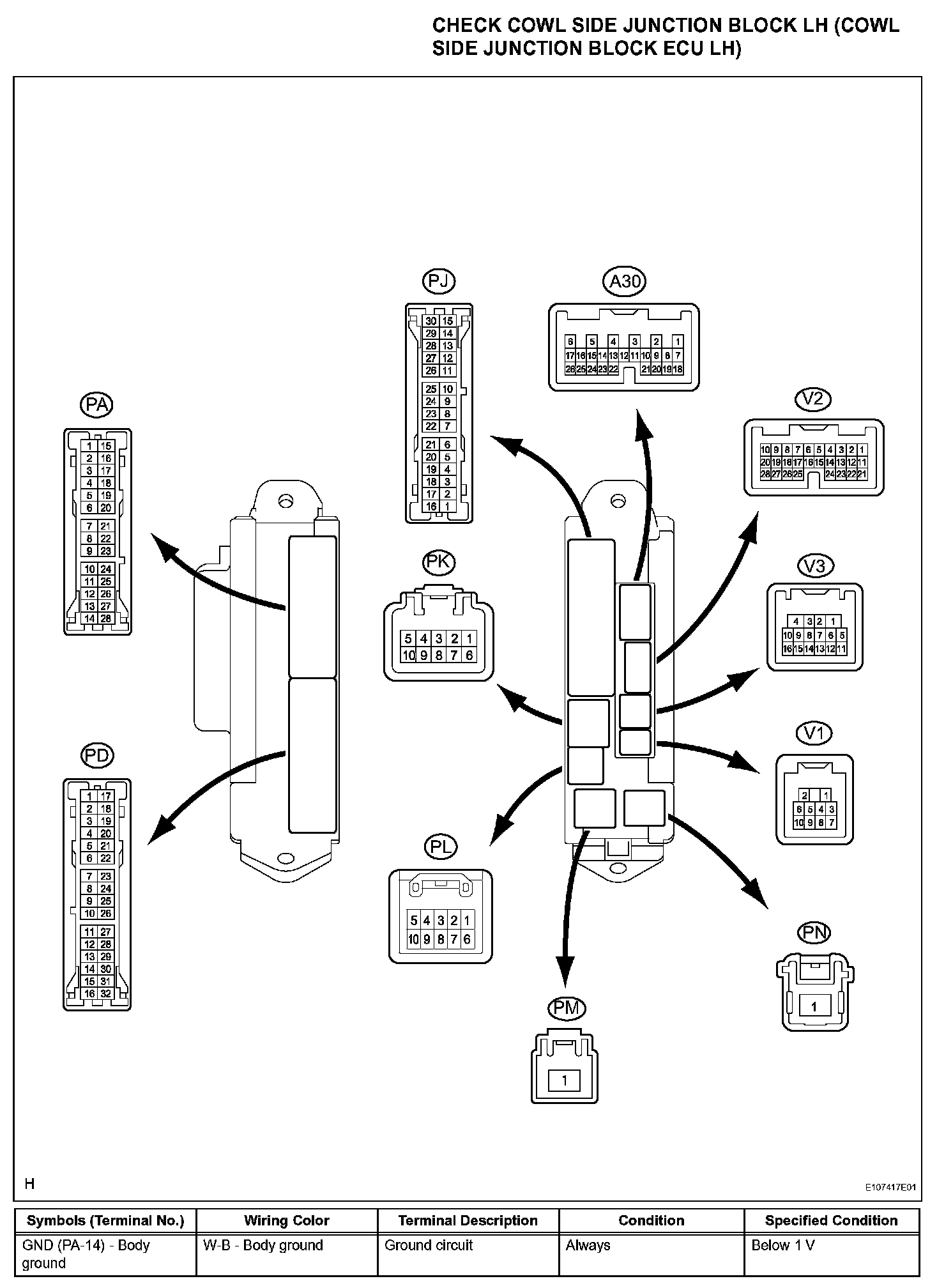

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block LH (Cowl Side Junction Block ECU LH):

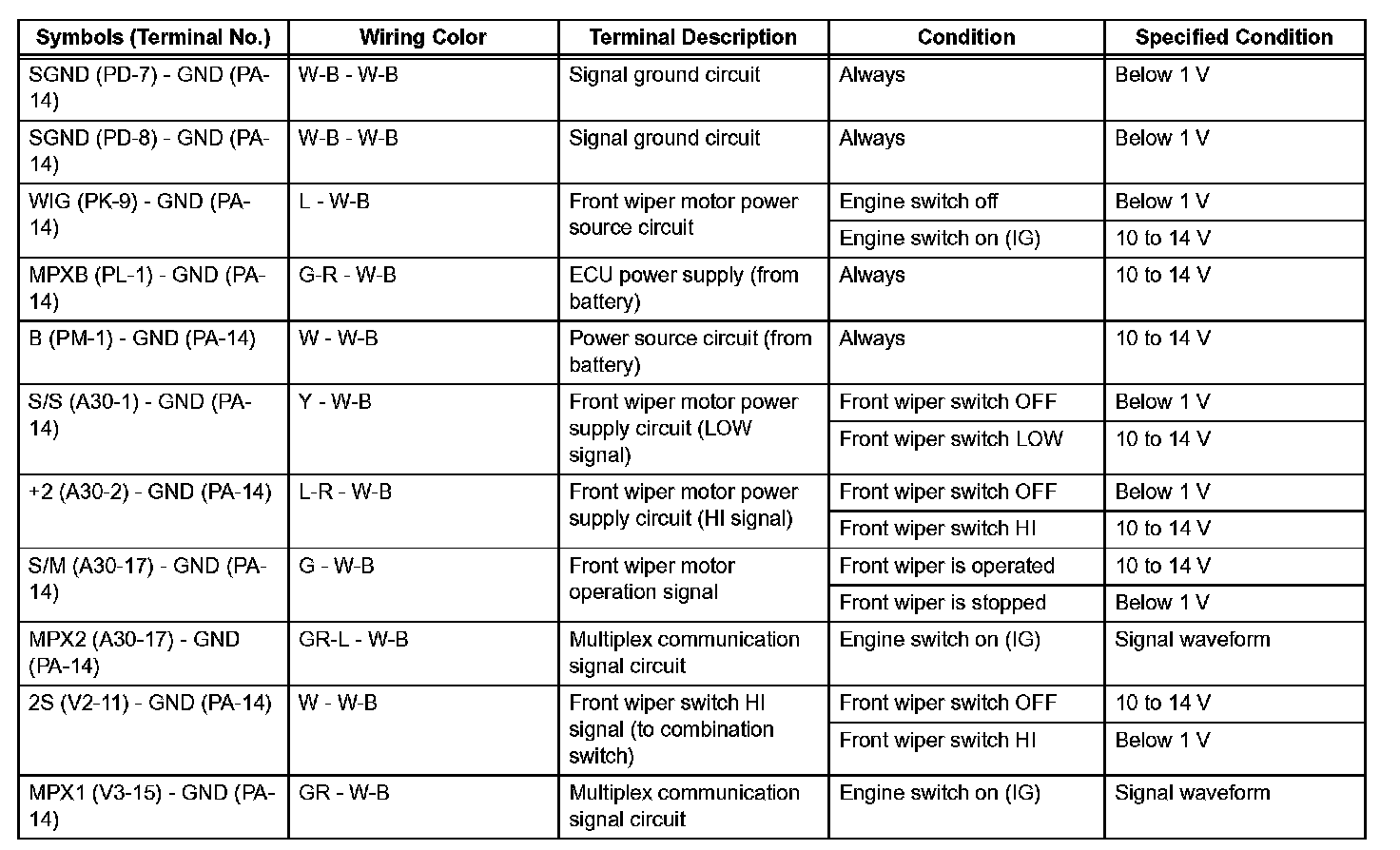

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block LH (Cowl Side Junction Block ECU LH):

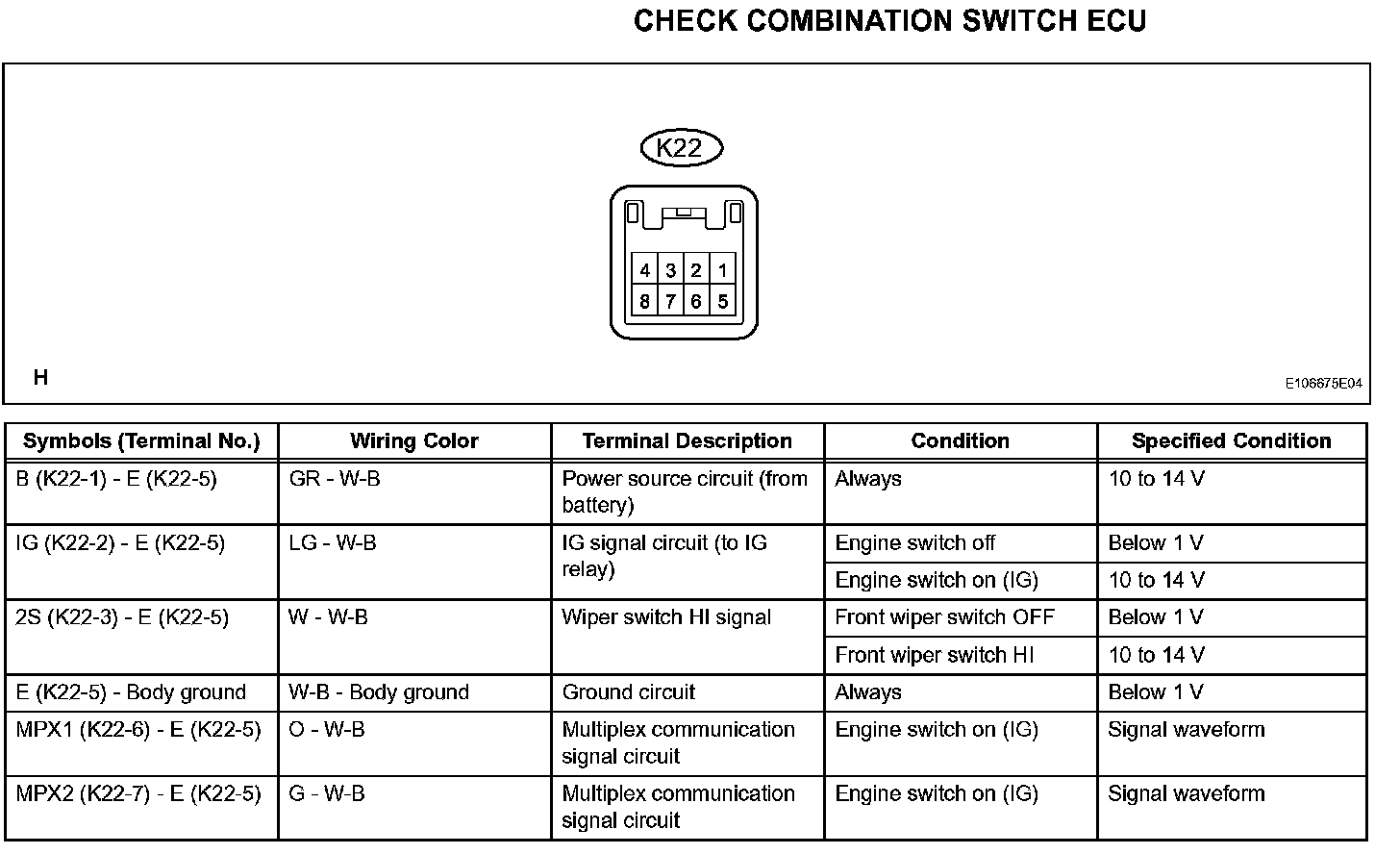

Terminals Of Control Module/Pinouts - Check Combination Switch ECU:

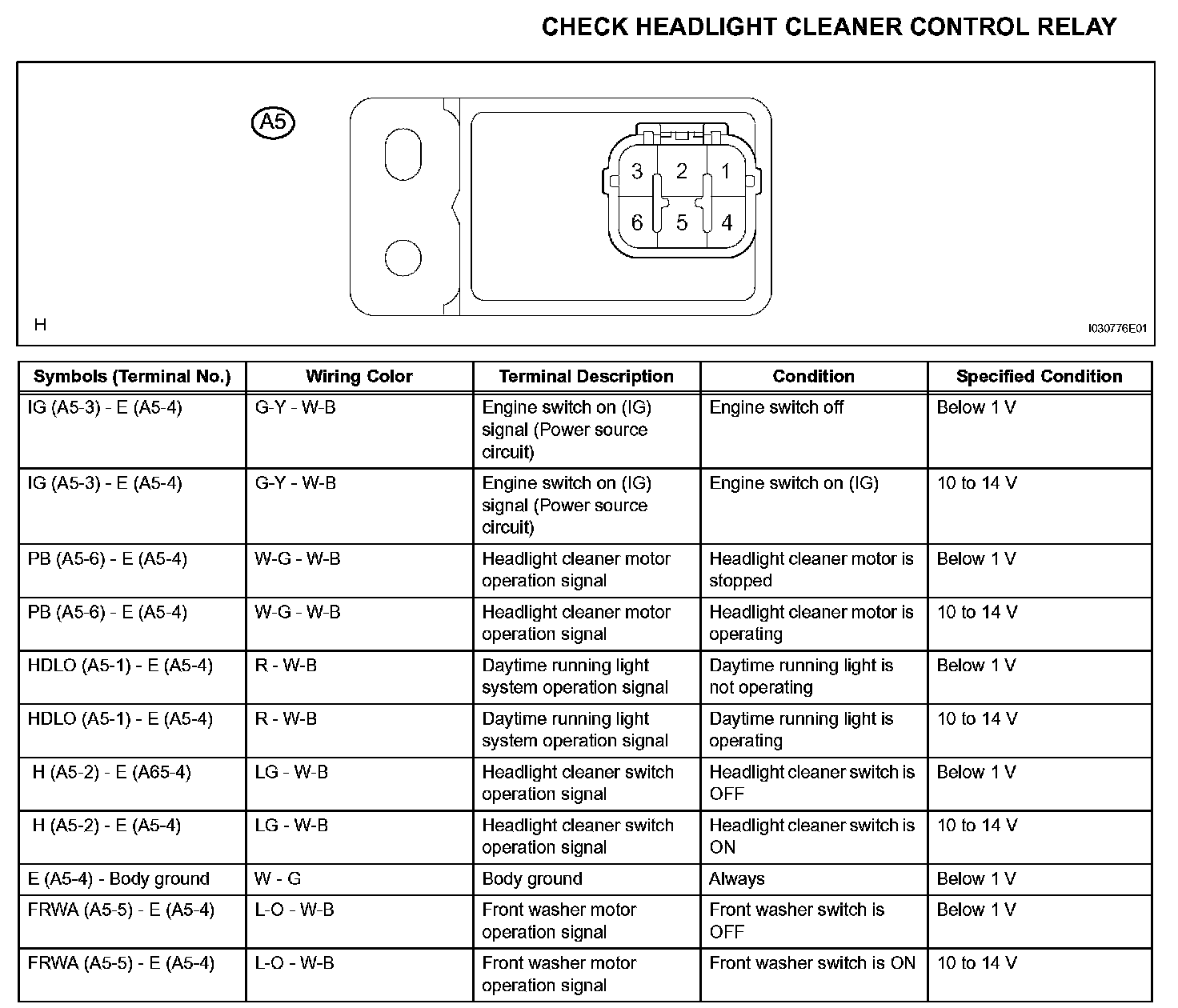

Terminals Of Control Module/Pinouts - Check Headlight Cleaner Control Relay:
