Wiper and Washer Switch Circuit
Wiper and Washer Switch CircuitDESCRIPTION
This circuit provides power to operate the windshield wiper switch. The manual operation signals are sent to the cowl side junction block ECU LH.
HINT: Before the procedure, check that the Multiplex Communication System (MPX) DTCs are not output.

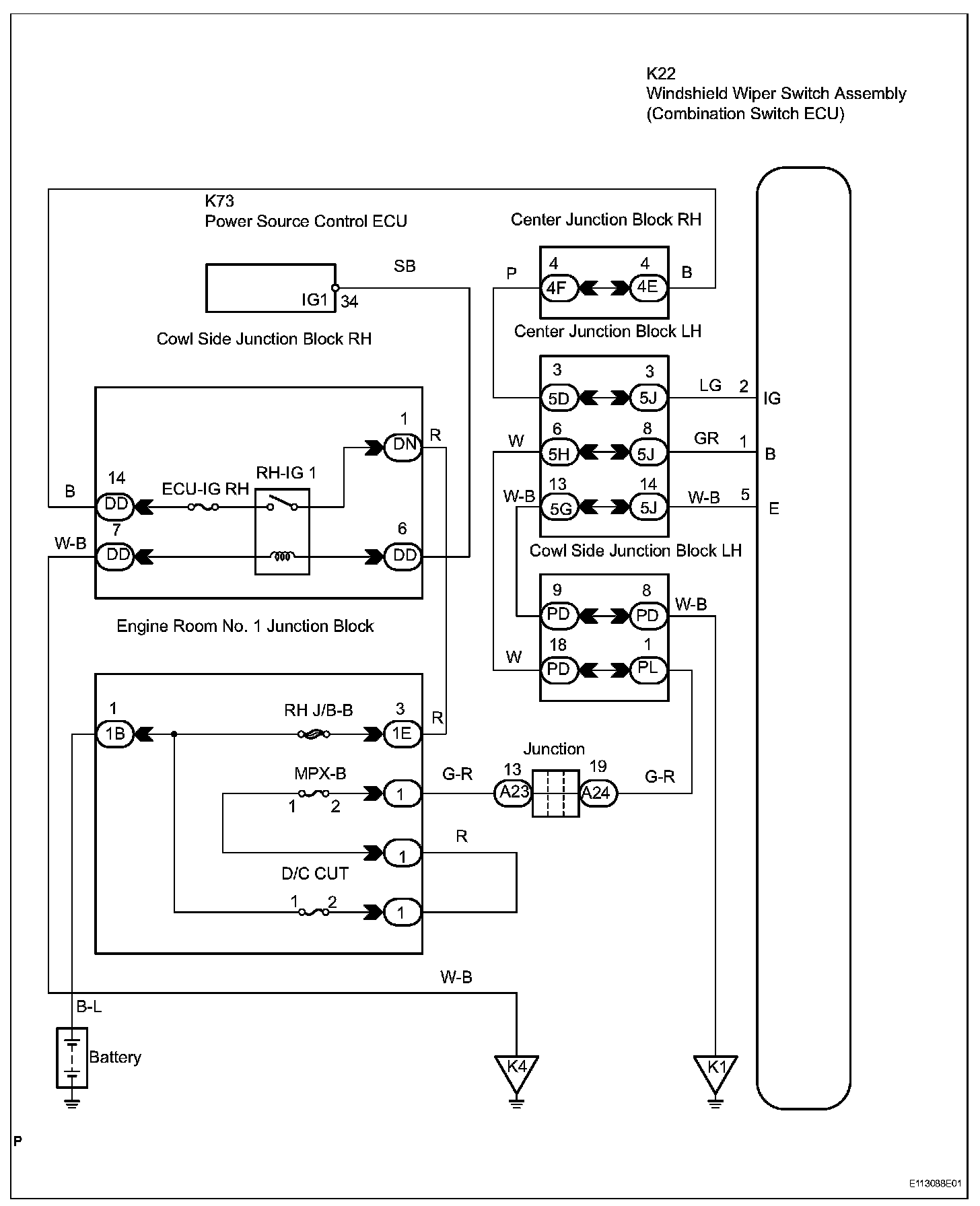

Wiring Diagram:

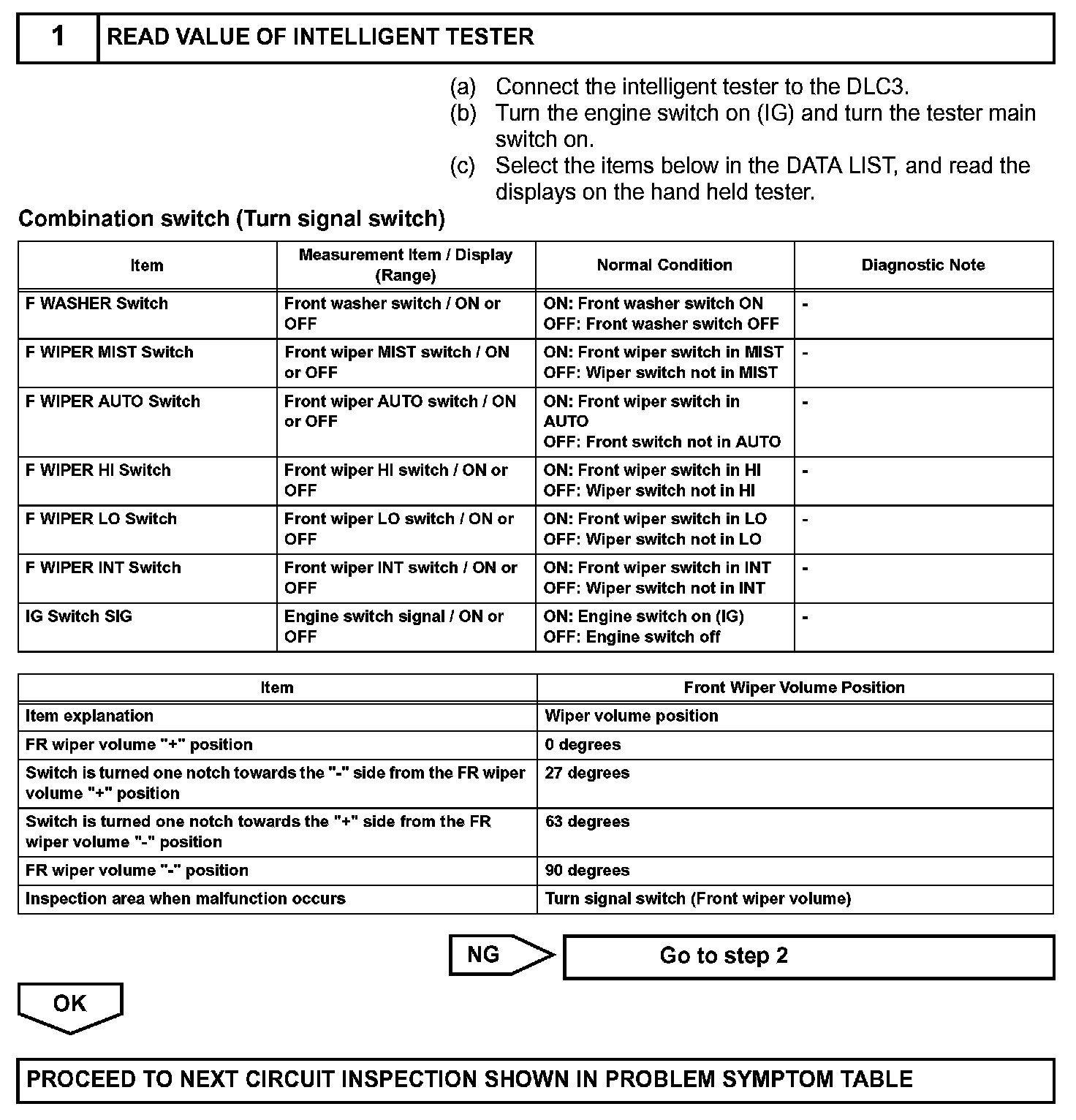

Step 1:

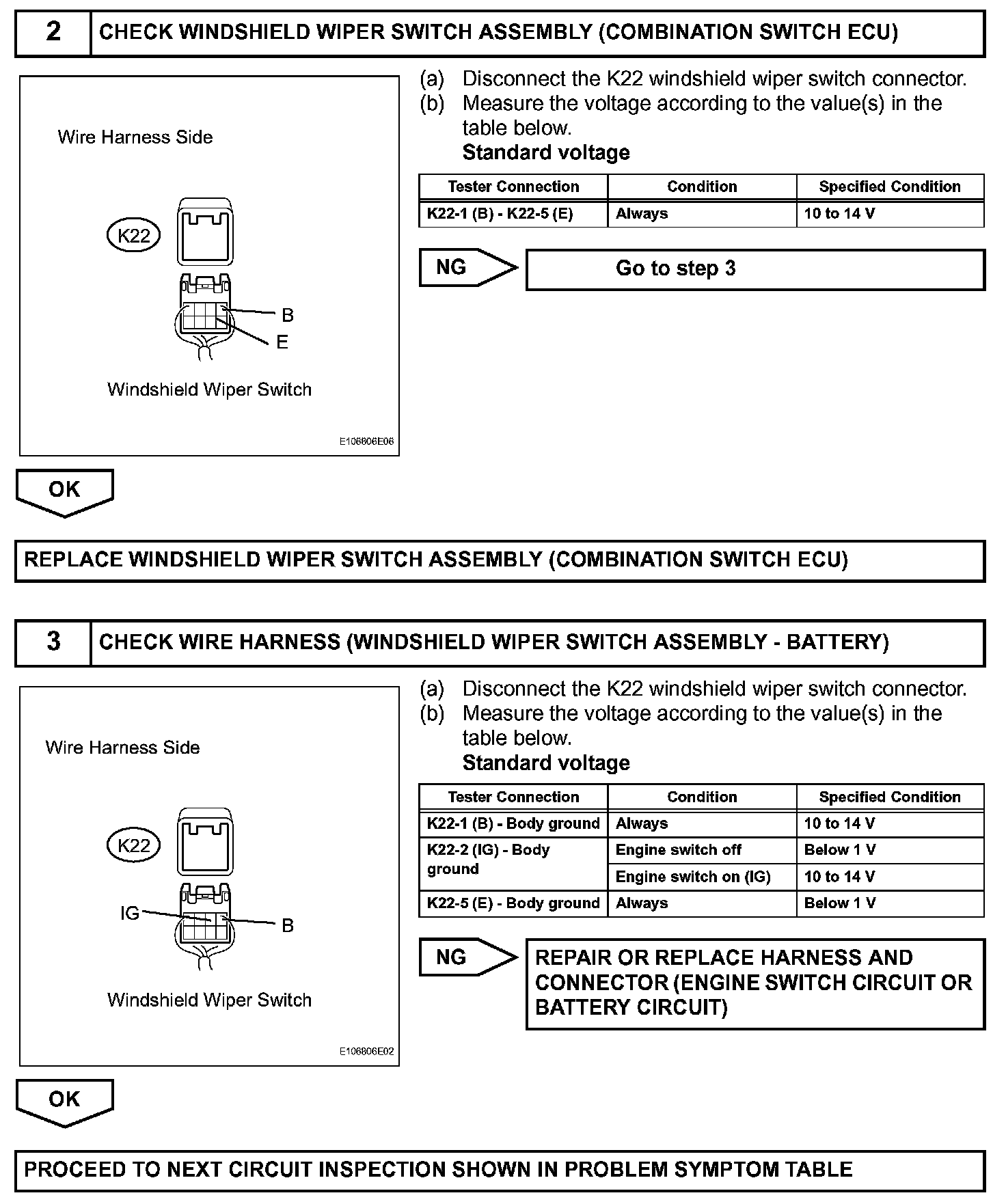

Step 2-3:
INSPECTION PROCEDURE
