Front Wiper Motor Circuit
Front Wiper Motor CircuitDESCRIPTION
The cowl side junction block ECU LH controls the wiper motor.

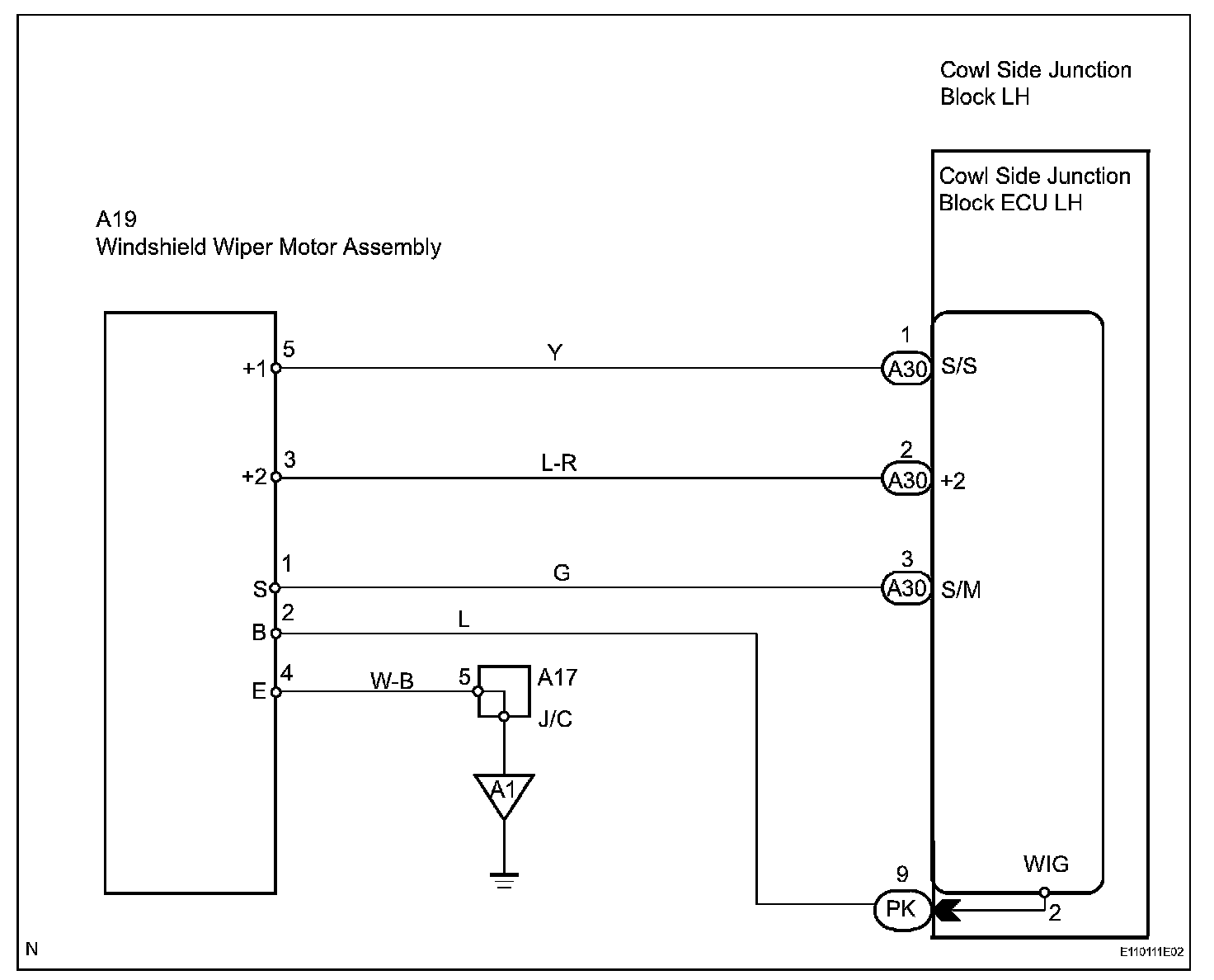

Wiring Diagram:

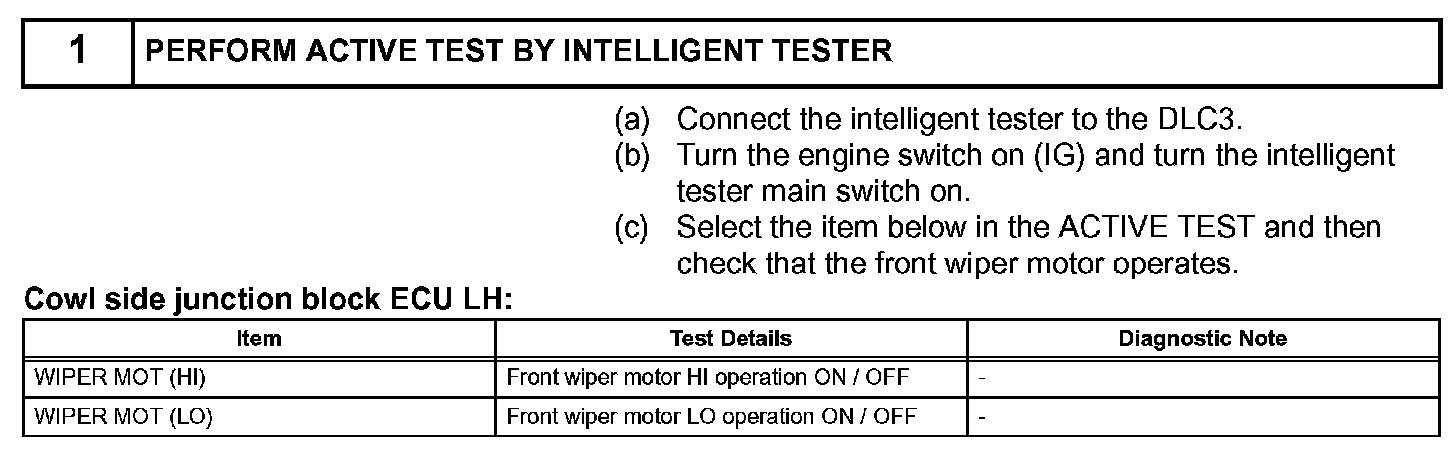

Step 1:

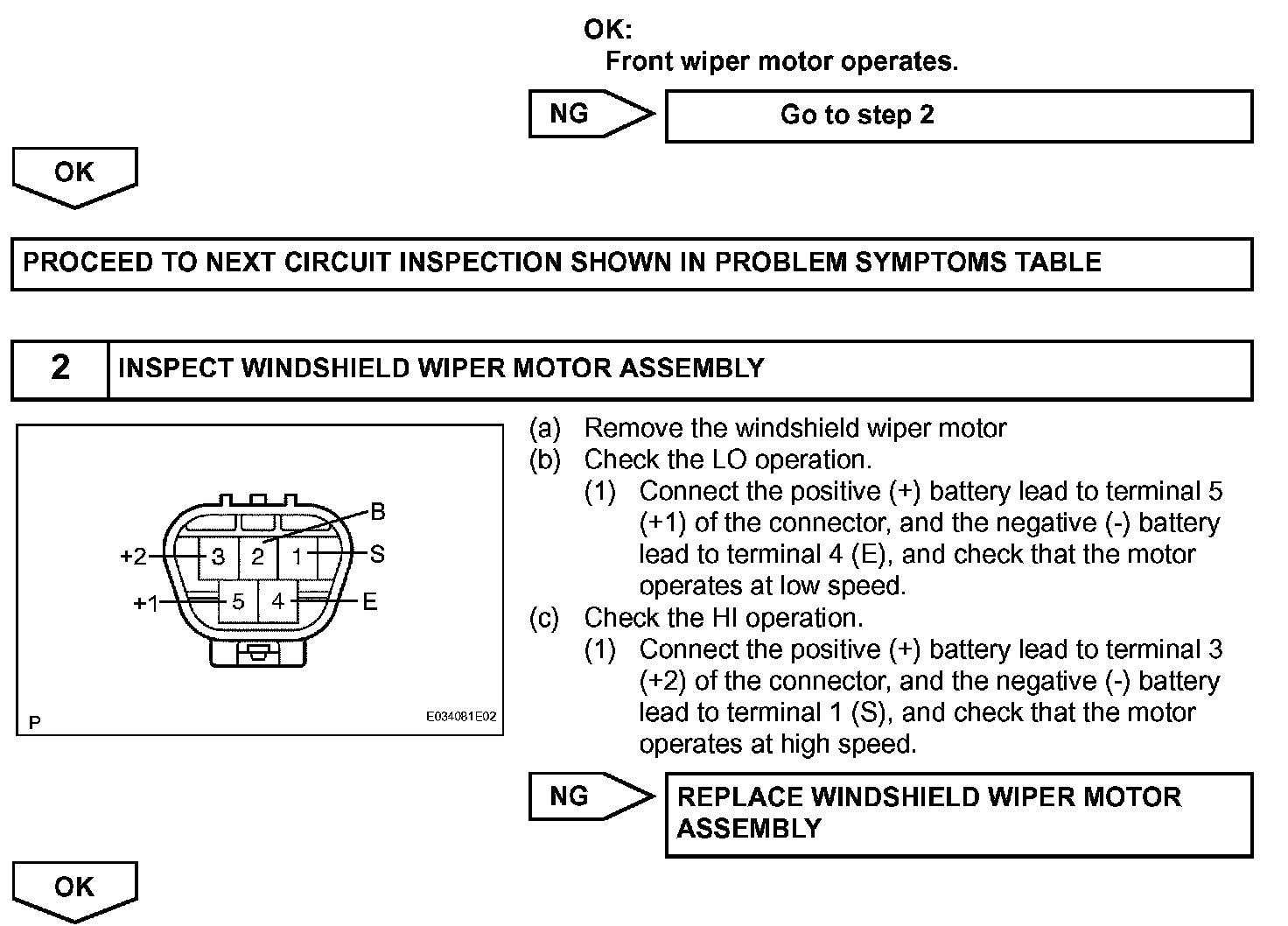

Step 1(Continued)-2:

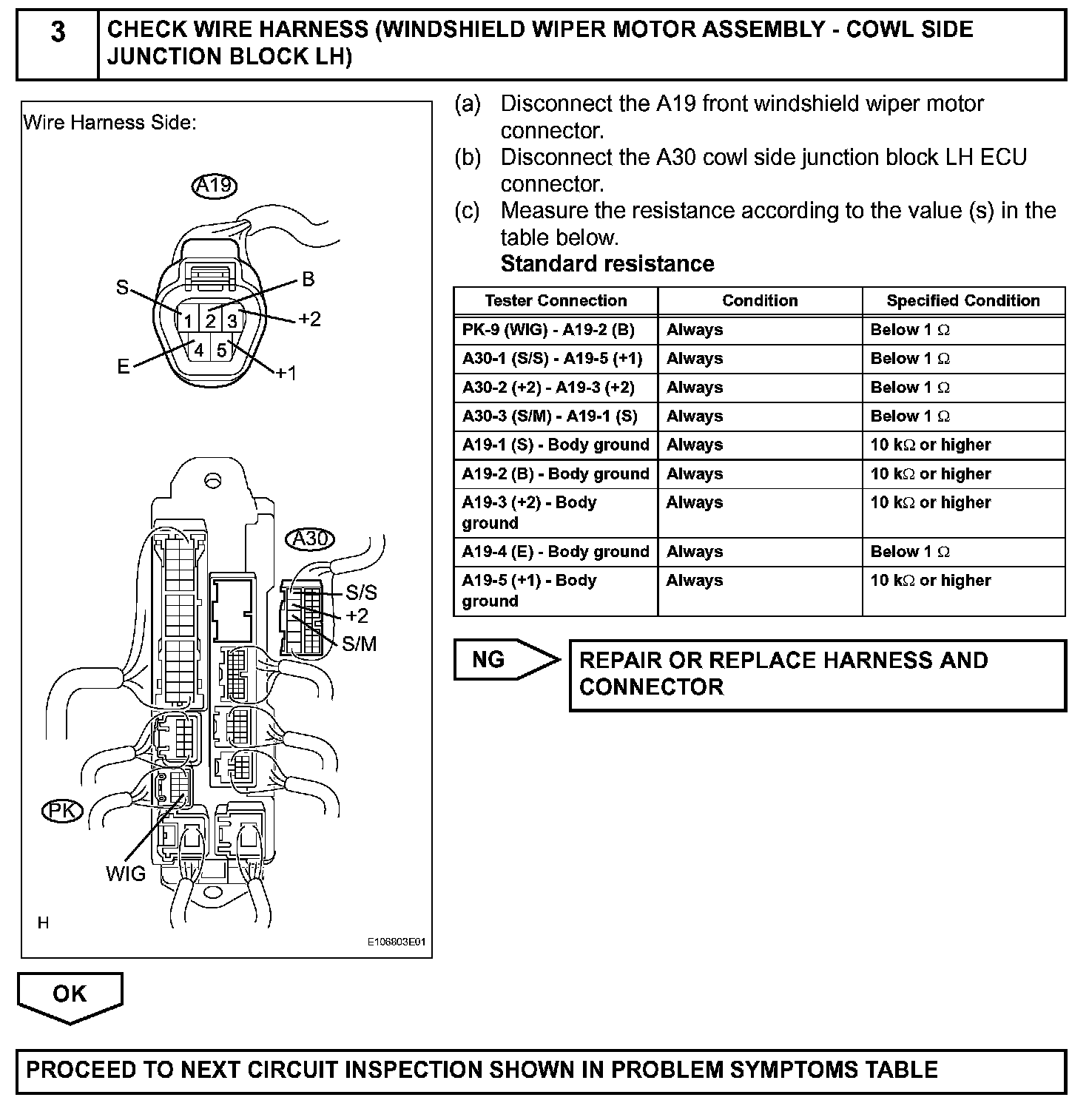

Step 3:
INSPECTION PROCEDURE
DESCRIPTION
The cowl side junction block ECU LH controls the wiper motor.
INSPECTION PROCEDURE
