Rear Power Window RH Does Not Operate With Rear Power Window Switch RH
Rear Power Window RH does not Operate with Rear Power Window Switch RHDESCRIPTION
If the manual UP/DOWN function does not operate, there may be a malfunction in the multiplex network switch, rear multiplex network door ECU RH, power window regulator motor or wire harness.

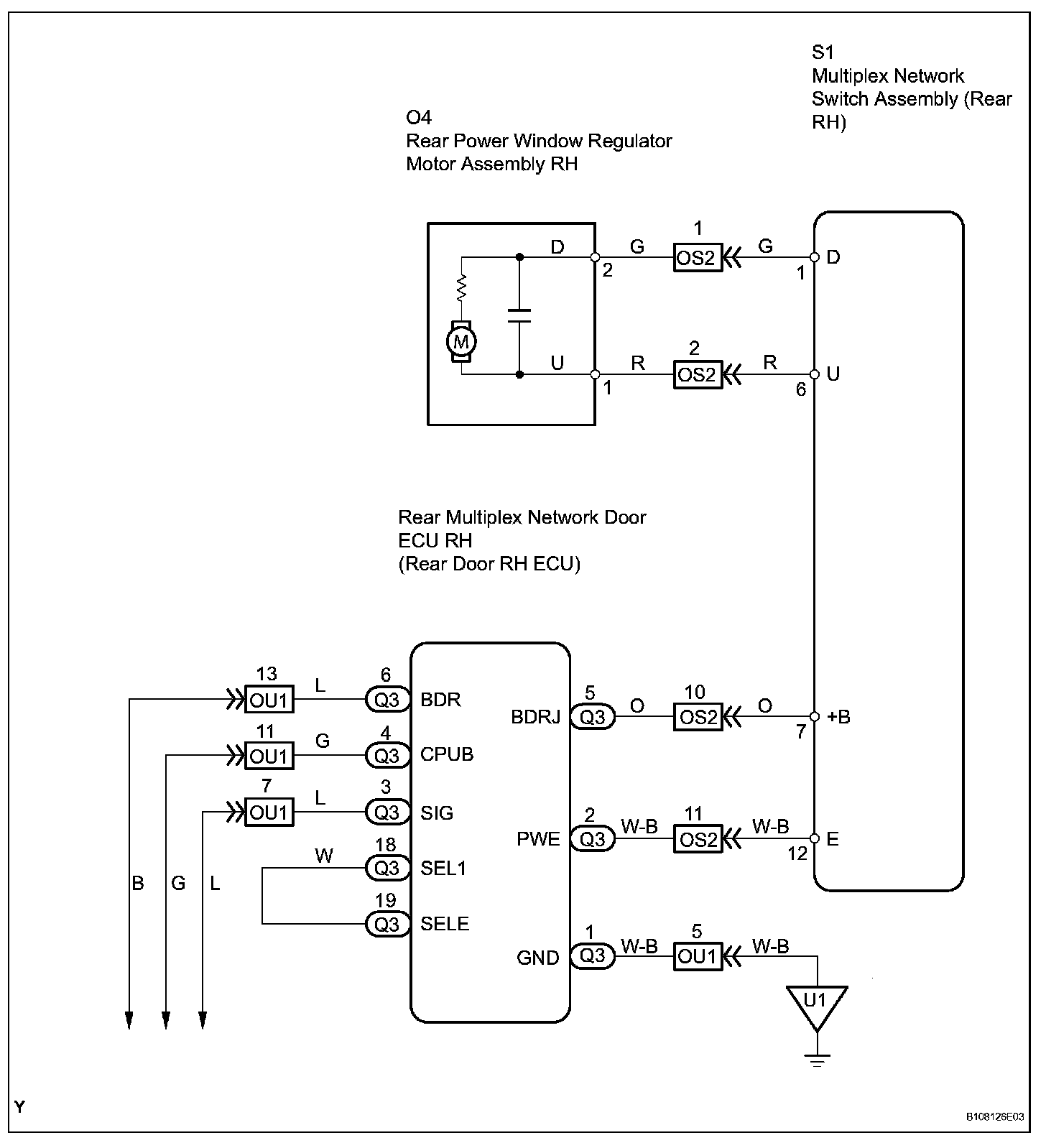

Wiring Diagram (Part 1):

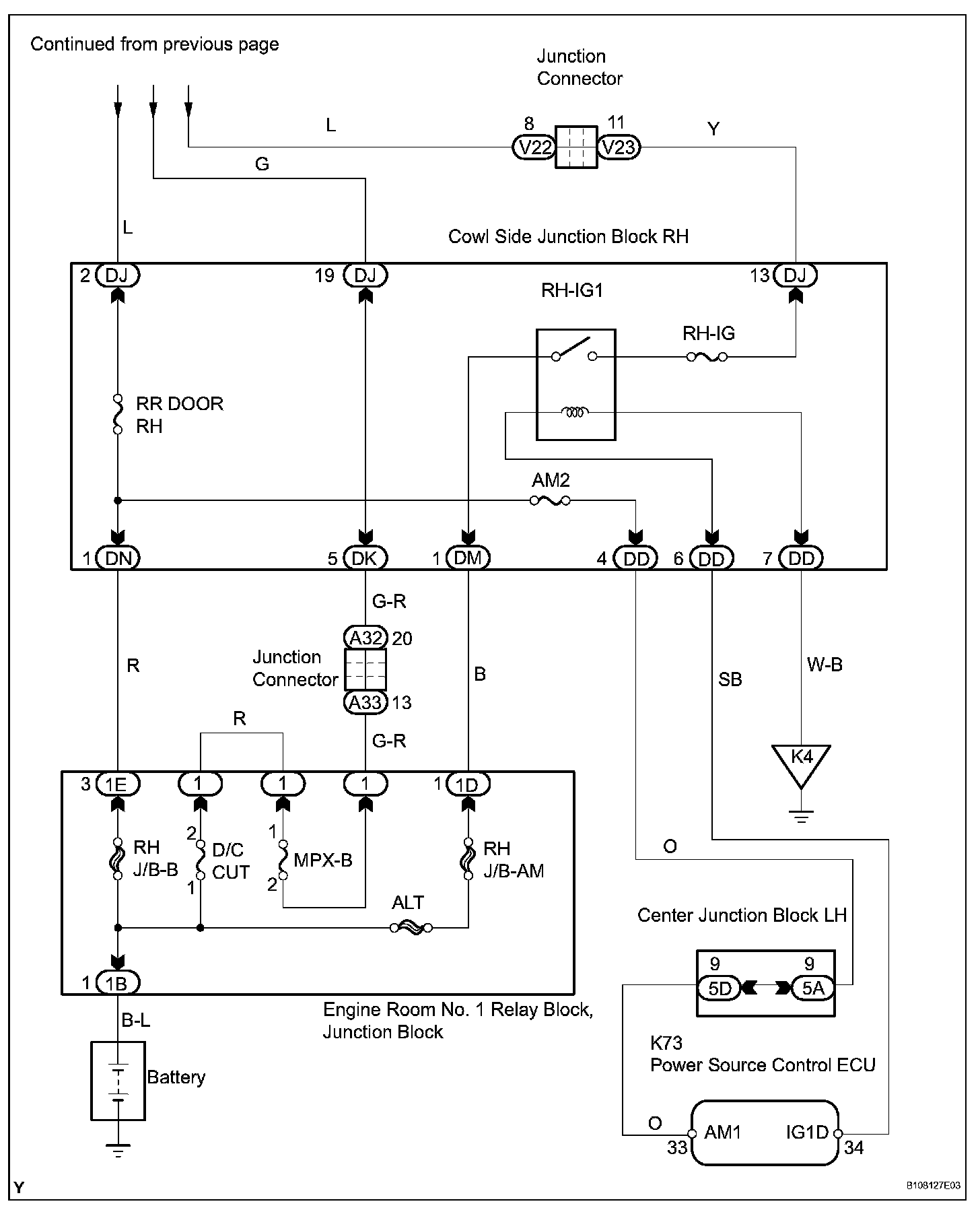

Wiring Diagram (Part 2):

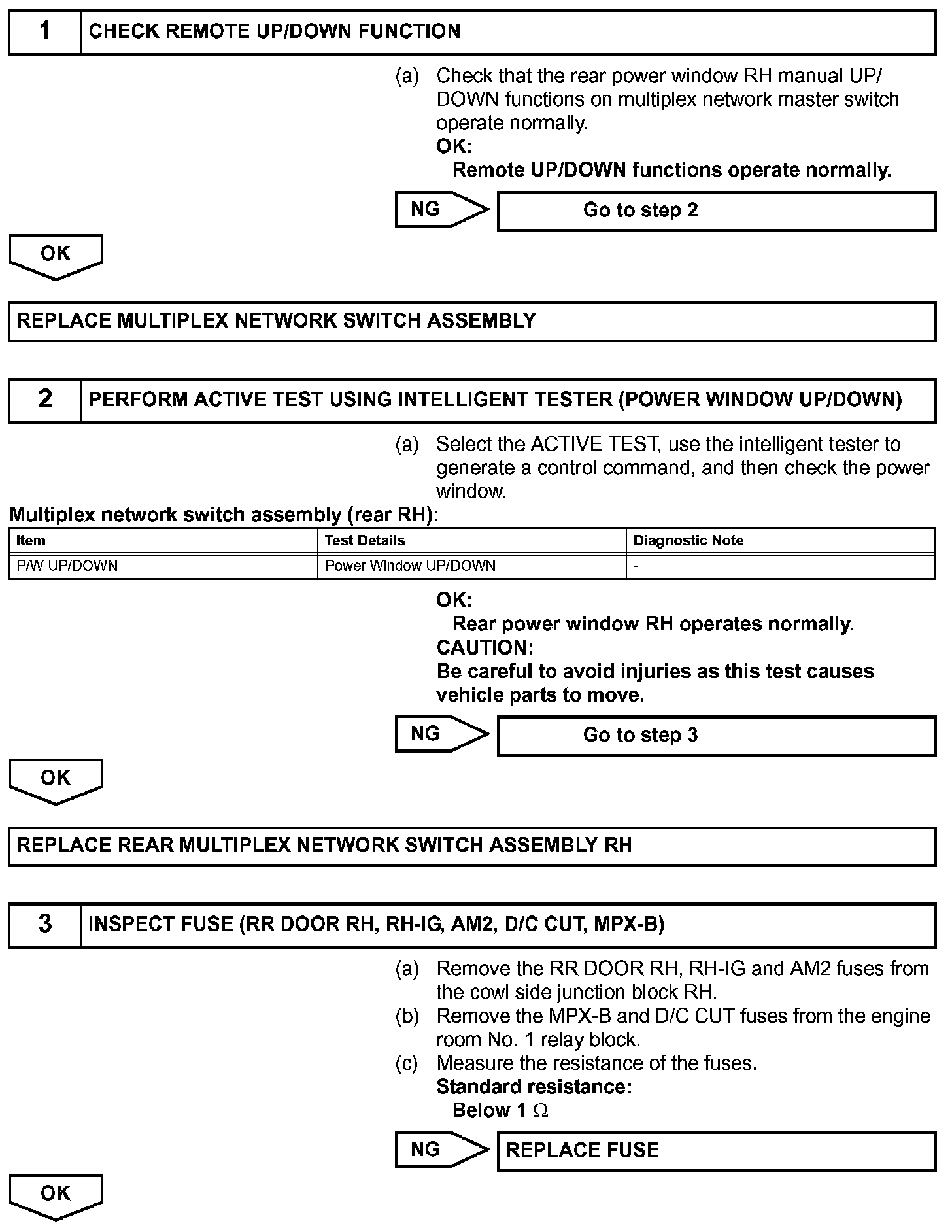

Step 1-3:

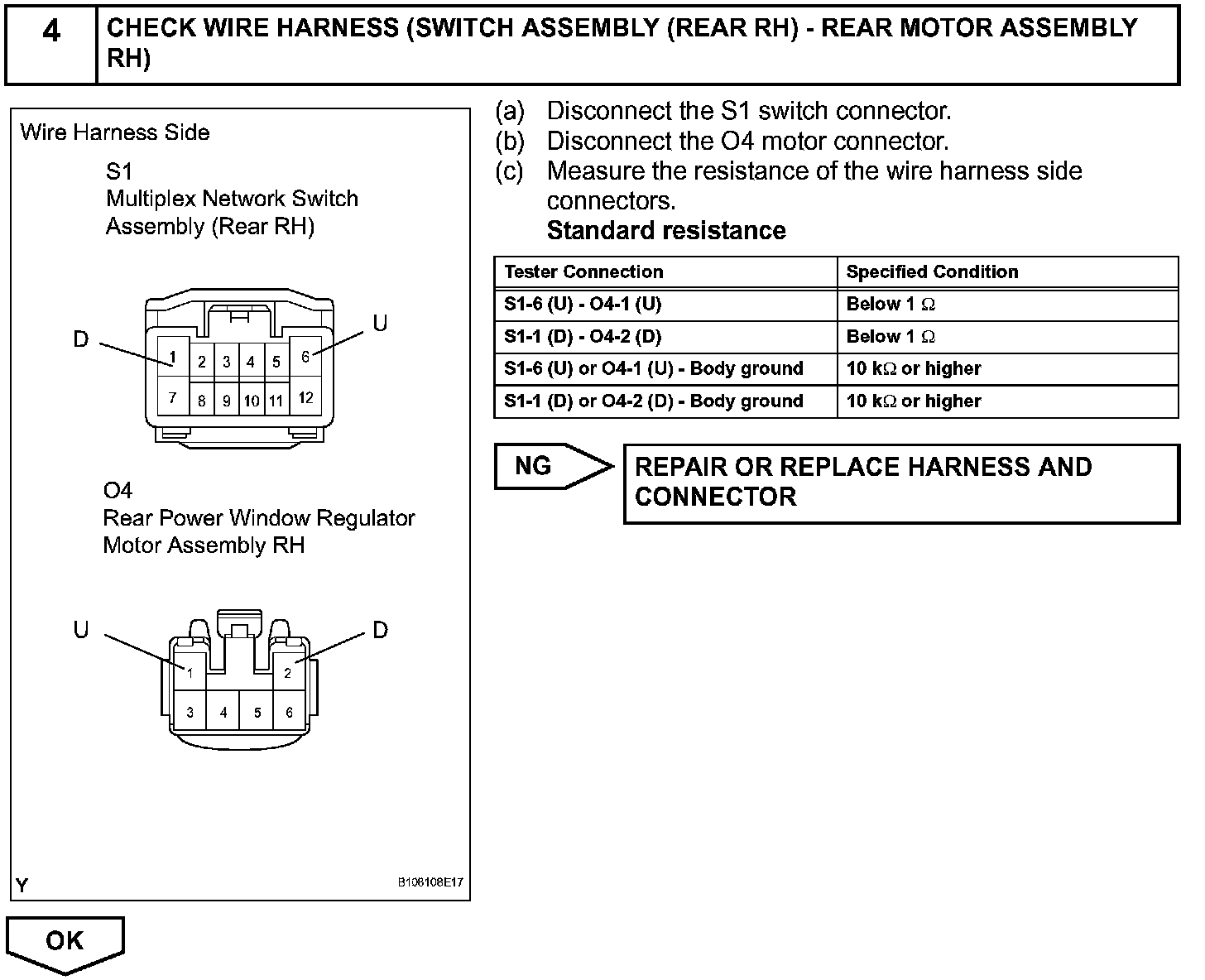

Step 4:

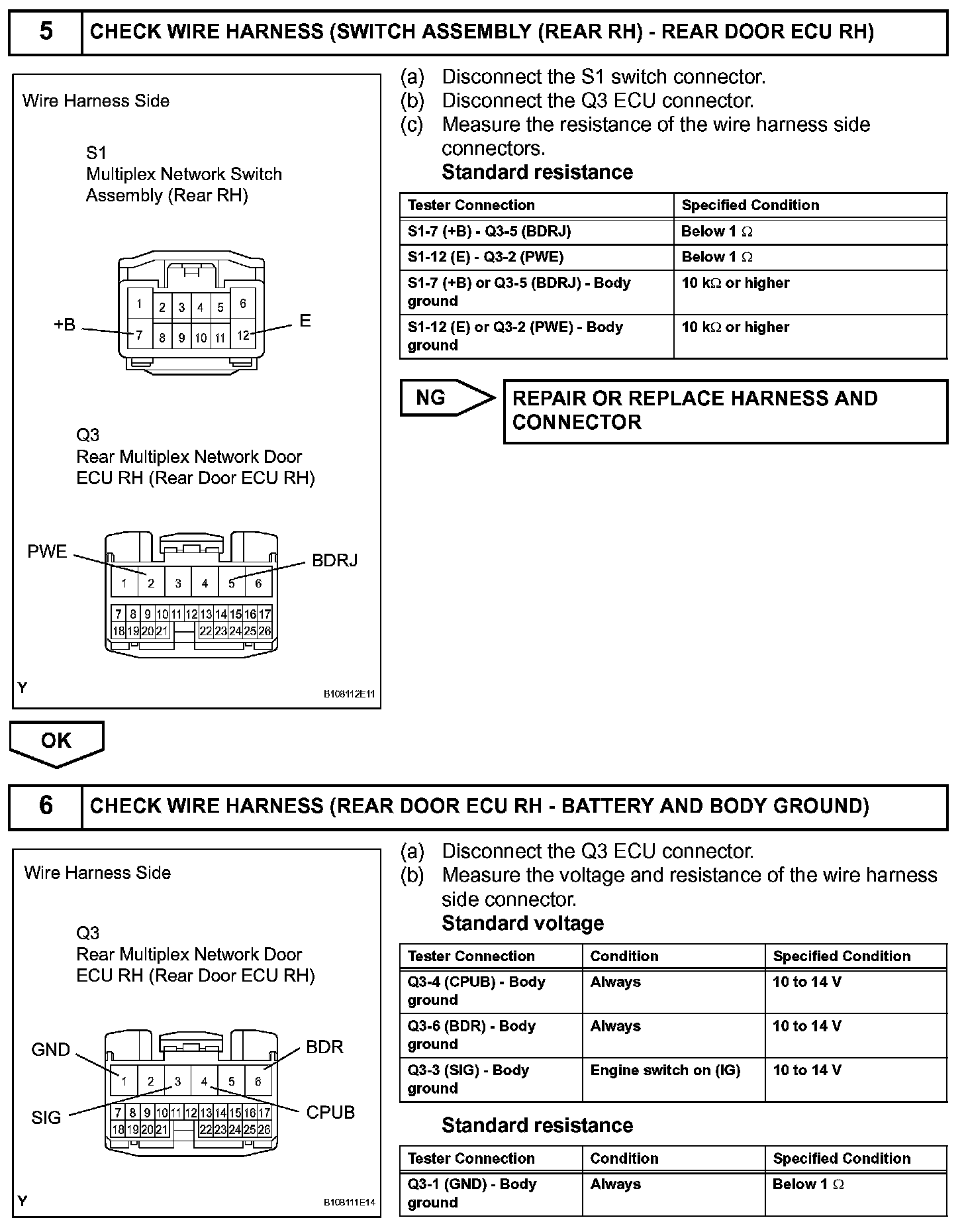

Step 5-6:

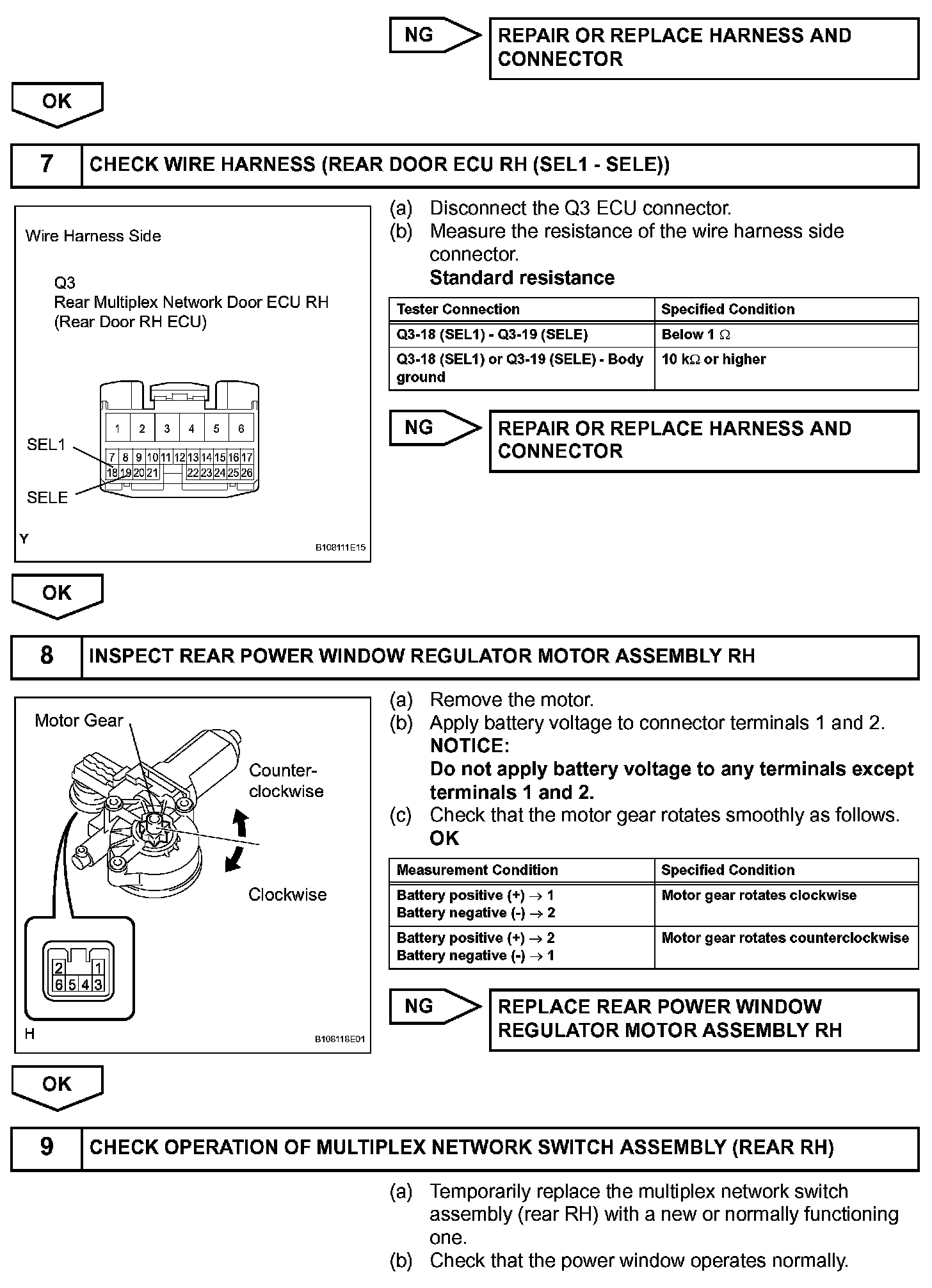

Step 6(Continued)-9:
Step 9(Continued):
INSPECTION PROCEDURE
