Rear Power Window RH Auto Up / Down Function Does Not Operate With Rear Power Window Switch RH

Rear Power Window RH Auto Up/Down Function does not Operate with Rear Power Window Switch RH

DESCRIPTION
If the AUTO UP/DOWN function does not operate, the cause may be one or more of the given:
- The recorded power window fully closed position, which is stored in the multiplex network switch, was erased as a result of: 1) a fuse or relay to the rear door RH power window being replaced; or 2) the battery cable and the switch's connector being disconnected.
- The switch has a malfunction.
- The pulse sensors in the power window regulator motor RH rear have a malfunction.
- The wiring between the switch and the power window regulator motor RH rear is open or short.

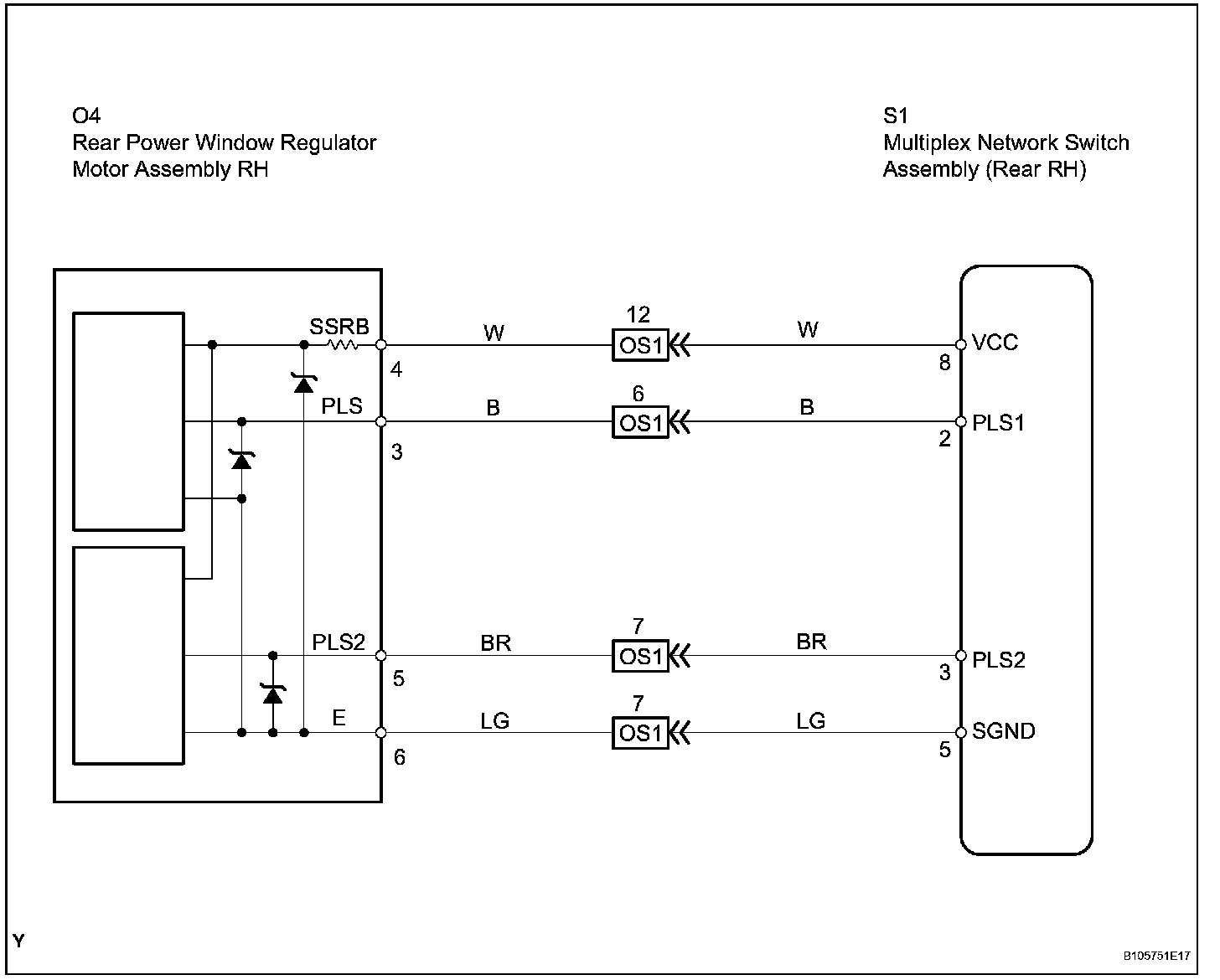

Wiring Diagram:

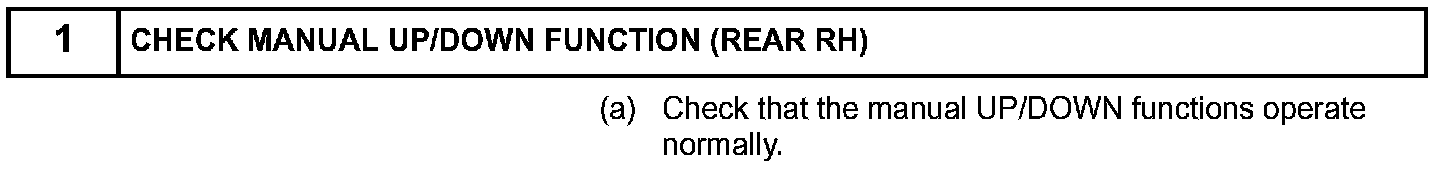

Step 1:

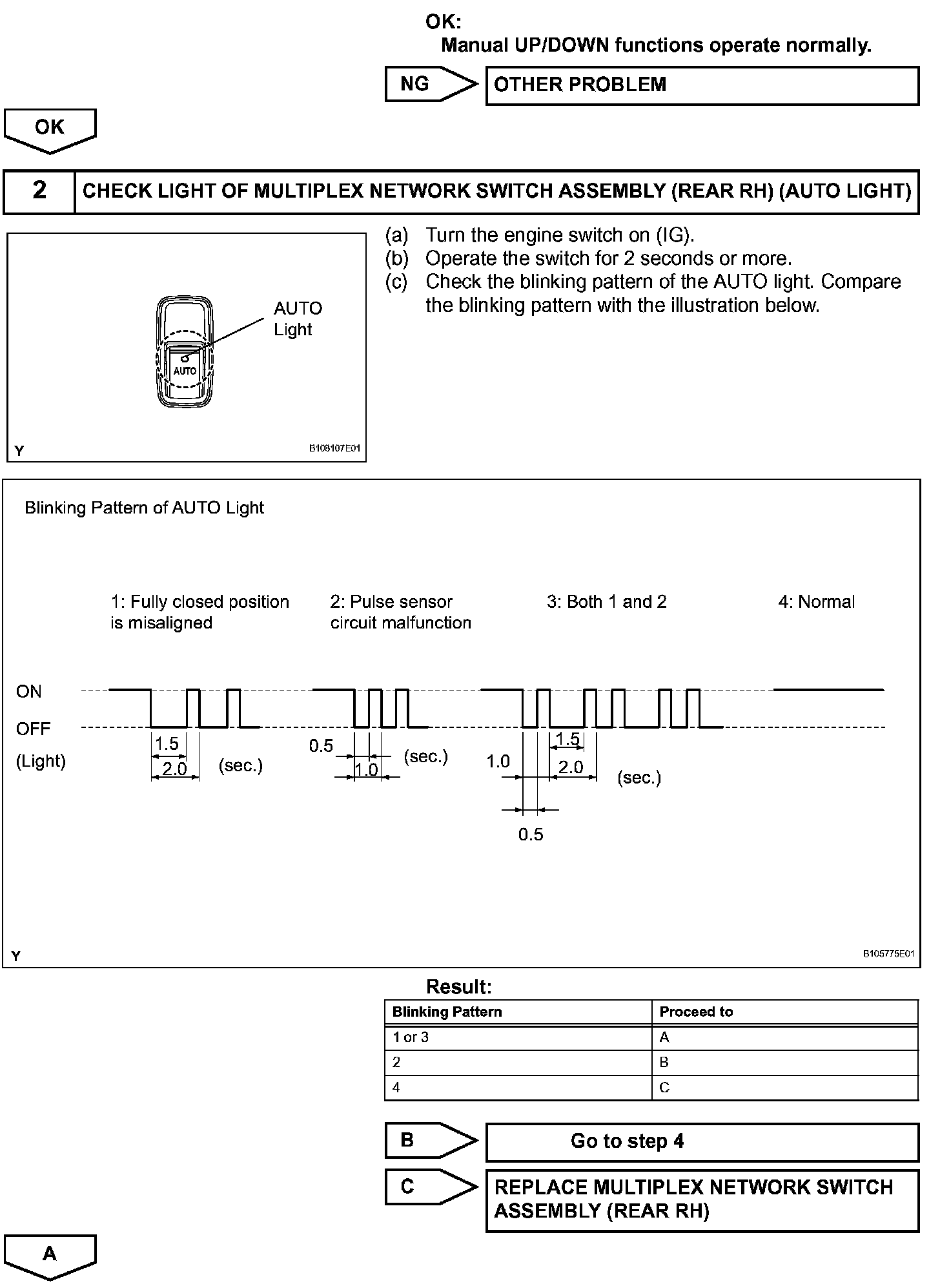

Step 1(Continued)-2:

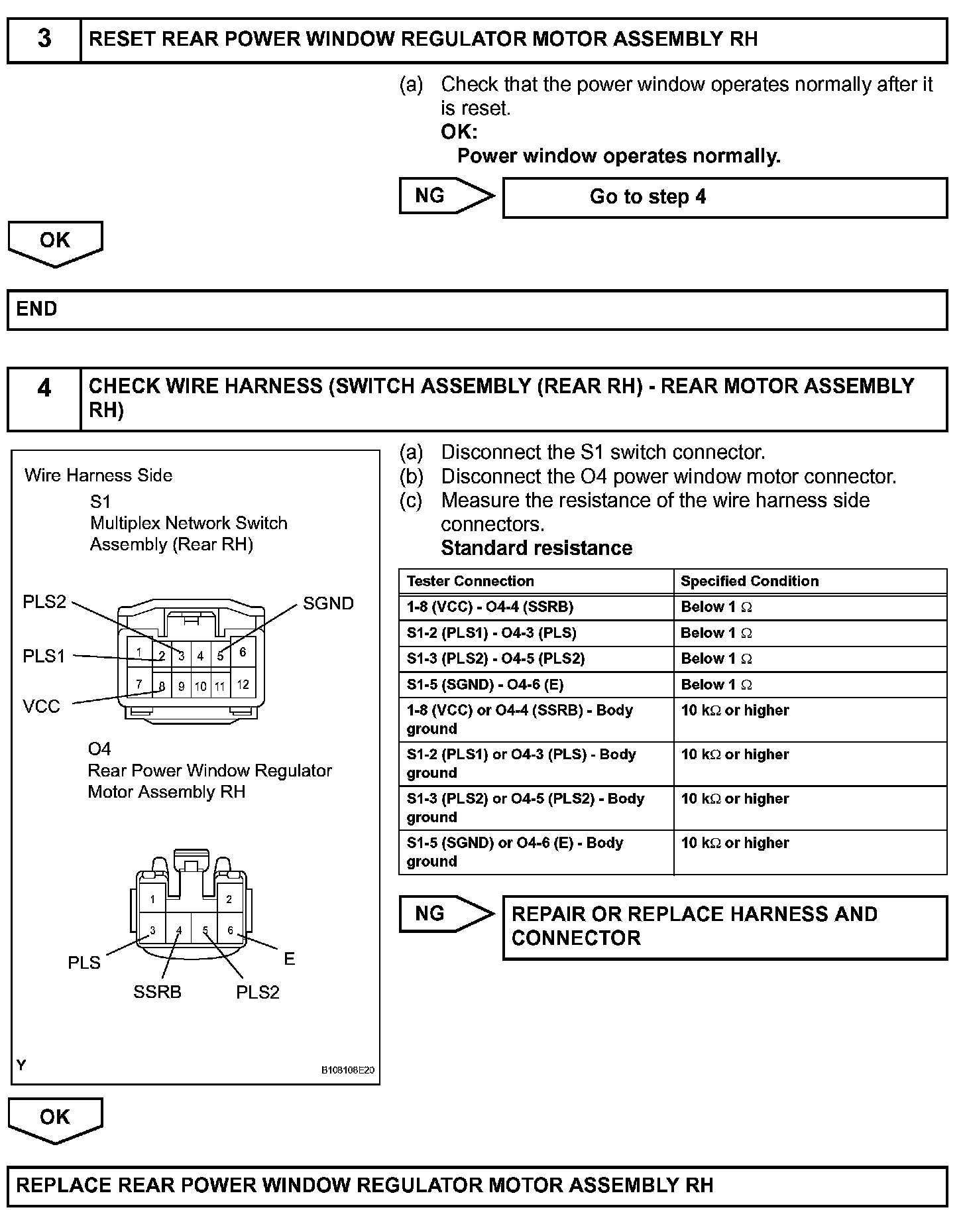

Step 3-4:

INSPECTION PROCEDURE
