Rear Power Window LH Does Not Operate With Rear Power Window Switch LH
Rear Power Window LH does not Operate with Rear Power Window Switch LHDESCRIPTION
If the manual UP/DOWN function does not operate, there may be a malfunction in the multiplex network switch, rear multiplex network door ECU LH, power window regulator motor or wire harness.

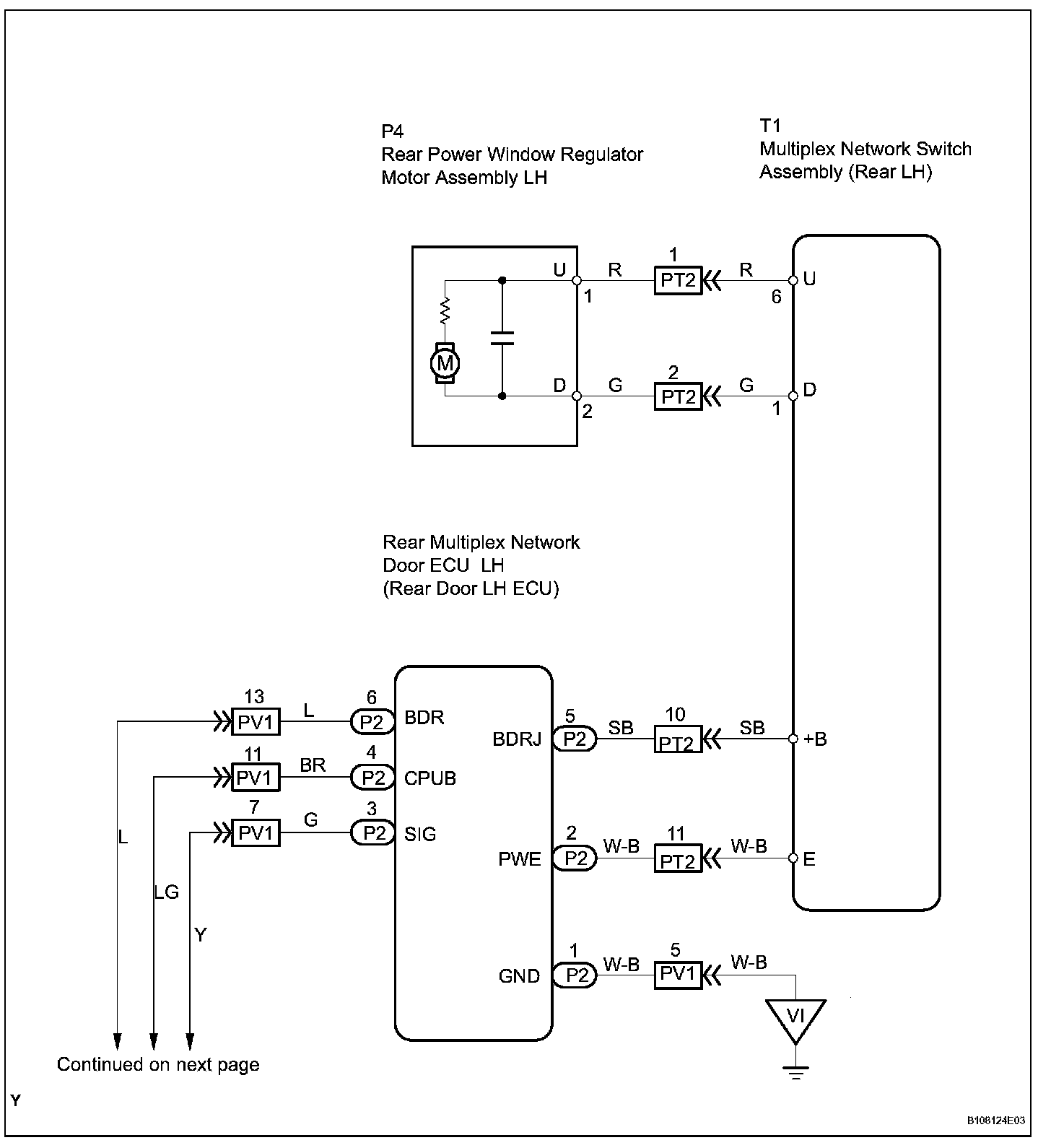

Wiring Diagram (Part 1):
Wiring Diagram (Part 2):

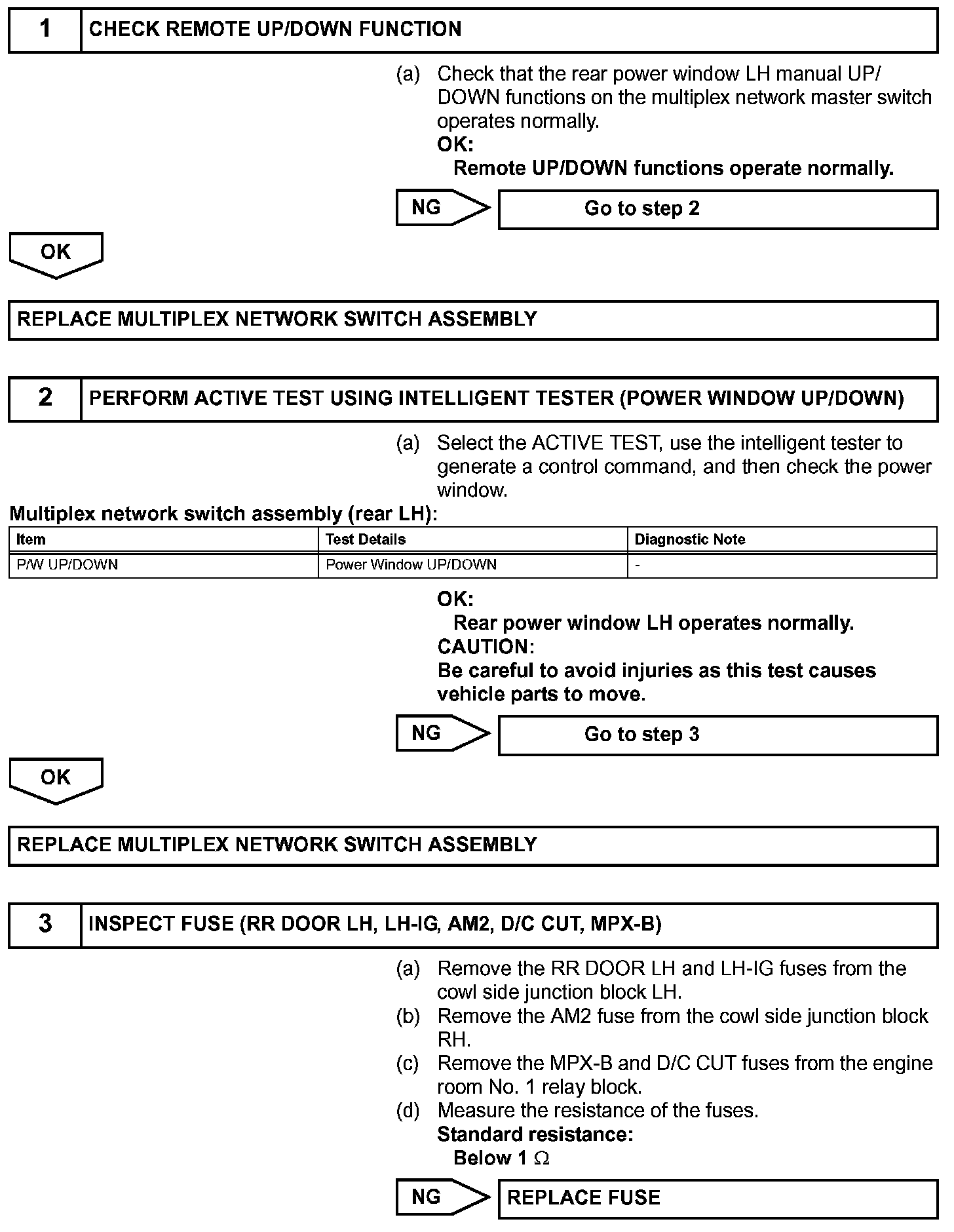

Step 1-3:

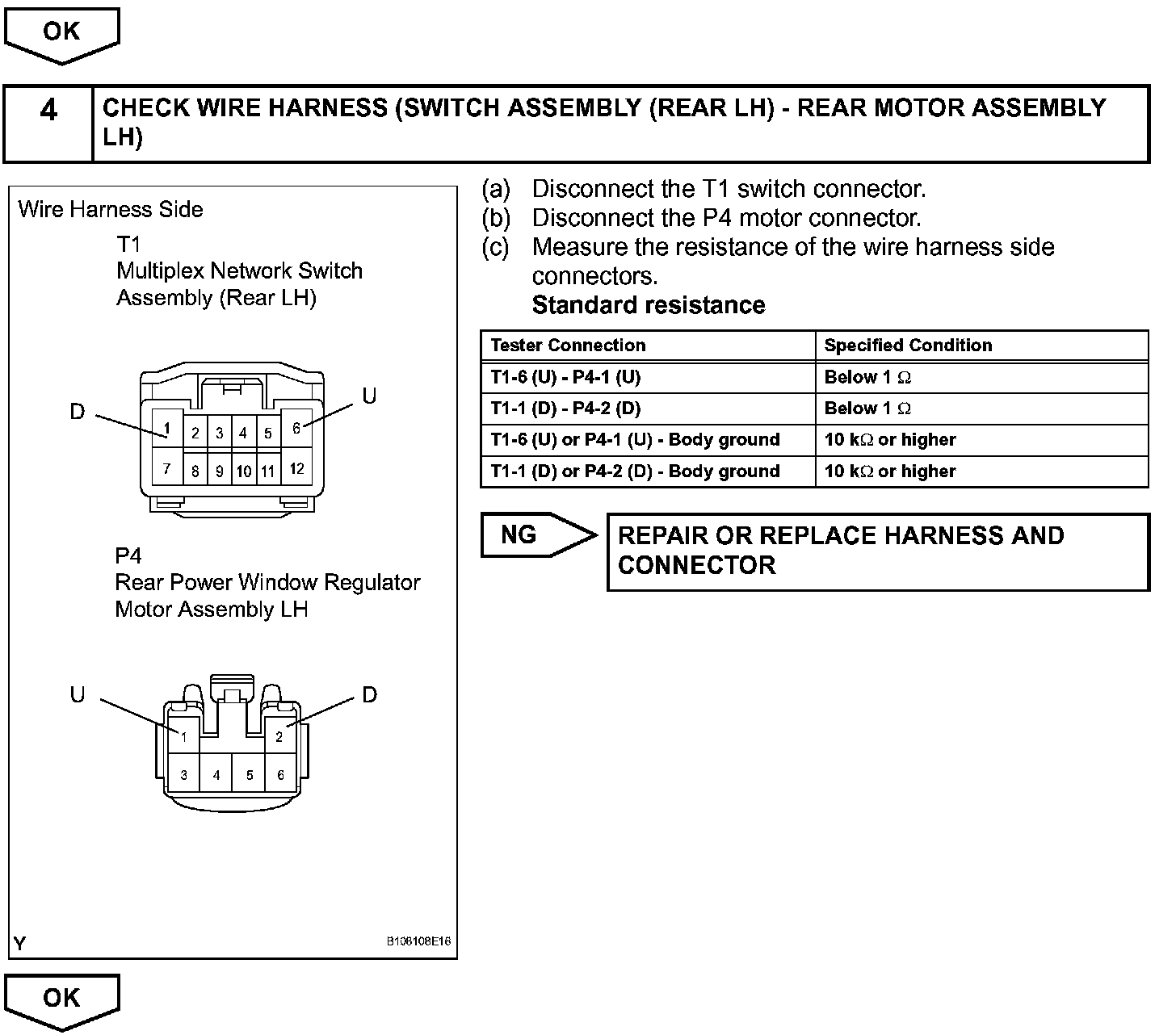

Step 3(Continued)-4:

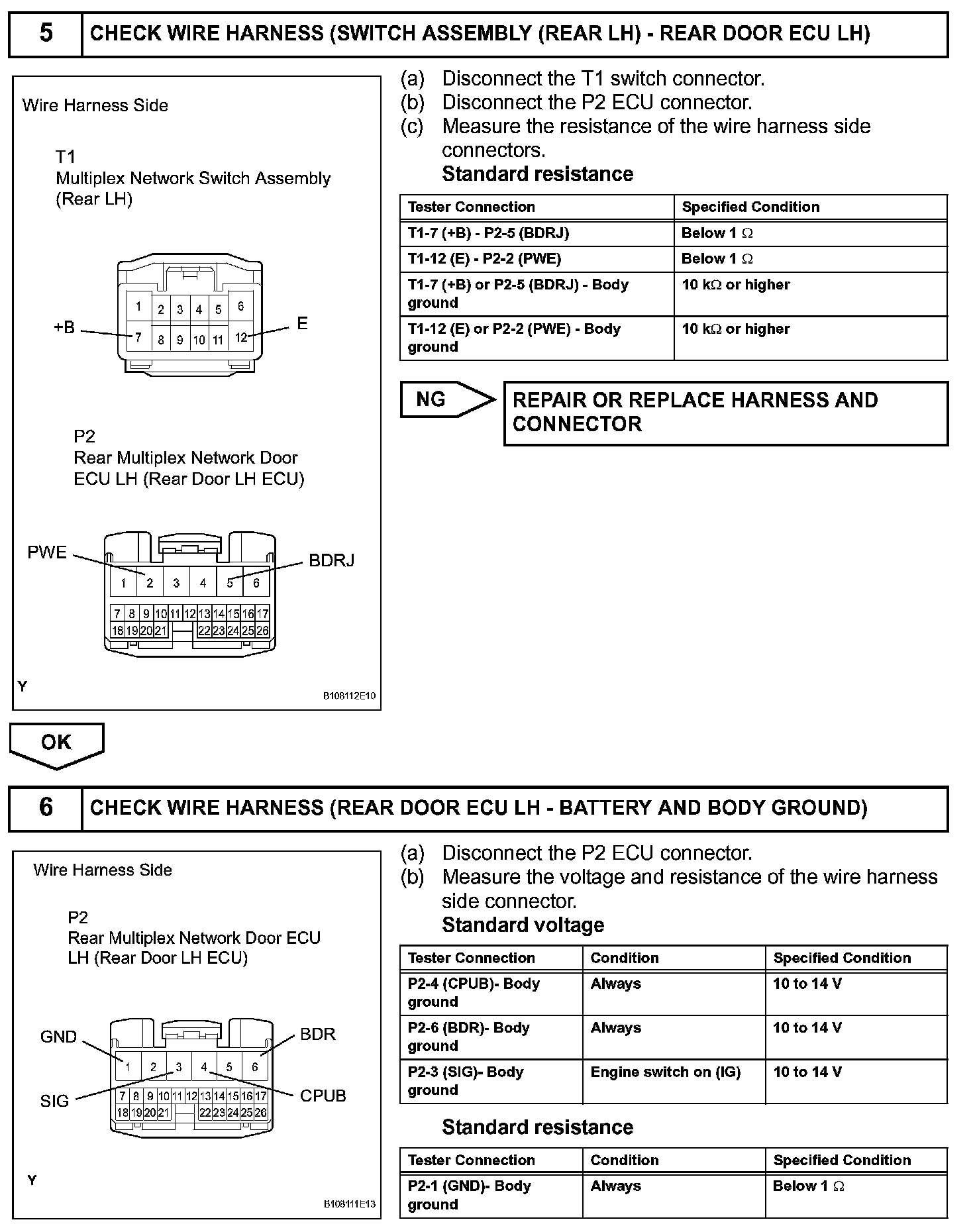

Step 5-6:

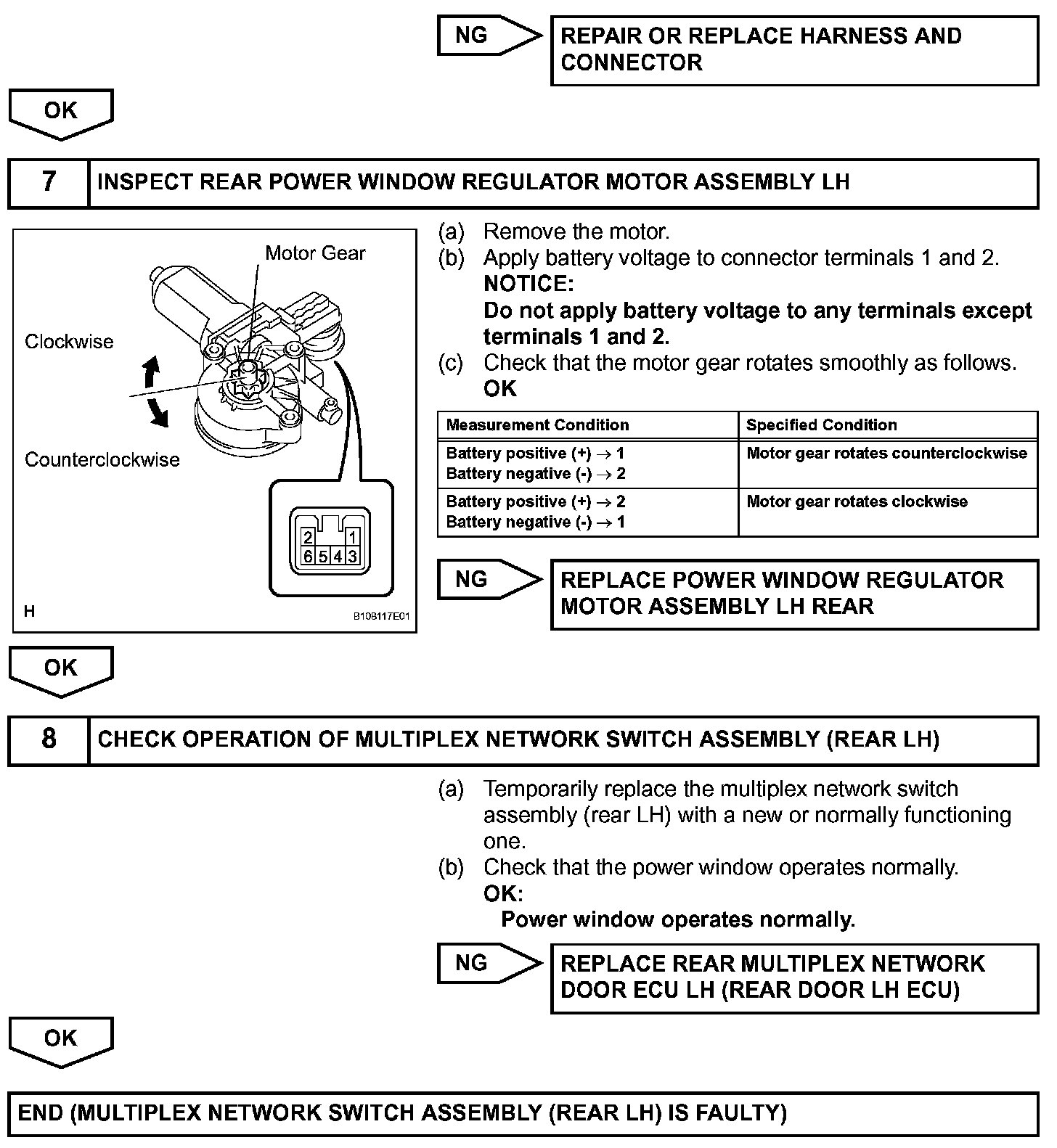

Step 6(Continued)-8:
INSPECTION PROCEDURE
