Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch
Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window SwitchDESCRIPTION
If the AUTO UP/DOWN function does not operate, the cause may be one or more of the given.
- The recorded power window fully closed position, which is stored in the multiplex network switch, was erased as a result of: 1. a fuse or relay related to the passenger side power window being replaced; or 2) the battery cable and the switch's connector being disconnected.
- The switch has a malfunction.
- The pulse sensors in the passenger side power window regulator motor have a malfunction.
- The wiring between the switch and the passenger side power window regulator motor is open or short.

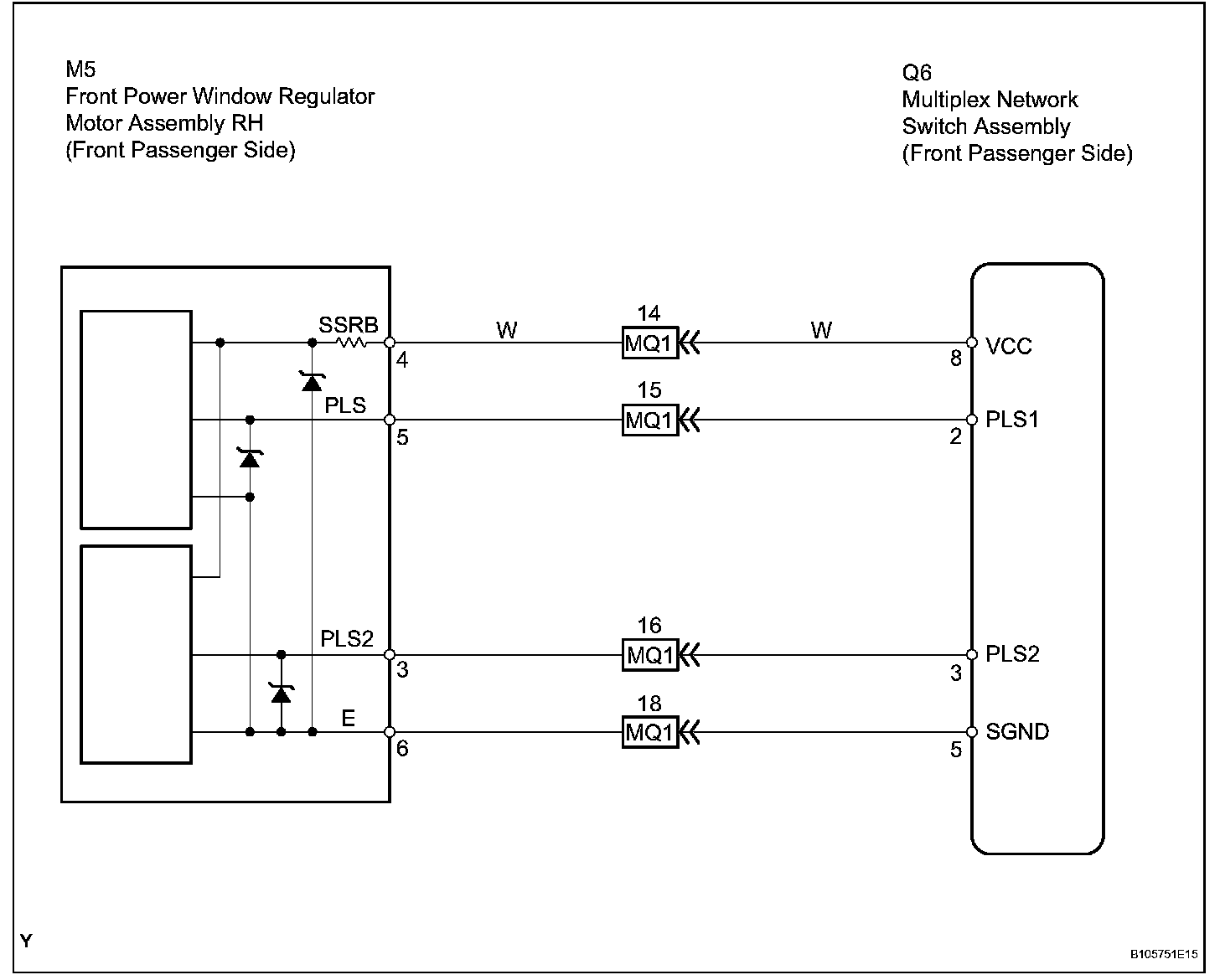

Wiring Diagram:

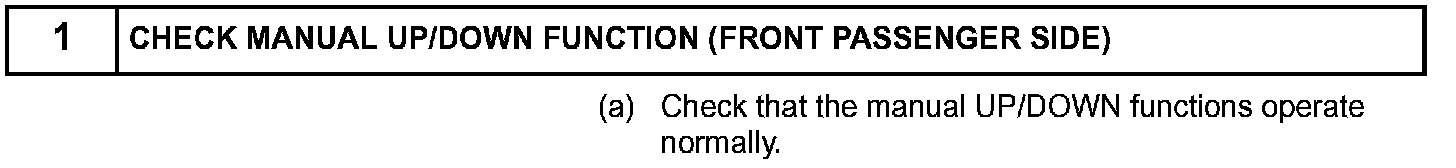

Step 1:

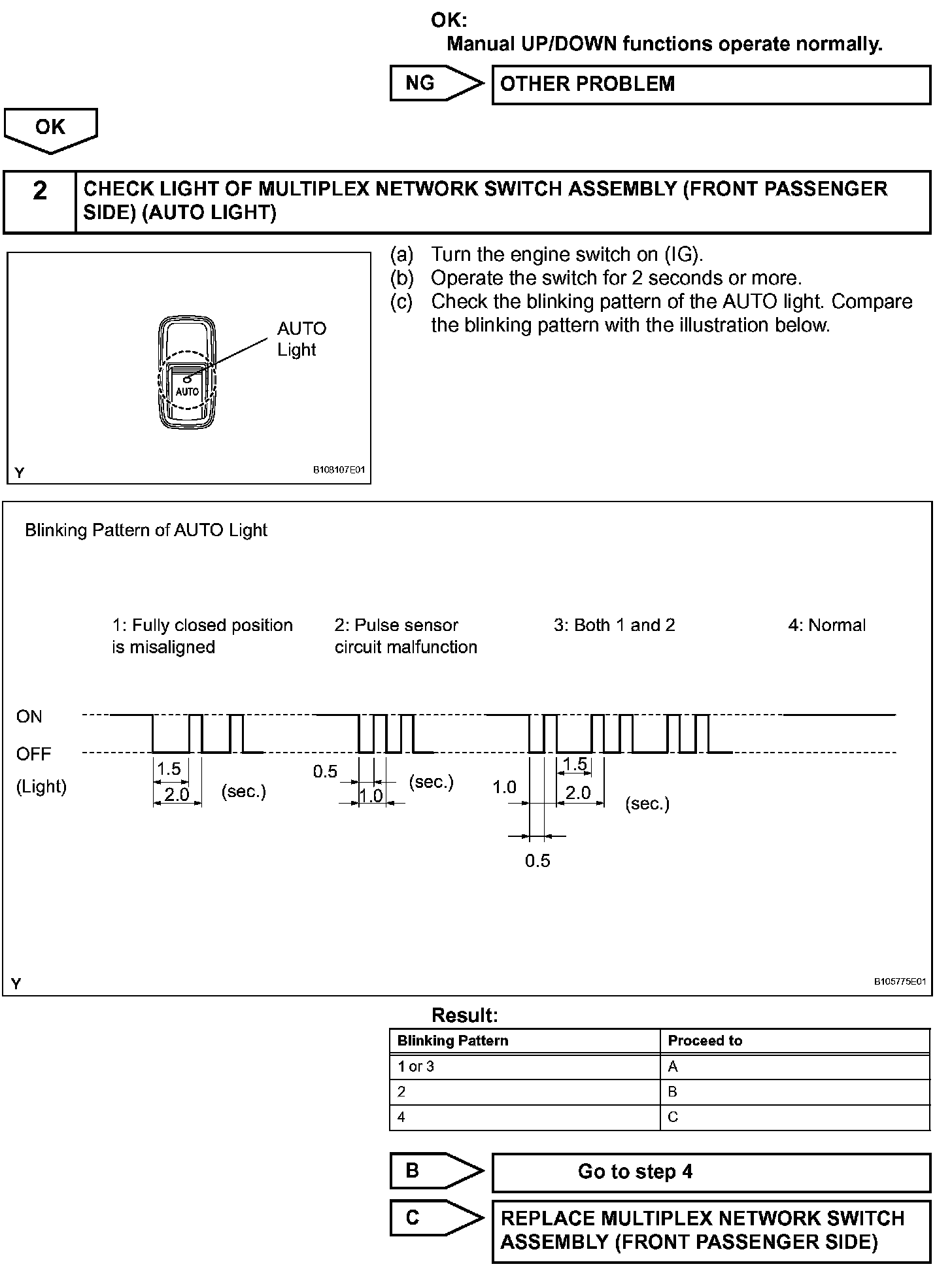

Step 1(Continued)-2:

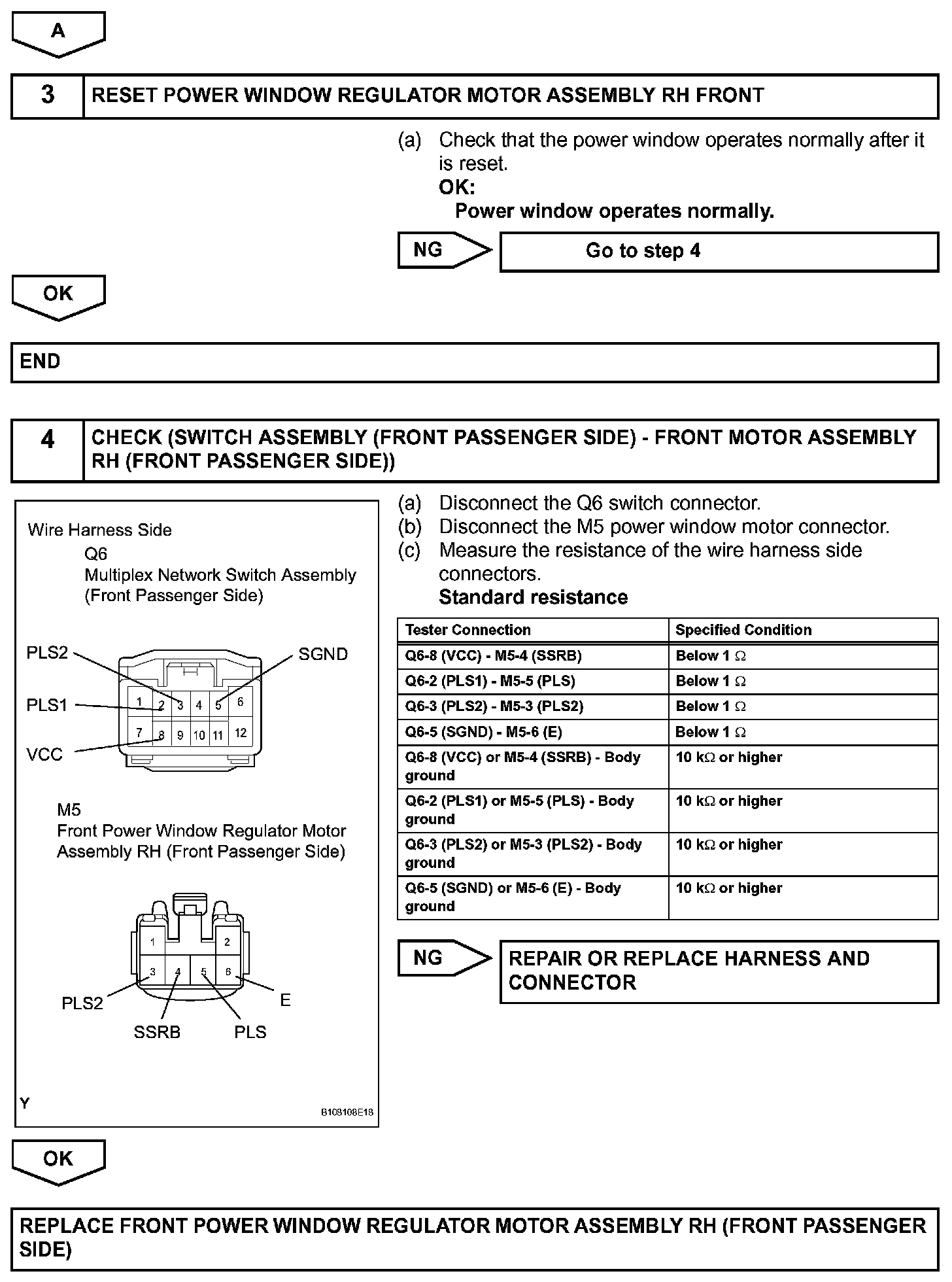

Step 2(Continued)-4:
INSPECTION PROCEDURE
