Driver Side Power Window Does Not Operate With Power Window Master Switch

Driver Side Power Window does not Operate with Power Window Master Switch

DESCRIPTION
If the manual UP/DOWN function does not operate, there may be a malfunction in the multiplex network door ECU front LH, multiplex network master switch, power window regulator motor or wire harness.

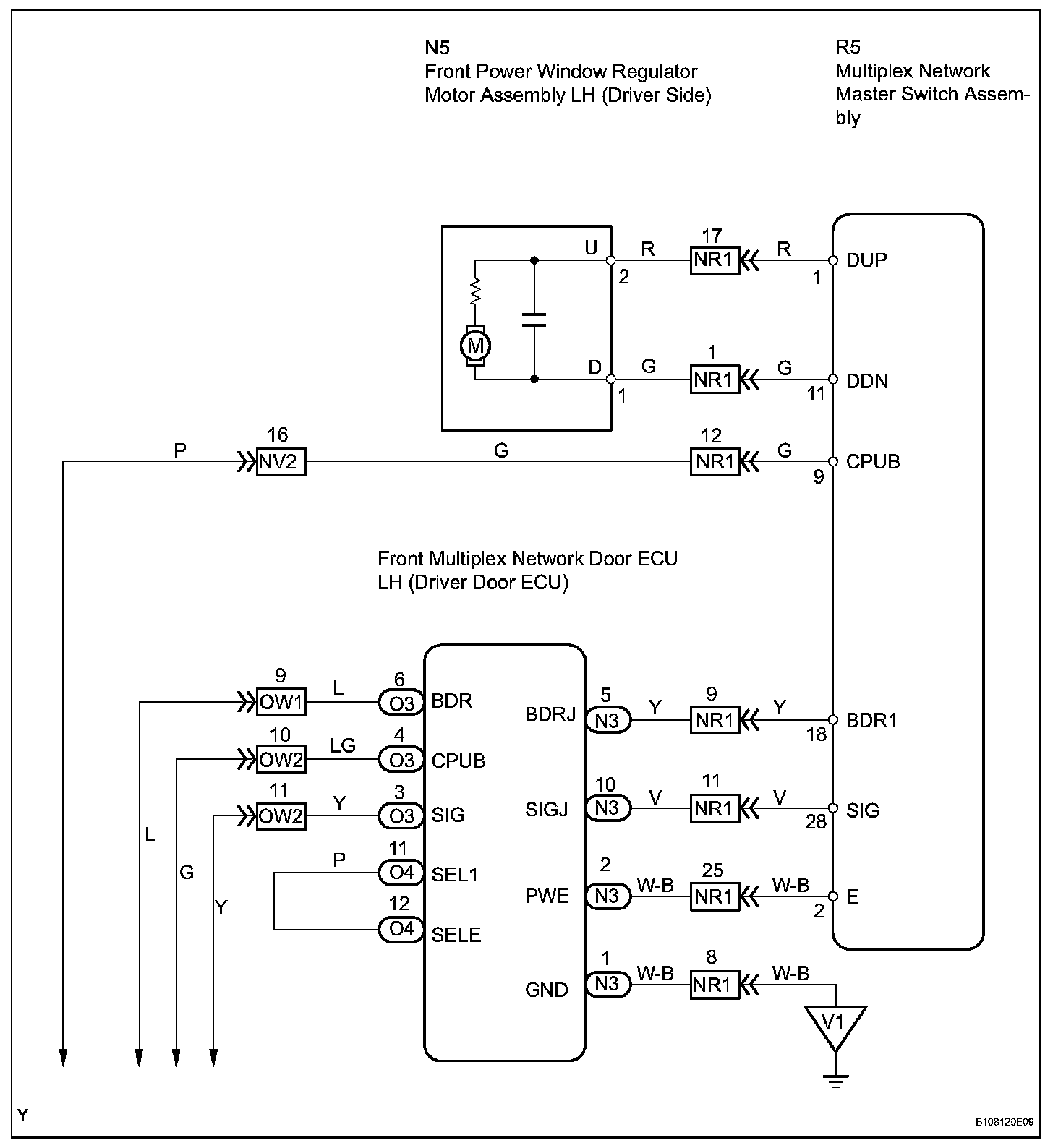

Wiring Diagram (Part 1):

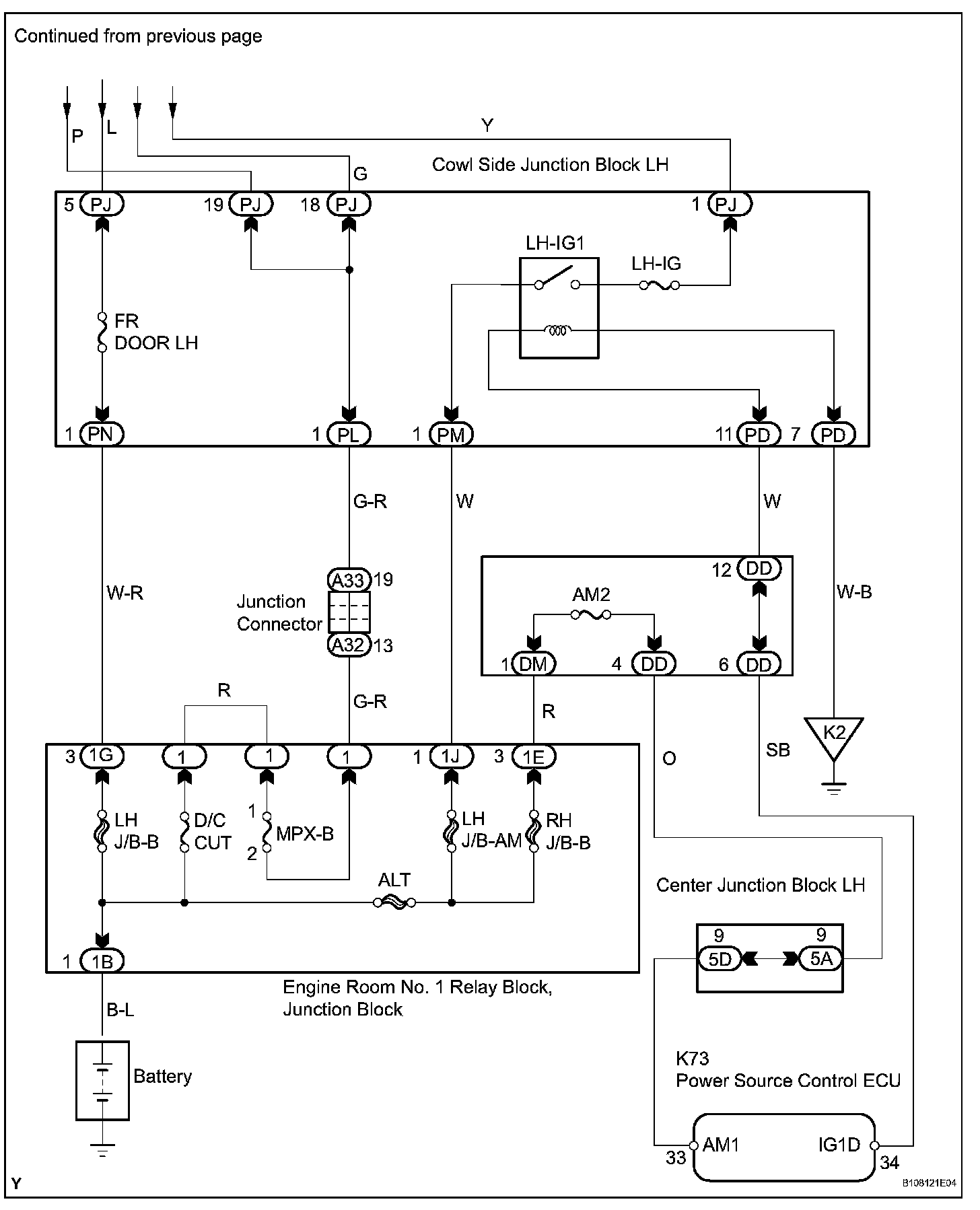

Wiring Diagram (Part 2):

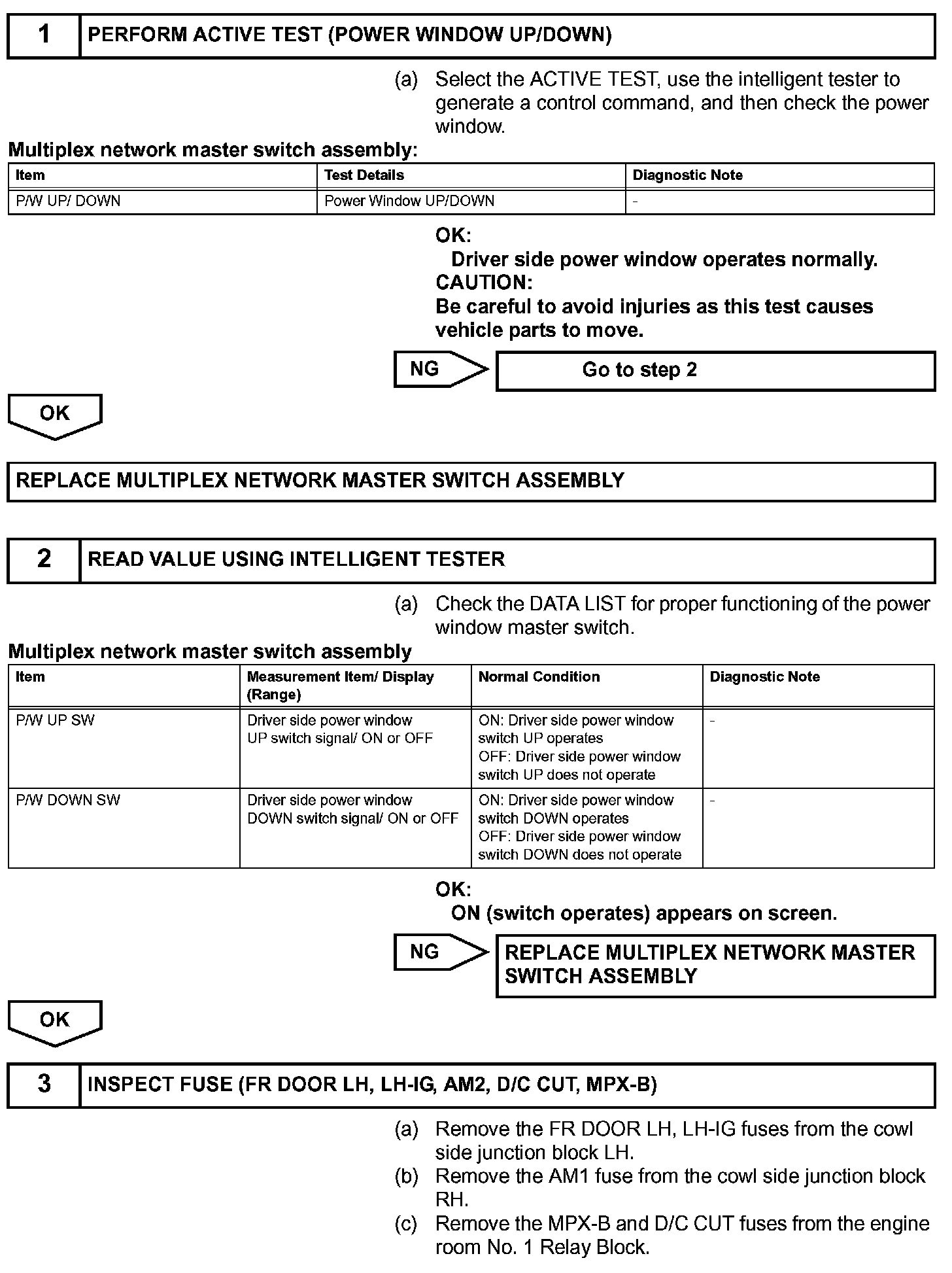

Step 1-3:

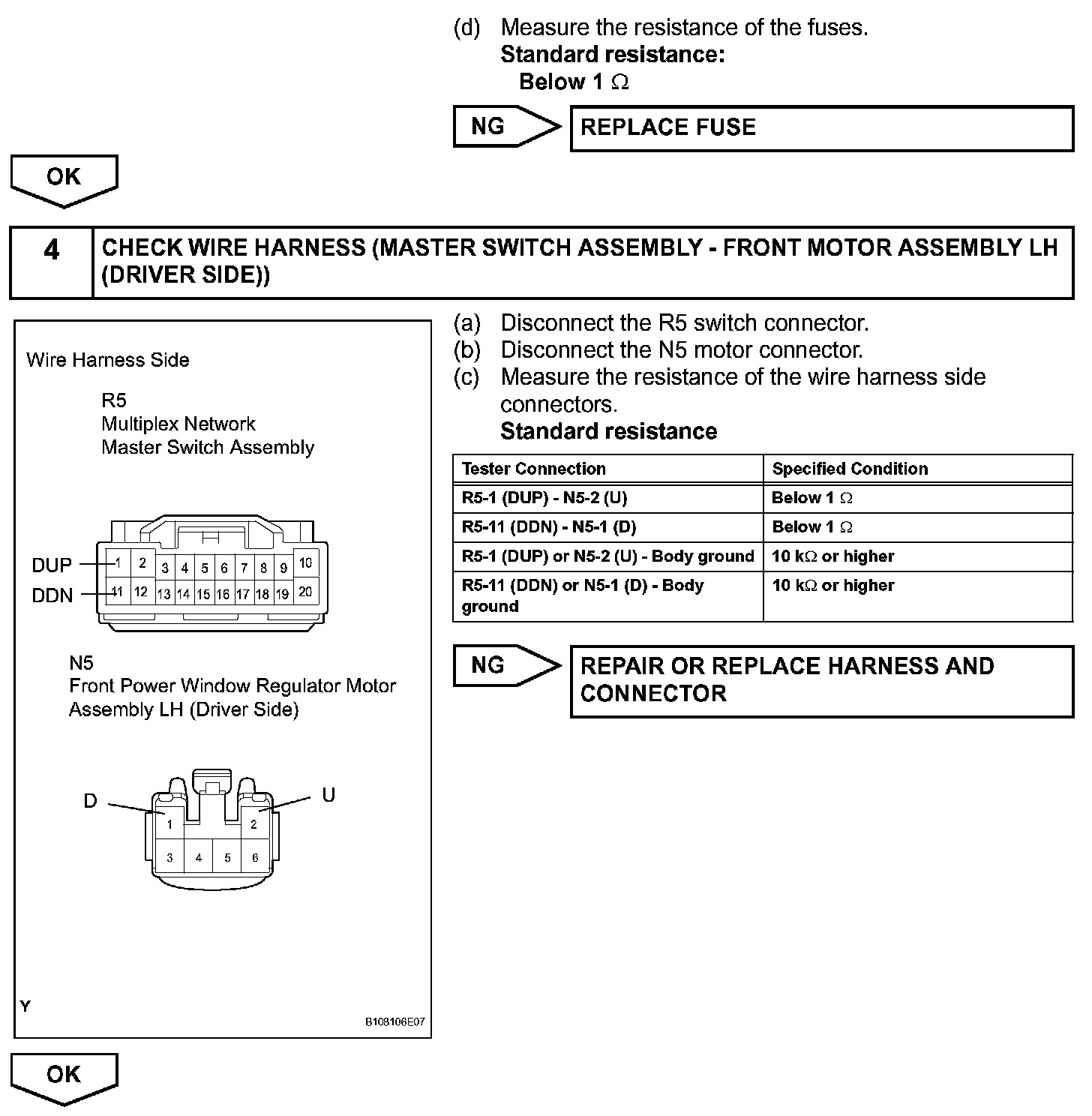

Step 3(Continued)-4:

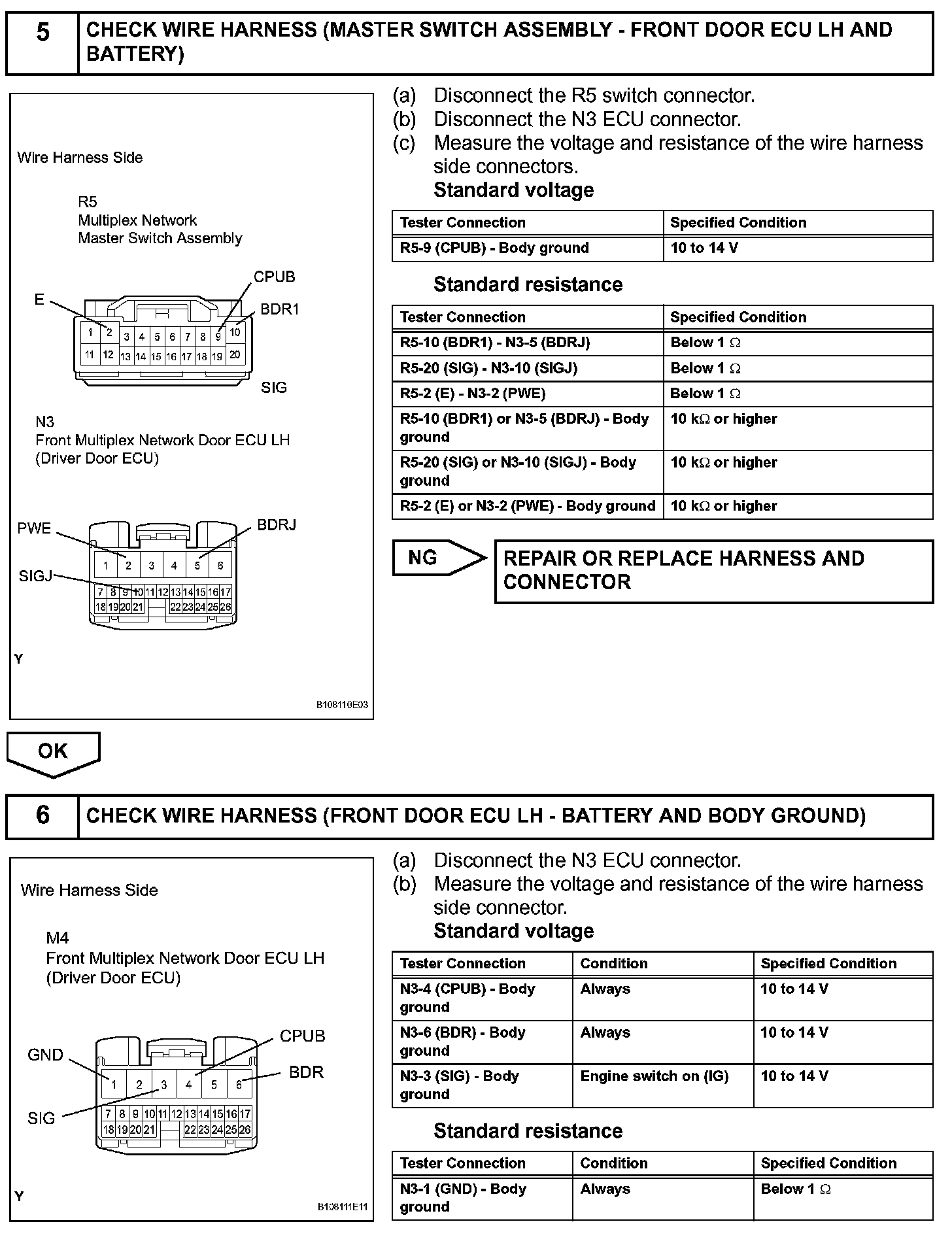

Step 5-6:

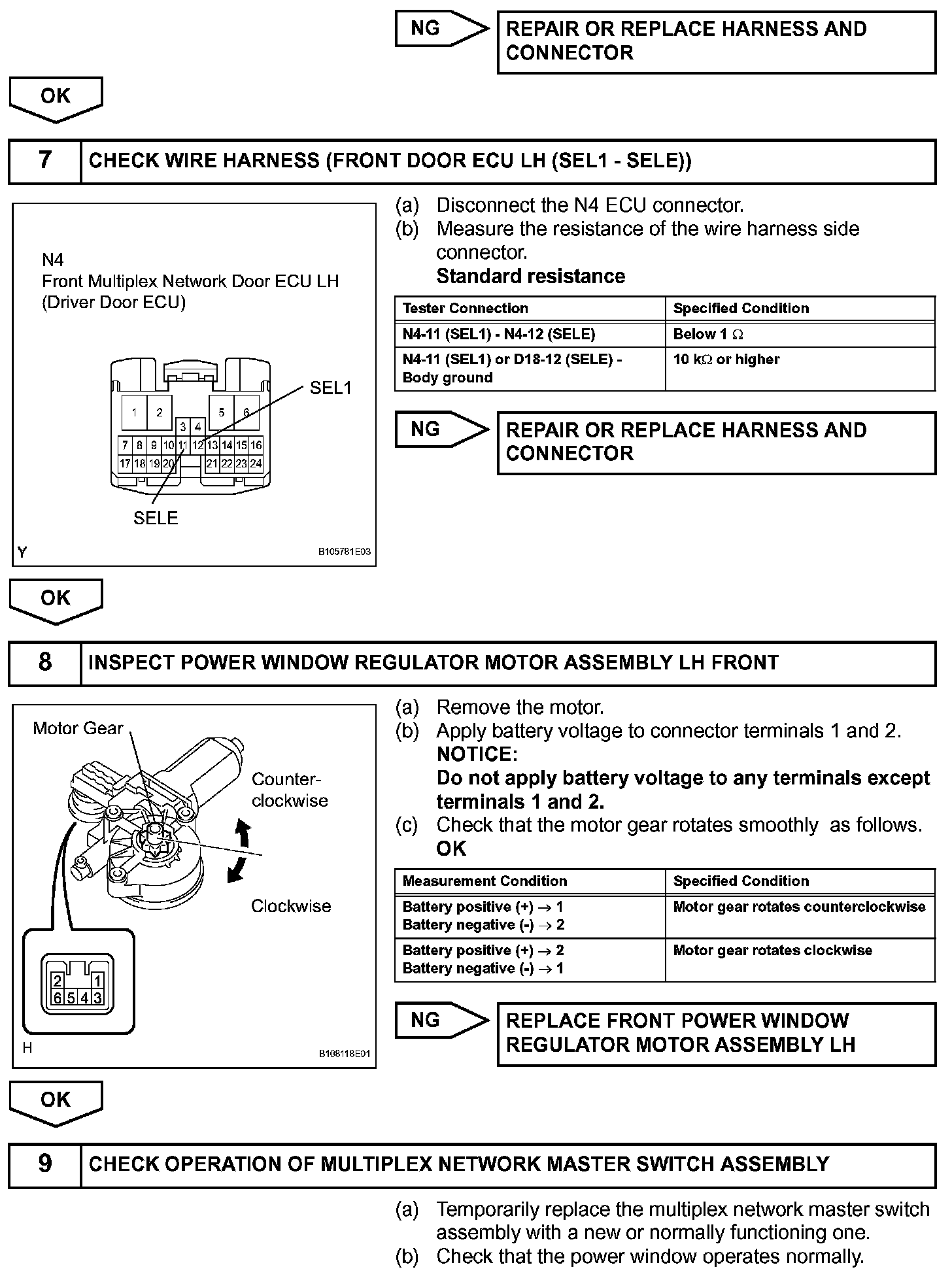

Step 6(Continued)-9:

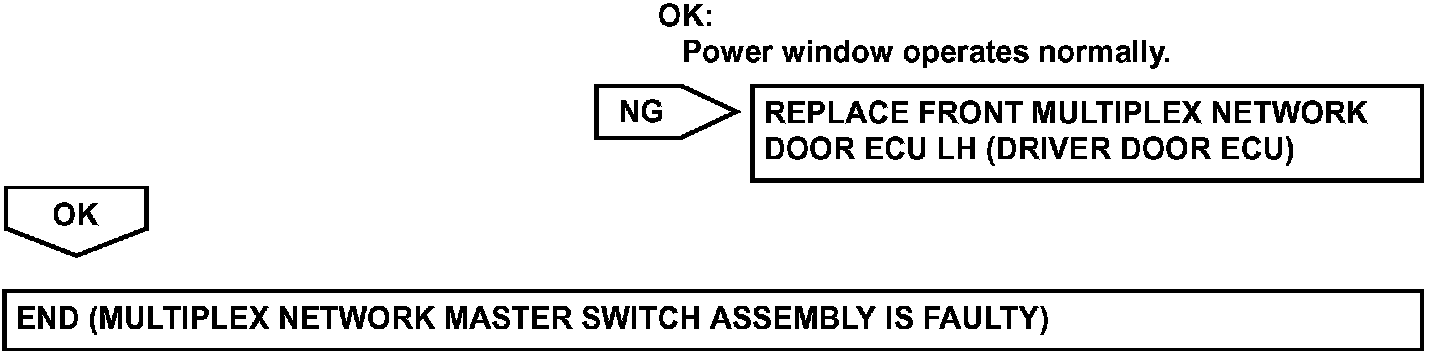

Step 9(Continued):

INSPECTION PROCEDURE
