Power Window Motor: Testing and Inspection

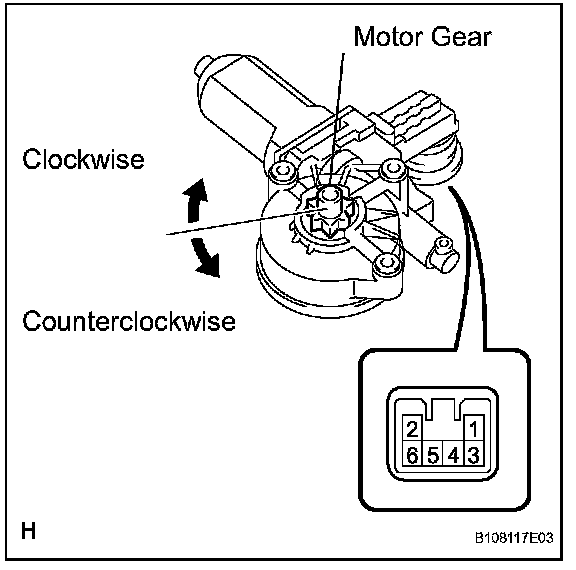

ON-VEHICLE INSPECTION1. INSPECT POWER WINDOW REGULATOR MOTOR FRONT LH
a. Apply battery voltage to connector terminals 1 and 2
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2

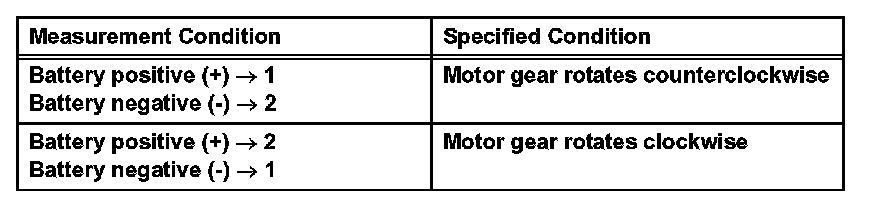

b. Check that the motor gear rotates smoothly as follows.
If the result is not as specified, replace the motor.

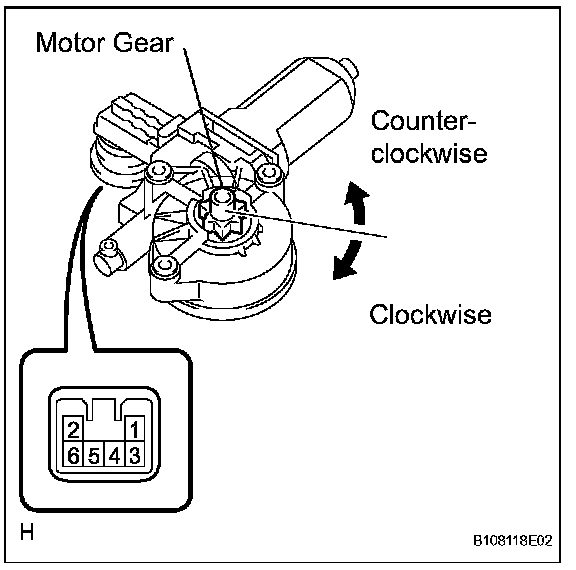

2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT RH
a. Apply battery voltage to connector terminals 1 and 2
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2

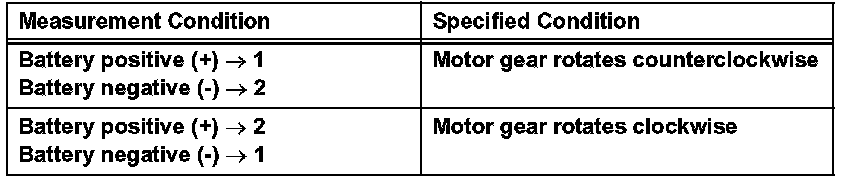

b. Check that the motor gear rotates smoothly as follows.
If the result is not as specified, replace the motor.

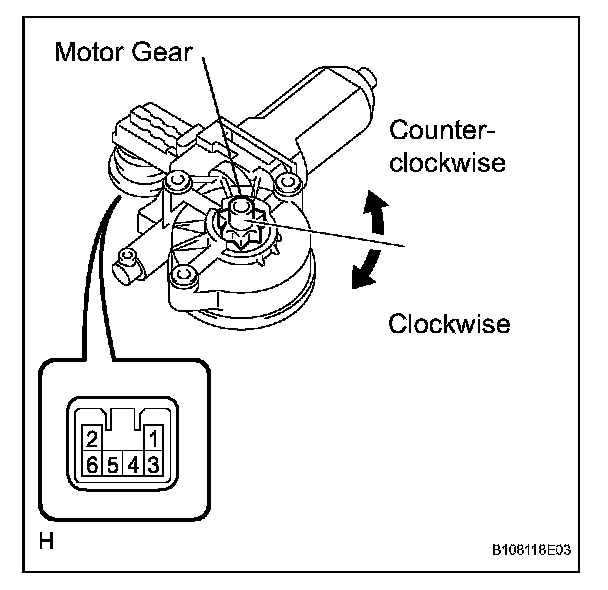

3. INSPECT POWER WINDOW REGULATOR MOTOR REAR LH
a. Apply battery voltage to connector terminals 1 and 2
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2

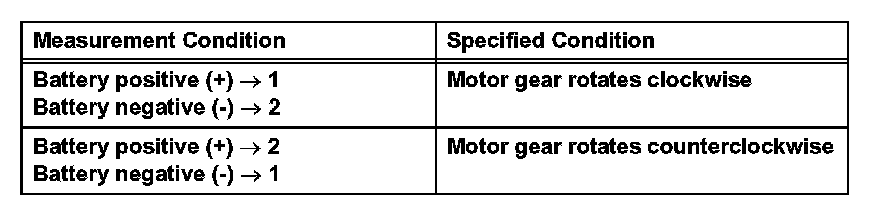

b. Check that the motor gear rotates smoothly as follows.
If the result is not as specified, replace the motor.

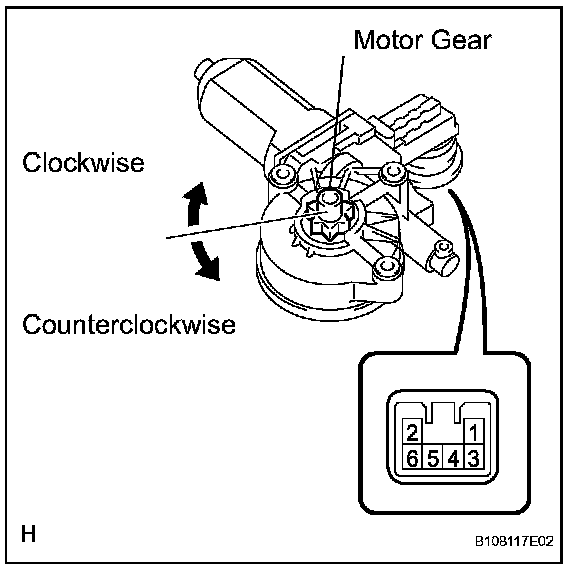

4. INSPECT POWER WINDOW REGULATOR MOTOR REAR RH
a. Apply battery voltage to connector terminals 1 and 2
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2

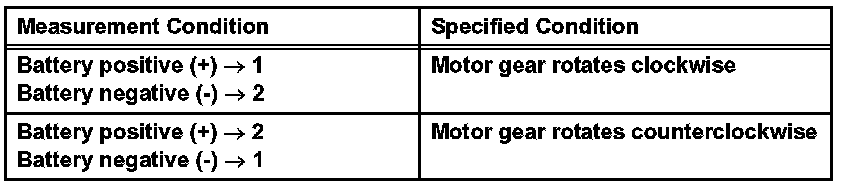

b. Check that the motor gear rotates smoothly as follows.
If the result is not as specified, replace the motor.
