Home
>>
Lexus
>>
2006
>>
GS 300 RWD V6-3.0L (3GR-FSE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Relays and Modules - Windows and Glass
>>
Heated Glass Element Relay
>>
Locations
Heated Glass Element Relay: Locations

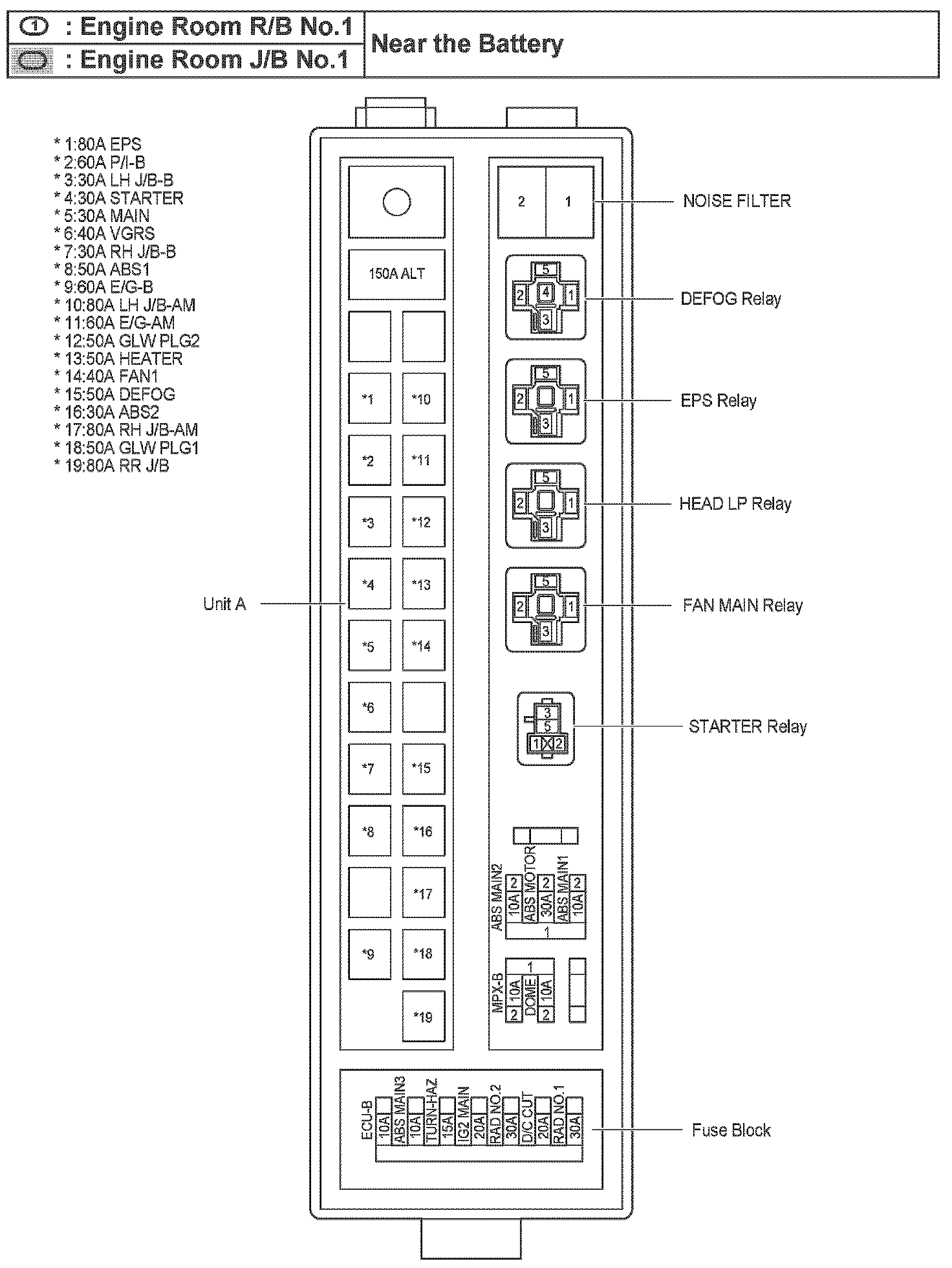

Engine Room R/B, J/B No.1-Near The Battery:

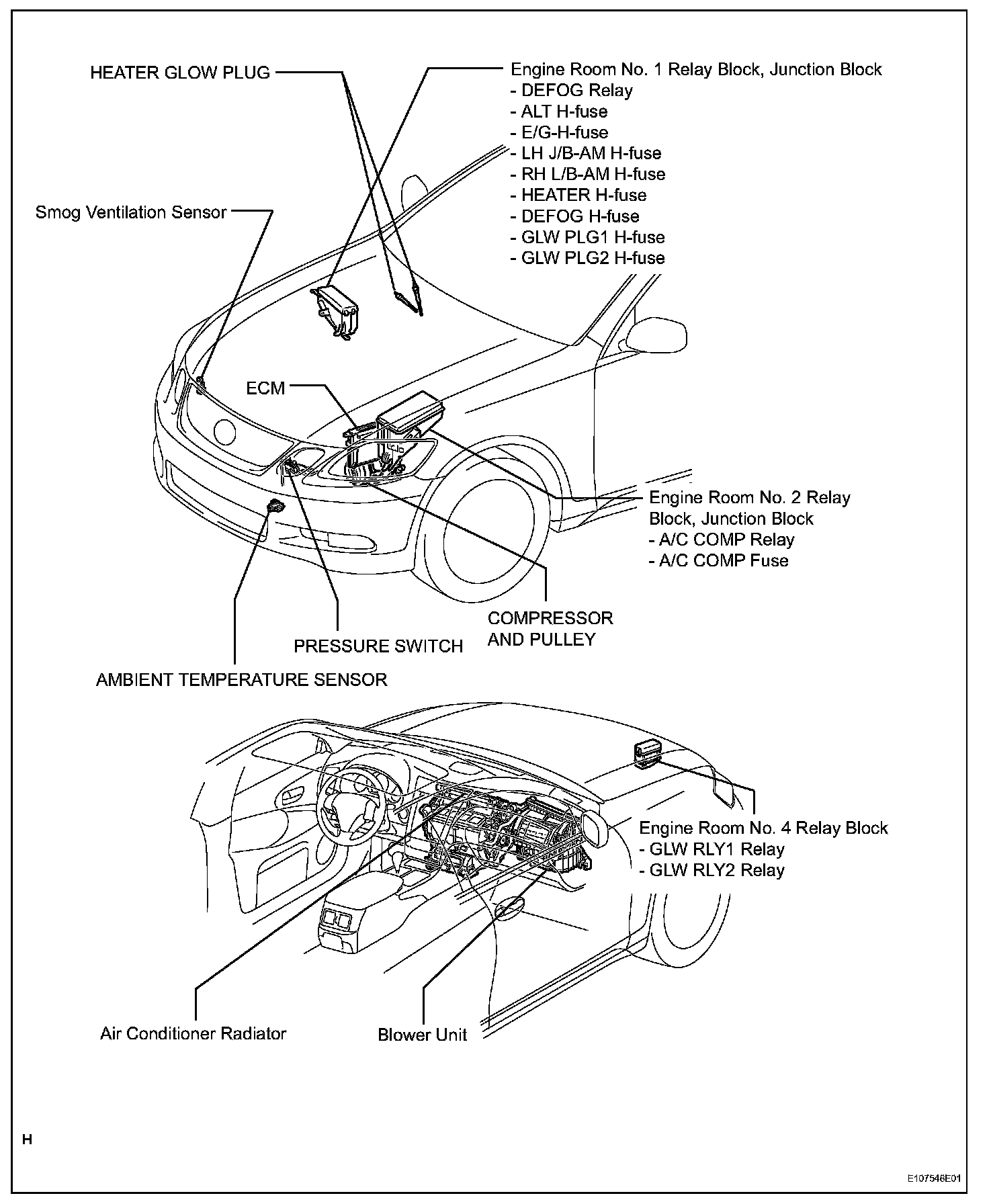

Air Conditioning System:
Window Defogger System:
