Rear Window Defogger System Does Not Operate

Rear Window Defogger System does not Operate

DESCRIPTION
When the defogger switch is turned ON, a rear defogger activation request signal is input to the multidisplay. Then, the A/C amplifier assembly (A/C ECU) outputs this signal to the defogger relay (Marking: DEFOG) and the rear window defogger system is activated.

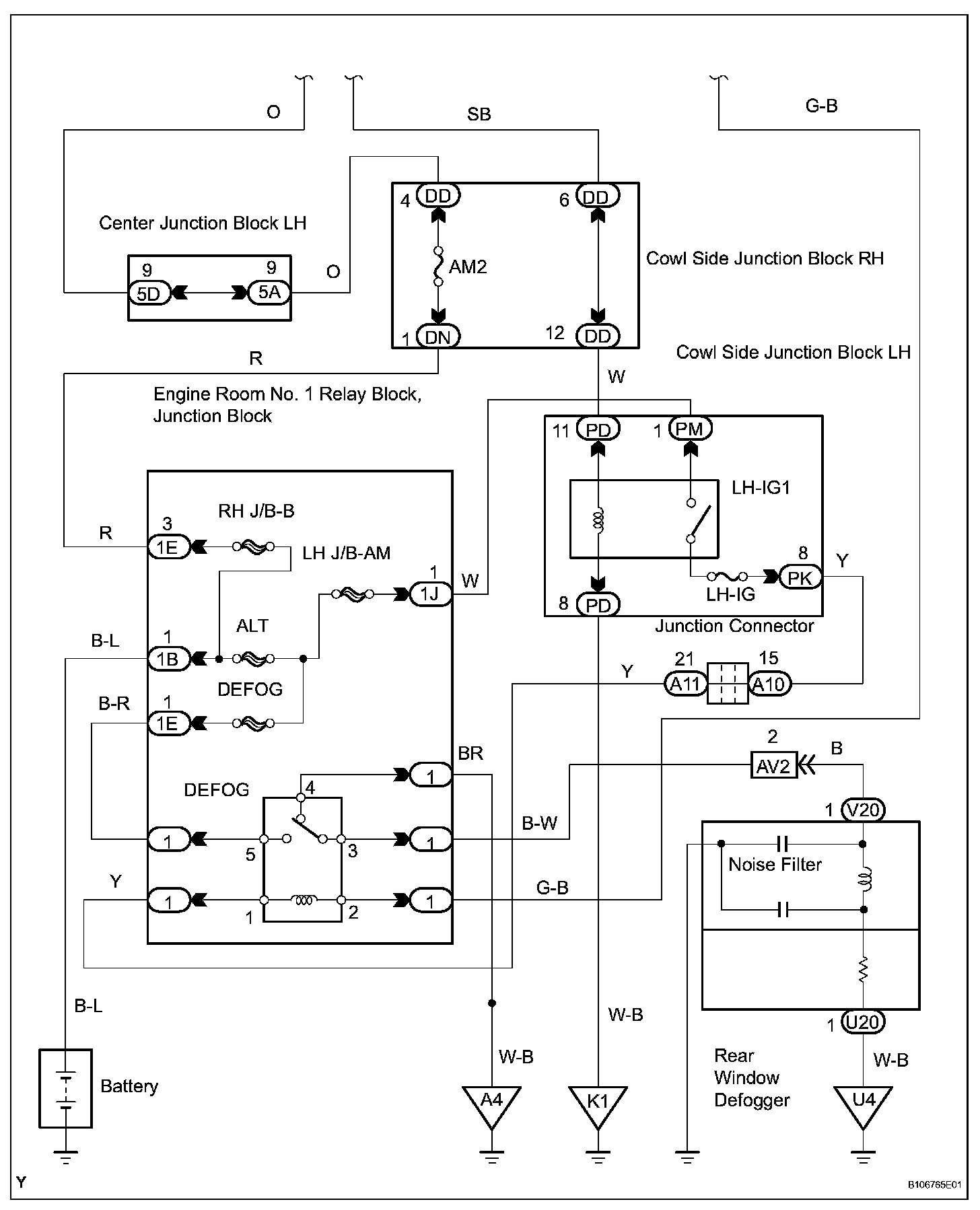

Wiring Diagram (Part 1):

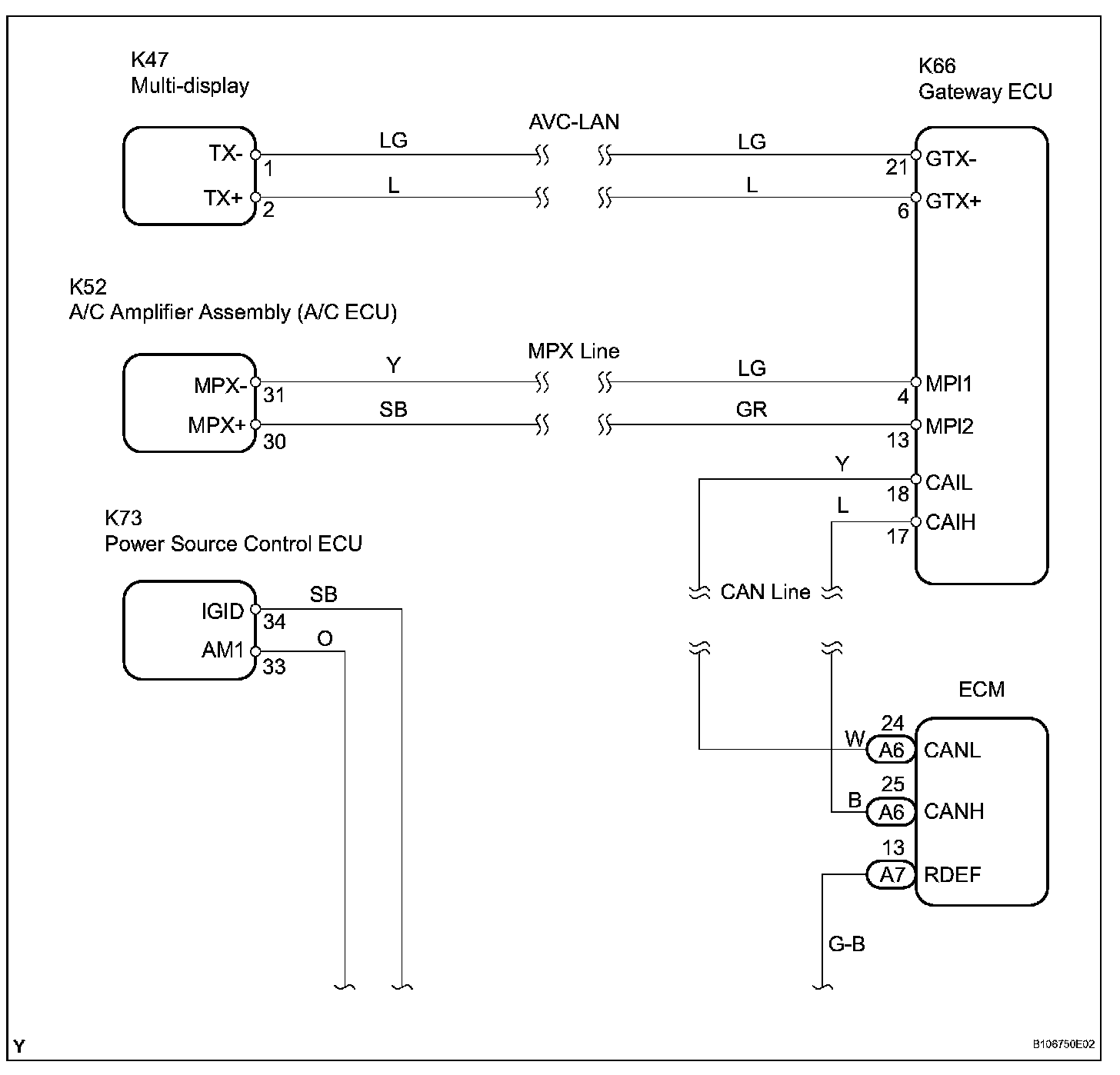

Wiring Diagram (Part 2):

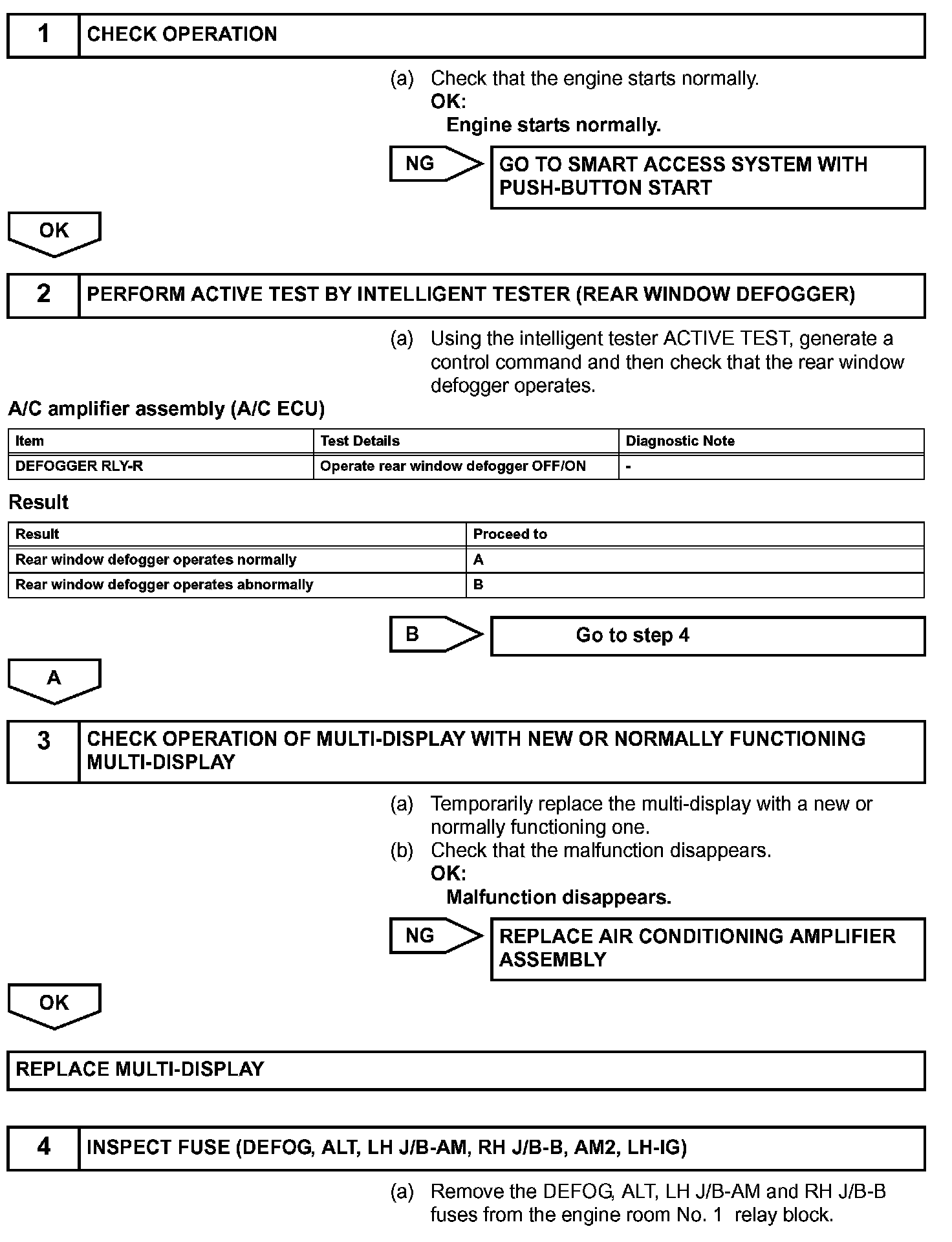

Step 1-4:

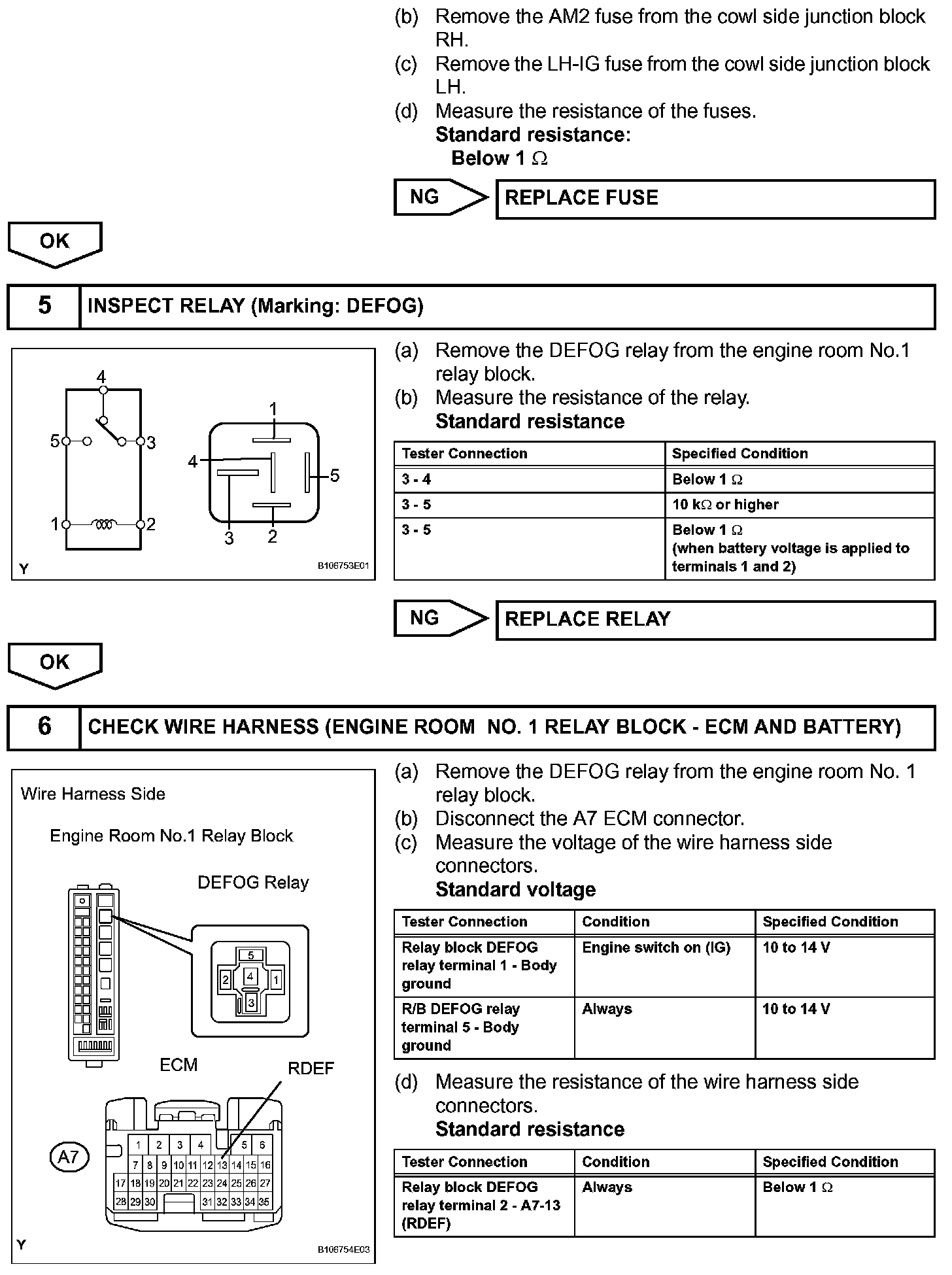

Step 4(Continued)-6:

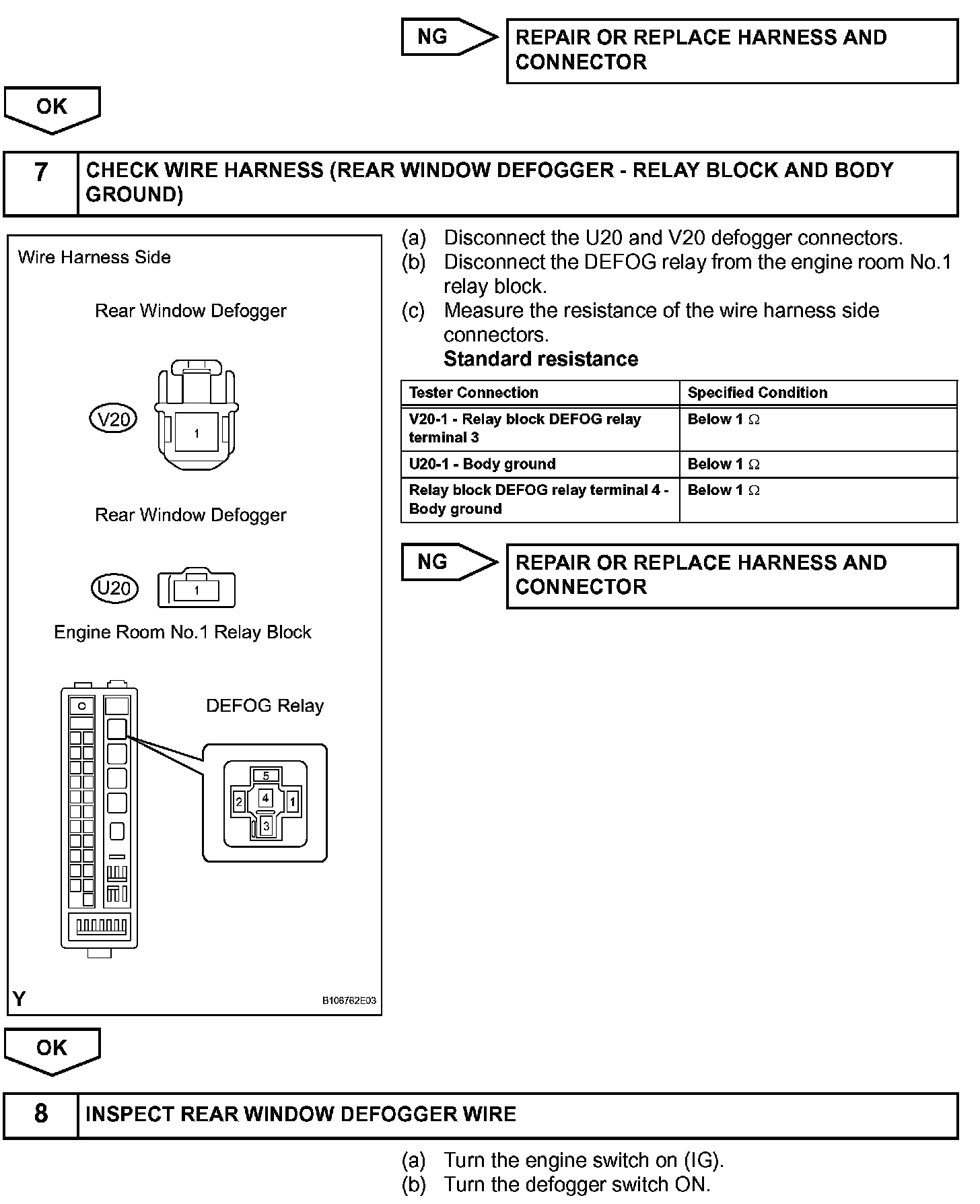

Step 6(Continued)-8:

Step 8(Continued)-9:

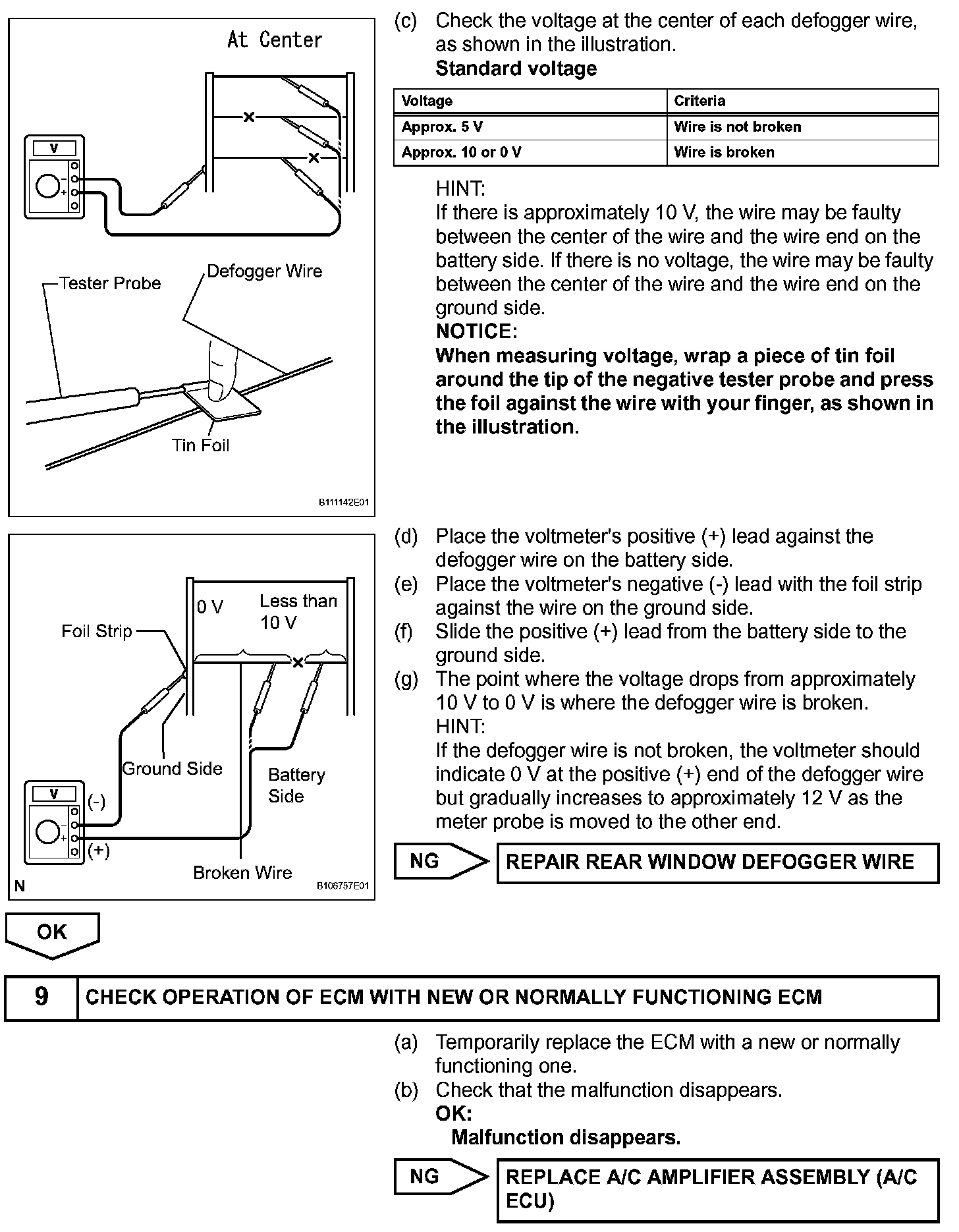

Step 9(Continued):

INSPECTION PROCEDURE
