Problem Symptoms Table - Drive Shaft, Propeller Shaft, Axle
Problem Symptoms Table - Drive Shaft, Propeller Shaft, Axle
DRIVE SHAFT SYSTEM
Use the table to help find the cause of the problem. Check each part. If necessary, replace these parts.

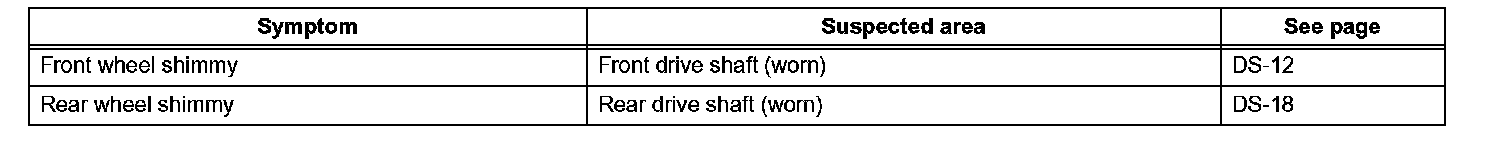

PROBLEM SYMPTOMS TABLE:
